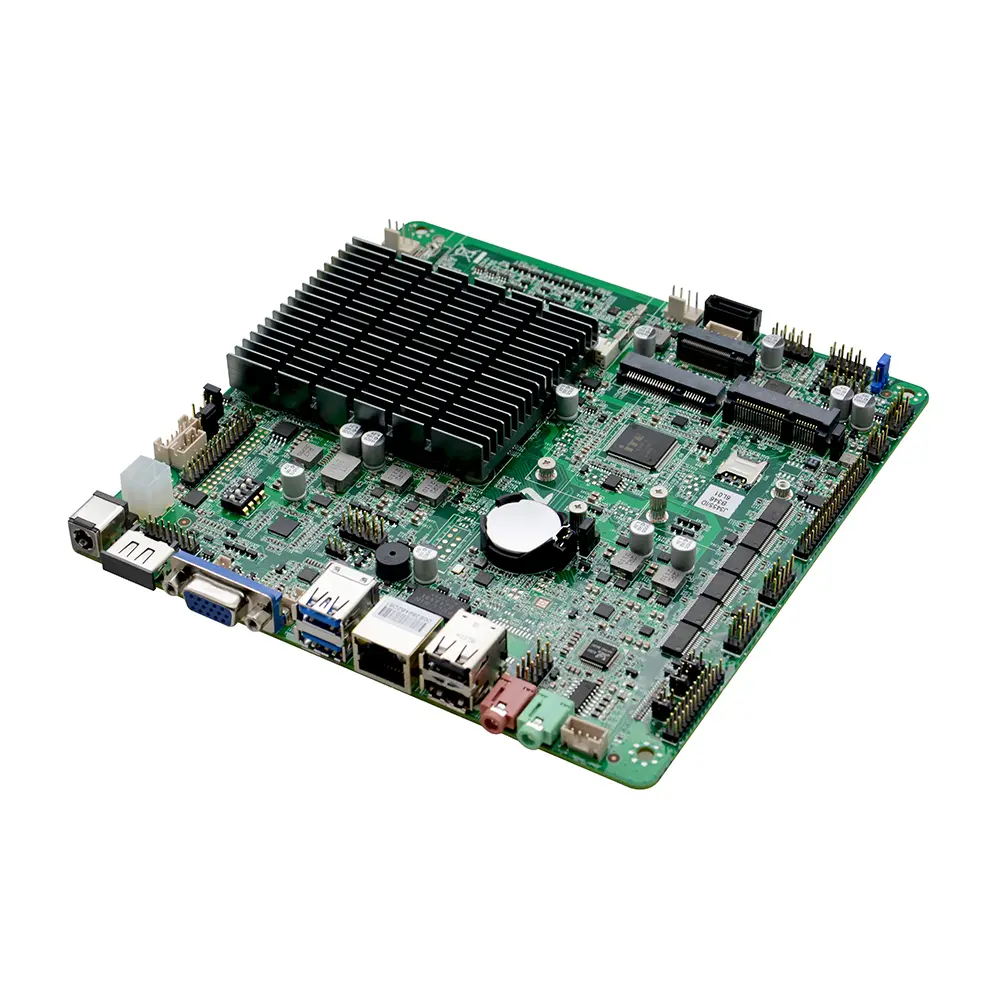

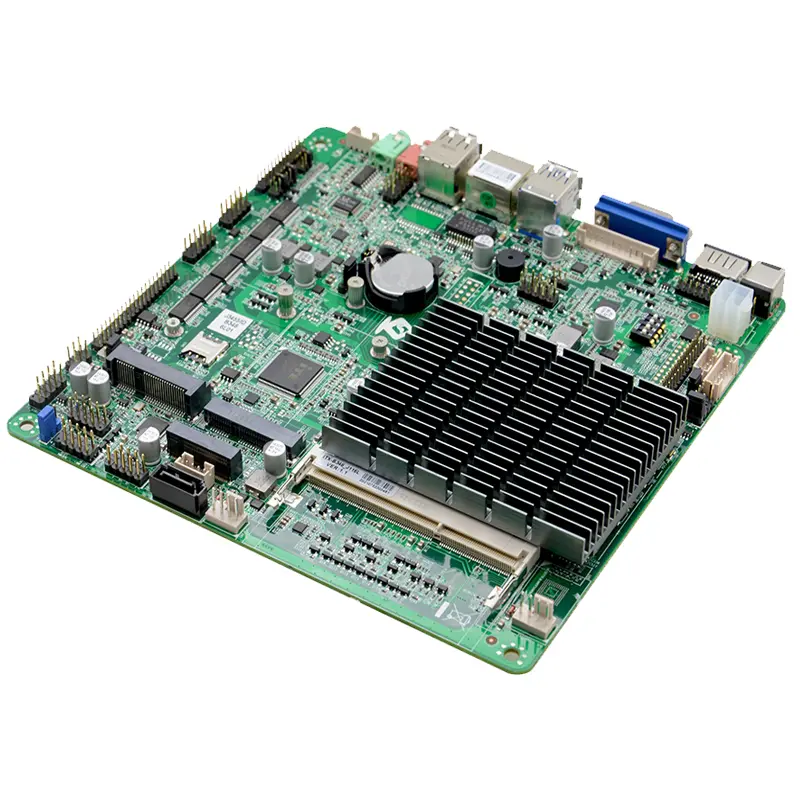

X86 thin mini itx motherboard J4125

X86 thin mini itx motherboard J4125

Model: ITX-B411_J126L

  • J4125 2.0GHz quad-core processor
  • 1* DDR4 SODIMM,up to 8GB
  • 1/2* RTL8111H Gigabit Ethernet
  • 1* 7pin SATA3.0,1* MSATA slot
  • 2*USB3.0, 6*USB2.0, 2* RS232 COM Port
  • 1*VGA, 1*HD OUTPUT,1*LVDS

Share to:

Overview



A Thin ITX (Mini-ITX) motherboard is a compact form factor motherboard designed to fit into smaller computer cases, making it ideal for building compact and space-efficient systems. These motherboards typically have a smaller footprint, measuring 170mm x 170mm, and are commonly used in small form factor (SFF) PCs, home theater PCs (HTPCs), and other applications where space is limited.



Product number ITX-B411_J126L VER:1.2E(J4125)
processor Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W
  Compatible with the full range of Intel Gemini Lake CPUs for customers to choose flexibly
chipset SOC
RAM 1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
show



Integrated Intel® UHD Graphics 600 Core Graphics
1* VGA, 1* HD OUTPUT, 1* LVDS interface, support dual channel 24BIT
The internet 1* Realtek RTL8111HS Gigabit LAN, support Wake-on-LAN/PXE
storage



1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* MSATA slot supports SSD solid state drive, the transfer speed can reach 6Gbps
audio



Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. Power amplifier
It is recommended to use a 2Ω5W speaker for the power amplifier
Expand 1* Mini-PCIE slot, support WIFI, 4G module
Backplane I/O Interface











Note: If MINIPE1 needs to support 4G module, you need to adjust the relevant hardware settings, and it will cause F_USB2 to only support 1 USB
1* HD OUTPUT display interface
1* VGA display interface
2* USB3.0 interface, 2* USB2.0 interface
1* RJ-45 Gigabit network interface
1* Line out interface (green), 1* MIC interface (red)
Built-in I/O interface



























1* 12V DC power input interface
1* 4pin ATX power interface (can be used as 12V input and output power interface)
1* LVDS interface 2*15pin, support dual channel 24BIT
1* Screen backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
4* USB 2.0 interface 2*5Pin
1* J_HD OUTPUT interface 2*8Pin (same signal as HD OUTPUT1 of backplane IO interface)
1* JVGA interface 1*12Pin (same signal as DB15)
6* RS232 serial interface, COM2 supports RS485
1* LPT parallel interface 2*13Pin
1* Front audio interface 2*5pin
1* Front panel switch button and indicator port 2*5Pin
1* HDD power supply interface 1*4pin
1* Amplifier interface 1*4pin
1* SIM card holder
Fan interface Fanless cooling design, reserved 1*4pin CPU fan interface, 1*3pin system fan interface
GPIO Support 4 input and output GPIO
BIOS 64Mb Flash ROM
watchdog Support hardware reset function (256 levels, 0~255 seconds)
operating system Windows 7/Windows 10/Linux
Power Type Powered by DC 12V power supply
Operating temperature -10℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, no condensation
size 170mm*170mm
Model Processor Frequency Memory VGA LVDS HDMI LAN EDP USB RS485 COM RS485 Power
ITX-B411_J126L VER:1.2E(J4125) J4125 2.0G 1*SODDR4

1

2ch*24bit

1

2*8111H / 8 COM2 6 COM2 DC 12V
ITX-B411_J116L VER:1.2E(J4125) J4125 2.0G 1*SODDR4

1

2ch*24bit

1

1*8111H / 8 COM2 6 COM2 DC 12V
