12th Gen I5 I7 Touch Panel PC

Model: Partaker A18-A24

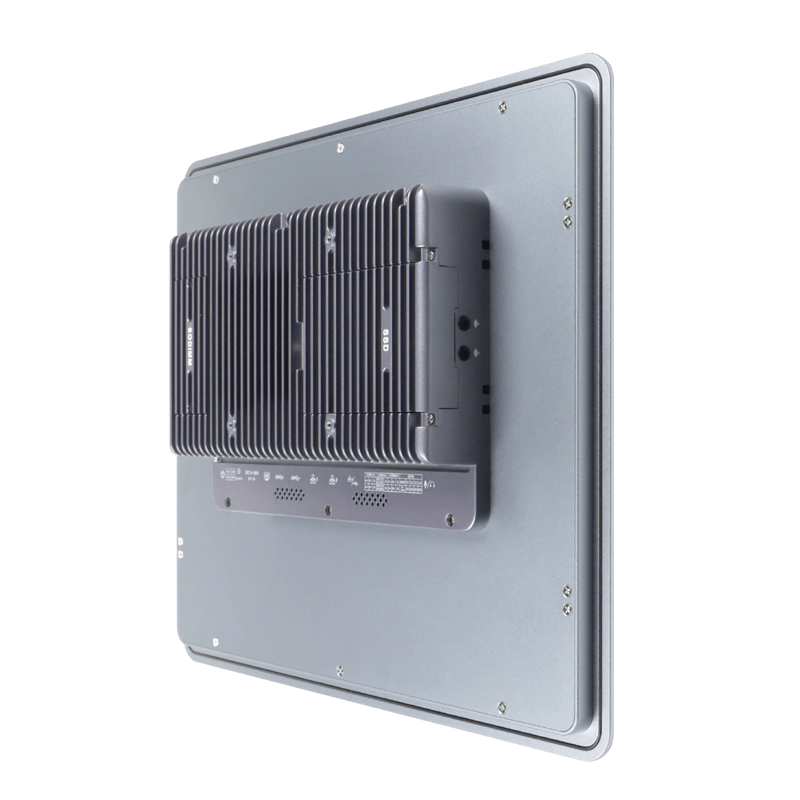

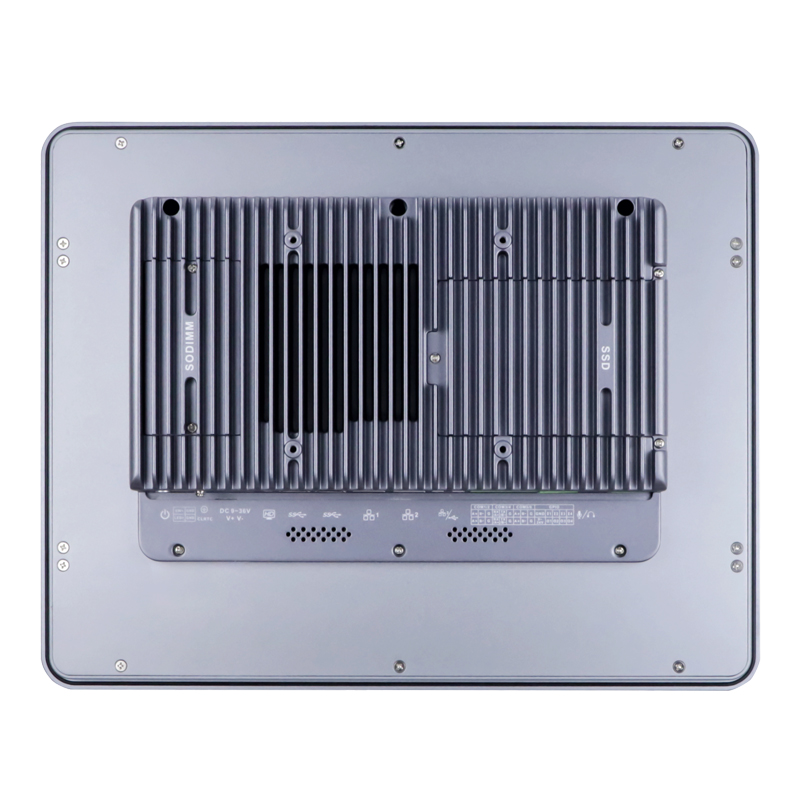

Fanless metal chassis with IP65 front panel.
Intel 12th Gen Core i5/i7 processors.
Up to 32GB DDR5 4800MHz memory.
Triple independent display output.
6x COM, 8x GPIO, 4x USB 3.0.
3x Intel LAN (one 2.5G port).
Wide 9–36V DC input with reverse protection.

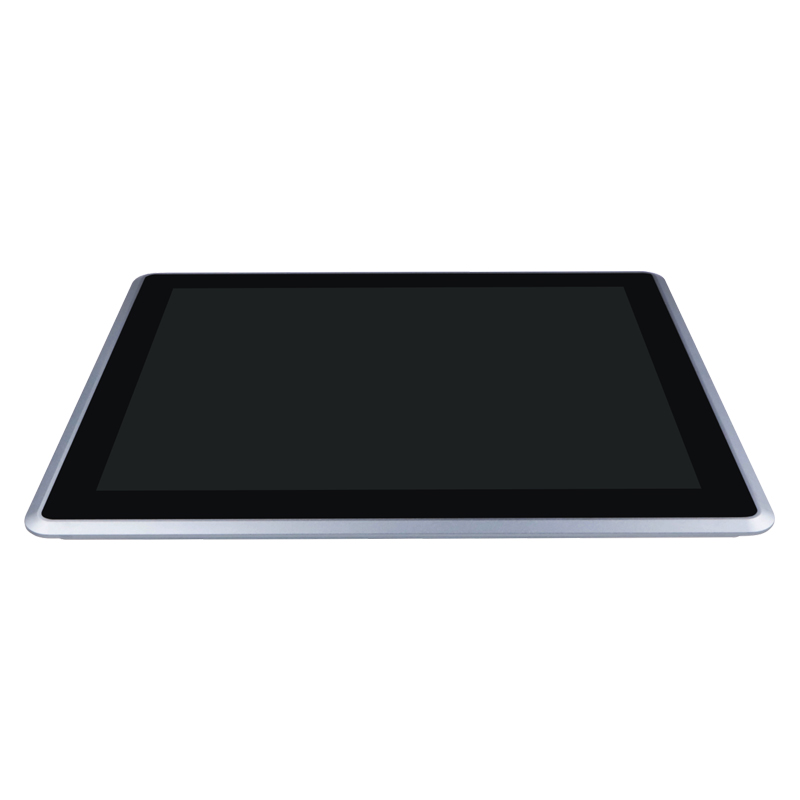

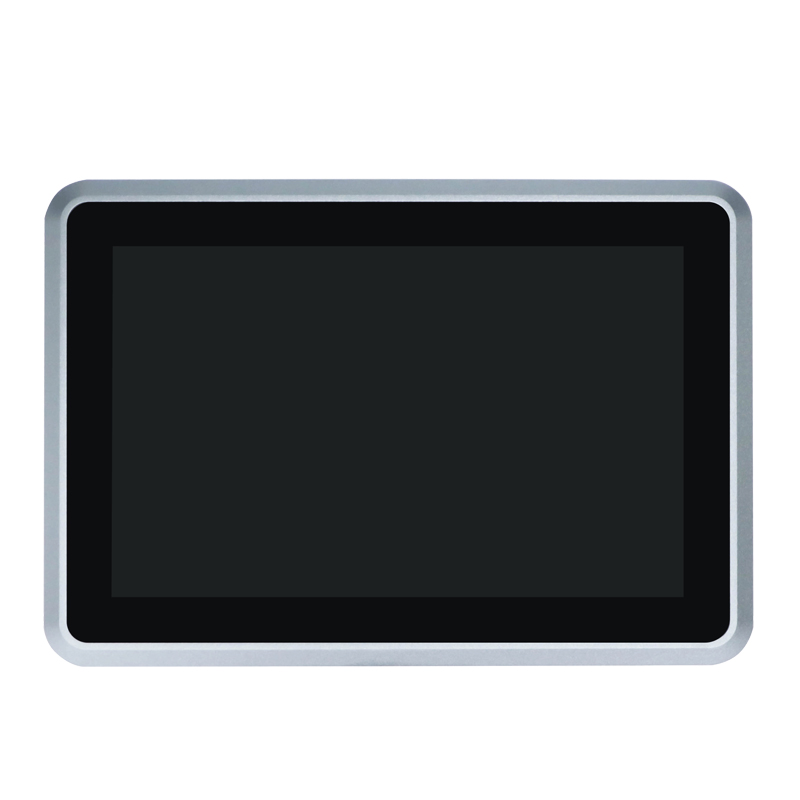

6 screen sizes, resistive or capacitive touch.
Dual M.2 and 2.5″ SATA storage.
Mini PCIe & M.2 for WiFi/4G expansion.

Share to:

Overview

The A Series 12th Gen Touch Panel PC delivers powerful Intel Core i5/i7 performance in a rugged, fanless metal chassis with front IP65 protection, making it ideal for harsh industrial environments. It supports triple independent displays, offers rich I/O including 6 COM ports, 8 isolated GPIO, 3 Intel LAN (one 2.5G), and 4 USB 3.0, and accepts wide 9–36V DC input with reverse polarity protection. Available in screen sizes from 10.1” to 21.5” with resistive or capacitive touch options, this versatile panel PC is well‑suited for automation, machine vision, medical, transportation, and warehousing applications, while also supporting Wi‑Fi/BT/4G expansion, TPM 2.0, and wake‑on‑LAN for seamless network integration.

Mechanical

Specification

Model

A18

A19

A20

A24

A21

A22

Screen parameters

Size

10.1 inch

12.1 inch

15 inch

15.6 inch

17 inch

21.5 inch

Ratio

16:10

4:3

16:9

5:4

16:9

Resolution

1280*800

1024*768

1920*1080

1280*1024

1920*1080

Brightness

430cd/㎡

450cd/㎡

350cd/㎡

400cd/㎡

250cd/㎡

Touch

Capacitive only

Resistive (Capacitive option)

Capacitive
(resistive option)

Resistive (Capacitive option)

Machine Size

271.5* 190*54.35mm

309.5*248*60mm

366*290*60mm

400*249.3*63.1mm

408.5*346*61mm

540*332*60mm

Embedded size

262 * 180 mm

298.5 * 237 mm

355 * 279 mm

385 * 234.3 mm

389 * 321 mm

528 * 320 mm

weight

2.0KG

2.9KG

3.8KG

4.0KG

4.7KG

6.8KG

Temp

-20℃~+60℃

-10℃~+60℃

0℃~+50℃

Humidity

5% ～ 95% Non-condensing

Color

Gray

Material

Aluminum & Steel

Processor

Intel Core i5-1235U/i7-1255U

Memory

1*DDR5 4800MHz SODIMM, up to 32GB

BIOS

AMI BIOS

Display Chip

Integrated Intel UHD Graphics

Display port

1*HDMI, 1*JHDMI(optional), 1*LVDS(already connected LCD), Support 3 display

Storage

2*M.2 2280(1*NVMe+SATA, 1*NVMe), 1*2.5 inch SSD/HDD

Expansion

Support 1*Mini PCIE(Support WiFi/BT/4G, with SIM slot), 1*M.2 E-Key slot;

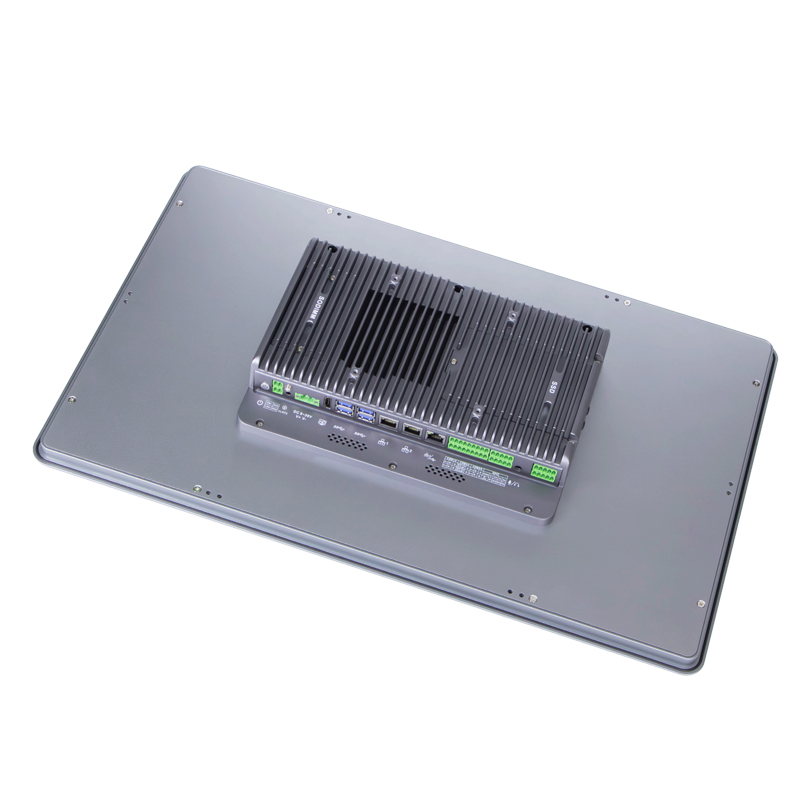

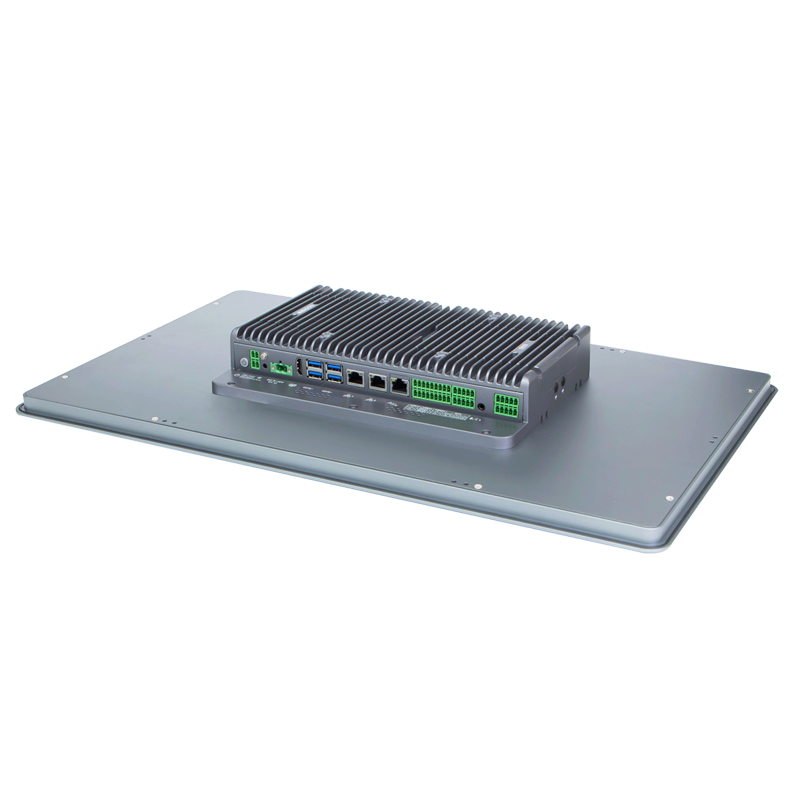

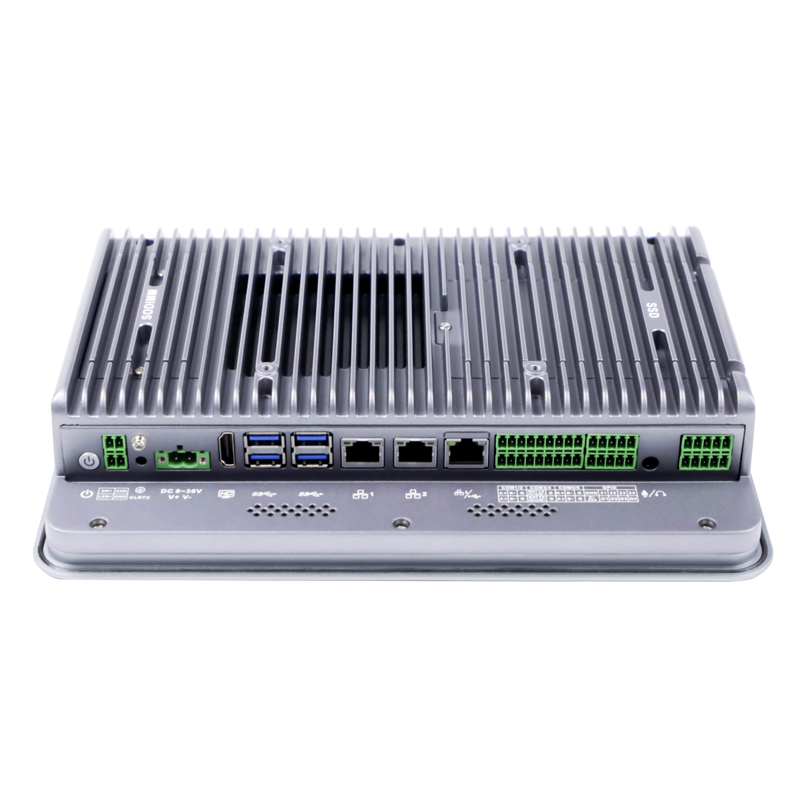

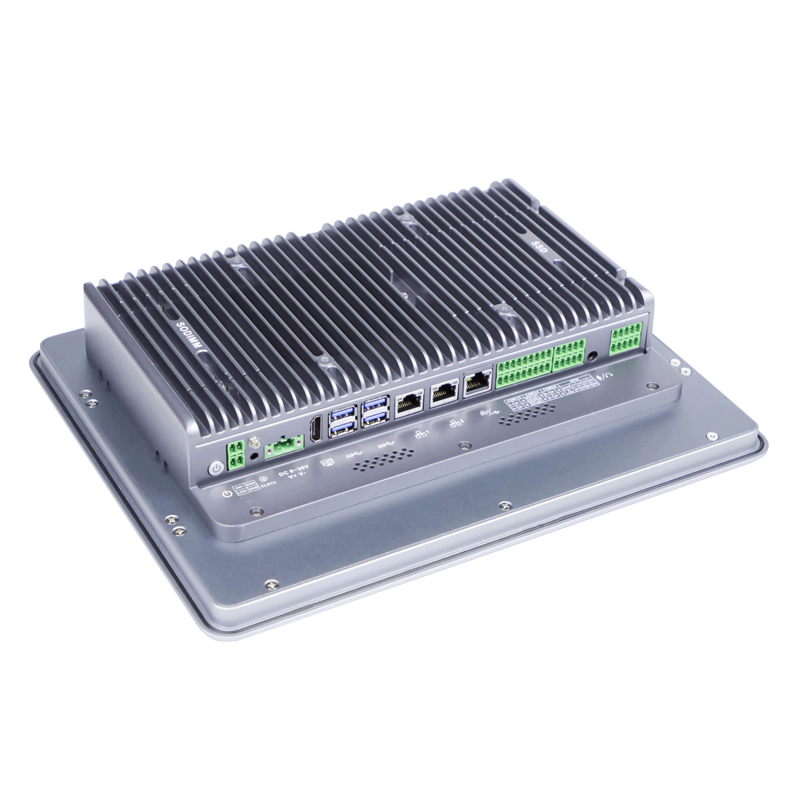

I/O port

1* power button, 1*2*2pin PW phoenix connector, 1*CMOS, 1*2pin Power Supply

1*HDMI, 4*USB3.0, 2*1000M Lan, 1*2.5G Lan, 1* Audio

6*COM(Com3, Com4 can be RS232/RS485 option), GPIO(4 in and 4 out）

Others

TPM2.0 、electricity boot、on time boot 、wake on lan、PXE 、WDT（0～255 level）

Expand function

USB2.0 x1, GPIO2, HDMI2; (standard product don’t have it, need to be customized）

Speaker

2*4Ω 2W speaker

Input Voltage

DC 9～36V wide voltage input, support Reverse polarity protection

Certifications

CE, FCC Class A, RoHS

Application

Automation, Medical, Transportation, Warehouse, Machine Vision

Order Information
Config	CPU	I/O	Internal expansion	Note
Config 1	Intel Core i5-1235U	LAN3/USB4/COM 口6/ HDMI1/SW11/DC-IN1/Audio1/ gpio8/Custom port*10	1DDR5/32G Max/1M.2(nvme/sata)/ 1m.2(pcieX4)/1M.2 E-Key (wifi/BT)/ 1SATA2.5 寸 HDD/1mini_PCIEwifi/(3G/4G)	For more details, please
Config 2	Intel Core i7-1255U	LAN3/USB4/COM 口6/ HDMI1/SW11/DC-IN1/Audio1/ gpio8/Custom port*10	1DDR5/32G Max/1M.2(nvme/sata)/ 1m.2(pcieX4)/1M.2 E-Key (wifi/BT)/ 1SATA2.5 寸 HDD/1mini_PCIEwifi/(3G/4G)	contact our sales represen tatives.
