Fanless Mini PC I3 8130U

Model: Partaker B9

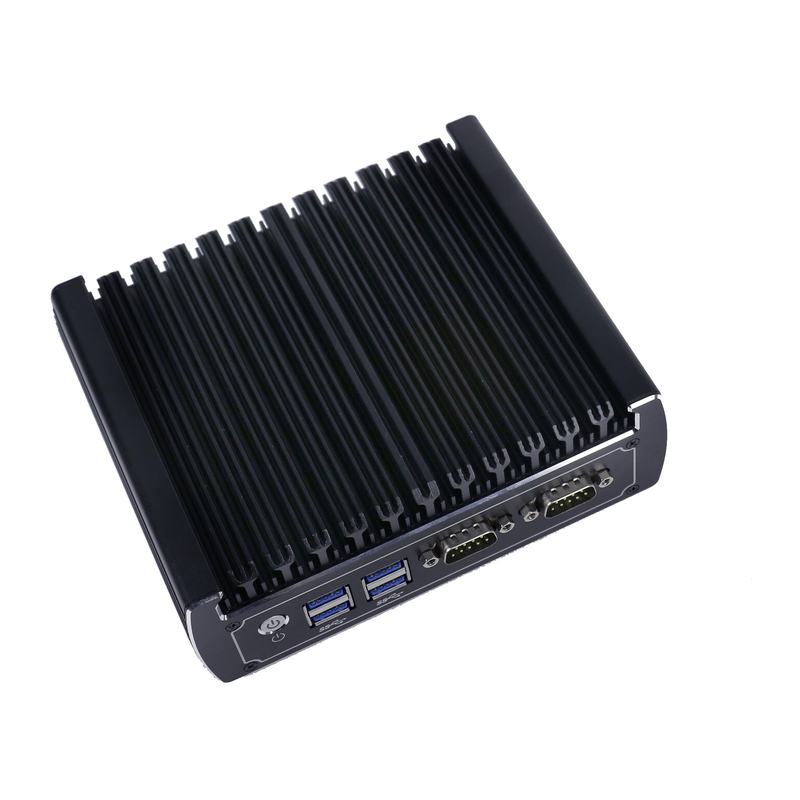

Fanless aluminum alloy chassis for silent, dust-free operation.
Intel Core i3-8130U dual-core, up to 3.4GHz, 15W TDP.
Supports up to 16GB DDR4 2400/2666MHz SODIMM.
Dual storage: M.2 2280 (PCIe x4/SATA) + 2.5″ SATA HDD/SSD.
Mini PCIe expansion for WiFi, 3G, or 4G with SIM slot.

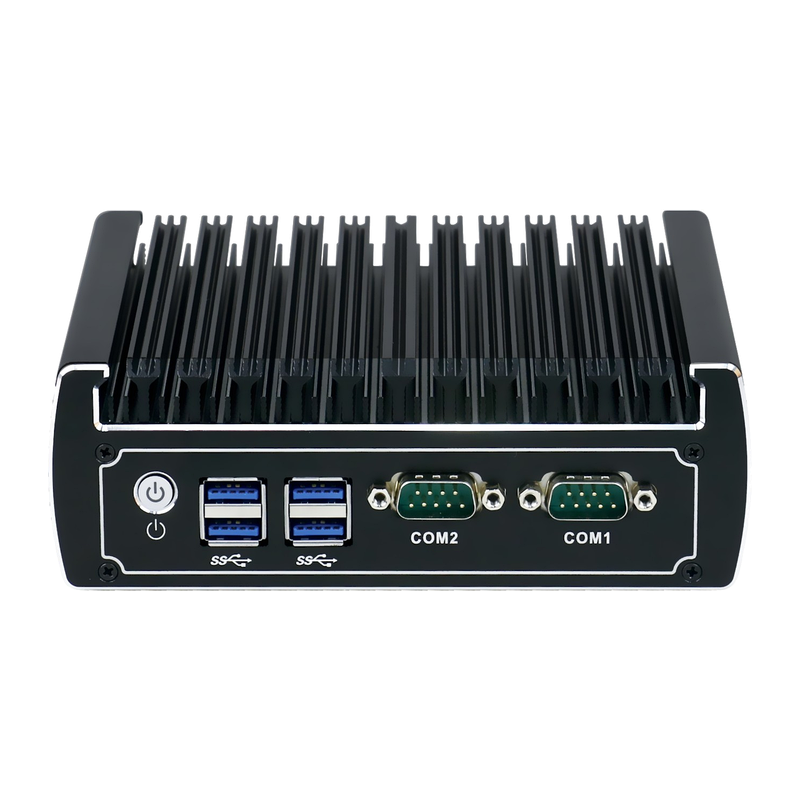

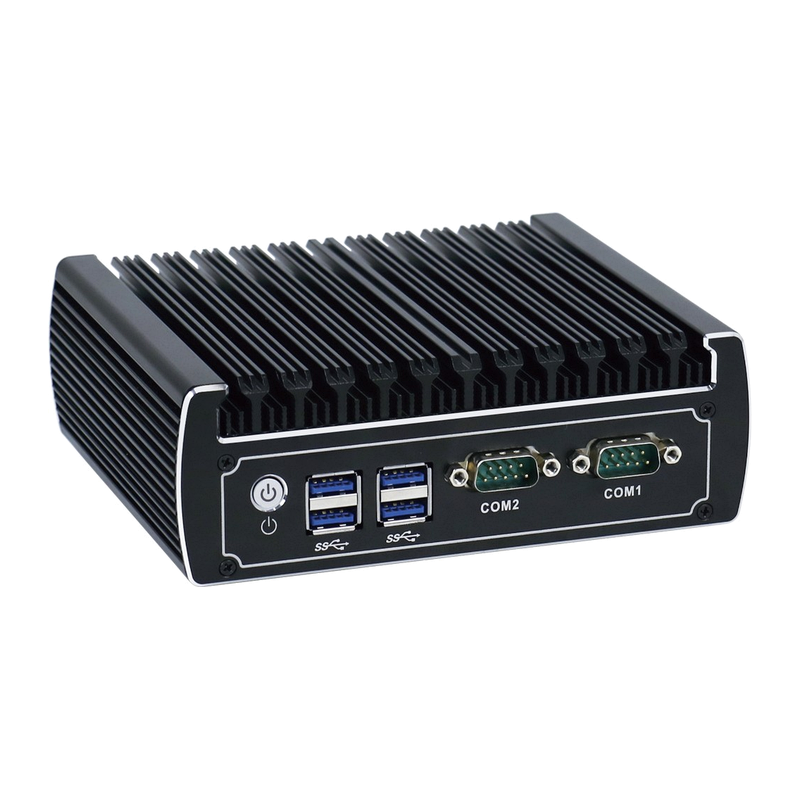

Rich I/O: 4x USB3.0, 2x USB2.0, 2x Gigabit LAN, 2x COM (optional).
Dual display via DP + HDMI, synchronous or asynchronous.
DC 12V input; auto power-on, timing boot, WoL, PXE, watchdog.
Compact 155 x 126.5 x 52.5mm, 1.6kg; VESA / DIN rail / desktop mount.
CE, FCC, RoHS; ideal for industrial automation, medical, logistics.

Share to:

Overview

This fanless mini PC is engineered for reliable, silent, and continuous industrial operation. Powered by an onboard Intel Core i3-8130U processor, it supports up to 16GB DDR4 2400/2666MHz memory and offers flexible storage through one M.2 slot and one 2.5-inch SATA bay. It can be configured with Wi-Fi, 3G, or 4G connectivity (choose one), and provides 4× USB 3.0 and 2× USB 2.0 ports for versatile peripheral connections. With a rugged fanless design, it delivers dust-resistant, maintenance-free performance for edge computing, industrial control, digital signage, and embedded applications. Multiple mounting options—desktop, DIN rail, and VESA—make it easy to deploy in space-constrained environments.

Mechanical

Model	Partaker B9 Fanless PC
Processor	Intel Core i3 8130U
Processor	Dual core，2.2GHZ，Turbo: 3.4GHZ , TDP:15W
Memory	Support 1*SODIMM DDR4 2400/2666MHZ (4GB/8GB/16GB) MAX: 16GB
CPU Architecture	KabyLake-U
Display Chip	Integrated Intel HD Graphics 620
Display Port	1DP，1HDMI（Support synchronous or asynchronous dual display）
Storage	Support 1M.2 2280 Slot，12.5”HDD
Expansion	Support 1M.2 2280 slot（Compatible with PCIE X4 and SATA signal） Support 1MINI PCIE (WIFI/3G/4G Optional), SIM Slot on rear plate

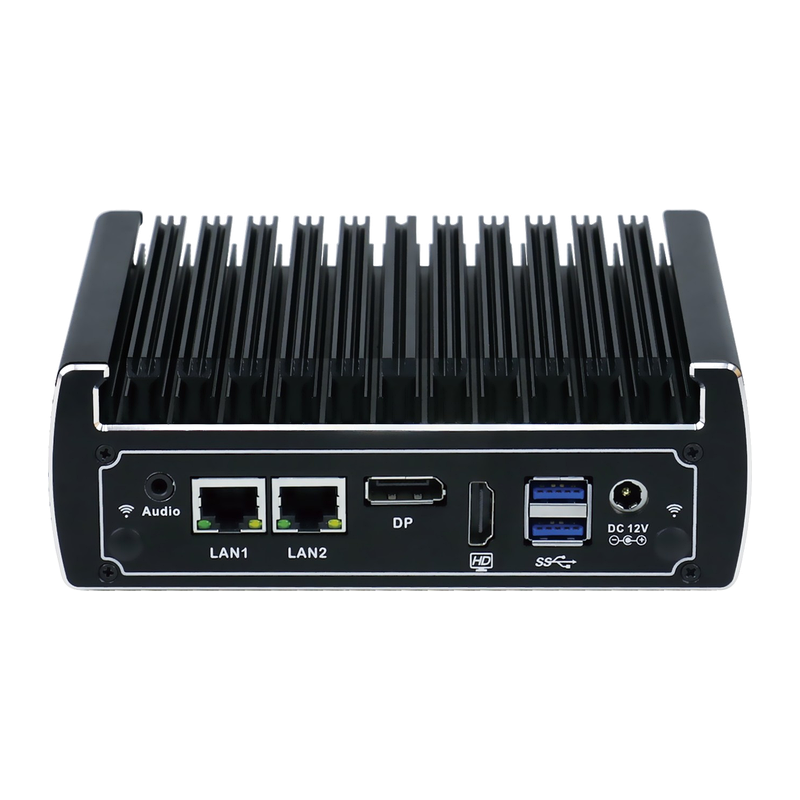

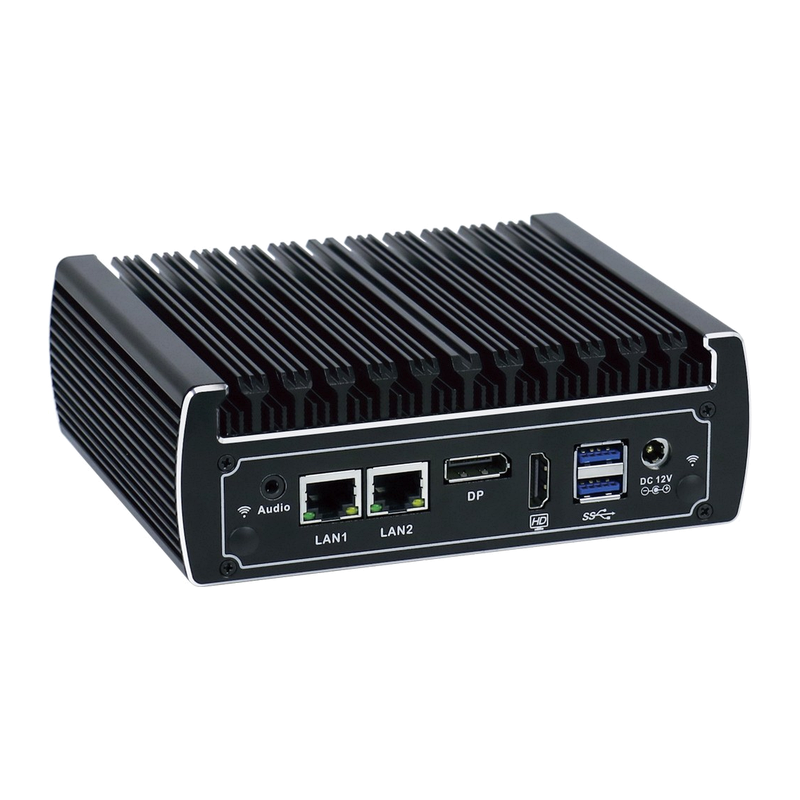

I/O	4USB3.0,1Power Switch，2COM(it is optional, we also can remove it )2RJ45 1000M Lan, 2USB2.0, 1HDMI，1DP, 1two-in-one Audio, 1*DC 12V Port
Network	Support 1*MINI PCIE (WIFI/3G/4G Optional), SIM Slot on rear plate
Input Voltage	Support DC 12V Input；
Certificates	CE、 FCC、 ROHS
Other Function	Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function)
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
Structure Parameter
Color	Black【Any color can be customized】
Material	Aluminum Alloy，sheet metal structure
Dimension	155 * 126.5 * 52.5mm
Weight	1.6kg
Environmental Parameter
Work Temp	-10℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃Industrial SSD），Surface air flow
Work Humidity	5% ～ 95% non-condensing

Accessory
Name	Quantity	Specification
Power Adapter	1	12V/5A
Power Cord	1	Any Plug is optional (Chinese, British, USA standard etc)
CD Driver	1	Neutral
