Active-Cooled Ultra 5 125U Slim Industrial PC

Model: Partaker I38-B

Intel Core Ultra 5 125U: 12 cores, 14 threads, up to 4.3 GHz.
Optional CPUs: Ultra 7 155U, Ultra 7 155H, Ultra 5 225U.
Slim 39.5 mm aluminum alloy chassis, 190 × 136 mm footprint.
DDR5 5600 SODIMM up to 32GB; Intel AI Boost NPU up to 1.4GHz.
Quad-display support: 4× HDMI + 2× Type-C, up to 4096×2160 @ 60Hz.
Dual Intel 2.5G LAN, optional third 2.5G LAN; LAN1 vPro option.
Front I/O: 2× USB 3.1, 2× USB 2.0, 2× full-function Type-C, audio.
Expansion: 2× M.2 2280 NVMe, 2× Mini PCIe, 1× M.2 2230 E-key, 2× SIM.
Optional 8× GPIO; TPM 2.0, watchdog, PXE, WOL, time-on.
DC 12–24V Phoenix input; ideal for edge AI and industrial use.

Share to:

Overview

The Active-Cooled Ultra 5 125U Slim Industrial PC is a compact, high-performance solution designed for space-constrained industrial environments. Powered by an Intel® Core™ Ultra 5 125U processor (12 cores, 14 threads, 12MB cache, up to 4.3 GHz), it combines a slim 39.5 mm chassis with active cooling for reliable thermal performance. The system supports synchronous or asynchronous four-display output via four HDMI and two full-function Type-C ports, and provides dual Intel 2.5G LAN with an optional third 2.5G LAN. I/O includes two USB 3.1, two USB 2.0, and two Type-C ports, while expansion is flexible with three M.2 slots, two Mini PCIe slots, and two Nano-SIM sockets. Wide-voltage DC 12–24V input through a 2P 5.08mm Phoenix terminal ensures stable operation in demanding settings. Ideal for industrial automation, medical, logistics, warehousing, and machine vision applications.

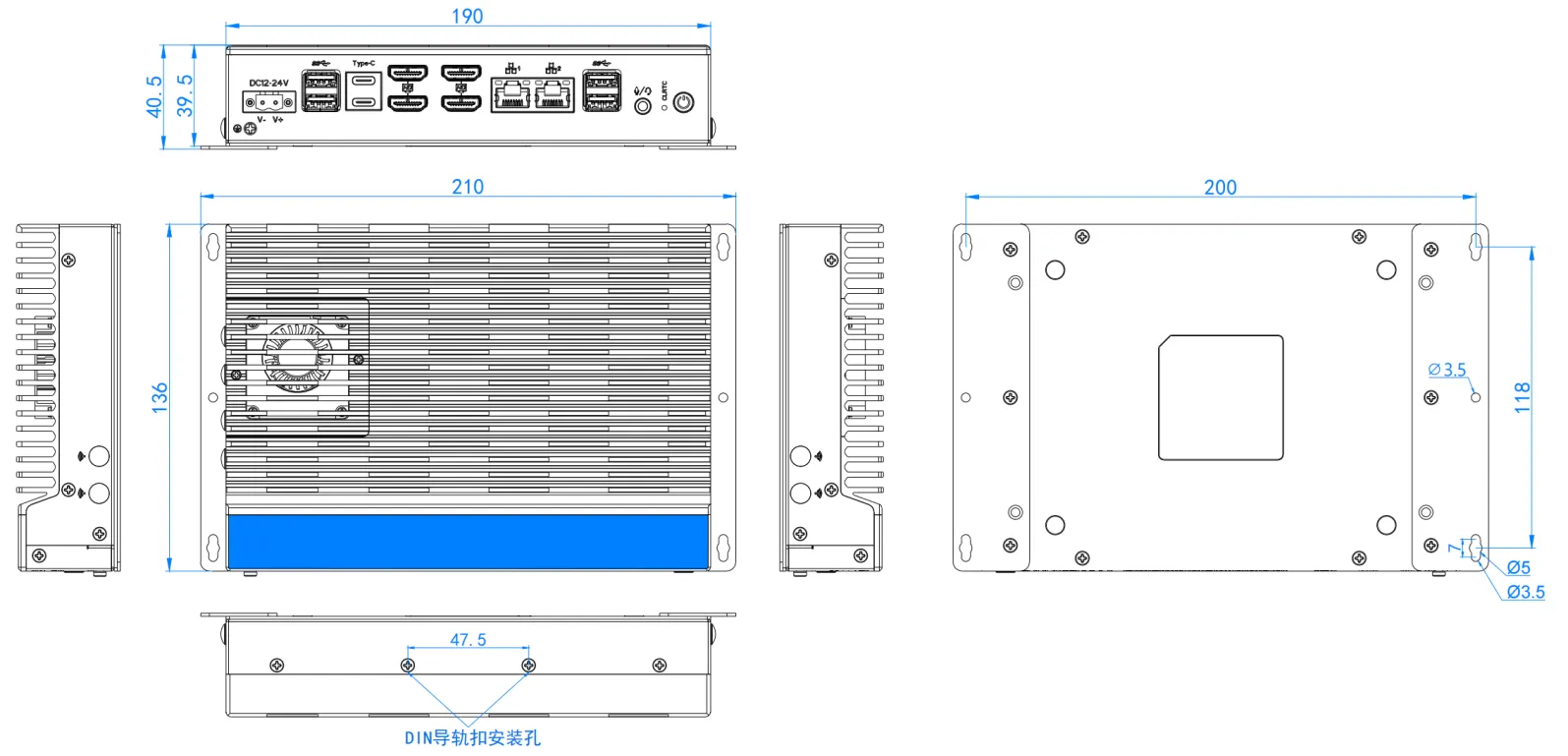

Mechanical

System Parameter
Model	Partaker I38-B
Chassis	Premium aluminum alloy + sheet metal structure
BIOS	AMI EFI BIOS
Processor	Intel® Core™ Ultra 5 125U (12C/14T, up to 4.3 GHz)
Processor	Optional Ultra7 155U, Ultra7 155H, Ultra5 225U;
Memory	Support 1*DDR5 5600MHz SODIMM memory slot, up to 32GB.
NPU	Intel® AI Boost（Max Frequency 1.4 GHz）
Display Chip	Intel Graphics
Display port	4× HDMI,2× Type-C (sync/async quad display, up to 4096×2160 @ 60Hz)
Storage	2× M.2 2280 M-key
Expansion Slots	2× M.2 2280 M-key (NVMe, PCIe 4.0 x4) 2× Mini PCIe (supports 4G/WiFi,PCIe + USB 2.0 ), 2× onboard SIM slots
Expansion Slots	1× M.2 2230 E-key (supports WiFi/BT,PCIe + USB +CNVio2 ) Optional (not populated by default): 8× GPIO
Other Function	Power-on, Time-on, Wake-on-LAN, UEFI PXE boot, watchdog (0–255 levels), TPM 2.0

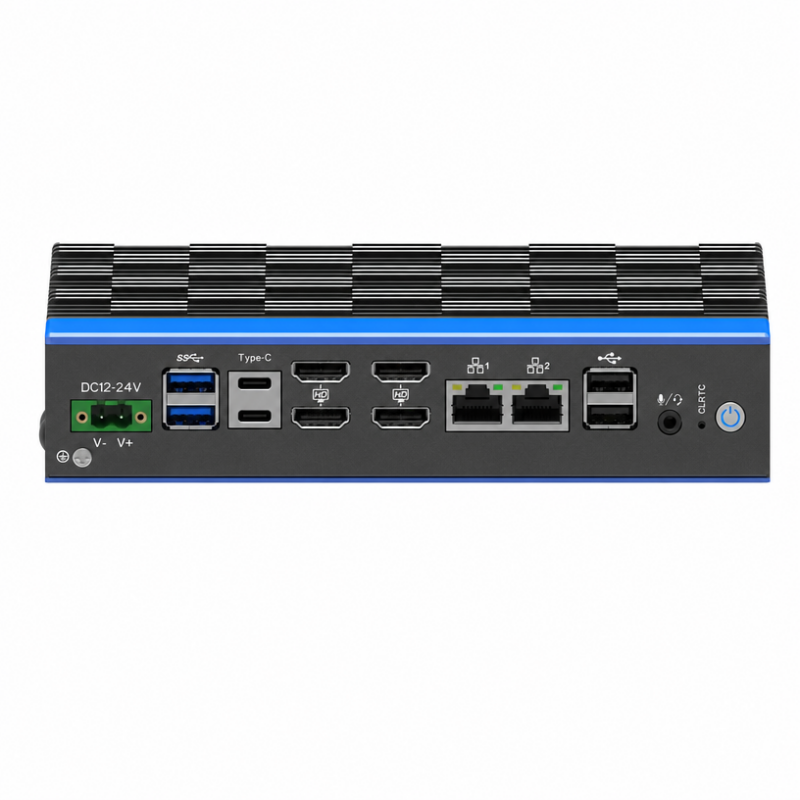

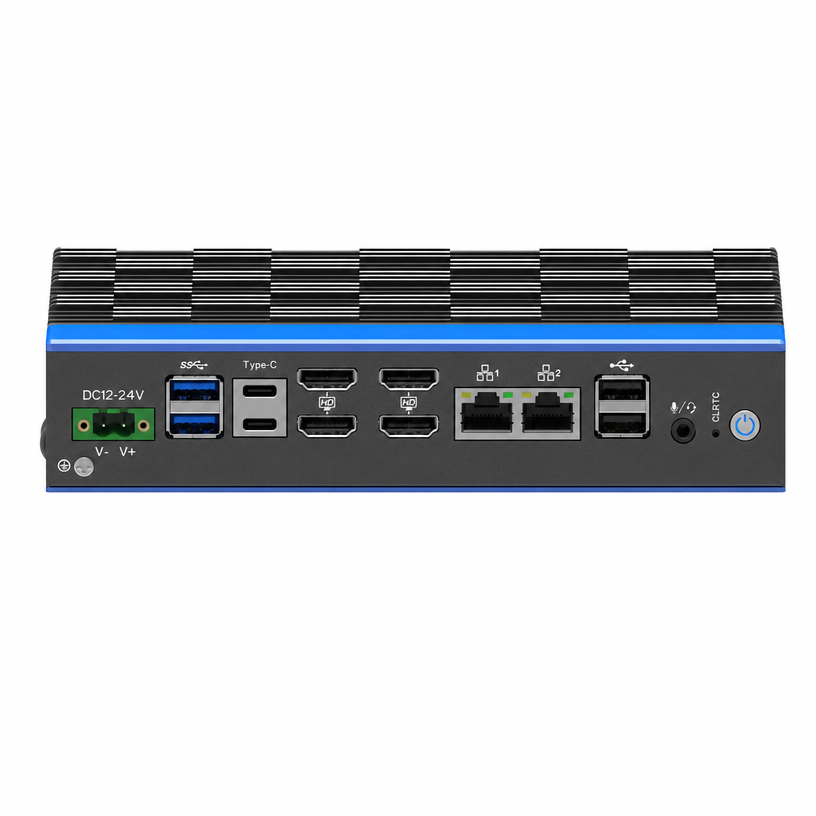

Front I/O	2× Intel 2.5G LAN, 2× USB 3.1, 2× USB 2.0 (optional 1×2.5G LAN)
Front I/O	4× HD-MI, 2× Full-function Type-C (DP / USB 3.2 / PD 5V 1A);1× 2P DC input, power button, 1× audio combo jack, CLRTC button
Network	2× Intel I226-V 10/100/1000/2500M Ethernet (optional 3× LAN) LAN1 optional Intel I226-LM 2.5 Lan,Support Intel vPro (not populated by default)
Power Supply	DC 12–24V wide voltage input, 2-pin 5.08mm Phoenix connector
Certificates	CE, FCC Class A, ROHS
Application	Edge AI Computing, Industrial Automation，Medical，Logistics Transportation, Warehousing, Machine Vision, etc.
Structure Parameter
Color	Black &Blue (Color can be customized)
Material	Aluminum alloy chassis
Size	190×136×39.5 mm (excluding wall-mount bracket)
Weight	1.46KG (including wall-mount bracket)
Environmental Parameter
Work Temp	0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow
Work Humidity	5% ～ 95% non-condensing

Accessories List
Name	Quantity	Specification
Power Adapter	1	12V 7.5A
Power Cord	1	US,UK,EU,etc, optional
Qualification	1	Neutral
Warranty card	1	Neutral
VESA mount	2	Standard

Order Information
Configuration 1	I38-B	Intel Ultra5 125U,2LAN/4USB/Type-C/6COM / GPIO	Standard Port
Configuration 2	I38-B	Intel Ultra5 125U,3LAN/2USB/Type-C/6COM / GPIO	Standard Port
