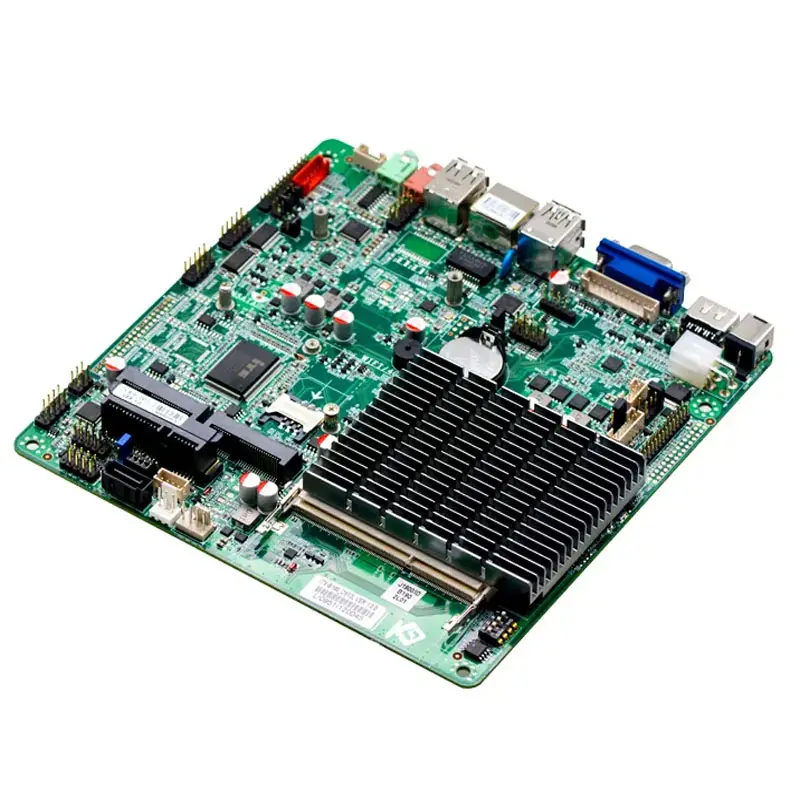

X86 J1900 J1800 Fanless Motherboard

X86 J1900 J1800 Fanless Motherboard

Model: ITX-B190_D912L

  • X86 Thin ITX motherboard with lan from China
  • Intel Celeron J1900/2.00GHz 4 core processor TDP10W
  • Based on Intel Bay trail SOC platform
  • 1 x SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory,up to 8GB
  • 1 x RTL8111F Gigabit LAN controller, support Wake-on-LAN/PXE
  • 1 x SATA2.0,1 x SATA 2.5 inch HDD,1 x MSATA
  • 1 x HD OUTPUT,1 x VGA,4 x USB
  • Support 4 input and output GPIO,Support hardware reset function (L256, 0~255 seconds)

Share to:

Overview



The Intel J1900 ultra thin all in one motherboard is a high-performance and low-power device that supports HD display and fanless cooling. It features an advanced design with VGA and HDMI output, as well as a Gigabit ethernet port. This motherboard is ideal for applications that require compact and reliable computing solutions.



Model No. ITX-B190_D912L VER:1.5
Processor Integrated  Intel® Celeron J1900/2.00GHz quad core processor,TDP 10W
  Compatible Intel® Bay Trail -I/M/D series CPU
Chipset Based on Intel® Bay trail SOC platform
Memory 1*SODDR3L SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Graphics Integrated  Intel® HD Graphics
1* VGA,1*HD OUTPUT,1* LVDS
Support VGA;HD OUTPUT;LVDS synchronous/asynchronous display
Network 1* Realtek RTL8111H gigabit ethernet ,support wake on LAN/PXE
Storage 1* SATA2.0 HDD port  (SATA2 with 2.5 inch  laptop HDD slot optional)
1* SATA 2.5 inch laptop HDD slot ,can install HDD directly
1* MSATA slot,support SSD,the transfer rate up to 3Gbps
Audio Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.
Support amplifer 2Ω5W trumpet
Expansion slots 1* Mini-PCIE slot,support WIFI,4G module
Rear I/O 1* HD OUTPUT
1* VGA
3* USB 2.0
1* USB3.0
1* RJ-45  Gigabit Ethernet connector
1* Line out(Green),1* MIC(Red)
1* 12V DC power input port
Internal I/O 1* 4pin ATX power port (can do 12V input/output power port )
1* USB2.0   1*5pin
4* USB 2.0 2*5Pin,USB5 with USB1 optional
1* J_HD OUTPUT  2*8Pin(the same signal with HD OUTPUT1)
1* JVGA 1*12Pin(the same signal with DB15)
1* LVDS  2*15pin,support dual channel 24bit,
1* screen backlight power supply port  1*6pin
1* screen brightness adjustment port 1*4pin
1* PS/2 KB/MS port (Red) 1*6Pin
2* RS232 serial ports ,COM1/COM2 support 9pin charged function,COM2 support RS485 mode
1* LPT print port  2*13Pin
1* front audio port  2*5pin
1* Front panel function button and indicator LED port 2*5pin
1* HDD power supply port  1*4pin
1* power amplifier 1*4pin
1* SIM card socket
FAN connector Fanless cooling ,Reserve 1*4pin CPU smart fan connector,1* 3pin system fan connector
GPIO Support 4 way input/output GPIO
BIOS 64Mb Flash ROM
Watch dog Support hardware reset function (L256, 0~255 seconds)
OS Windows 7/Windows 10/Linux
Power input Adopt DC 12V power supply
Working Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Working Humidity 5%-95% relative humidity, non-condensing
Dimension 170mm x 170mm
Model Processor Frequency Memory VGA LVDS HD OUTPUT LAN EDP USB RS485 COM Power
ITX-B190_D912L VER:1.5 J1900 2.0G 1*SODDR3L

1

2*24 Bit

1

1*8111H / 8 1 2 DC 12V

ITX-B190_D916L VER:1.5

J1900 2.0G 1*SODDR3L

1

2*24 Bit

1

1*8111H / 8 1 6 DC 12V

ITX-B190_D926L VER:1.1

J1900 2.0G 1*SODDR3L

1

2*24 Bit

1

2*8111H / 8 1 6 DC 12V
