Triple Display Mini PC

Model: Partaker IN-N5

Powerful quad-core mini PC with fanless design for silent operation.
Supports up to 8GB RAM, ensuring smooth multitasking.
Dual storage options with MSATA and 2.5″ HDD for ample data storage.
Triple display support via DP and HDMI, delivering immersive visuals.
Versatile connectivity with USB and COM ports, meeting diverse needs.
Dual Gigabit LAN for fast and stable networking.
Expandable with Mini PCIE slots for WIFI/3G/4G and MSATA support.
CE, CCC, FCC Class A, and ROHS certified for reliability and safety.
Auto power-on and timing boot features for convenient operation.
Wide range of applications, including industrial automation and medical uses.

Share to:

Overview

The IN-N5 Industrial Fanless Mini PC represents our professional-grade computing solution, engineered specifically for demanding business and industrial applications. As a leading mini PC manufacturer, we’ve integrated advanced features into this compact yet powerful system:

Industrial-Grade Design:

Premium aluminum chassis for superior heat dissipation
Completely fanless design for silent operation
Compact 134 x 126 x 39mm footprint
Industrial-grade components for 24/7 reliability

Professional Performance:

Intel® Celeron N3700/N3710/J3710 quad-core processors
Triple display support (2 HDMI + 1 DP)
Up to 8GB DDR3 RAM
Dual storage with mSATA and 2.5″ HDD/SSD options

Industrial Connectivity:

Dual Gigabit LAN with Wake-on-LAN support
6 USB ports (2 x USB 3.0, 4 x USB 2.0)
RS232 COM port for industrial equipment
Mini PCIe expansion for WiFi/3G/4G capabilities

Versatile Applications:

Industrial automation systems
Medical equipment integration
Digital signage solutions
Smart retail applications
Transportation systems
Educational facilities

Custom solutions and OEM/ODM services are available for specific industrial requirements.

Mechanical

Material	High-quality pure aluminum
Colour	Black(color can be customized)

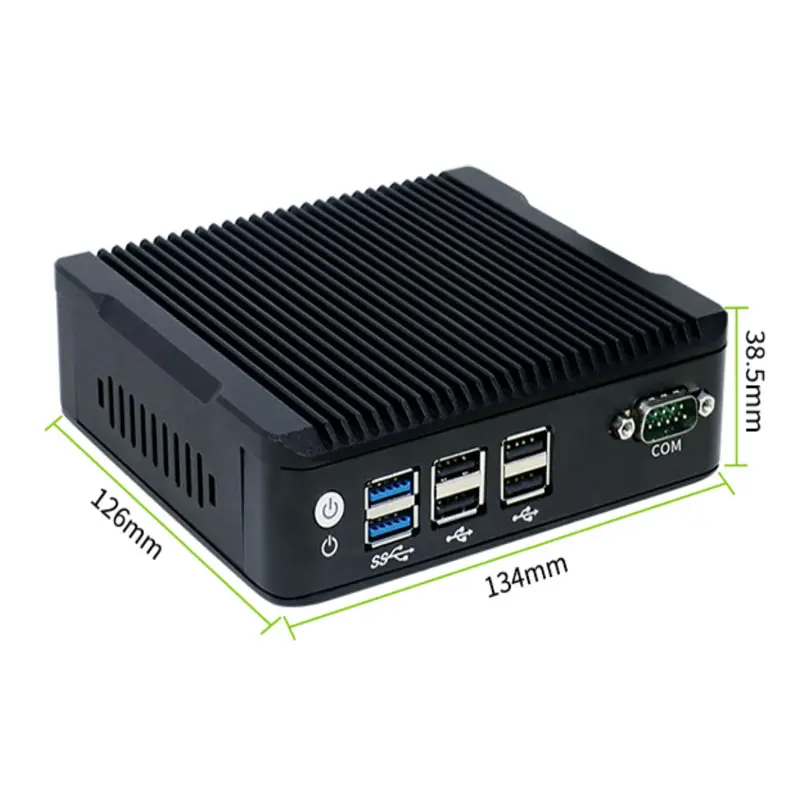

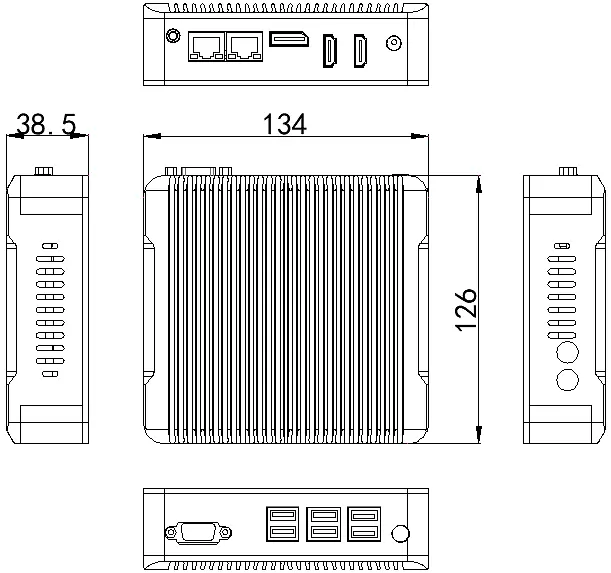

Size	134 x 126 x 39mm
Weight	1.5Kgs
Insallation Method	Desktop type/Vesa

Motherboard

CPU	Adopt Intel Celeron N3160/ N3700/N3710/J3710 quad core
Display Ports	1 x DP, 2 x HDMI, three-view display
Motherboard	120 x 120mm mini itx mainboard
Network Card	2 x RTL8111E 1000M lan, support wake on lan
Memory	1 x SO-DIMM DDR3 , Support Max 8G
Storage	1 x mSATA，1 x 2.5 Inch HDD or SSD
Audio	Integrated Realtek ALC662 6sound channel
Expansion	1 x mini-PCIE, support Wifi and BT
Watch Dog Timer	Support

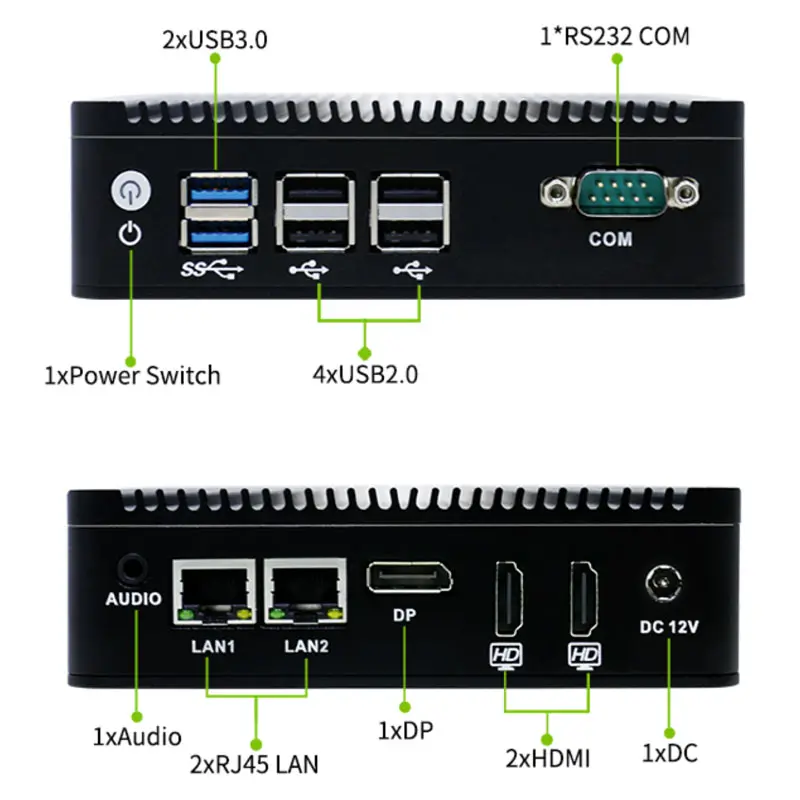

I/O Interfaces

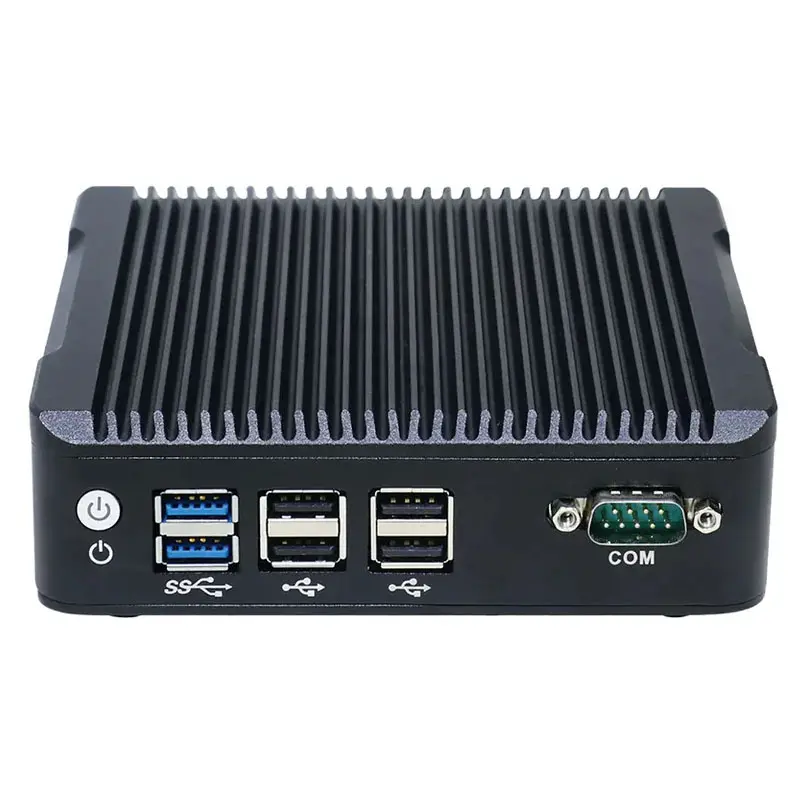

Front Panel	1 x Power Switch
	2 x USB3.0
	4 x USB2.0
	1 x RS232 COM

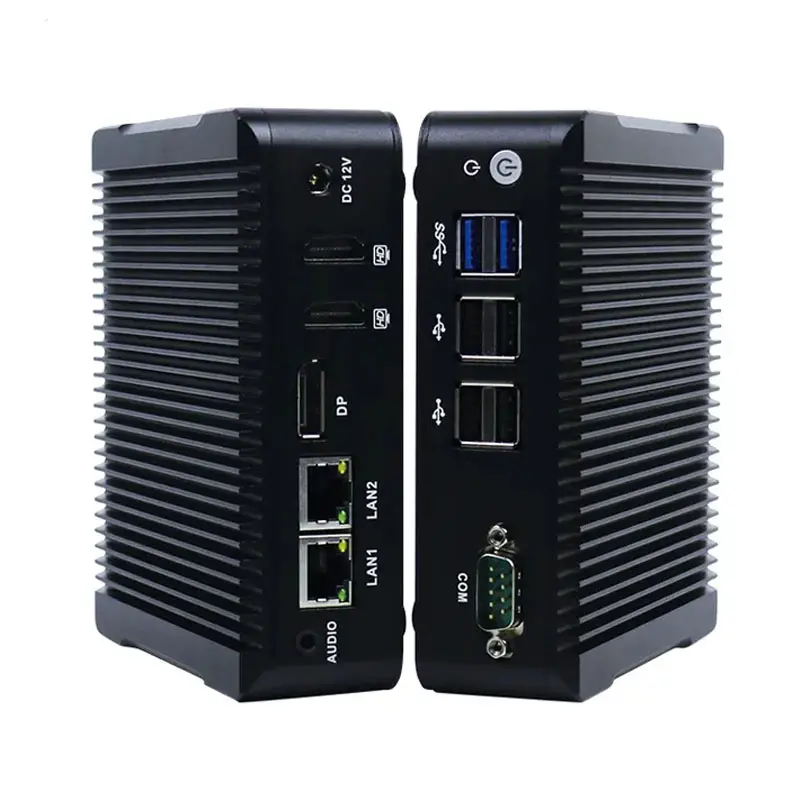

Rear Panel	1 x DC
	2 x LAN
	2 x HDMI
	1 x DP
	1 x Audio

Software Support

Bios	AMI 64M bit Flash ROM
System Support	Windows 7/8/10, Linux

General

Cooling Mode	Fanless
Power Supply	DC 12V-IN power supply and AC power adapter
Packing List	1 x Mini PC, 1 x Power Adapter, 1 x VESA Mount & Screws

Environment

Work Temperature	-10°C – 60°C
Relative Humidity	0% – 95% relative humidity, Non-condensing
Certification	CE FCC ROHS
Application	Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.

Model	Processor	Code Name	Frequency	Display	Memory	Storage	LAN	USB	Power
IN-N5	J3710	Braswell	1.6~2.64GHz	2 x HDMI/1 x DP	1 x SO-DIMM DDR3, Max 8G	1 x mSATA/1 x 2.5 Inch HDD or SSD	2	6	DC 12V
