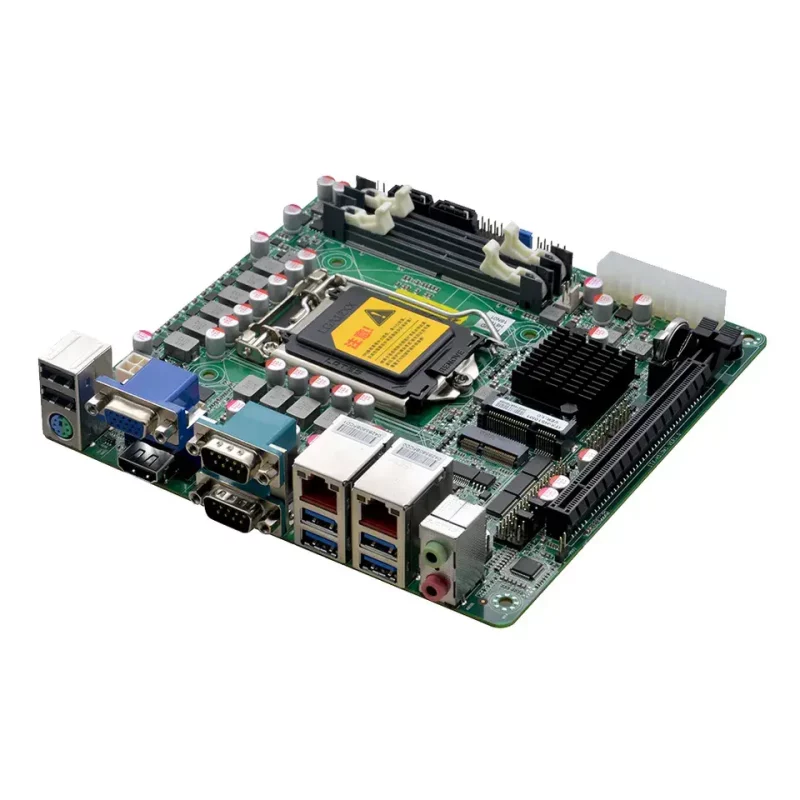

Model: ITX-H510R1

  • Supports LGA1200 10th/11th Intel® Pentium/Celeron/Core i3/i5/i7/i9 processors
  • With Intel® H510 chipset

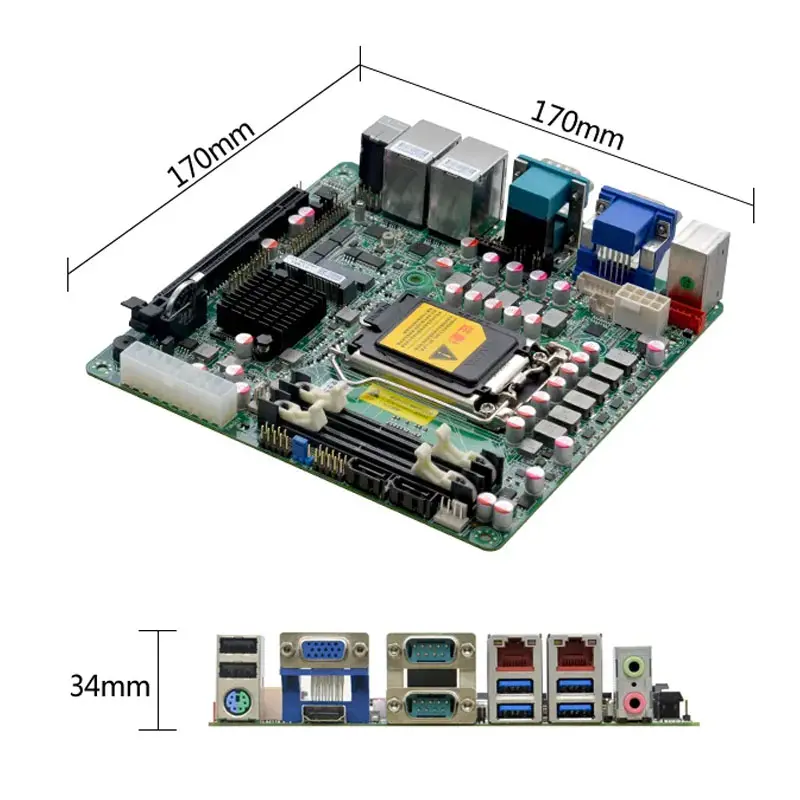

  • Size for 170mm x 170mm x 32mm
  • 2 x DDR4 DIMM slot,support 3200MHz memory, max. up to 128GB
  • 2 x Intel 8111H/I226V Gigabit network adapter chip, support network wake up /PXE function
  • Neutral Carton package, 20pcs/box;0.33 Kg/pcs; 50cm x 49cm x 20cm for carton

Share to:

Overview



This is a mini ITX industrial control motherboard with H510 chipset, LGA1200 socket, and support for I3 i5 i7 i9 processors. It has 2 DDR4 memory slots, 2 LAN ports, 9 USB ports, 6 COM ports, and high-definition display output. It uses ATX power supply and has a 3-year warranty.



Product model ITX-H510R1/H510M1 VER:1.0
processor Supports LGA1200 10th/11th Intel® Celeron/Pentium/Core i3/i5/i7/i9 processors
  Note: Support 10/11 generation 125W CPU
chipset With Intel® H510 chipset,
memory



Display



2 x DDR4 SODIMM slots, supporting a dual-channel memory of up to 3200MHz and up to 128GB
Integrated Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and supports 4K display
1 x VGA port, the maximum resolution is 1920X1200@60Hz
1* HD OUTPUT1.4 interface, support the highest resolution of 4096×2304@24Hz
network 2* Intel 8111H/I226V Gigabit network adapter chip, support network wake up /PXE function
store 2* SATA3.0 hard disk interface, transmission speed up to 6Gbps
Audio frequency 1* MSATA slot, supporting Intel SSDS
Audio frequency Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support
Expansion slot 1* PCIE3.0 X16 slot

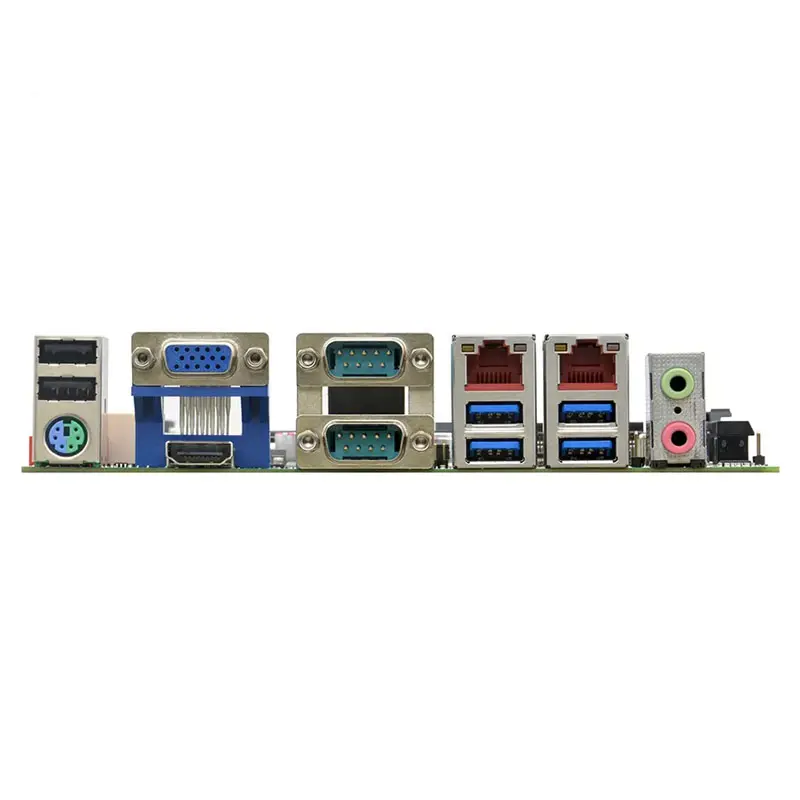

I/O ports on the backplane















1* M.2, supporting the M.2 2230 WIFI module
1* PS/2 interface (expandable keyboard and mouse)
1 x DB15 VGA port
1* HD OUTPUT1.4 port
2* DB9 RS232 serial port, support 9pin live function, support RS485/422
2* USB2.0 port
4* USB3.0 port
2* RJ-45 Gigabit network interface
Built-in I/O interface













1* Dual-layer audio interface (sound output and MIC input)
3* USB2.0 port 2*5pin F_USB2 supports only one USB2.0
1* Front panel audio interface (2*5pin)
1* Front panel function buttons and indicator ports (2*5pin)
1* 24pin ATX Power socket 1* 8pin ATX power socket
1* PS/2 keyboard and mouse interface 1*6pin
1* JVGA port 1*12pin, same signal as DB15
Fan interface 4* RS232 serial port, 2*20pin
BIOS 1*4pin CPU fan interface; 1*4pin system fan port
Guard dog 64Mb Flash ROM
Operating system Support hardware reset function (256 level, 0~255 seconds)
Power supply type Windows 10/Windows 11/Linux
Operating temperature Powered by ATX 20Pin and 8pin power supplies
Storage temperature 0℃ to 60℃
Working humidity -20℃ to 70℃
Size 170mm * 170mm * 32 mm
Model Processor Southbridge Memory VGA HD OUTPUT LAN USB RS485/RS422 COM Power
ITX-H510R1 VER:1.0 LGA1200 H510 2*DDR4

1

1

 2*8111H 9 COM1/COM2 6 ATX

ITX-H510M1 VER:1.0

LGA1200 H510 2*DDR4

1

1

2*I226V 9 COM1/COM2 6 ATX
