PCIe X16 Industrial Embedded Computer
Model: Partaker I36-C
- Intel 12th/13th/14th Gen Core i3/i5/i7 processors
- 1× PCIe X16 expansion slot for GPU or add‑on cards
- Dual DDR5 SODIMM up to 64GB (4800/5600 MHz)
- Dual M.2 2280 NVMe slots (PCIe 4.0×4)
- 4 independent displays: 2× HDMI + 2× DP
- 6× COM ports (4× RS485 + 2× RS232)
- 8× USB 3.0 ports for extensive peripherals
- 4× Intel Gigabit LAN (3× i210/i211 + 1× i219‑LM)
- Wide 12‑28V DC input (4‑pin)
- Industrial‑grade: -20°C to +60°C operating temperature
Share to:
Overview
Powered by Intel 12th/13th/14th Gen Core processors, this industrial embedded PC delivers exceptional computing performance in a compact, fanless chassis. The PCIe X16 expansion slot enables flexible integration of add‑on cards such as GPU accelerators, capture cards, or specialized I/O modules, making it ideal for machine vision, edge AI, and industrial automation applications. Dual DDR5 SODIMM slots support up to 64GB of high‑speed memory, while twin M.2 2280 NVMe slots provide ultra‑fast storage. With 4 independent display outputs (2× HDMI + 2× DP), 6× COM ports (RS485/232), 8× USB 3.0, and 4× Intel Gigabit LAN ports, the system offers extensive connectivity for complex industrial environments. It accepts a wide 12‑28V DC input and operates reliably from -20°C to +60°C, ensuring stable performance even in harsh conditions.

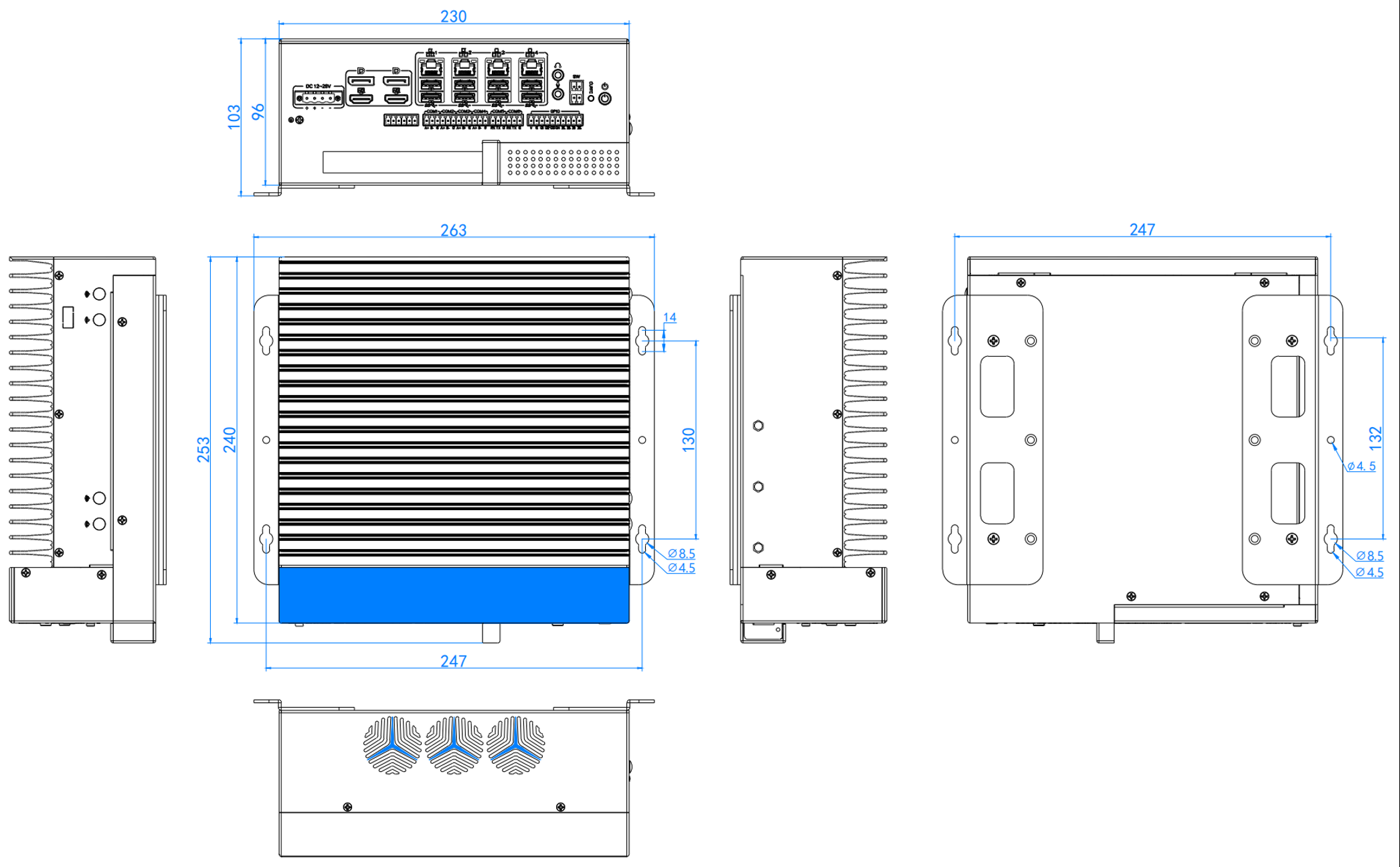

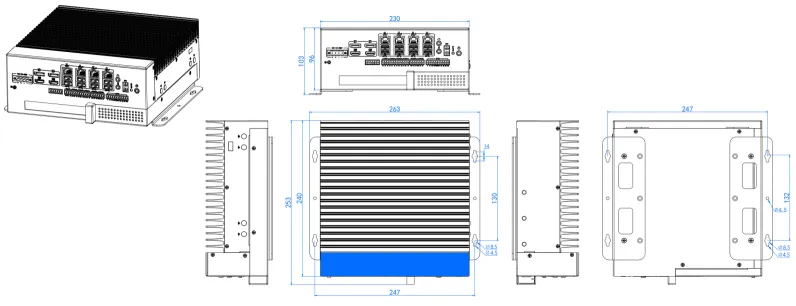

Mechanical
| System Parameter | |
| Model | Partaker I36-C PCIe/PCI Industrial Embedded PC |
| Processor | Intel 12th/13th/14th Gen (Alder Lake-S / Raptor Lake-S desktop processors), LGA1700 |
| Chipset | Intel Q670/W680 |
| Memory | 2×DDR5 4800/5600 SODIMM memory slots, max 64 GB. |
| Display Chip | Intel HD Graphics 730/770 |
| Display port | 2×HD-MI，2×DP（Support synchronous and asynchronous 4 display） |

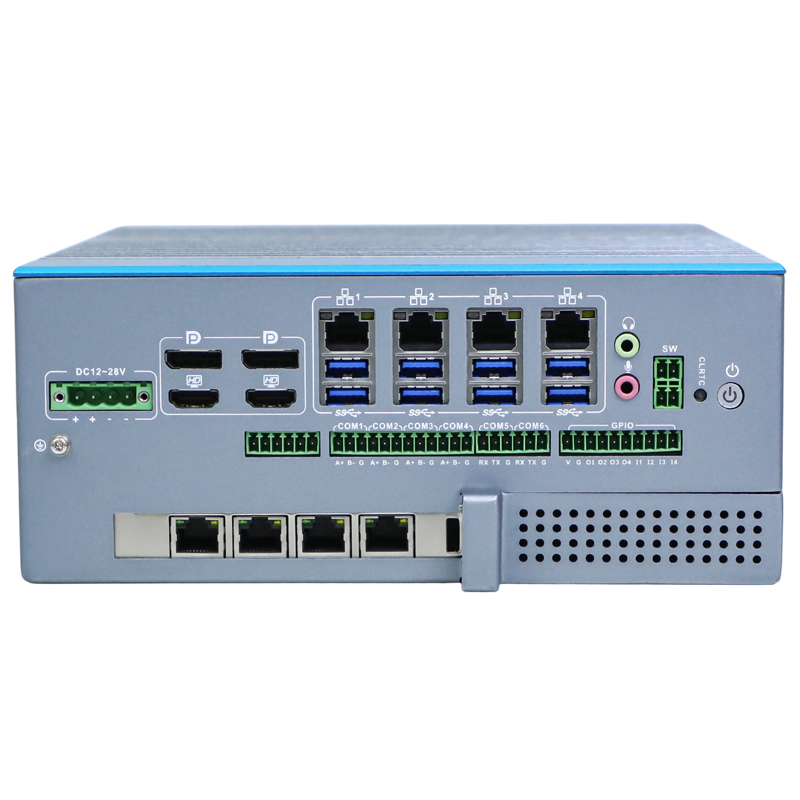

| I/O | 4× GbE LAN, 8× USB 3.1, 6× COM (COM1–4: RS485, COM5–6: RS232) |
| 2× HDMI, 2× DP, 4-in/4-out GPIO (optocoupled), 4-pos remote switch, CLRTC button | |
| 1x 4P+1x 2P power input, power switch, mic/speaker jacks, 1x 6P Phoenix terminal (customizable) | |
| Expansion Port | 1 x M.2 3052/3042 B-key (4G/5G optional) + Nano-SIM slot
1 x Mini PCIe (PCIe + USB signals supported) |
| 2× M.2 2280 M-key: 1× PCIe 4.0 X4/SATA, 1× PCIe 4.0 X4
1× M.2 2230 E-key (Wi-Fi/BT, PCIe + USB) |
|
| Expansion Slot | 1×PCIe X16 slot ; The expansion card a maximum size of 215mm ×21mm ×112mm |
| Network | 3× Intel i210-AT + 1× Intel i219-LM GbE (with vPro & AMT) |
| Storage | 2× M.2 2280 M-key (1× PCIe 4.0 X4/SATA, 1× PCIe 4.0 X4) + 2× 2.5″ SATA bays |
| Power Supply | DC 12–28V input, 4-pin Phoenix connector, 5.08mm pitch |
| Certificates | CE, FCC Class A, ROHS |
| Application | Industrial Automation, Healthcare, Logistics And Transportation, Warehousing, and Machine Vision. |
| Structure Parameter | |
| Color | Titanium gray (Color can be customized) |
| Material | High-quality aluminum alloy + palladium-plated structure |
| Size | 230 × 253 × 96 mm [Excluding wall mount bracket] |
| Weight | 5.53 kg【not include wall bracket】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industry SSD），Surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
| Accessories List | ||
| Name | Quantity | Specification |
| Power Adapter | 1 | 4P 150W 12V-12.5A |
| Power Cord | 1 | UK,EU,CN,US,KR etc |
| Wall-Mounted Bracket | 2 | Standard |
| Order information | |||
| Configuration 1 | Intel Core i3-12300T / 13100T / 14100T | Standard Port，1*Expansion Slot | |
| Configuration 2 | I36-C | Intel Core i3-12300T / 13100T / 14100T | Standard Port，1*Expansion Slot |
| Configuration 3 | Intel Core i3-12300T / 13100T / 14100T | Standard Port，1*Expansion Slot | |
