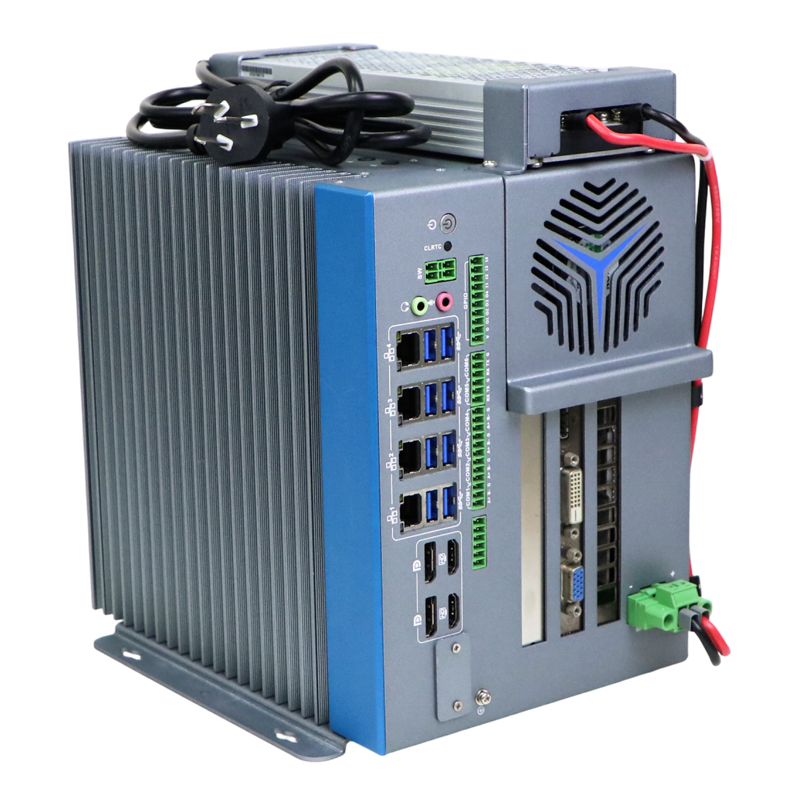

PCIe/PCI Expansion Industrial Computers

Model: Partaker I36-B

12th/13th/14th Gen Intel Core i3/i5/i7 (LGA1700)
Intel Q670/W680 chipset, HD Graphics 730/770
1× PCIe X16 + 2× PCIe X8 (X4 signal)
2× DDR5 SODIMM up to 64GB
2× M.2 2280 NVMe (PCIe 4.0×4)
4 independent displays: 2× HDMI + 2× DP
6× COM (4× RS485 + 2× RS232)
8× USB 3.1, 4× Intel GbE LAN (3× i210 + 1× i219‑LM w/ vPro)
4‑in/4‑out optocoupled GPIO, remote switch, CLRTC
M.2 3052/3042 for 4G/5G + Nano‑SIM, 2× 2.5″ SATA bays
12–28V wide or 12V DC input (up to 500W for GPU)
Compact chassis: 175×253×230mm, 7.26kg
-20°C to +60°C operation (industrial SSD)

Share to:

Overview

Powered by 12th/13th/14th Gen Intel Core processors, this expandable industrial PC delivers exceptional computing performance in a compact chassis. It features 1× PCIe X16 and 2× PCIe X8 (X4 signal) expansion slots, enabling flexible integration of GPU accelerators, data acquisition cards, motion control, or specialized I/O modules – ideal for machine vision, industrial automation, and edge AI applications. With dual DDR5 SODIMM up to 64GB, twin M.2 NVMe storage, 4 independent displays (2× HDMI + 2× DP), 6× COM ports, 8× USB 3.0, and 4× Intel Gigabit LAN (with vPro support), the system offers rich connectivity for complex industrial environments. It accepts wide 12‑28V DC or standard 12V input, operates reliably from -20°C to +60°C, and comes in a rugged chassis measuring 175 × 253 × 230 mm, weighing 7.26 kg – built for long‑term stability in demanding conditions.

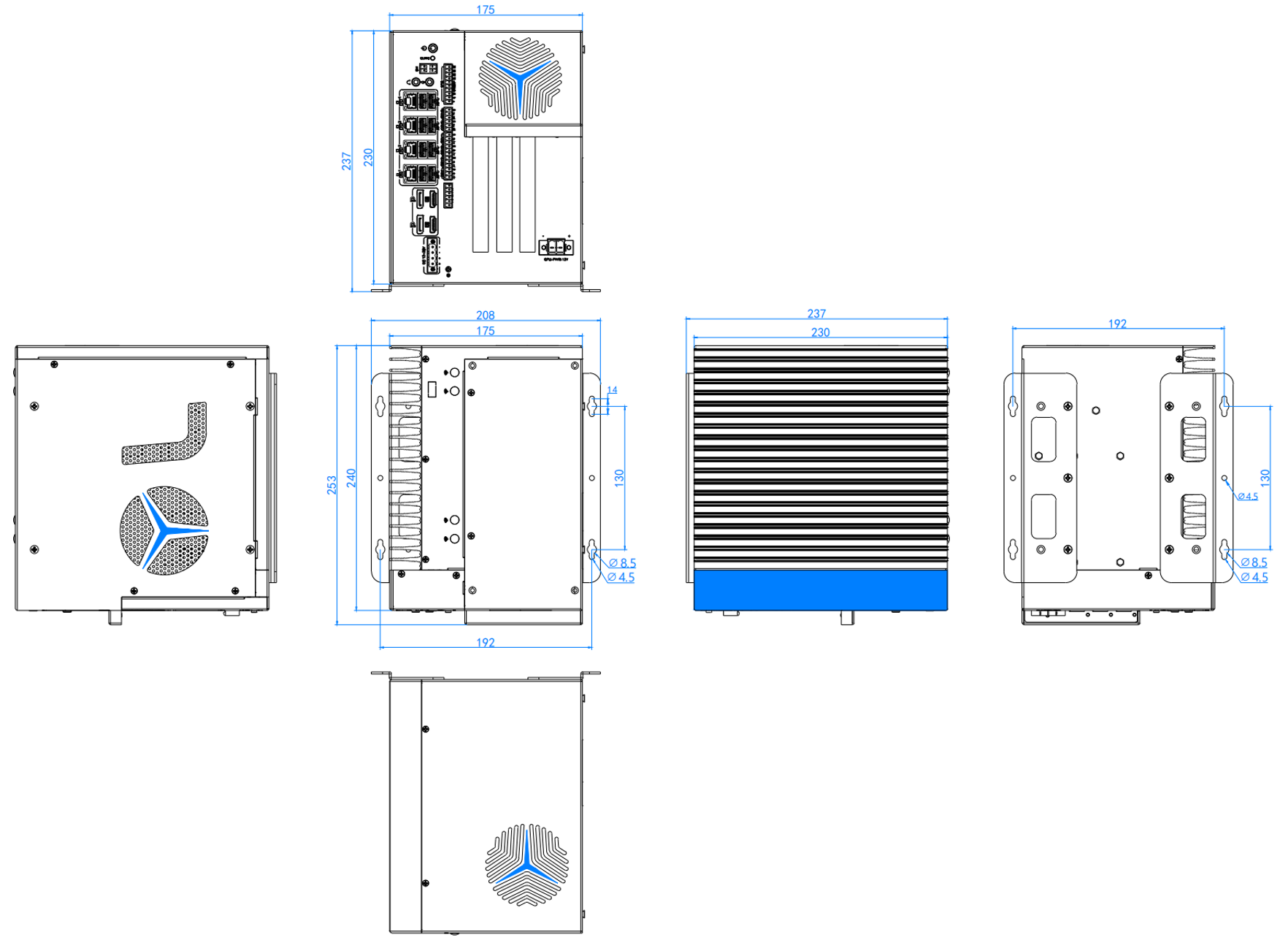

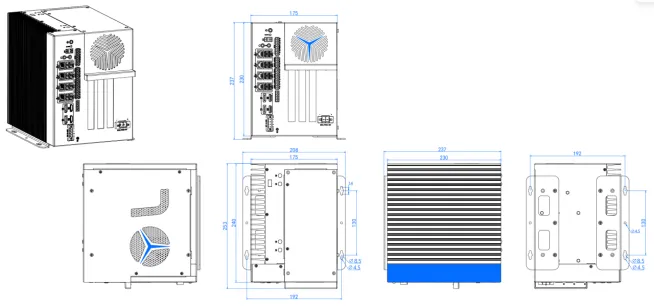

Mechanical

System Parameter
Model	Partaker I36-B PCIe/PCI Expandable Industrial PCs
Processor	Intel 12th/13th/14th Gen (Alder Lake-S / Raptor Lake-S desktop processors), LGA1700
Chipset	Intel Q670/W680
Memory	2×DDR5 4800/5600 SODIMM memory slots, max 64 GB.
Display Chip	Intel HD Graphics 730/770
Display port	2×HD-MI，2×DP（Support synchronous and asynchronous 4 display）

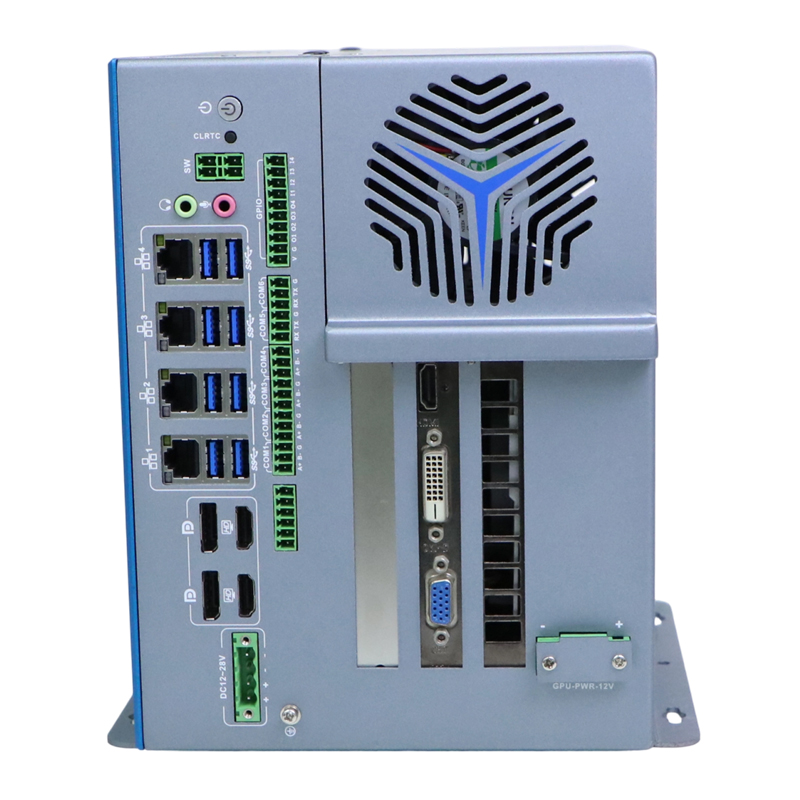

I/O	4× GbE LAN, 8× USB 3.1, 6× COM (COM1–4: RS485, COM5–6: RS232)
	2× HDMI, 2× DP, 4-in/4-out GPIO (optocoupled), 4-pos remote switch, CLRTC button
	1x 4P+1x 2P power input, power switch, mic/speaker jacks, 1x 6P Phoenix terminal (customizable)
Expansion Port	1 x M.2 3052/3042 B-key (4G/5G optional) + Nano-SIM slot 2× M.2 2280 M-key: 1× PCIe 4.0 X4/SATA, 1× PCIe 4.0 X4
Expansion Port	1× M.2 2230 E-key (Wi-Fi/BT, PCIe + USB) Optional (not standard): 8× GPIO, 3× USB 2.0

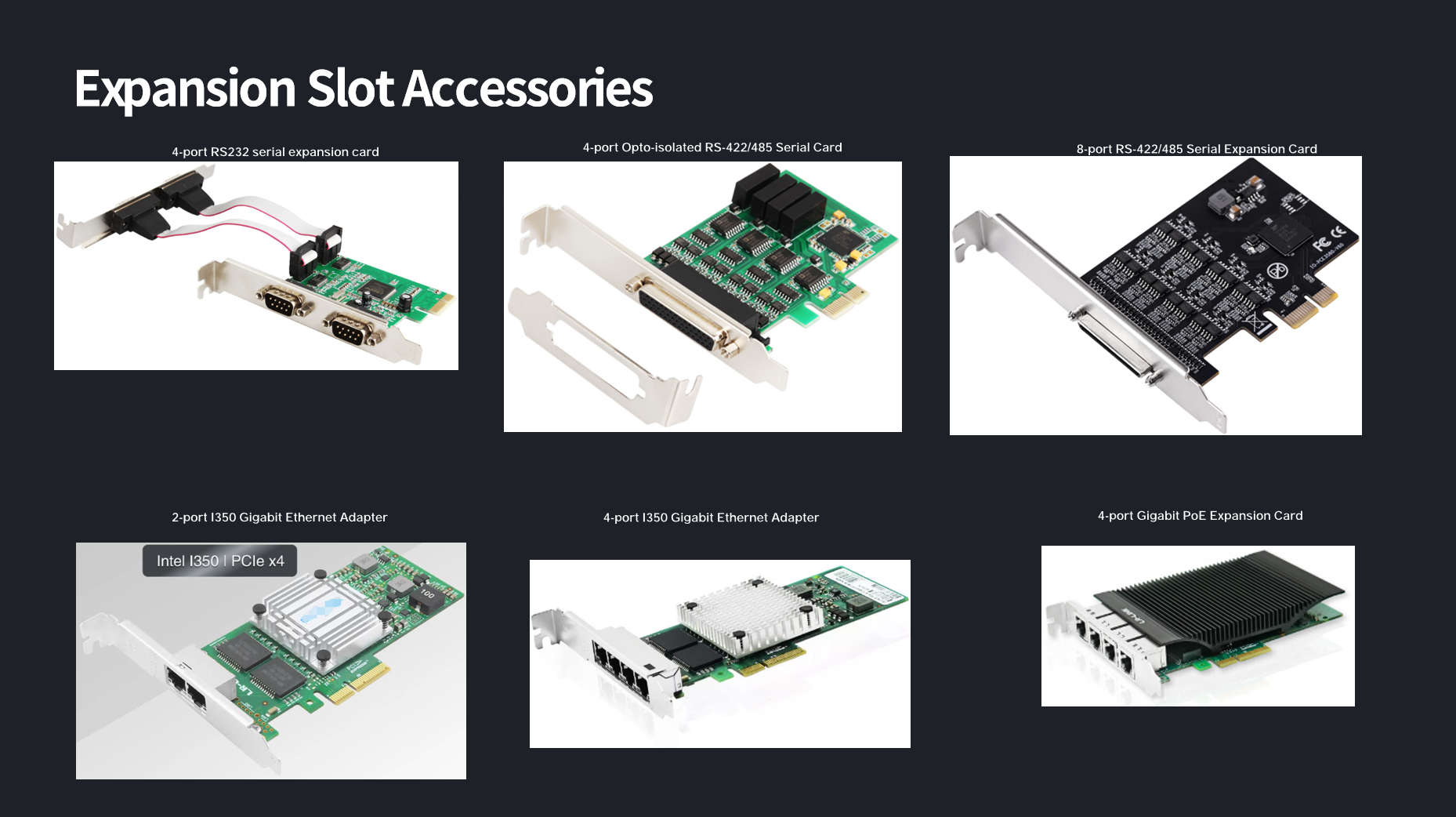

Expansion Slot	1× PCIe X16 (X16 signal) + 2× PCIe X8 (X4 signal); Max card size: 215×21×112 mm (L×W×H)
Network	3× Intel i210-AT + 1× Intel i219-LM GbE (with vPro & AMT)
Storage	2× M.2 2280 M-key (1× PCIe 4.0 X4/SATA, 1× PCIe 4.0 X4) + 2× 2.5″ SATA bays
Power Supply	Mainboard Power: DC 12–28V wide input, 4-pin Phoenix (5.08mm pitch) Mainboard + GPU Power: DC 12V input, 2-pin Phoenix (7.62mm pitch), 500W max rating ⚠️ 4P & 2P Phoenix connectors are mutually exclusive; do not power both at once. See Note ①
Certificates	CE、FCC Class A、 ROHS
Application	Industrial Automation, Healthcare, Logistics And Transportation, Warehousing, and Machine Vision.
Structure Parameter
Color	Titanium gray (Color can be customized)
Material	High-quality aluminum alloy + palladium-plated structure
Size	175 × 253 × 230 mm [Excluding wall mount bracket]
Weight	7.26 kg【not include wall bracket】
Environmental Parameter
Work Temp	0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industry SSD），Surface air flow
Work Humidity	5% ～ 95% Non-condensing

Accessories List
Name	Quantity	Specification
Power Input	1	Optional: 4P 150W (12V–12.5A) or 2P 500W (12V–41.7A)
PCIE Power Cable	1	8P to 8P male-to-female
GPU power supply bracket	1	A pair
Power cord	1	Available CN、US、UK、EU. etc.
Wall-mount brackets	2	Standard

Order information
Configuration 1		Intel Core i3-12300T / 13100T / 14100T	Standard Port，3*Expansion Slot
Configuration 2	I36-B	Intel Core i5-12500T / 13500T / 14500T	Standard Port，3*Expansion Slot
Configuration 3		Intel Core i5-12700T / 13700T / 14700T	Standard Port，3*Expansion Slot
