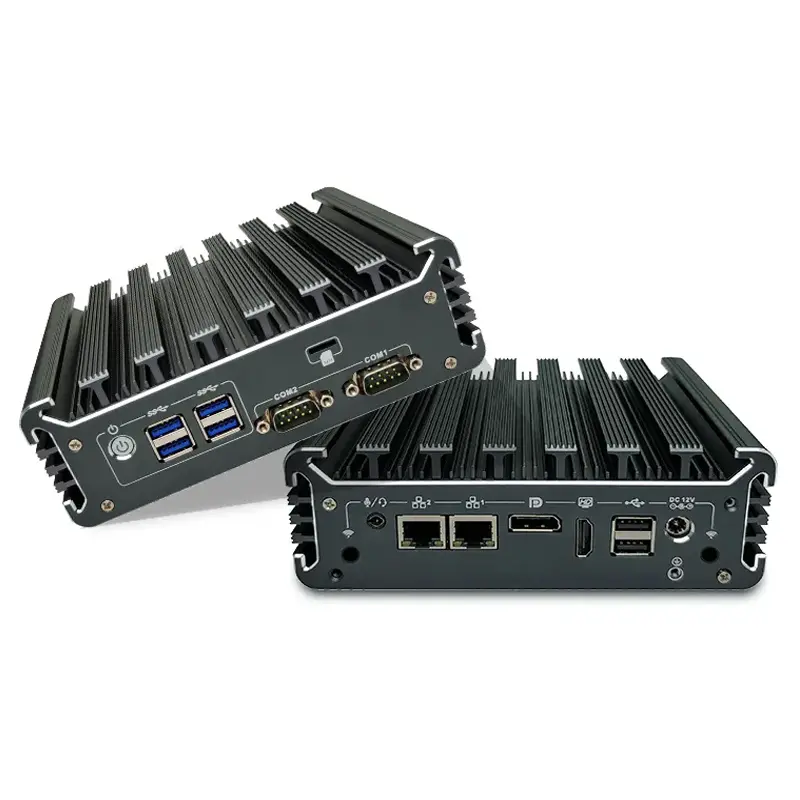

Nano Mini PC Intel Core I5 with TPM2.0

Nano Mini PC Intel Core I5 with TPM2.0

Model: Partaker B5

  • Silent operation with powerful Intel Core i5 processor.
  • Supports up to 32GB DDR4 RAM for smooth multitasking.
  • Crisp visuals with Intel Iris Plus Graphics 640.
  • Dual 2.5G LAN ports for faster networking speeds.
  • TPM 2.0 security for enhanced data protection.
  • Supports Windows 11 for a seamless user experience.
  • Versatile expansion options with M.2 and Mini PCIE slots.
  • Multiple display ports for flexible connectivity.
  • Auto power-on and timing boot for convenient operation.
  • Ideal for industrial automation, medical, and logistics applications.

Share to:

Overview



The Nano Mini PC powered by an Intel Core I5 processor and equipped with TPM2.0 security encryption offers robust performance in a compact form factor. Featuring an Intel 7th Gen Core i5 processor, up to 32GB of DDR4 RAM, and Intel Iris Plus Graphics 640, it’s perfect for applications in industrial automation, medical, logistics, warehousing, and education sectors. With dual 2.5G LAN ports and optional COM ports, it provides excellent connectivity options, while TPM2.0 ensures secure data handling.



Mechanical

Material Aluminum alloy
Colour Gray(color can be customized)
Size 166 x 127 x 55.5 mm (W*D*H)
Weight 2.5Kgs
Insallation Method Desktop type

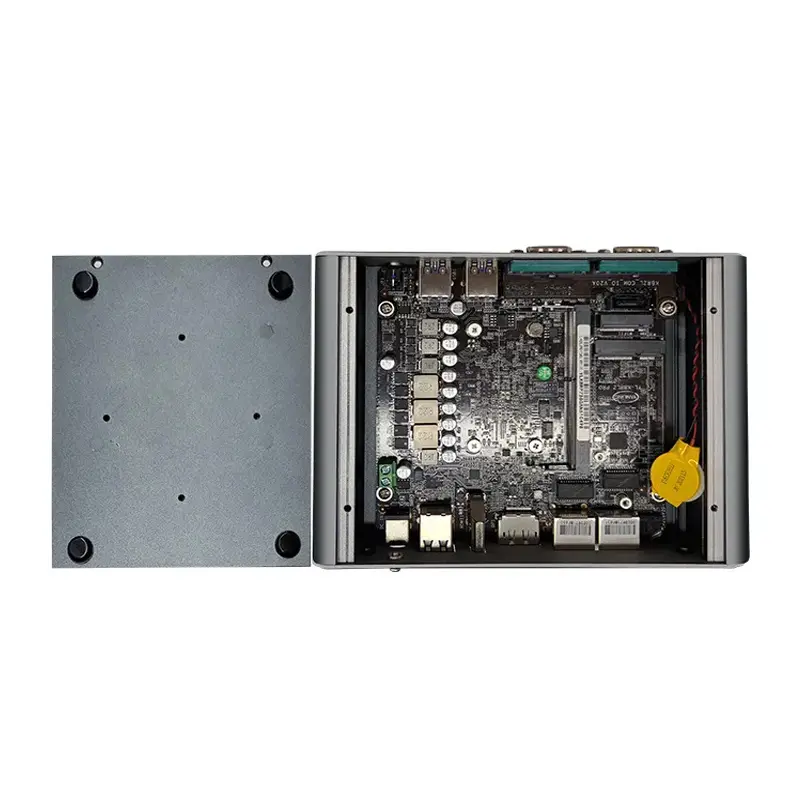

Motherboard

CPU Intel Core i5 7360U(Dual core quad threads, 2.3GHz, Max turbo 3.6GHz)
Graphic Intel Iris Plus Graphics 640
Network Card 2 x Intel i225-V 2.5G 1000/2500M LAN
Memory Support 1 x DDR4 1866/2133 MHz SODIMM RAM Slot, Max. Support 16GB
Storage 1 x M.2 2280 slot,1 x 2.5” HDD,Support RAID 0/1
Expand 1 x M.2 2280 M-Key slot(Support SATA protocol and NVME protocol )

1*MINI PCIE slot(WIFI/3G/4G Optional), SIM slot on front plate



I/O Interfaces

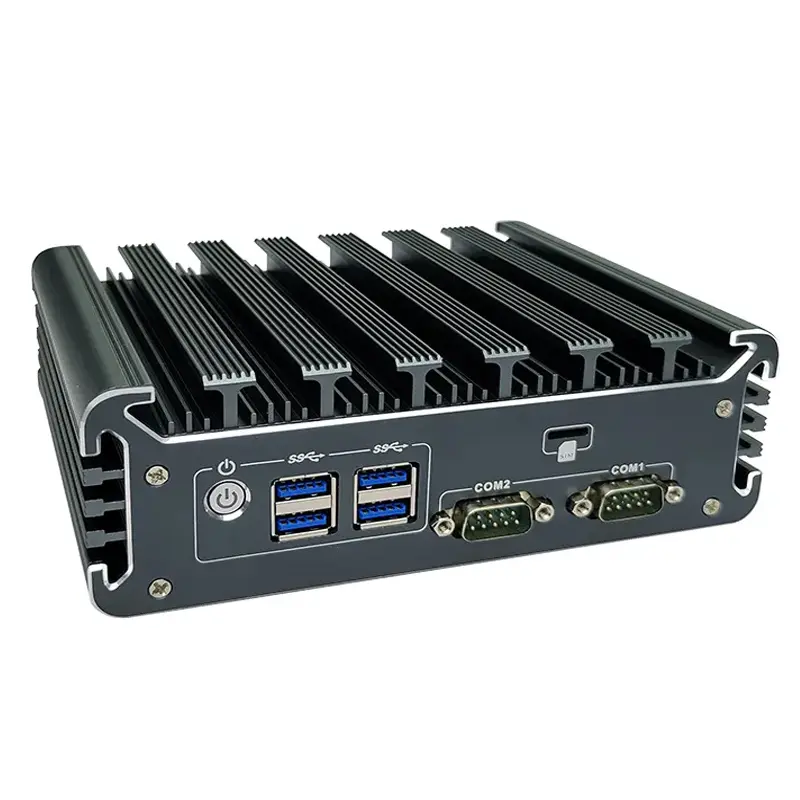

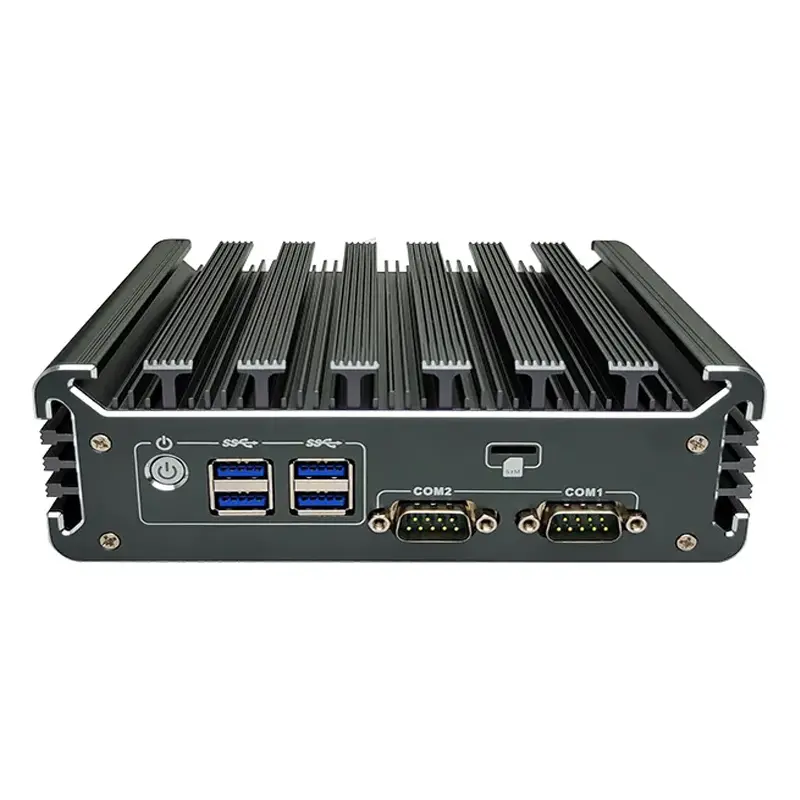

Front Panel 2 x COM(COM1, COM2 RS232 or RS485 mode Optional)
4 x USB3.0
1 x Power Switch
1 x SIM slot

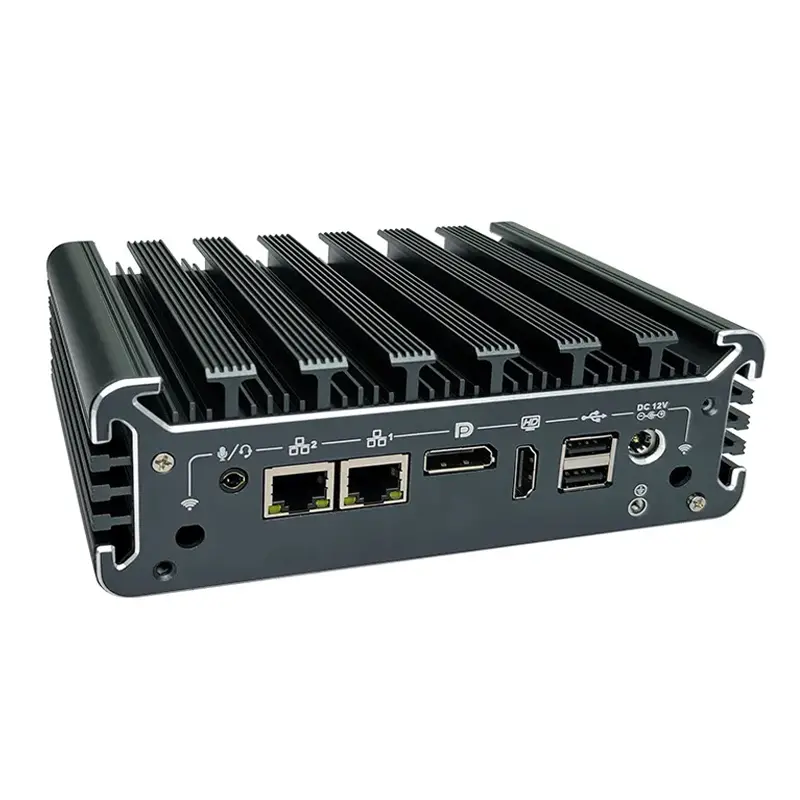

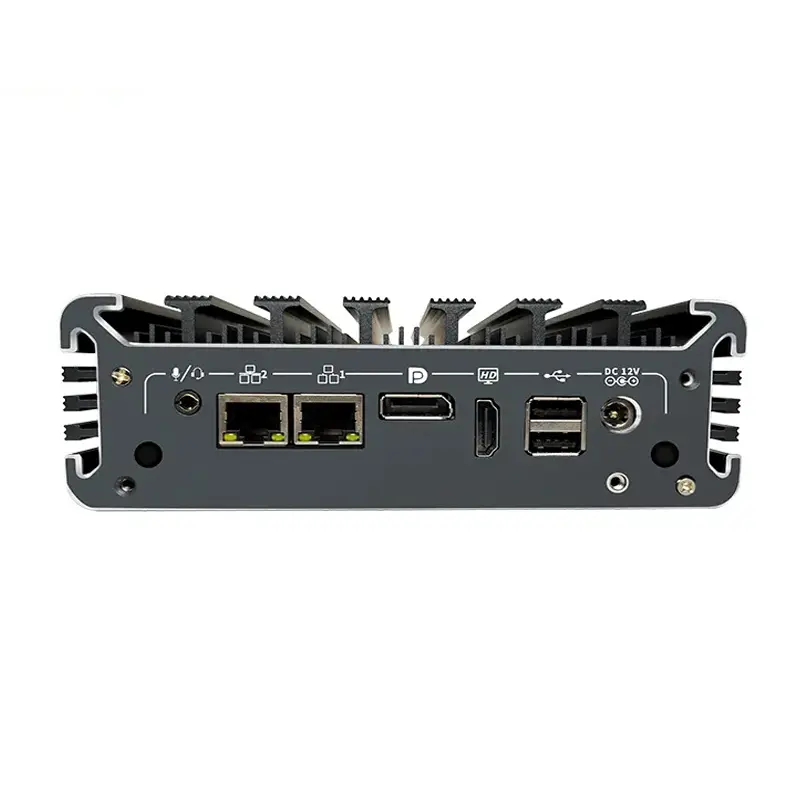

Rear Panel 1 x DC
2 x USB2.0
1 x HDMI
1 x DP
1 x Audio (Support Mic and Speaker at the same time)
2 x Intel i225-V 2.5G LAN



Software Support

Bios AMI EFI BIOS
System Support Windows & Linux



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

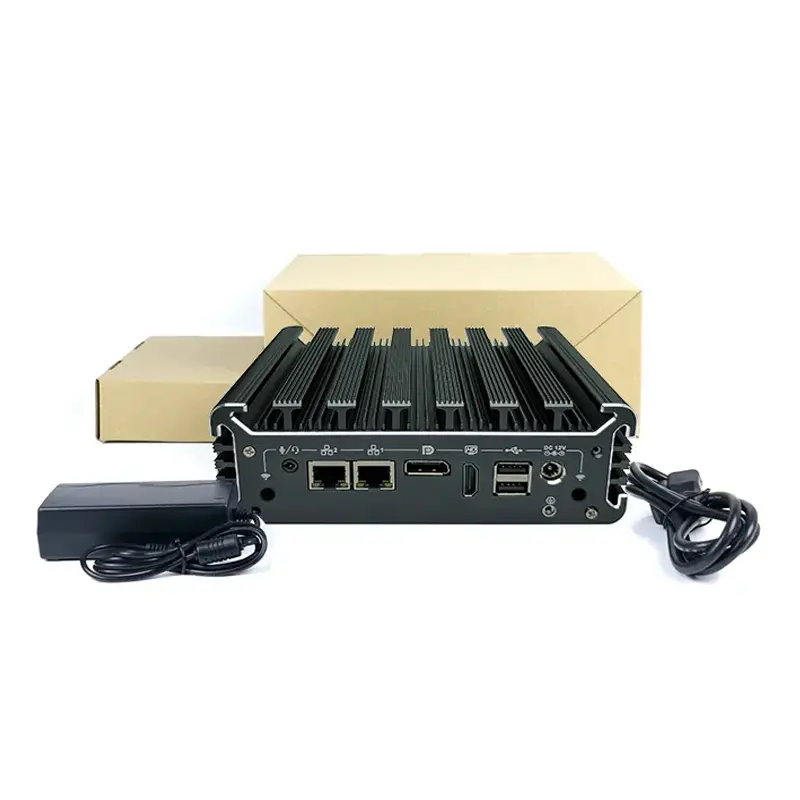

Packing List B5 mini pc, power supply, power cord, warranty card



Environment

Working Temperature 0℃ ~ +40℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow
Working Humidity 5% – 95% relative humidity, Non-condensing
Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Certification CE FCC ROHS



fanless mini pc i5

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B5 I5 7360U Intel® Iris Plus Graphics 640 2.3~3.6 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 6 12V/5A
