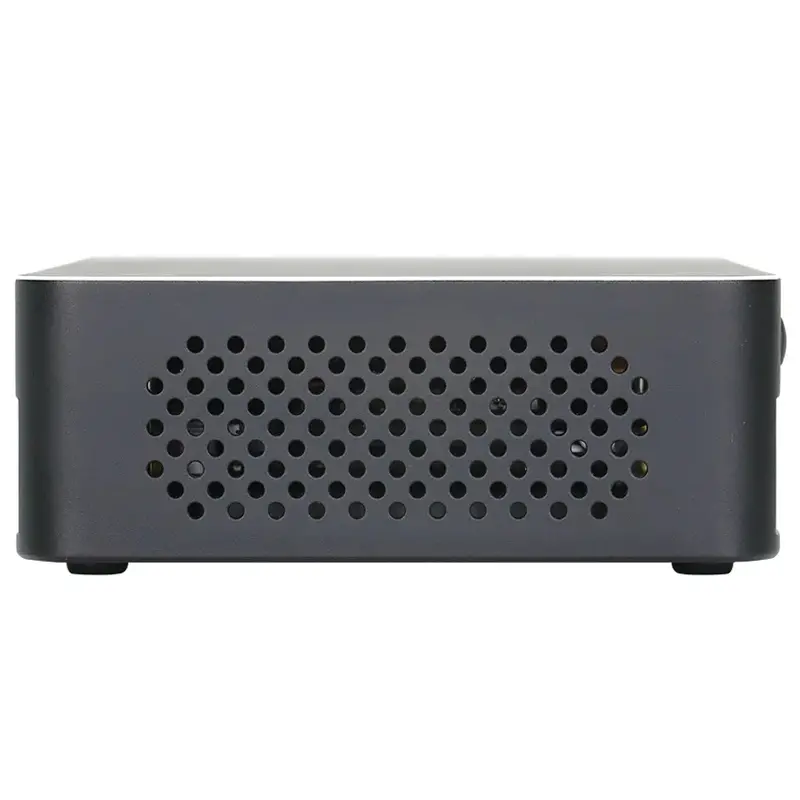

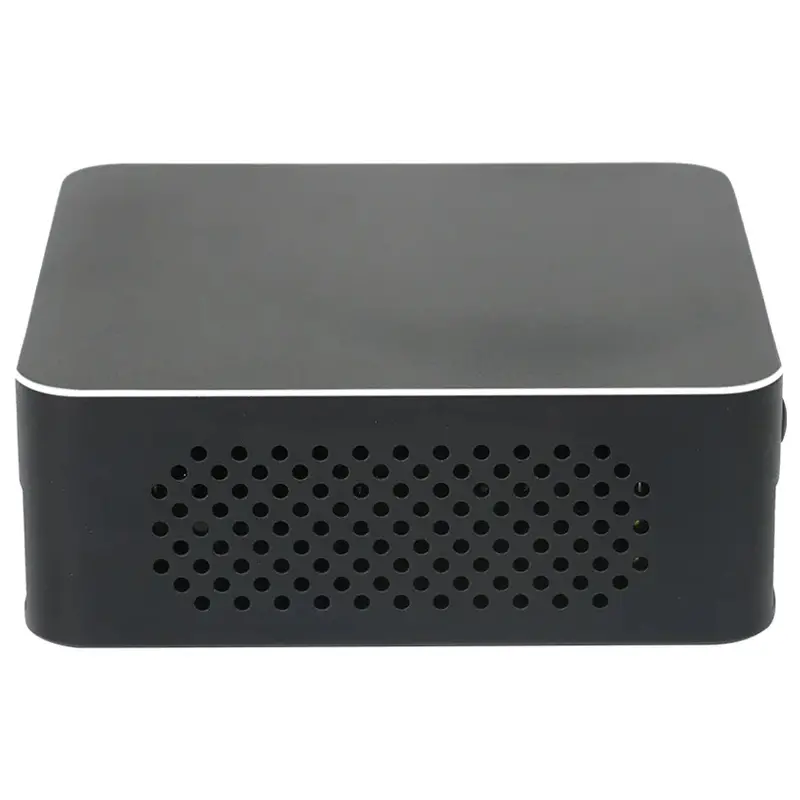

Nano Mini PC 8th Gen Intel i7 8550U i5 8250U

Nano Mini PC 8th Gen Intel i7 8550U i5 8250U

Model: Partaker PA16

  • Aluminum alloy chassis for durability and sleek design.
  • Customizable black color option.
  • Intel Kaby Lake Core i5/i7 processors for efficient performance.
  • Supports up to 16GB DDR4 RAM for multitasking.
  • Dual Gigabit Ethernet ports for reliable networking.
  • HDMI and DisplayPort outputs for dual-display support.
  • Multiple USB 2.0 and 3.0 ports for connectivity.
  • Fan-based cooling system for stable operation.
  • 12V DC power supply included.
  • Compact size suitable for desktop or space-saving applications.

Share to:

Overview



The PA16 Mini PC is a compact yet powerful desktop computer, crafted from aluminum alloy and available in a customizable black finish. It boasts a range of Intel Kaby Lake processors, from the Core i5 8250u to the optional Core i7 8550u, and supports up to 16GB of DDR4 RAM. With dual Gigabit Ethernet ports, HDMI and DisplayPort outputs, and multiple USB 2.0 and 3.0 connections, the PA16 is perfect for office work, multimedia entertainment, or even light gaming. Its fan-based cooling system ensures stable performance, while the included 12V DC power supply keeps it running smoothly.



Mechanical

Material Aluminum alloy
Colour Black(color can be customized)
Size 133 x 128 x 46 mm (L x W x H)
Weight 2.5Kgs
Insallation Method Desktop type



Motherboard

CPU Intel Kaby Lake Core i5 8250u quad core 3.4GHz

Intel core i7 8550u quad core 4.0GHz Optional

Network Card 2*Intel i211-AT 10/100/1000M lan
Chipset Integrated Intel HD Graphics Card 620
Memory Support 1 x DDR4 2133/2400MHz SODIMM ram slot, support max 16G
Storage Support 1 x M.2 2280 Slot, 1 x 2.5” SSD/HDD
Display Interface 1 x DP, 1 x HD, (Support synchronous and asynchronous dual display)
Function Support WDT (0~255 level), PXE boot, Wake on LAN, Auto power on when there is electricity,Timing boot.
Expand

Support 1*M.2 2280 Slot (support SATA or PCIE X4 signal)

Support 1*Mini-PCIE (support Wifi/BT/3G/4G), External SIM card slot



I/O Interfaces

Front Panel 2 x 1000M Lan
1 x HD (support 4096×2304@24Hz)
1 x DP (support 4096×2304@60Hz)
2 x USB2.0
1 x DC-IN 12V
1 x Audio (support audio and mic input)
Rear Panel 1 x Power Switch
4 x USB3.0
2 x COM optional (support RS232/485 optional)



Software Support

Bios AMI EFI BIOS
System Support Windows 7/8/10/11, Linux etc



General

Cooling Mode With Fan
Power Supply Support DC-IN 12V
Packing List PA16 mini pc, power supply, power cord, warranty card



Environment

Working Temperature -10°C – 50°C
Working Humidity 5% – 95% relative humidity, Non-condensing
Watch Dog Timer Support
Certification CE FCC ROHS



Nano Mini PC

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
PA16 I5 8250U Intel® UHD Graphics 620 1.6~3.4 GHz HDMI/DP 1 x SO-DIMM DDR4 1 x M.2 2280 Slot/ 1 x2.5” SSD/HDD 2 6 12V/5A
PA16 I7 8550U Intel® UHD Graphics 620 1.8~4.0 GHz HDMI/DP 1 x SO-DIMM DDR4 1 x M.2 2280 Slot/ 1 x2.5” SSD/HDD 2 6 12V/7.5A
