Nano Fanless Mini PC J1900 2 LAN 4 COM

Nano Fanless Mini PC J1900 2 LAN 4 COM

Model: Partaker PA11

  • Onboard Intel Celeron J1900 Quad Core
  • Support 1 x DDR3L 4G RAM
  • Support 4 x COM(2 x RS232/485 as Optional)
  • VGA+HDMI Dual Display
  • Support TPM Security Module
  • Support 2 x Intel i211-AT 1000M LAN
  • Support Dual 4G LTE

Share to:

Overview



The J1900 Din Rail Industrial Mini PC is a compact and powerful device that can be used for various industrial applications.



  • It is equipped with an Intel Celeron J1900 quad core processor, 4GB of DDR3L RAM, and supports both MSATA and 2.5″ HDD storage options.
  • It also has four COM ports, two of which can be configured as RS232 or RS485, for connecting to various peripherals and devices.

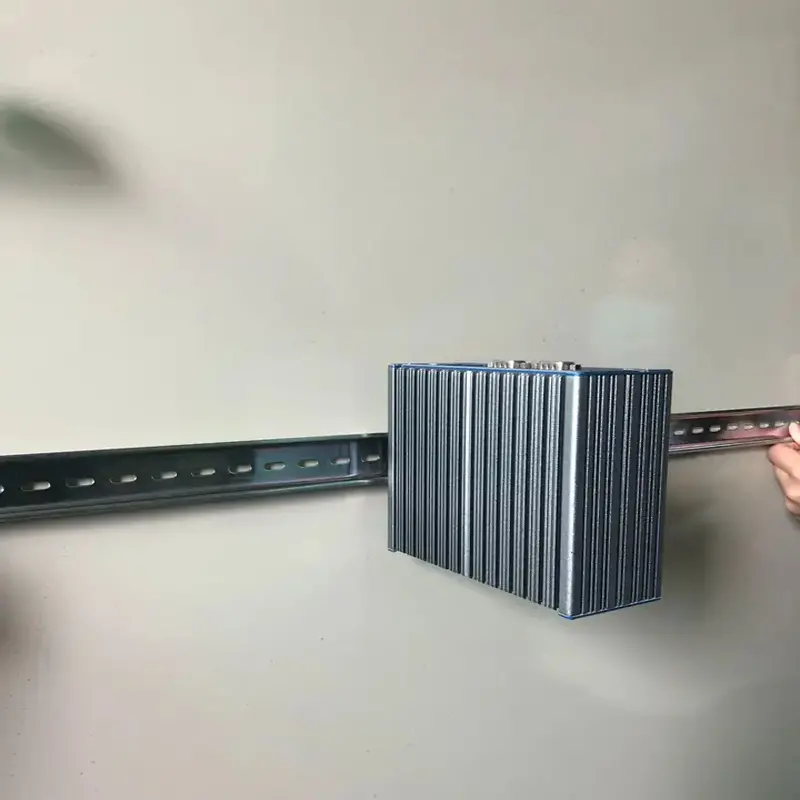

  • The J1900 Din Rail Industrial Mini PC can be mounted on a desktop, a din rail, a VESA bracket, or any other suitable surface.
  • It is ideal for automation, medical, transportation, warehouse, electric education, and other scenarios that require reliable and efficient computing performance.





Mechanical

Material Aluminum alloy
Colour Titanium gray + blue (any color can be customized)
Size 148 x 25 x 58 mm (L x W x H);
Weight 2Kgs
Insallation Method Desktop type/vesa mounting



Motherboard

CPU Intel® Celeron™ Procesor J1900(2M Cache, up to 2.42 GHz)
Network Card 2 x Intel i211-AT 10/100/1000M Lan
Display 1 x VGA, 1 x HD, (Support synchronous and asynchronous dual display)
Chipset Integrated Intel HD Graphics Card
Memory Onboard DDR3L 1600MHz 4GB ram
Storage Support 1 x MSATA, 1 x 2.5” SSD/HDD
Expand

Support 1 x Mini-PCIE (support MSATA (default), support 3G/4G/ SIM slot Optional)

Support 1 x Mini-PCIE (support WiFi/BT/3G/4G), Embedded SIM Slot

Optional: TPM (TPM 1.2 / 2.0 Module Optional),1 x USB2.0



I/O Interfaces

Front Panel 1 x Power button
2 x COM
4 x USB3.0
Rear Panel 1 x Audio(support audio and mic input)
1 x 10PIN Phoenix Terminal(4*Input 4*Output GPIO)
1 x SIM Slot
2 x COM
1 x VGA
1 x HDMI
1 x USB3.0
1 x DC-IN
2 x LAN



Software Support

Bios AMI EFI BIOS
System Support Windows 7/8/10/11, Linux OS



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter
Packing List Partaker PA11 mini pc, power supply, power cord, warranty card



Environment

Working Temperature -20°C – 60°C
Working Humidity 5% – 95% relative humidity, Non-condensing
Other Function Support WDT, PXE Boot, Wake on LAN, Power on, Timing boot
Certification CE FCC ROHS



J1900 Din Rail Industrial Mini PC

Model Processor Graphics Frequency Display Memory Storage LAN USB GPIO Power
PA11 J1900 Intel® HD Graphics 2.0~2.42 GHz HDMI/VGA Onboard DDR3L 1600MHz 4GB ram 1 x M-SATA SSD/1 x 2.5 inch SSD HDD 2 5 1 x 10PIN Phoenix Terminal(4 x Input 4 x Output GPIO) 12V/4A
