Mini PC with 8th-13th Intel Core I5 I7

Mini PC with 8th-13th Intel Core I5 I7

Model: Partaker B12

  • 8-13th Generation Intel® Core™ i5 i7 Processors
  • 2 x SODIMMs DDR4 Memory, up to 64GB
  • Support M.2 2280 SATA/NVME SSD, M.2 2280 NVME SSD
  • Aluminum chassis, 160 x 150 x 57mm
  • With DP, HDMI, 6 x USB 3.0, Type C for USB, LAN, Spk, Mic
  • Support Windows 7/10/11, Linux Ubuntu etc
  • Support Restore AC Power Loss/diskless boot
  • CE FCC ROHS, 3 Years Warranty

Share to:

Overview

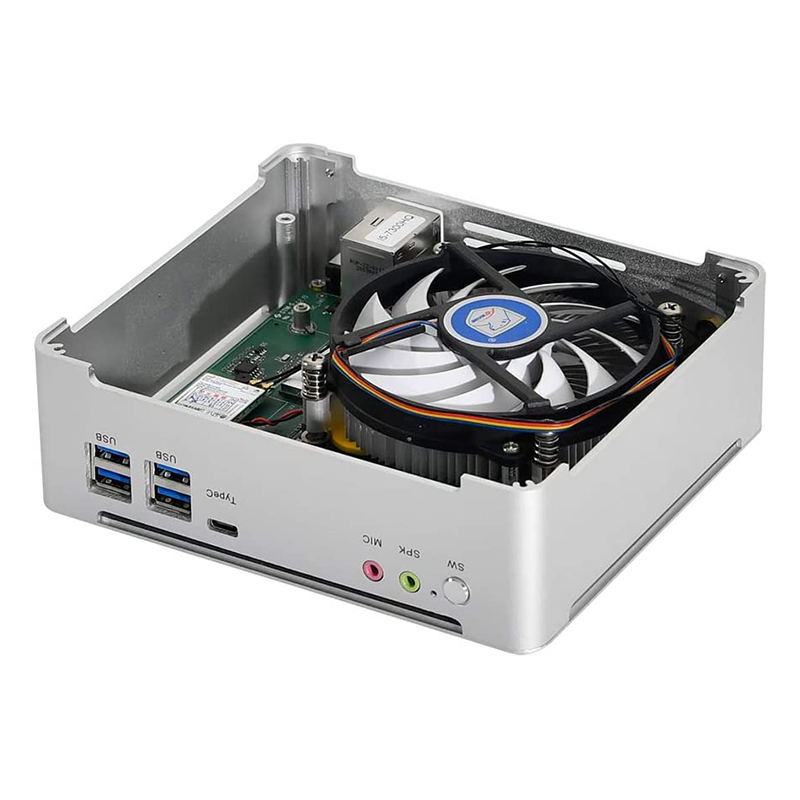

Partaker B12 is a well designed mini PC that All-aluminum alloy chassis and fan cooling system, control the temperature while ensuring silence, keep the computer running smoothly, quiet and low noise.



Mechanical

Material Aluminum alloy
Colour Silver
Size 160 x 150 x 57mm
Weight 2Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel Core i7-8750H Processor (9M Cache, up to 4.10 GHz)
Intel Core i7-10870H Processor (16M Cache, up to 5.00 GHz)
Intel Core i5-1340P Processor (12M Cache, up to 4.60 GHz)
Intel Core i7-1360P Processor (18M Cache, up to 5.00 GHz)
Chipset HM370
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan/Intel I225-V B3 2.5Gbe LAN(i5 1340P and i7 1360P)
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 64GB RAM

2 x SODIMM Up to DDR5 5200 MT/s, Max. 64GB(i5 1340P and i7 1360P)

Storage 1 x M.2 2280 (SATA/NVME), 1 x M.2 2280 (NVME)

1 x M.2 2280 NVME PCIE 3.0 x4 SSD, 1 x M.2 2280 NVME PCIE 4.0 x4 SSD(i5 1340P and i7 1360P)

Expand 1 x M.2 PCIE WiFi slot



I/O Interfaces

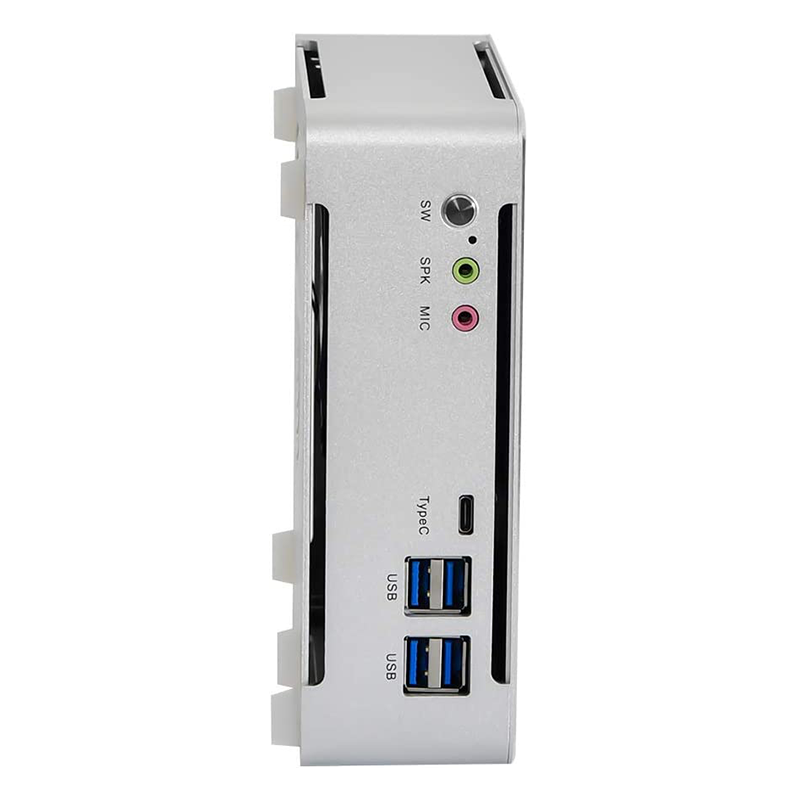

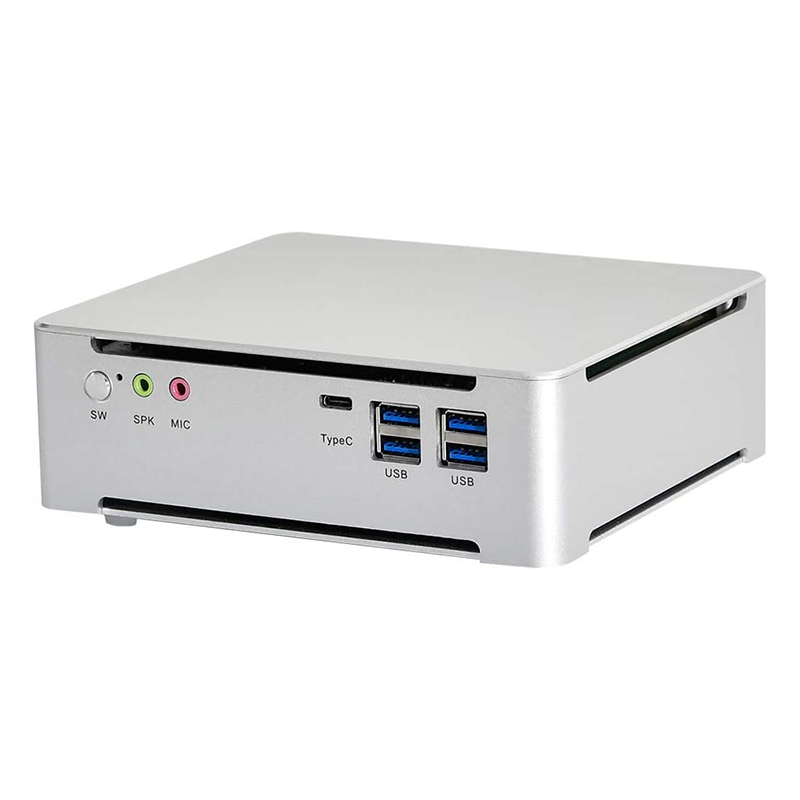

Front Panel 1 x Power button
1 x Audio
1 x Type C
4 x USB3.0

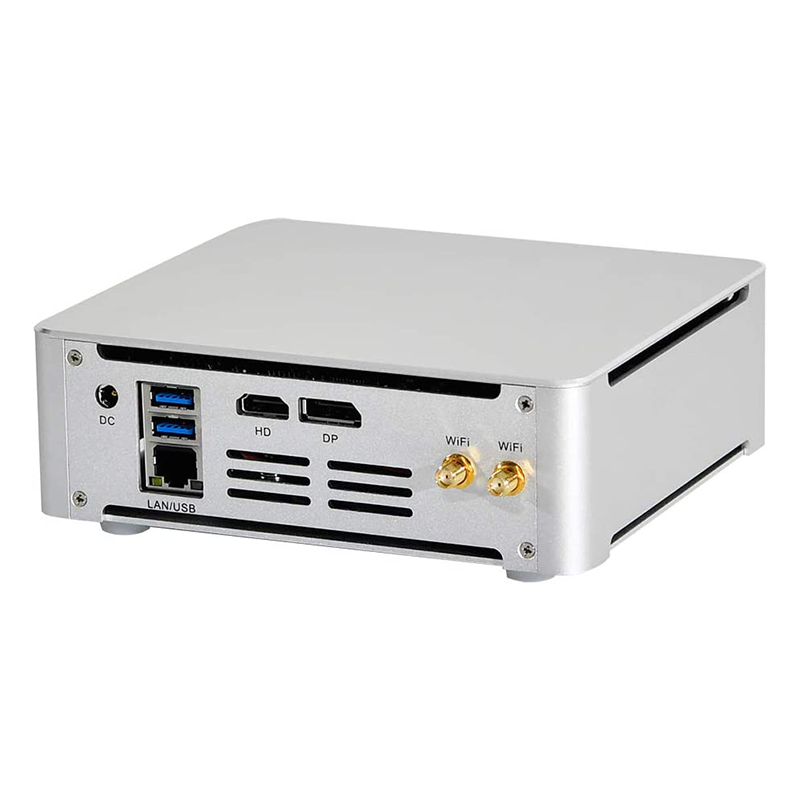

Rear Panel 1 x DC_in
2 x USB3.0
1 x Lan
1 x HDMI
1 x DP
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 12V/7A/10A
Packing List B12 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B12 I7 8750H Intel® UHD Graphics 630 2.2~4.1 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/10A
B12 I7 10870H Intel® UHD Graphics 2.2~5.0 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) 1 6 12V/10A
B12 I5 1340P Intel® Iris® Xe Graphics 3.4~4.6 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 NVME PCIE 3.0 x4 SSD 1 x M.2 2280 NVME PCIE 4.0 x4 SSD 1 6 12V/10A
B12 I7 1360P Intel® Iris® Xe Graphics 3.7~5.0 GHz DP/HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 NVME PCIE 3.0 x4 SSD 1 x M.2 2280 NVME PCIE 4.0 x4 SSD 1 6 12V/10A
