Mini PC Firewall 6 LAN Intel i226 2.5G

Mini PC Firewall 6 LAN Intel i226 2.5G

Model: Partaker H4

  • Equipped with Intel Pentium 7505, CORE I3-1115G4, I5-1135G7, I7-1165G7, 8505, I5 1245U, I7 1265U, and Intel N100
  • It supports DDR5 4800 MHz SODIMM memory with a slot capacity of up to 16GB for the N100 model
  • 2 x DDR5 262 Pin 4800 MHz SODIMM memory slots with a maximum capacity of 64GB for the I7 1265U/8505
  • Including 6 x 2.5G LAN ports, 2xUSB2.0, 2xUSB3.0, 1xHDMI+DP, 1xpower button, 1xinstruction lights, and 1xRJ45_COM
  • Flexible storage options with 1 x M.2 2280 NVMe slot, 1 x 2.5-inch SATA, 1 x mSATA SSD
  • Features Intel I225/I226 2.5G LAN ports for high-speed Ethernet connectivity
  • The mini PC firewall supports essential features such as power-on boot, scheduled boot, wake-up on LAN, PXE boot, and a watchdog

Share to:

Overview



The mini PC firewall offers a versatile computing solution with a range of Intel processors, including Pentium, Core i3, i5, i7, and N100 options, ensuring optimal performance. Featuring DDR5 memory slots supporting up to 64GB, flexible storage configurations, and integrated Intel HD Graphics, this compact device provides a robust foundation for various applications. Its extensive connectivity options, including multiple LAN ports, USB, HDMI, and DP, coupled with expansion slots for networking enhancements, make it an ideal choice for firewall applications. With a compact form factor, diverse features like power-on boot, and adherence to certifications such as CE, CCC, FCC, and ROHS, this mini PC firewall combines performance and versatility in a space-efficient design.







Mechanical

Material High quality aluminum alloy
Colour Dark gray (color can be customized)
Size 178 x 126 x 56 (MM)
Weight Gross Weight 1.75KG; Net Weight 1.15KG
Insallation Method Desktop



Motherboard

CPU Intel Core i3-1115G4 Processor, 6M Cache, up to 4.10 GHz

Intel Core i5-1145G7 Processor, 8M Cache, up to 4.40 GHz

Intel Core i7-1185G7 Processor, 12M Cache, up to 4.80 GHz

Intel Pentium Gold Processor 8505, 8M Cache, up to 4.40 GHz

Intel Core i7-1265U Processor, 12M Cache, up to 4.80 GHz

Intel Processor N100, 6M Cache, up to 3.40 GHz

Display Ports 1 x DP Port; 1 x HDMI Port
Network Card 6 x Intel I225/I226 2.5G Lan Port
Memory 1 x DDR5 4800 MHz SODIMM Memory slot Up to 16GB(N100)

2 x DDR5 262 Pin 4800 MHz SODIMM Memory slot Up to 64GB(I7 1265U/8505)

2 x DDR4 3200 MHz SODIMM Memory slot Up to 64GB(I7 1185G7/I5 1145G7/I3 1115G4)

Storage
1 x M.2 2280 nvme ,1*2.5 INCH Sata, 1*MSATA
1 x M.2 2280 nvme, 1*SATA3.0(N100)
Other Function Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog
Expansion 1 x M.2 slot for WIFI/Bluetooth/4G

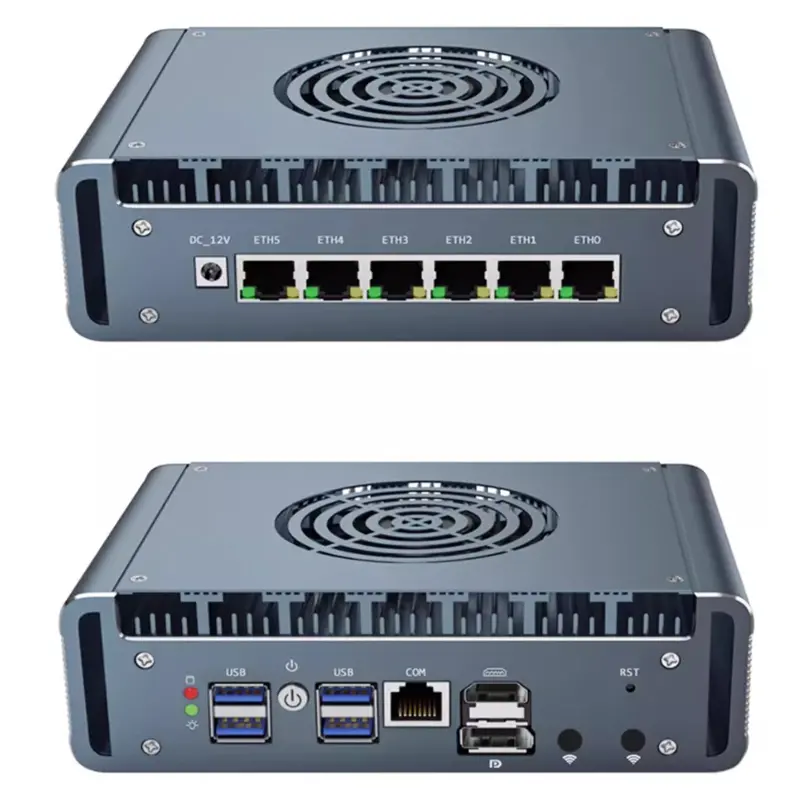

I/O Interfaces

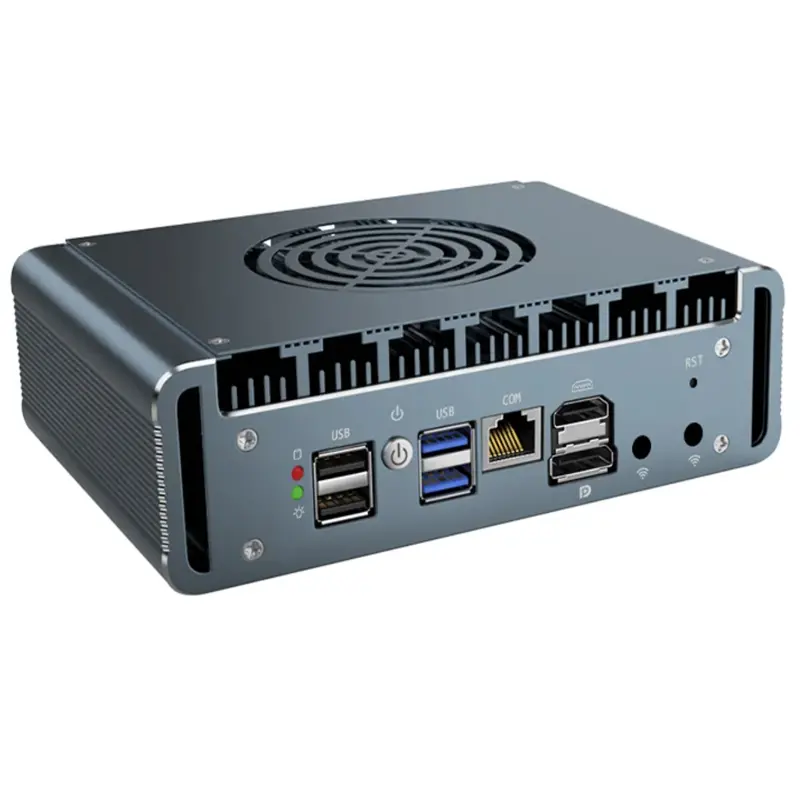

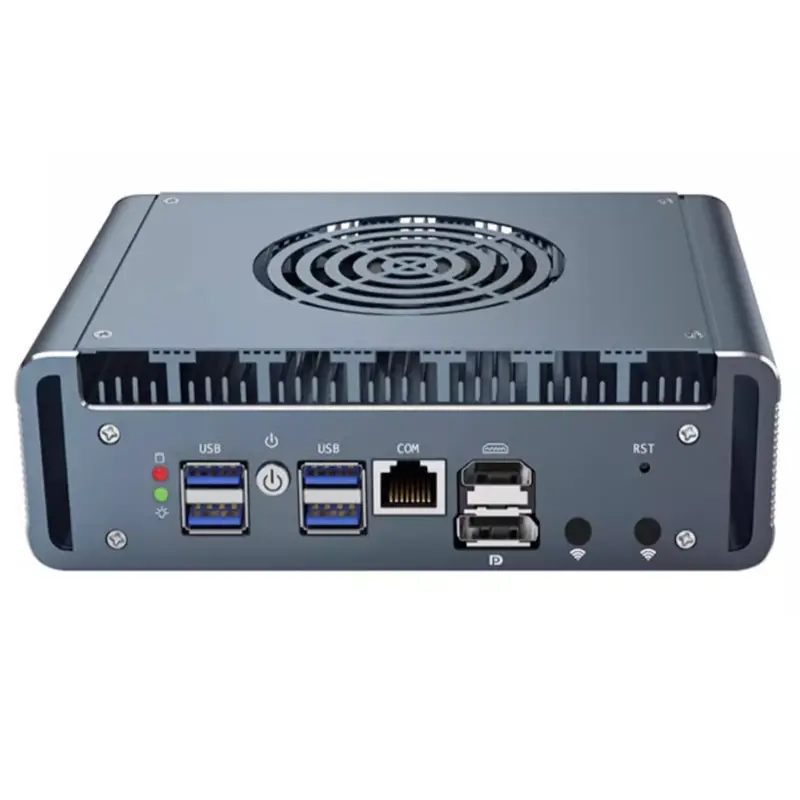

Front Panel 2 x USB2.0
1 x Power Button
2 x USB3.0
1 x COM
1 x HDMI
1 x DP
2 x WiFi Holes

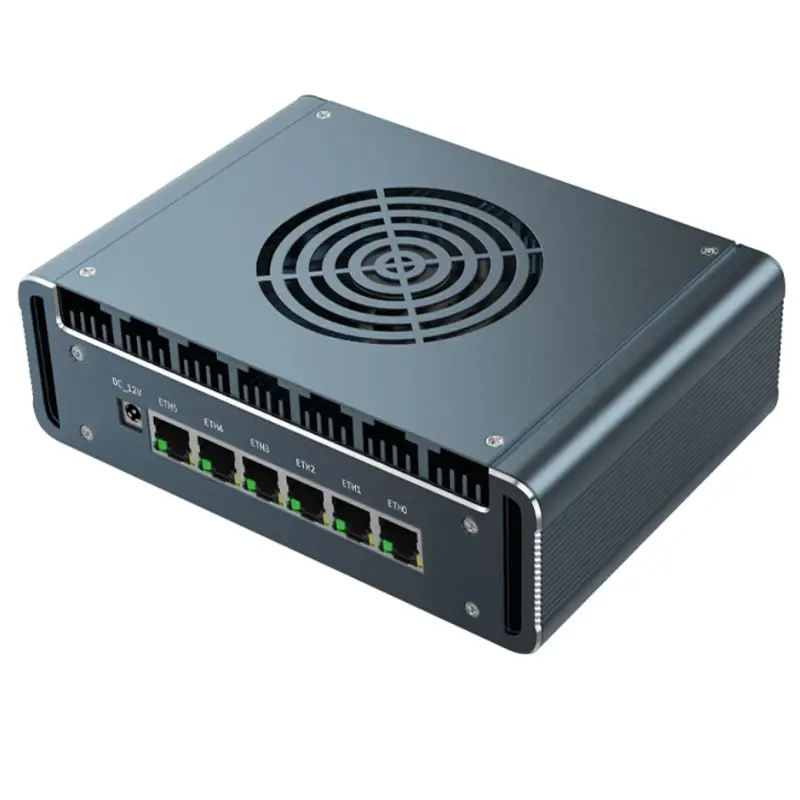

Rear Panel 1 x DC-12V
6 x RJ45



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11 & Linux, pfSense, Opnsense



General

Cooling Mode With fan, PWM Intelligent temperature control
Power Supply Support DC 12V
Packing List Mini PC, Power supply, Power cord, WiFi antennas, warranty card
Application HD film and television broadcasting, e-education, machine vision, industrial automation, Business office,etc



Environment

Work Temperature 0°C ~ +40°C (commercial HDD), -20°C ~ +50°C (industrial SSD), surface air flow
Work Humidity 5% ~ 95% non-condensing state
Certification CE FCC ROHS
Model Processor Graphic Frequency Display Memory Storage LAN USB Power
H4 I3 1115G4 Intel® UHD Graphics 1.70~4.10GHz DP/HDMI 2 x DDR4 1 x M.2 2280 NVMe/1 x mSATA/1 x SATA 6 4 DC 12V
H4 I5 1145G7 Intel® Iris® Xe Graphics 1.10~4.40GHz DP/HDMI 2 x DDR4 1 x M.2 2280 NVMe/1 x mSATA/1 x SATA 6 4 DC 12V
H4 I7 1185G7 Intel® Iris® Xe Graphics 1.20~4.80GHz DP/HDMI 2 x DDR4 1 x M.2 2280 NVMe/1 x mSATA/1 x SATA 6 4 DC 12V
H4 8505 Intel® UHD Graphics 3.30~4.40GHz DP/HDMI 2 x DDR5 1 x M.2 2280 PCIE4.0 x4/1 x SATA 6 4 DC 12V
H4 I7 1265U Intel® Iris® Xe Graphics eligible 3.60~4.80GHz DP/HDMI 2 x DDR5 1 x M.2 2280 PCIE4.0 x4/1 x SATA 6 4 DC 12V
H4 N100 Intel® UHD Graphics 3.40GHz DP/HDMI 1 x DDR5 1 x M.2 2280 NVMe/1 x SATA 6 4 DC 12V
