Mini Firewall PC

Mini Firewall PC

Model: Partaker C2

  • Intel Core i3-10110U i5-8260U Processor
  • 1 x DDR4 2400/2666 SODIMM memory slot, Max 32 GB
  • 1 x M.2 2280 slot, 1 x 2.5 inch SATA HDD, support RAID 0/1
  • 1 x HDMI(4096×2304@24Hz)
  • 2 x 3 pin Phoenix port(Can be option 2*RS232/485)
  • 4 x Intel i210-AT/i211-AT Lan
  • Designed for mobiler robot(AGV) main control equipment

Share to:

Overview



Experience top-tier performance with our Mini Firewall PC featuring 8/10th Gen Core i3/i5 processors. Tailor your connectivity with 2 x COM RS232/485, 6 x USB3.0, and 4 x Intel 1000M LAN ports. Enjoy crystal-clear visuals with HDMI 4K display support. Customize storage with 1 x M.2 (Nvme/SATA) and 1 x 2.5-inch SSD/HDD slots. Stay connected with optional WiFi/3G/4G, and benefit from PWM intelligent temperature control for optimal efficiency. This Mini Firewall PC is a versatile solution suitable for diverse applications, ensuring seamless performance and reliability.





Mechanical

Material High quality aluminum alloy
Colour Dark gray (color can be customized)

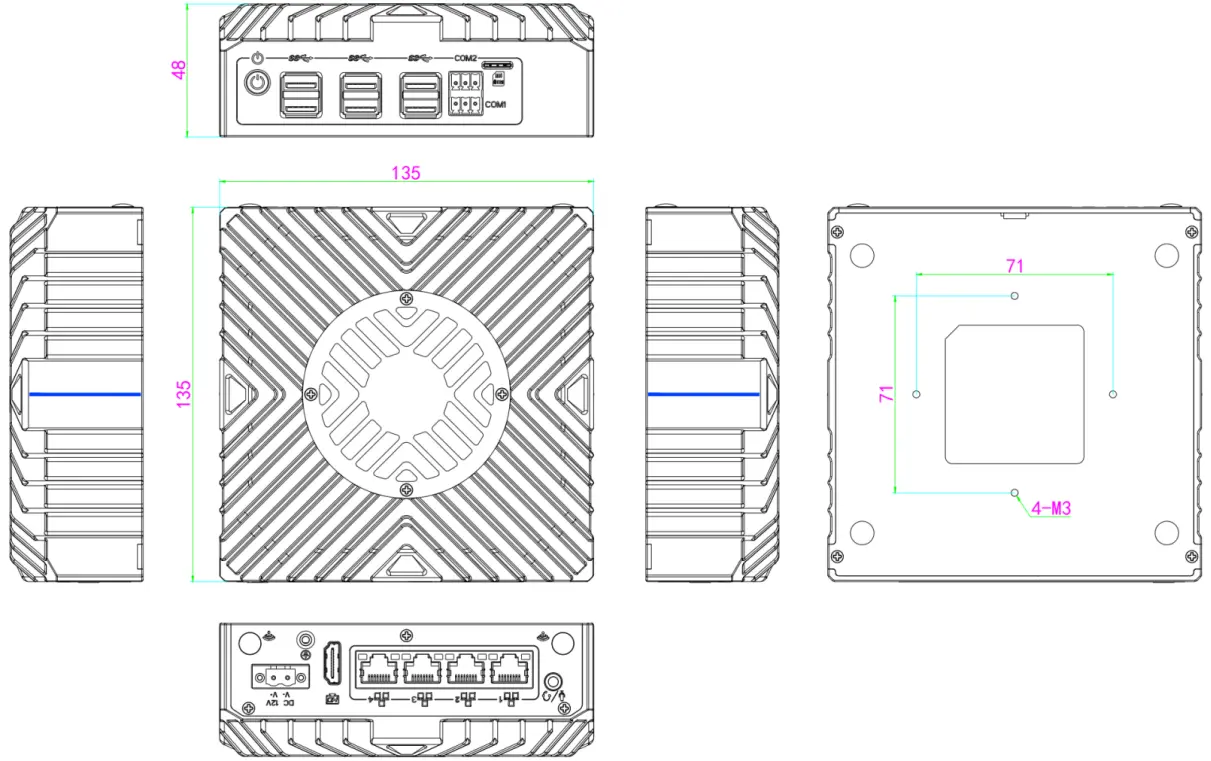

Size 135 * 134 * 48 mm
Weight 0.83kg

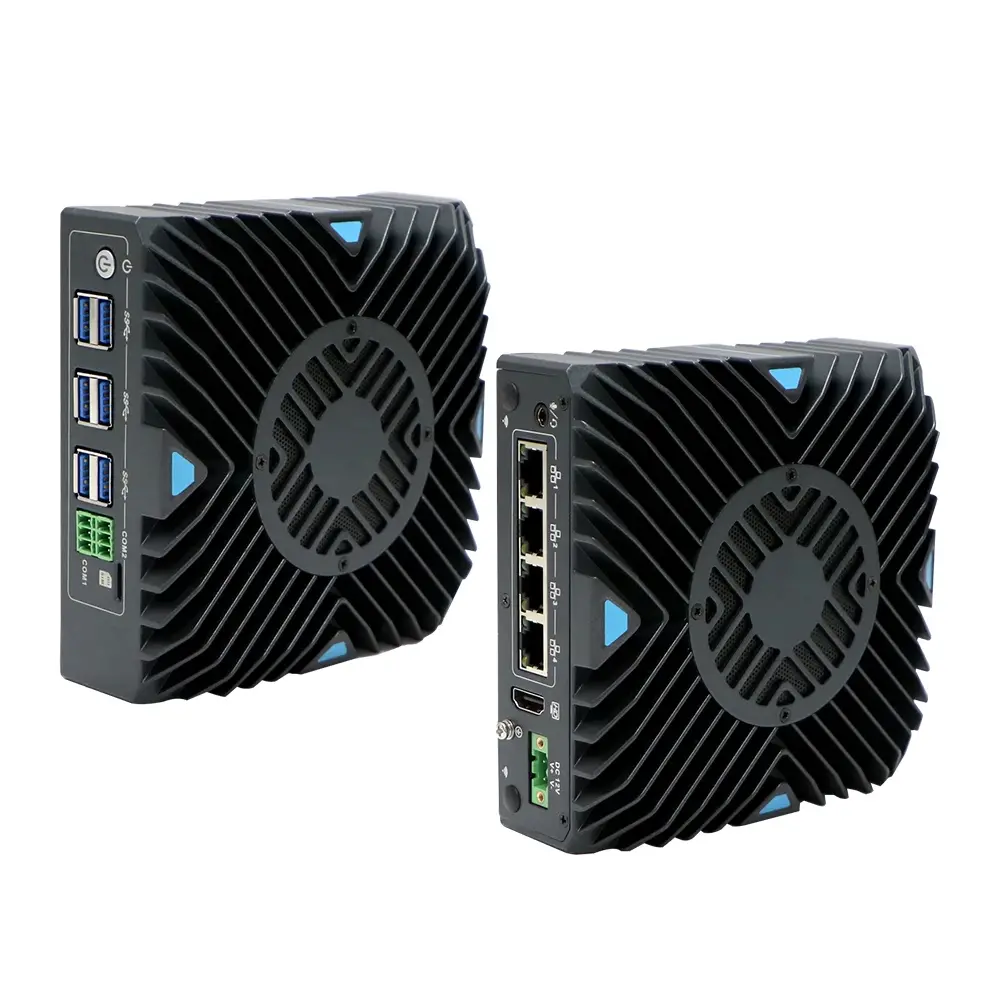

Insallation Method Wall-mounted, Desktop



Motherboard

CPU Intel Core i3-10110U(Dual core 4 threads, 2.1GHz,Max.Turbo 4.1GHz)

Intel Core i5-8260U(Quad core 8 threads,1.6 GHz,Max.Turbo 3.9 GHz)

Display Ports 1 x HDMI(4096×2304@24Hz)
Network Card 4 x Intel i210-AT/i211-AT Lan
Memory 1 x DDR4 2400/2666 SODIMM memory slot, Max 32 GB
Storage 1 x M.2 2280 slot, 1 x 2.5 inch SATA HDD, support RAID 0/1
Other Function Auto power on when there is electricity,Timing boot,Wake on LAN, PXE boot,Watchdog(0~255 level), TPM2.0
Expansion 1 x M.2 2280 M-Key slot( SATA or NVME)

1*MINI PCIE slot(WIFI/3G/4G), preposition SIM card slot



I/O Interfaces

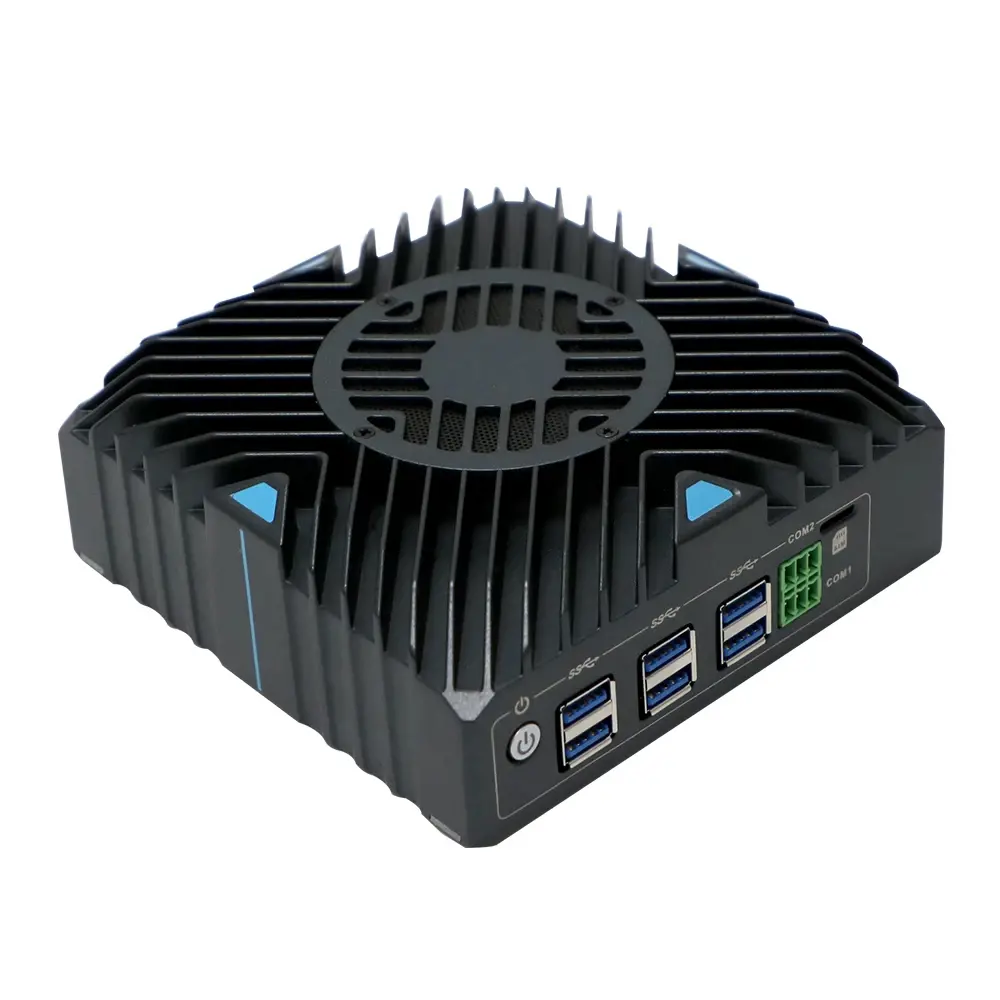

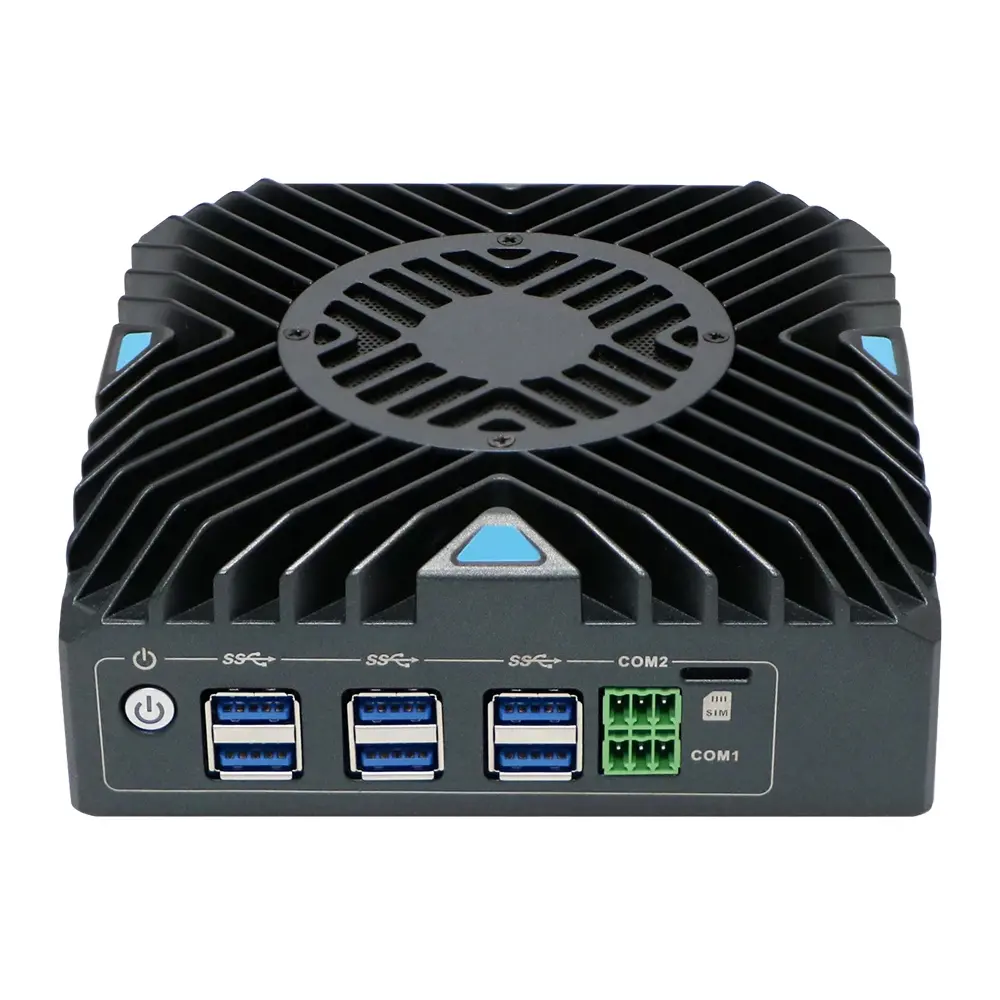

Front Panel 1 x Power Button
6 x USB3.1
1 x SIM card slot
2 x 3 pin Phoenix port(Can be option 2*RS232/485)

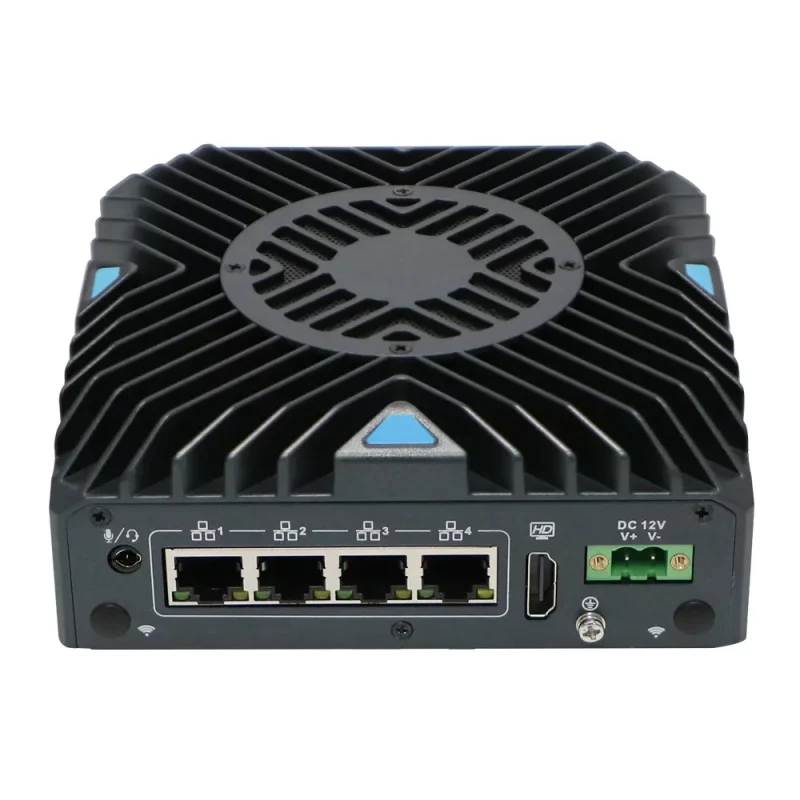

Rear Panel 1 x Audio/Mic interface
4 x RJ45
1 x HDMI
1 x DC in 12V



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11 & Linux



General

Cooling Mode With fan, PWM Intelligent temperature control
Power Supply Support DC 12V

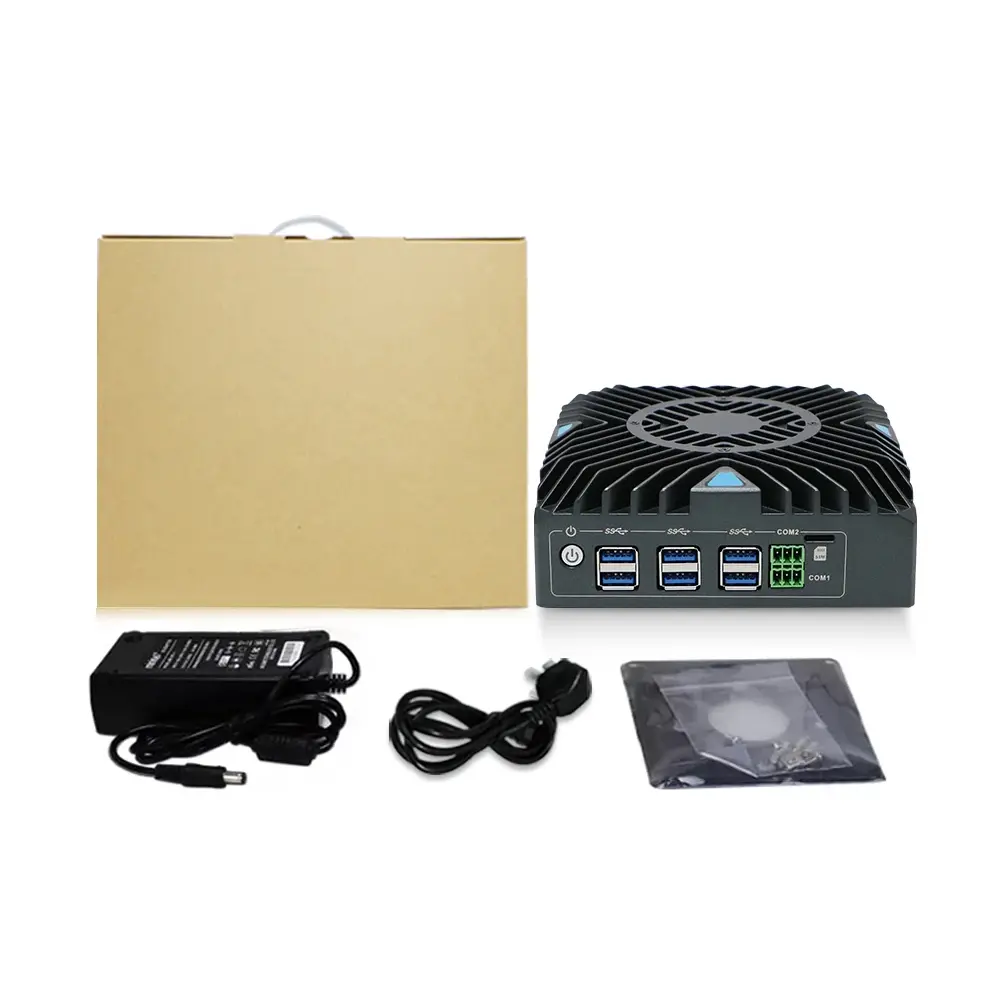

Packing List Mini PC, Power supply, Power cord, WiFi antennas, VESA, warranty card
Application HD film and television broadcasting, e-education, machine vision, industrial automation, Business office,etc



Environment

Work Temperature 0°C ~ +40°C (commercial HDD), -20°C ~ +50°C (industrial SSD), surface air flow
Work Humidity 5% ~ 95% non-condensing state
Certification CE FCC ROHS
4 LAN MINI PC
Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
C2 I3 10110U Intel® UHD Graphics 620 2.10~4.10GHz 1 x HDMI 1 x DDR4, Max 32G 1 x M.2 2280, 1 x 2.5 inch SSD/HDD 2*3 pin Phoenix port(Can be option 2*RS232/485) 4 6 DC 12V
C2 I5 8260U Intel® UHD Graphics 1.60~3.90GHz 1 x HDMI 1 x DDR4, Max 32G 1 x M.2 2280, 2 x 2.5 inch SSD/HDD 2*3 pin Phoenix port(Can be option 2*RS232/485) 4 6 DC 12V
