Micro Firewall Appliance

Micro Firewall Appliance

Model: Partaker H7-B

  • Intel Celeron N5105 N5100 J6412 N100 Processor
  • 4 x Intel i225-V B3/i226-V 2.5G RJ45 LANs
  • 2 x DDR4 SODIMM Slot, support 2400/2666/2933MHz
  • 1 x M.2 NVMe/PCIe3.0x2 2280 SSD+1×2.5”SATA3.0 7mm SSD/HDD
  • 1 x HDMI2.0 and 1xDP dual 4K@60Hz video display
  • Fanless without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.

Share to:

Overview



Partaker H7-B with Intel 11th Gen Jasper Lake quad core processor, Intel 2.5G network, aluminum shell, closed dust-proof design, fanless quite, lower power consumption, WIFI/3G/4G optional and 24 hours working. It can be placed behind the screen, does not take up space, and has a simple desktop, giving you the best experience. Applicable to firewall, virtualization, cloud server, office computer, soft routing, thin client, edge computing, visual inspection, industrial control etc.





Mechanical

Material Aluminum alloy
Colour Black

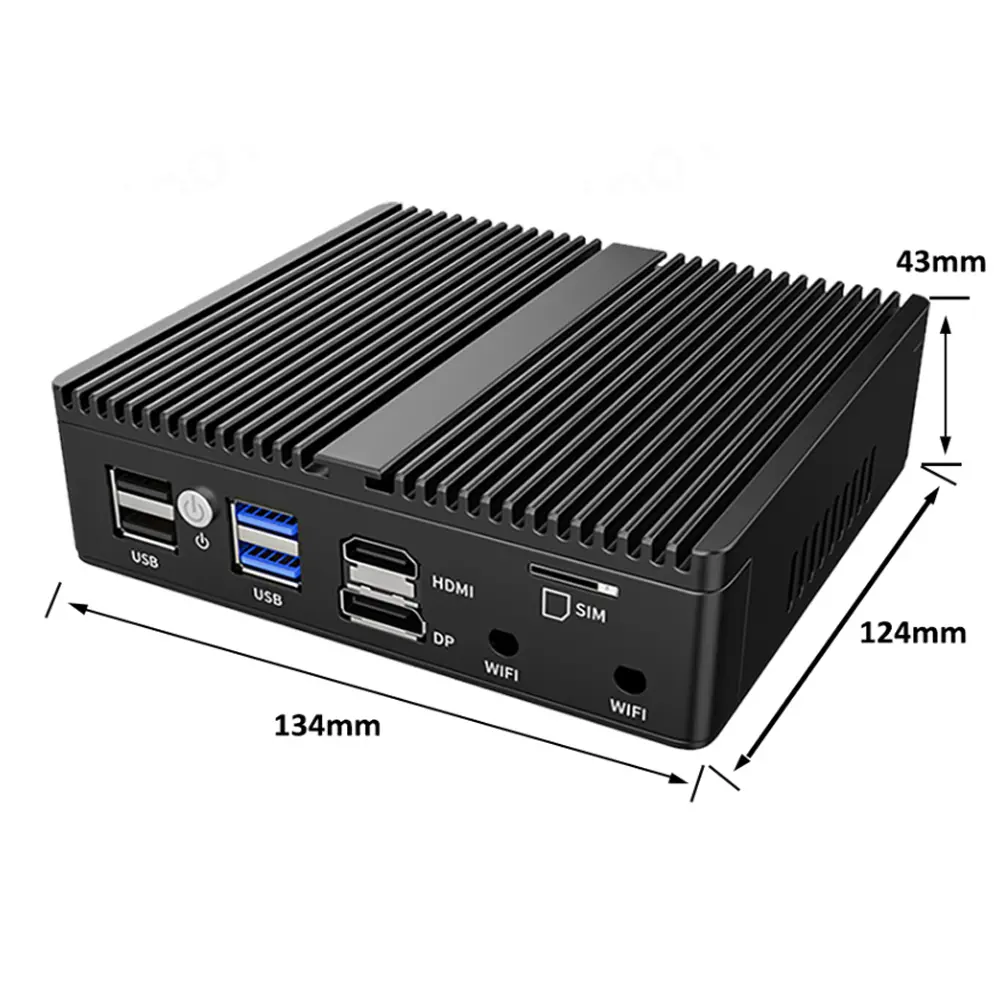

Size 136 x 125 x 40mm
Weight 1.5Kgs
Insallation Method Desktop type
Vesa mounted installtion



Motherboard

CPU Intel® Celeron™ N5100, 4 Core 4 threads, 1.10GHz up to 2.8GHz, 4MB Cache
Intel® Celeron™ J4125, 4 Core 4 threads, 2.00GHz up to 2.7GHz, 4MB Cache
Intel® Celeron™ N5105, 4 Core 4 threads,  2.0GHz up to 2.9GHz, 4MB Cache
Intel® Pentium™ Silver J5040, 4 Core 4 threads,  2.0GHz up to 3.2GHz, 4MB Cache
Intel® Celeron™ J6412,  4 Core 4 threads,  2.0GHz up to 2.6GHz, 1.5MB Cache
Intel® Processor N100,  4 Core 4 threads,  3.40GHz, 6MB Cache
Network Card 4 x Intel i226-V
Memory 2 x DDR4 2933 MHz SODIMM Memory slot Up to 32GB
Storage 1 x M.2 NVMe 2280, 1 x SATA3.0 (Support 2.5 inch HDD/SSD)
Graphic Intel UHD Graphics 450MHz-800MHz
Expansion 1 x Mini PCIe Channel for WiFi/Bluetooth/4G
Other Function Power-on boot, Scheduled boot, Wake-up on LAN;, PXE boot,  Watchdog

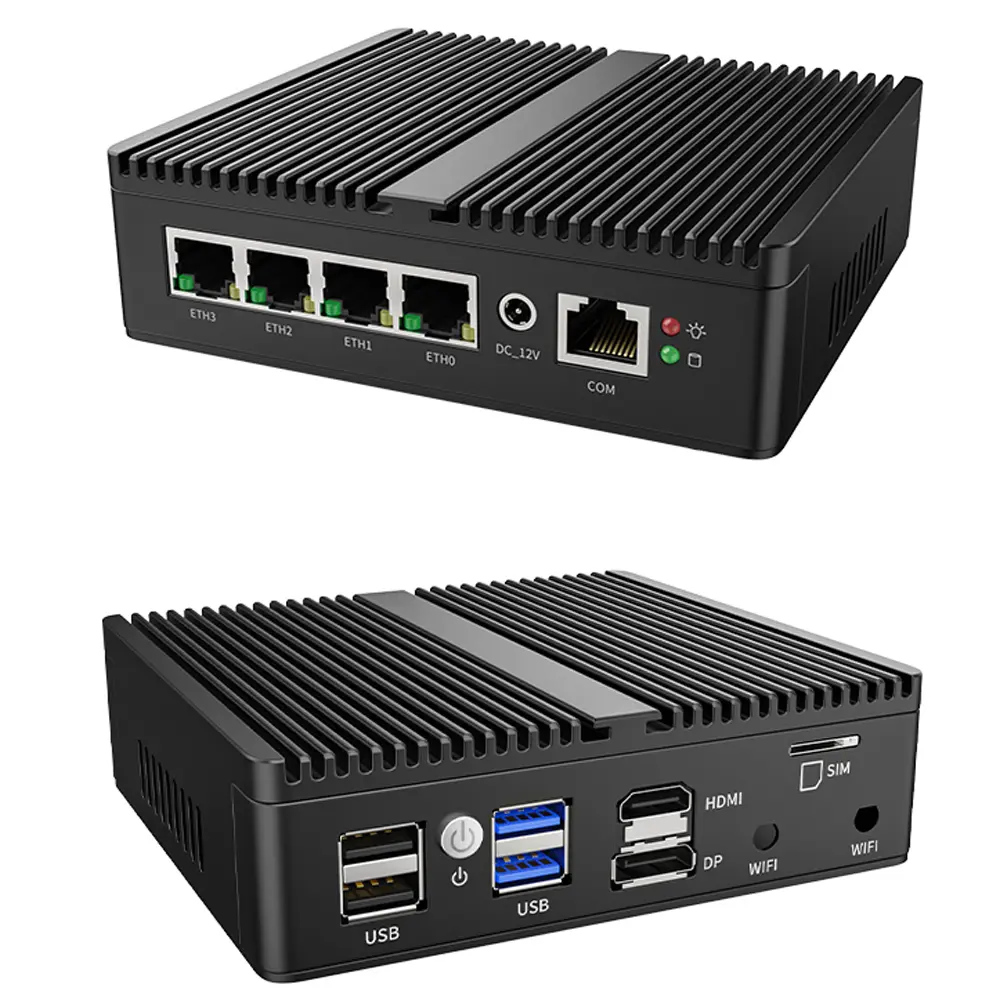

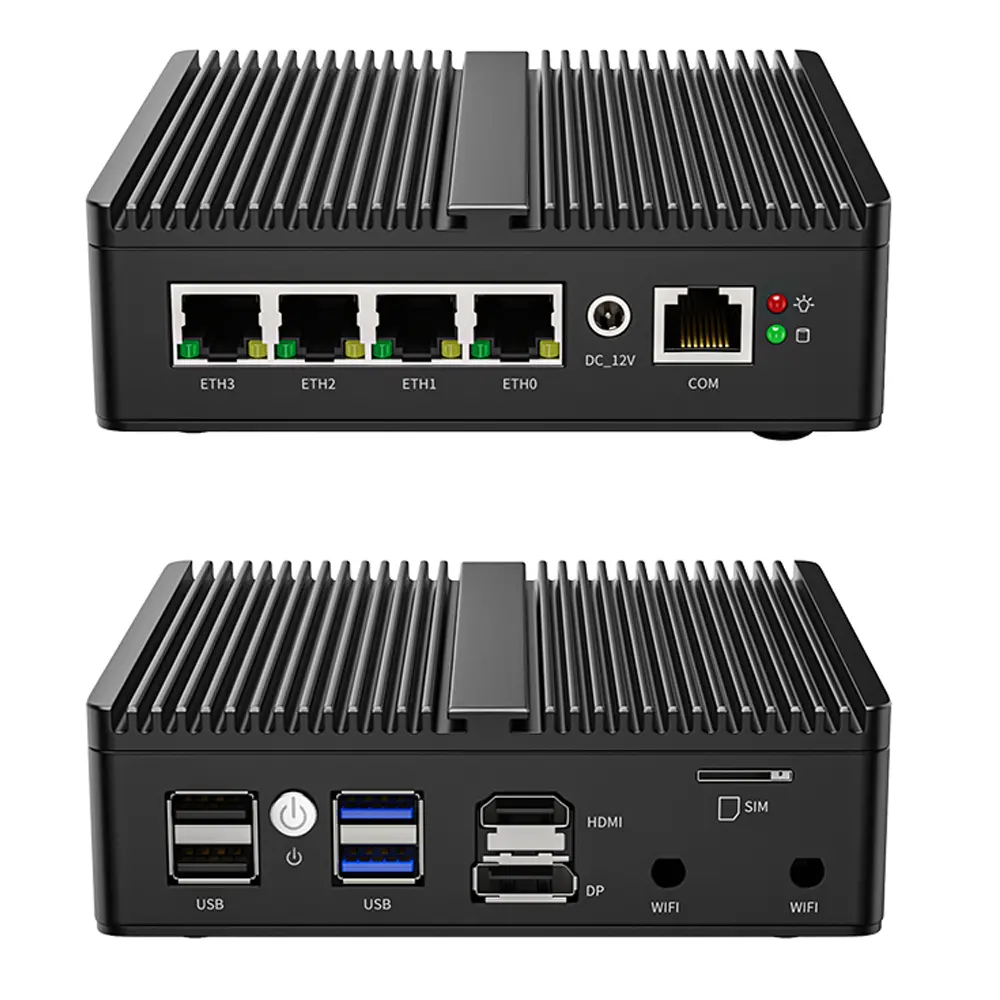

I/O Interfaces

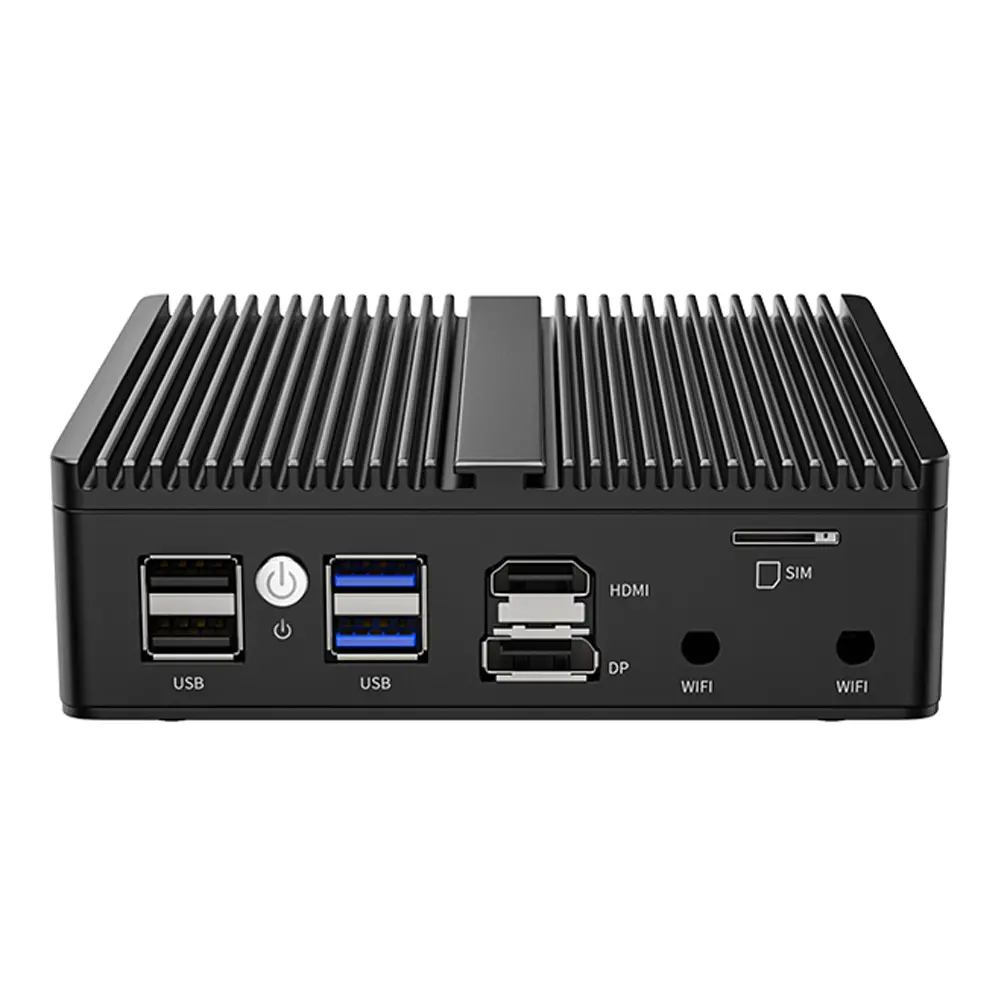

Front Panel 2 x USB2.0
2 x USB3.0
1 x Power On/Off
1 x HDMI(With audio output)
1 x DP
1 x SIM Slot
2 x WIFI Holes

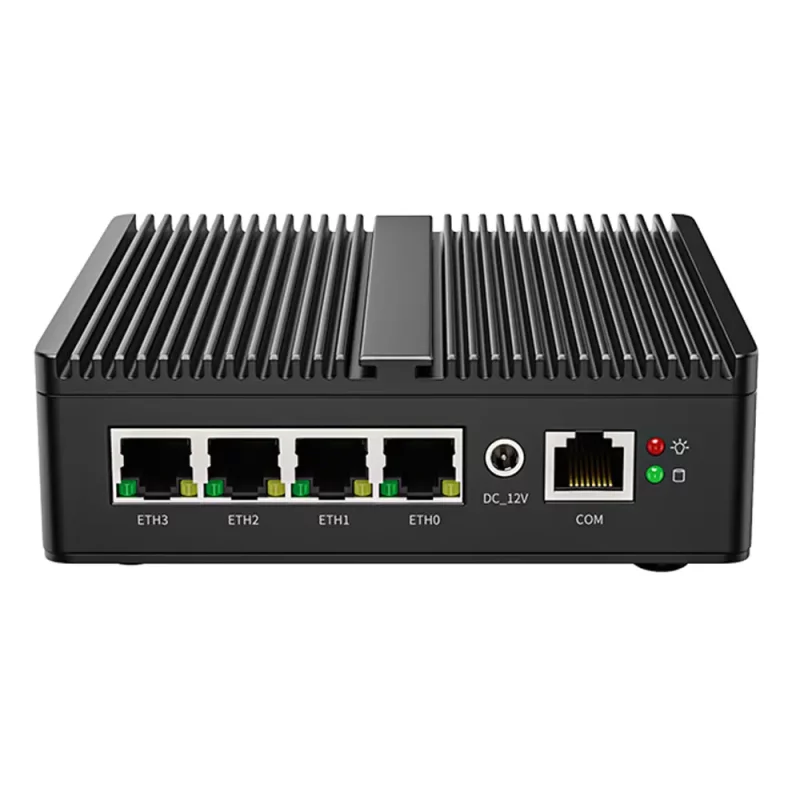

Rear Panel 4 x 2.5G LAN
1 x DC-12V
1 x Console
1 x Power indicator
1 x Hard disk indicator



Software Support

Bios AMI bios
System Support Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc



General

Cooling Mode Fanless
Power Supply DC12V-4A 5.5 x 2.5
Size 136 x 126 x 40 (MM)
Weight Gross Weight 1.75KG,  Net Weight 1.15KG
Package Size 20 x 17 x 12 (CM)
Packing List H7-B mini pc, power supply, power cord, vesa bracket, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H7-B N5105 Intel UHD Graphics 2.0~2.9 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe/PCIe3.0 x 2 2280 SSD/2.5 inch SATA3.0 4 x i226 4 12V/5A
H7-B N5100 Intel UHD Graphics 1.1~2.8 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe/PCIe3.0 x 2 2280 SSD/2.5 inch SATA3.0 4 x i226 4 12V/3A
H7-B J6412 Intel UHD Graphics 2.0~2.6 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe/PCIe3.0 x 2 2280 SSD/2.5 inch SATA3.0 4 x i226 4 12V/3A
H7-B N100 Intel UHD Graphics 3.40 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe/PCIe3.0 x 2 2280 SSD/2.5 inch SATA3.0 4 x i226 4 12V/3A
