Micro Firewall Appliance 6 LAN

Micro Firewall Appliance 6 LAN

Model: Partaker H9

  • Aluminum alloy structure, fanless design
  • Intel J4125, 5205U, 6405U, I7 8550U, I3 7100U, I5 10210U
  • Support 2 x DDR4 memory, up to 16G/64GB
  • 1 mSATA slot (supports 2.5-inch hard disk)

Share to:

Overview

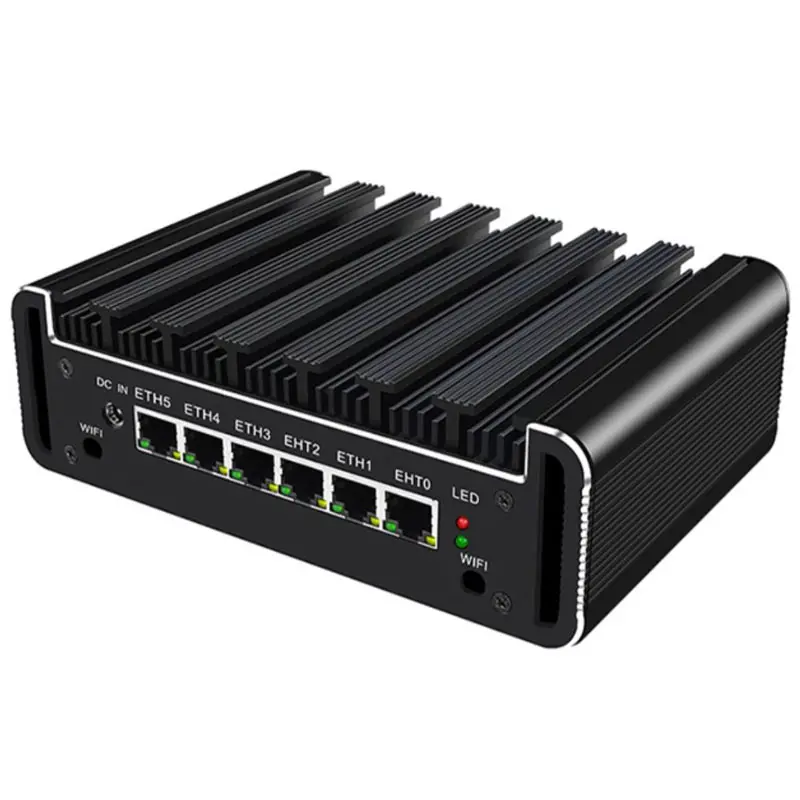

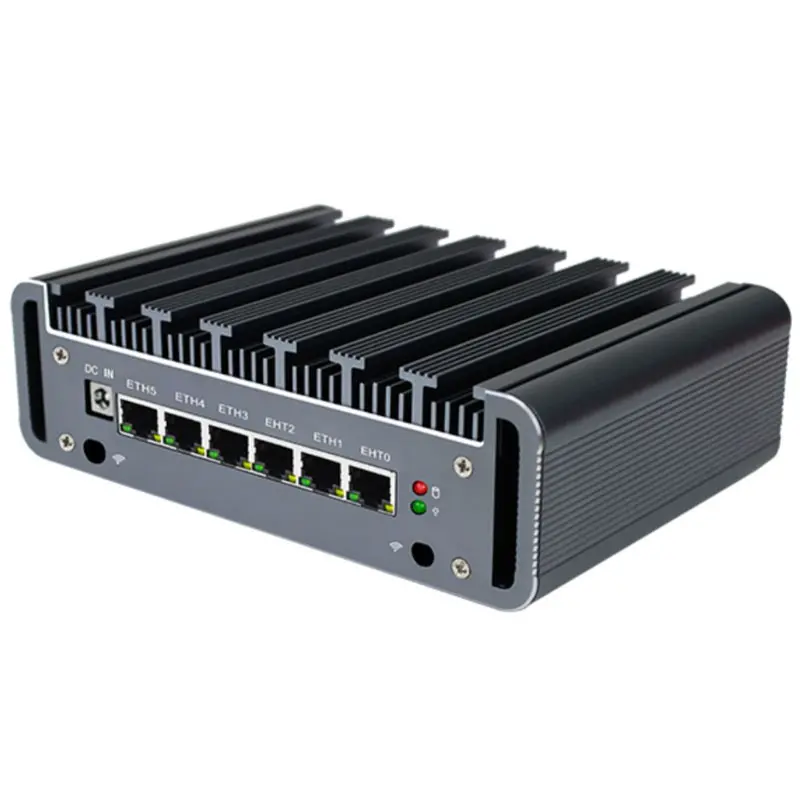

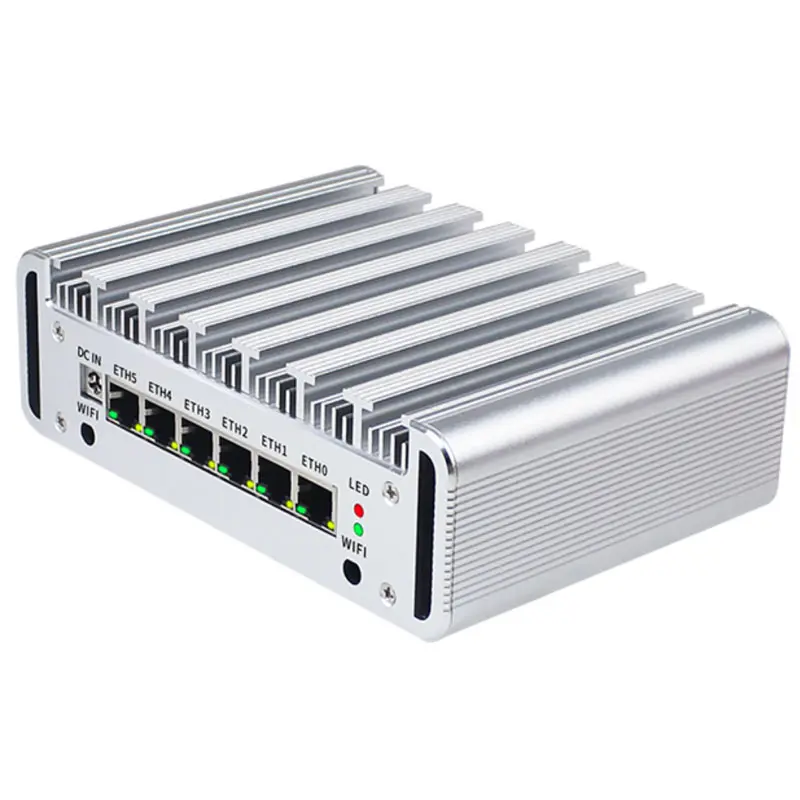

Partaker H9 firewall mini pc with all aluminum alloy, heat dissipation design, striped ice thorn cooling, fanless design, effectively prevent the inside of machine accmulated dust and noise caused by fan operation.





Mechanical

Material Aluminum alloy
Colour Black
Size 178 x 126 x 56(mm)
Weight 2.5Kgs
Insallation Method Desktop type
Vesa mounted installtion



Motherboard

CPU

Intel Celeron Processor J4125, 4M Cache, up to 2.70 GHz
Intel Celeron Processor 5205U, 2M Cache, 1.90 GHz
Intel Pentium Gold Processor 6405U, 2M Cache, 2.40 GHz
Intel Core i7 8650U Processor, 8M Cache, up to 4.20 GHz
Intel Core i5 10210U Processor, 6M Cache, up to 4.20 GHz

Intel Celeron Processor N5100, 4 core 4 threads, Up to 2.8GHz
Network Card 6 x INTEL I211/82574L/I225 network port(Depend on CPU)
Memory 2 x DDR4 2133 MHz SODIMM memory slots, up to 64GB

2 x DDR4 2400 MHz SODIMM memory slots, up to 16GB(J4125)

Storage 1 x mSATA, 1 x 2.5-inch hard drive
Graphic Intel UHD Graphiacs
Function Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
Display 1 x HDMI
Expand Support 1 MINIPCIE half-height channel (WIFI/Bluetooth available)

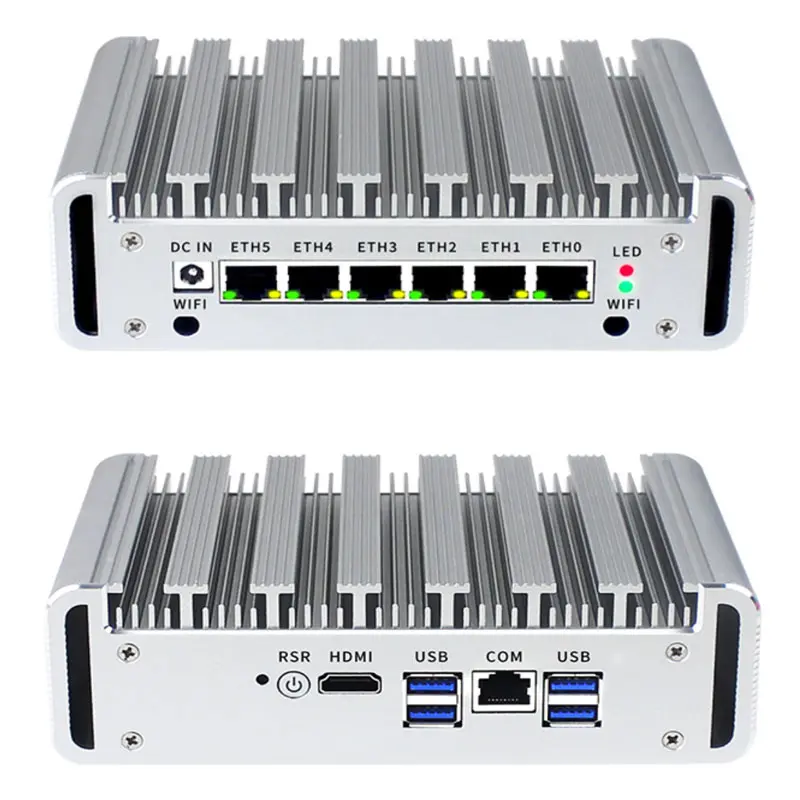

I/O Interfaces

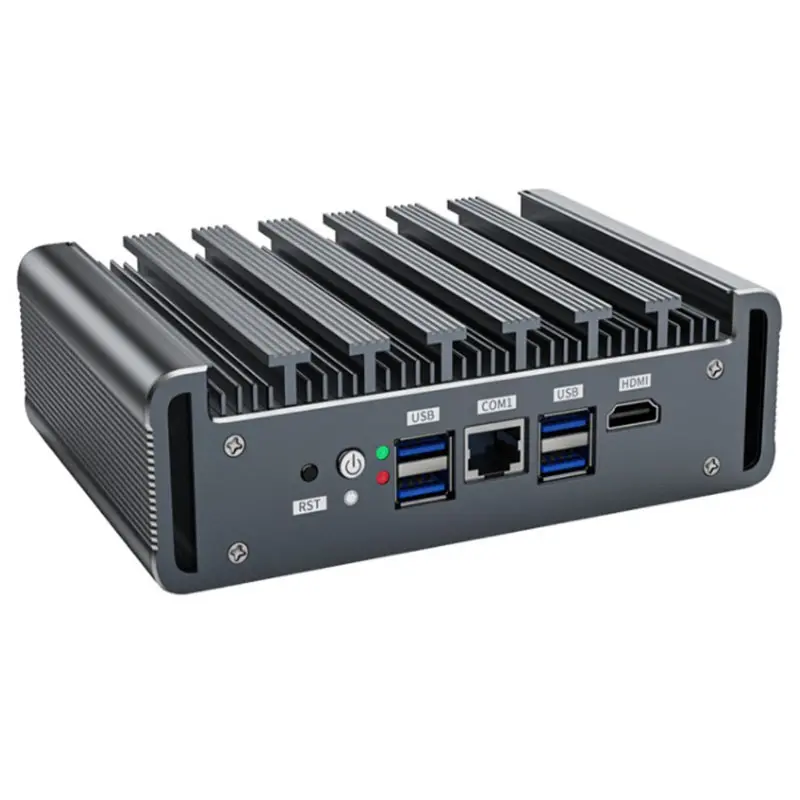

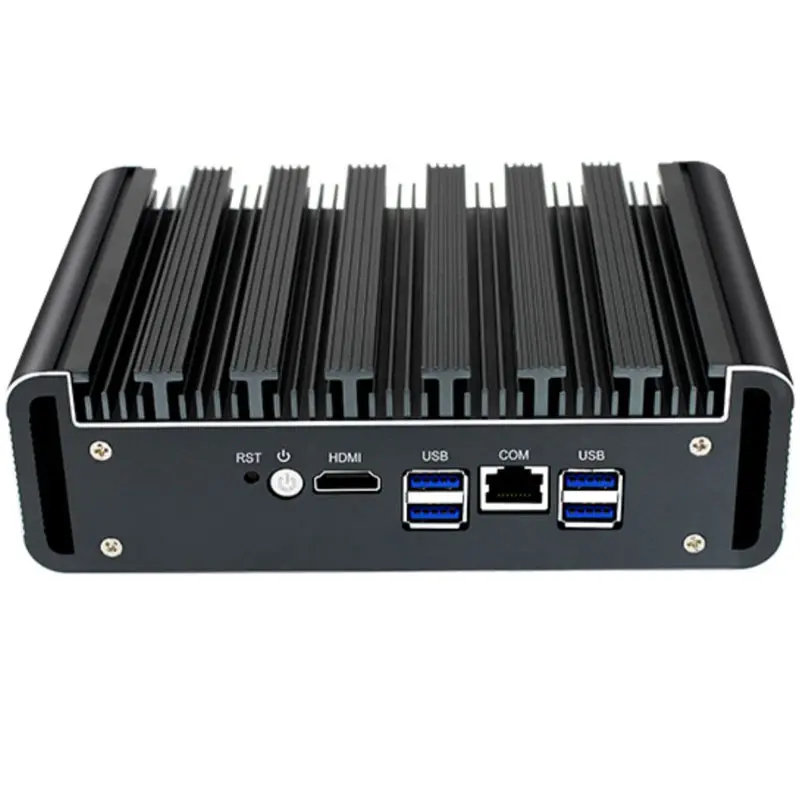

Front Panel 1 x Reset button
1 x Power button
1 x HDMI
4 x USB3.0
1 x COM

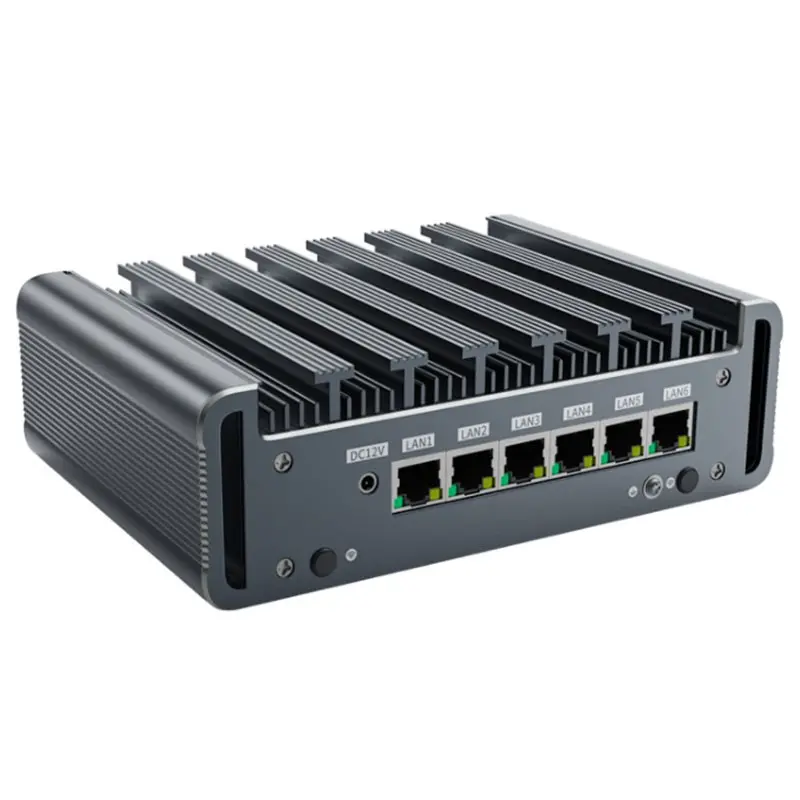

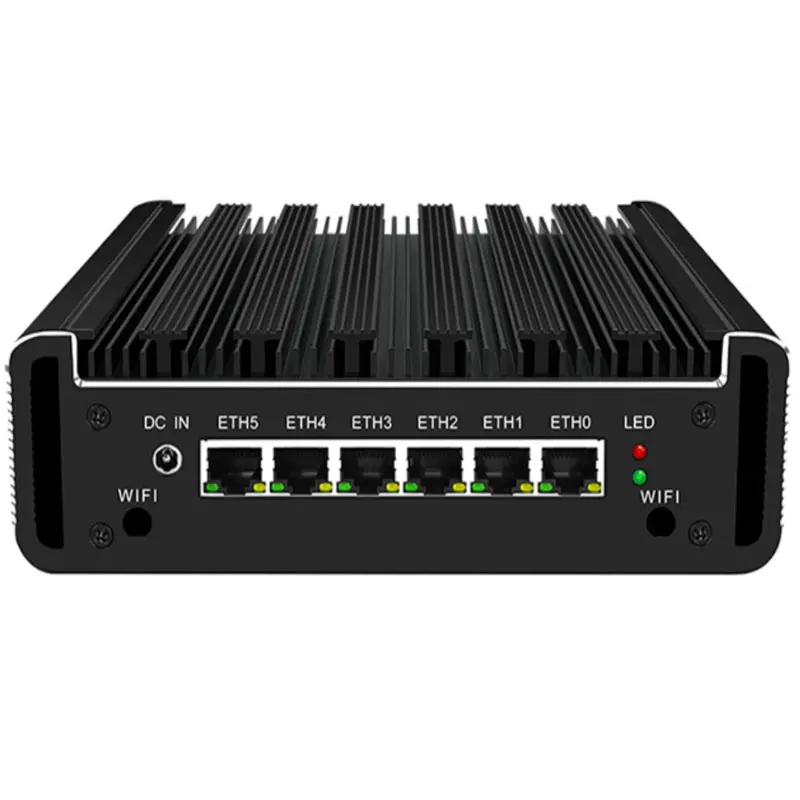

Rear Panel 6 x Intel LAN
1 x DC-IN
1 x Hard disk/power indicator
2 x WiFi Holes



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc



General

Cooling Mode Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours
Power Supply DC12V-6A 5.5*2.5,

DC12V-4A 5.5*2.5

Packing List H9 mini pc, power supply, power cord, vesa bracket, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H9 J4125 Intel UHD Graphics 600 2.0~2.7 GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 16G 1 x mSATA/1 x2.5 inch SSD/HDD 6 x i225 4 12V/4A
H9 5205U Intel UHD Graphics 1.90 GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 64G 1 x mSATA/1 x2.5 inch SSD/HDD 6 x i211 4 12V/6A
H9 6405U Intel UHD Graphics 2.40 GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 64G 1 x mSATA/1 x2.5 inch SSD/HDD 6 x i211 4 12V/6A
H9 I7 8650U Intel UHD Graphics 620 1.9~4.20 GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 64G 1 x mSATA/1 x2.5 inch SSD/HDD 6 x 82574L 4 12V/6A
H9 I3 7100U Intel HD Graphics 620 2.40 GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 64G 1 x mSATA/1 x2.5 inch SSD/HDD 6 x 82574L 4 12V/6A
H9 I5 10210U Intel UHD Graphics 1.6~4.20 GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 64G 1 x mSATA/1 x2.5 inch SSD/HDD 6 x I225 4 12V/6A
