Micro Firewall Appliance 4 Intel 2.5GbE NIC

Micro Firewall Appliance 4 Intel 2.5GbE NIC

Model: Partaker H7

  • Aluminum alloy structure, fanless design
  • Onboard Intel Celeron N5105 quad-core processor
  • Onboard Intel Pentium 7505 dual-core processor (optional I3-1115G4, I5-1135G7, I7-1165G7)
  • Support 2 pieces of DDR4 memory, up to 32GB/64GB
  • 1 m.2 2280NVME slot (supports 2.5-inch hard drive)
  • 1 x DP1.4 support dual 4K@60Hz UHD and 1 x HDMI2.0 video display
  • 1 x MPCIE wireless slot, 1 x SIM slot, support WiFi/3G/4G(3 choose 1) connection

Share to:

Overview



Partaker H7 4 nic mini pc uses Intel N5100, N5105, 7505U, I3 1115G4, I5 1135G7, I7 1165G7 processor. It’s preinstall with pfSense and also support windows 10, linux, opnsense and more open source firewall systems. This pc used intel i225/i226 network card chips, support 4 x 2.5G ethernet to keep stable and speed. You can use this pc as firewall router or mini computer. It suitable for school, remote work, office and industry etc.





Mechanical

Material Aluminum alloy
Colour Black
Size 178x126x56(mm)
Weight 2.5Kgs
Insallation Method Desktop type
Vesa mounted installtion



Motherboard

CPU

Intel Celeron Processor N5100, 4M Cache, up to 2.80 GHz
Intel Celeron Processor N5105, 4M Cache, up to 2.90 GHz
Intel Celeron Processor J4125,  4M Cache, up to 2.70GHz
Intel Pentium Silver J5040, 4M Cache, up to 3.20 GHz
Intel Pentium Gold Processor 7505, 4M Cache, up to 3.50 GHz
Intel Celeron Processor J6412, 1.5M Cache, up to 2.60 GHz
Intel Processor N100, 6M Cache, up to 3.40 GHz
Intel Core i3 1115G4 Procesor, 6M Cache, up to 4.10 GHz
Intel Core i5 1135G7 Processor, 8M Cache, up to 4.20 GHz
Intel Core i7 1165G7 Processor, 12M Cache, up to 4.70 GHz
Network Card 4 x Intel i225-V B3(2.5G network card), 4 x Intel i226-V
Memory 2 x DDR4 2933 MHz SODIMM memory slots, up to 32GB(N5105/N5100)

2 x DDR4 3200 MHz SODIMM memory slots, up to 64GB(7505/i3 1115G4/i5 1135G7/i7 1165G7)

Storage 1 x M.2 NVME 2280, 1 x 2.5-inch hard disk
Graphic Integrated Intel UHD Graphics 450MHz/Intel HD Graphics
Function Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
Display 1 x HDMI2.0 and 1 x DP1.4 support dual 4K@60Hz UHD video display
Expand 1 x SIM slot, 1 x MPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection

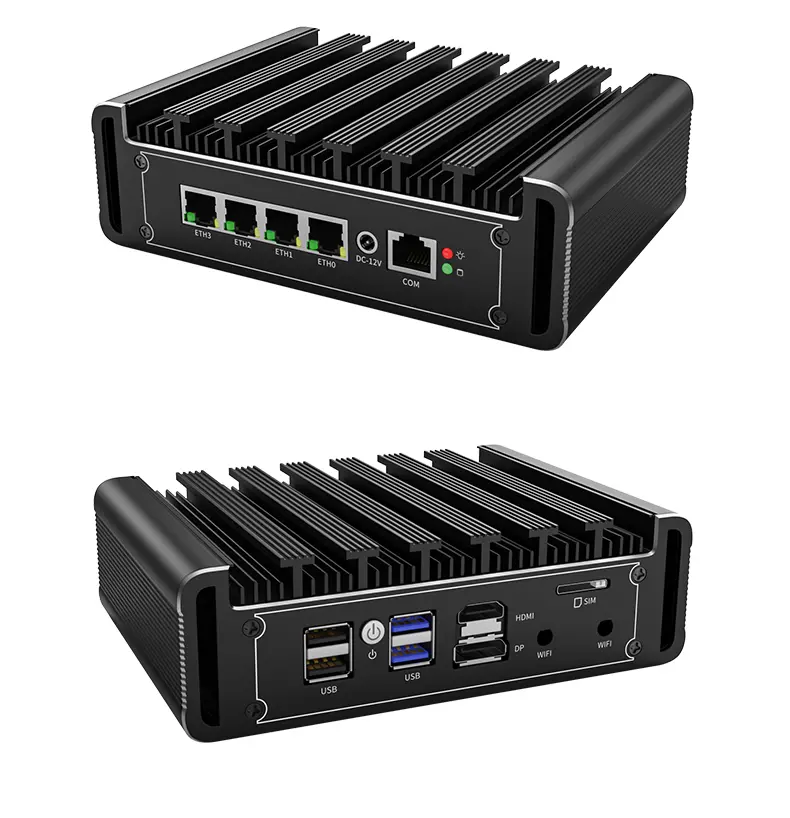

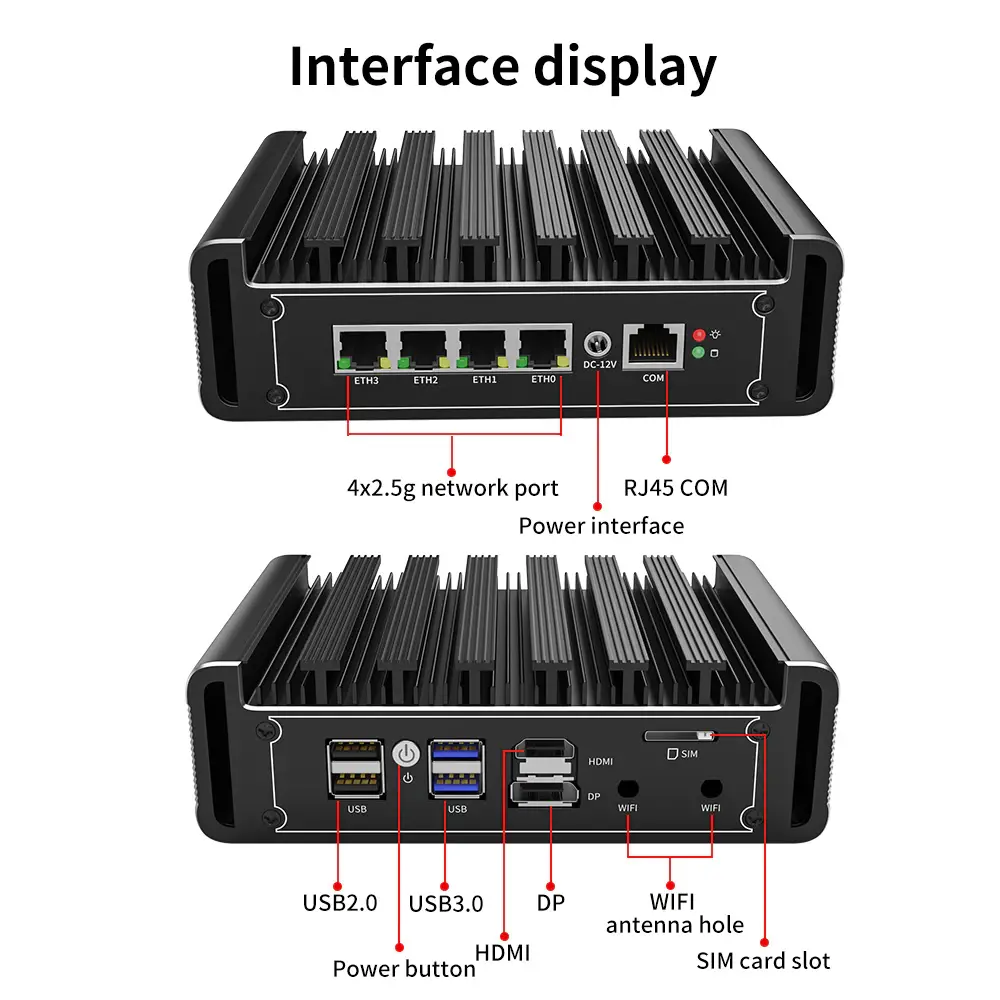

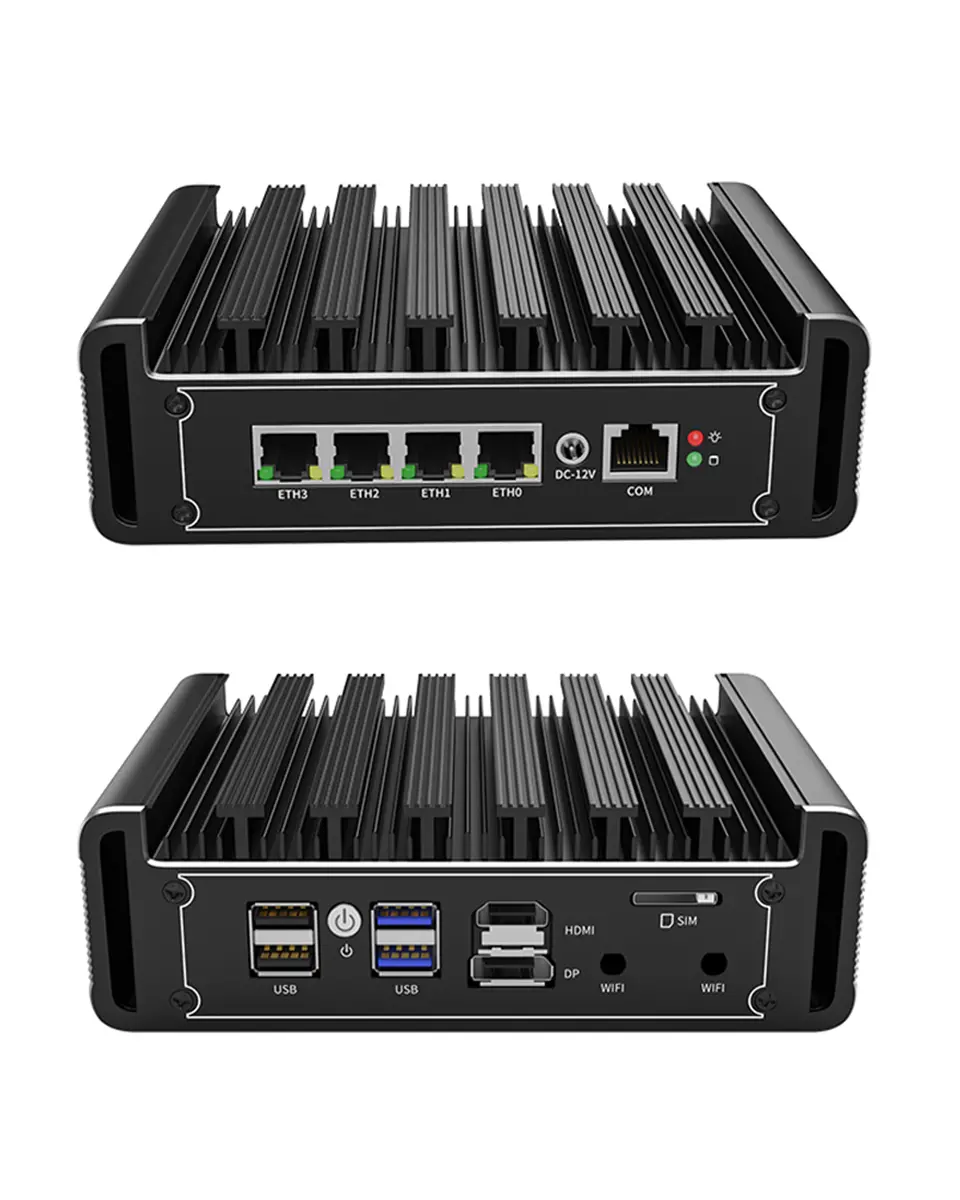

I/O Interfaces

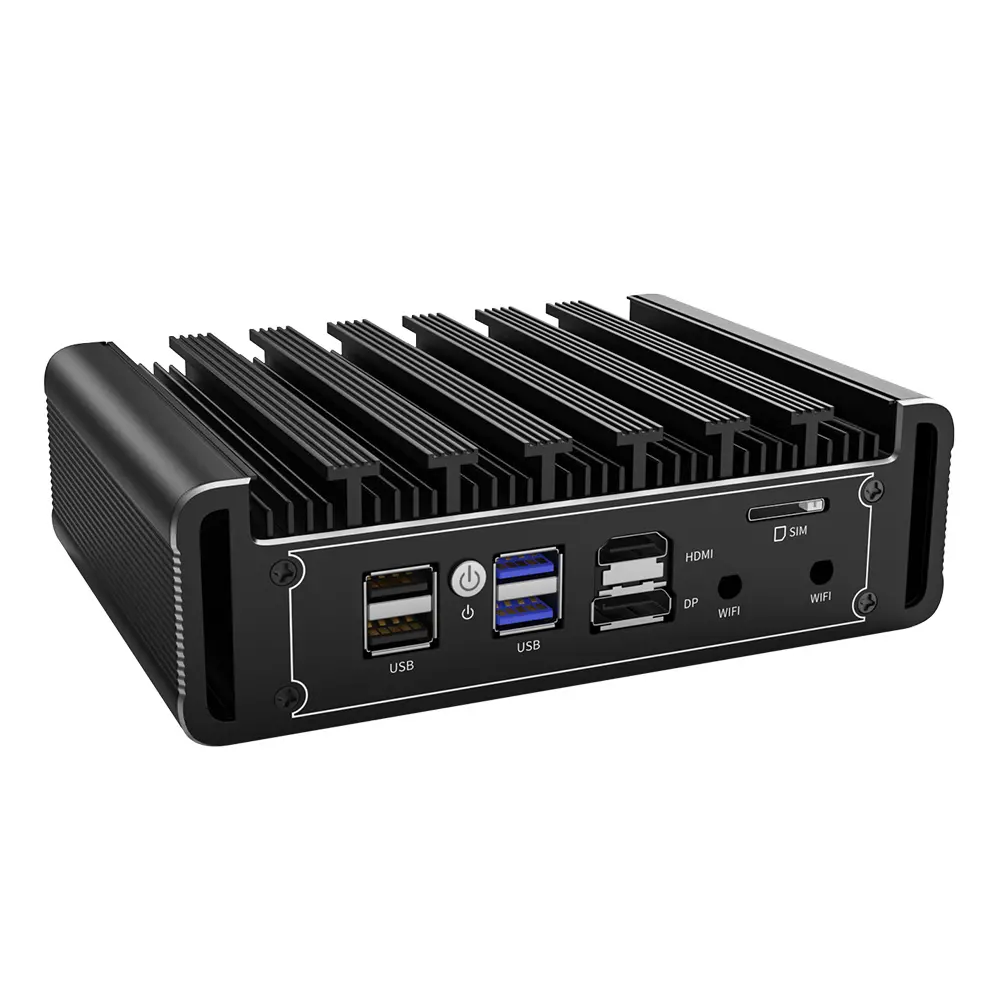

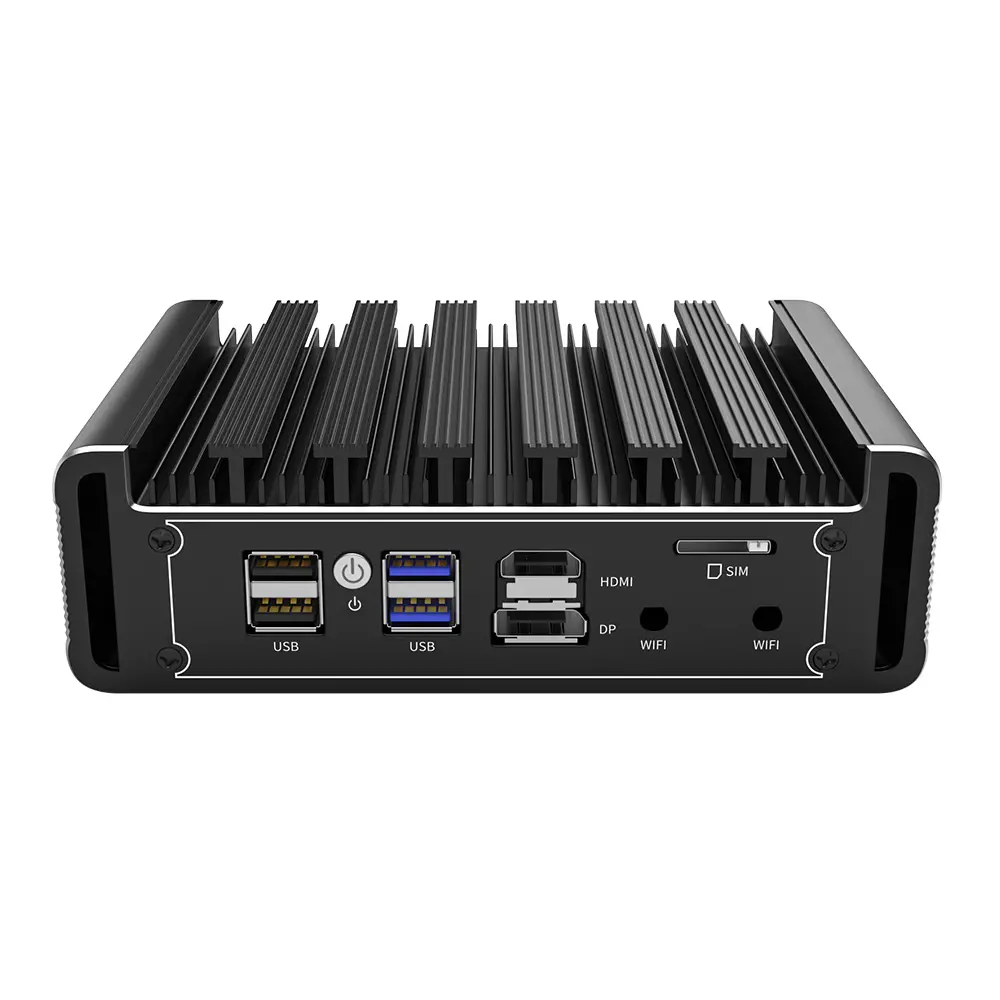

Front Panel 4 x USB2.0
1 x Power On/Off
1 x HDMI
1 x DP
1 x SIM Slot
2 x WIFI Holes

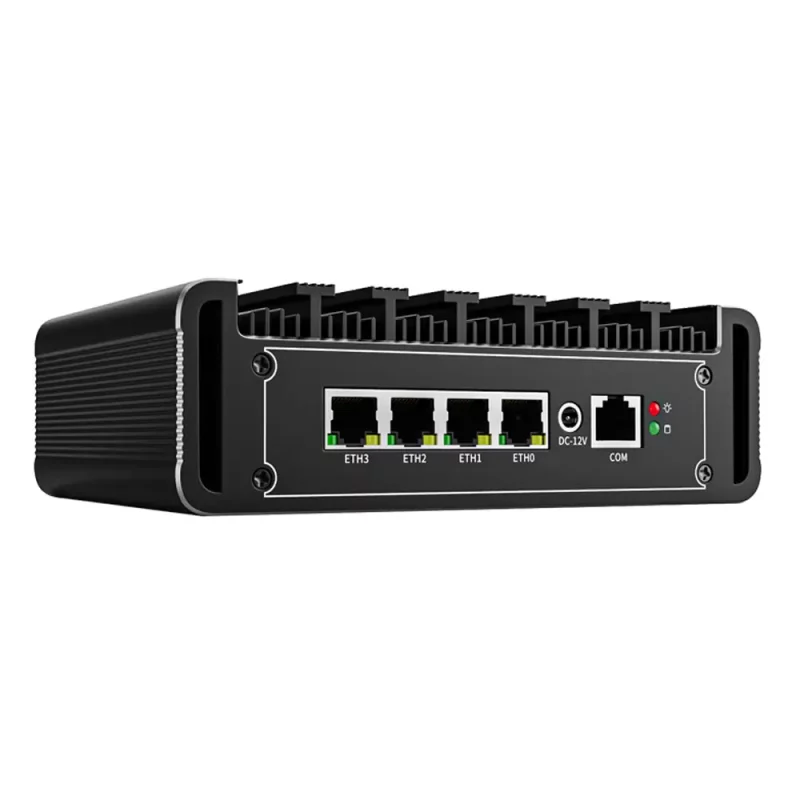

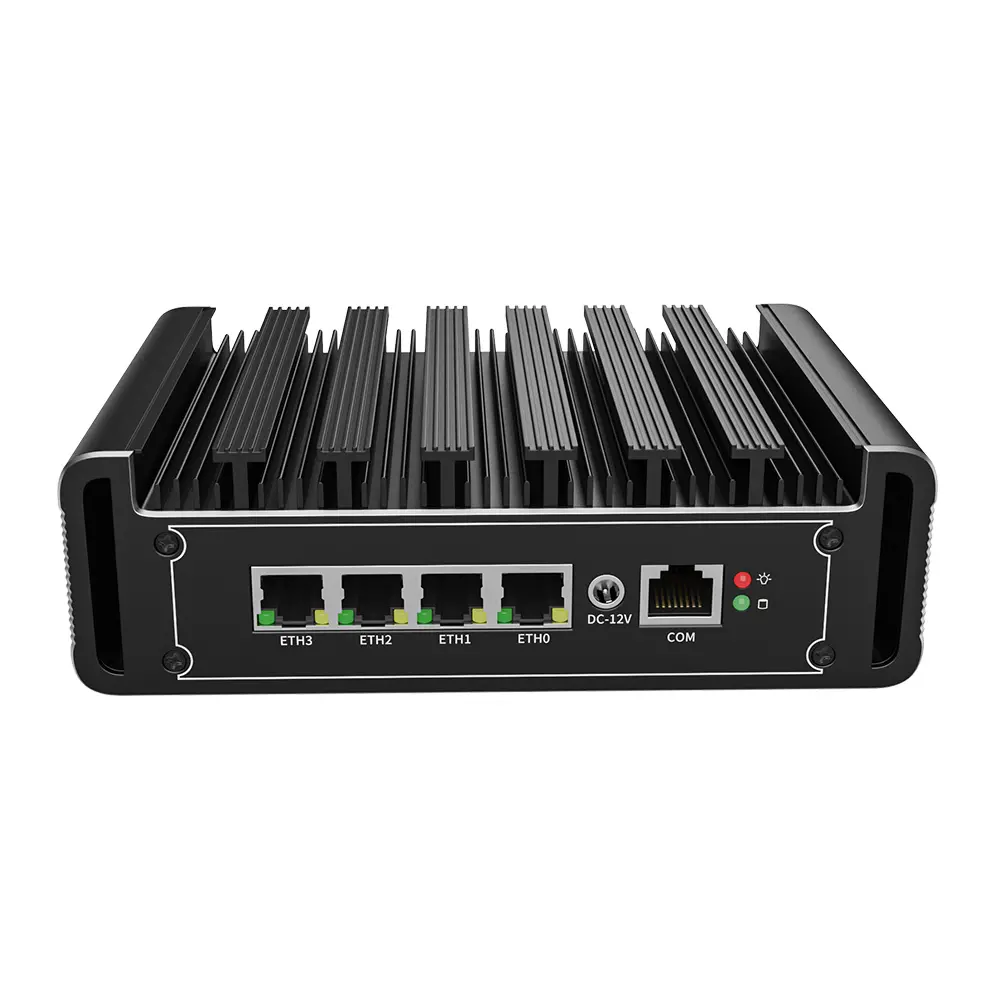

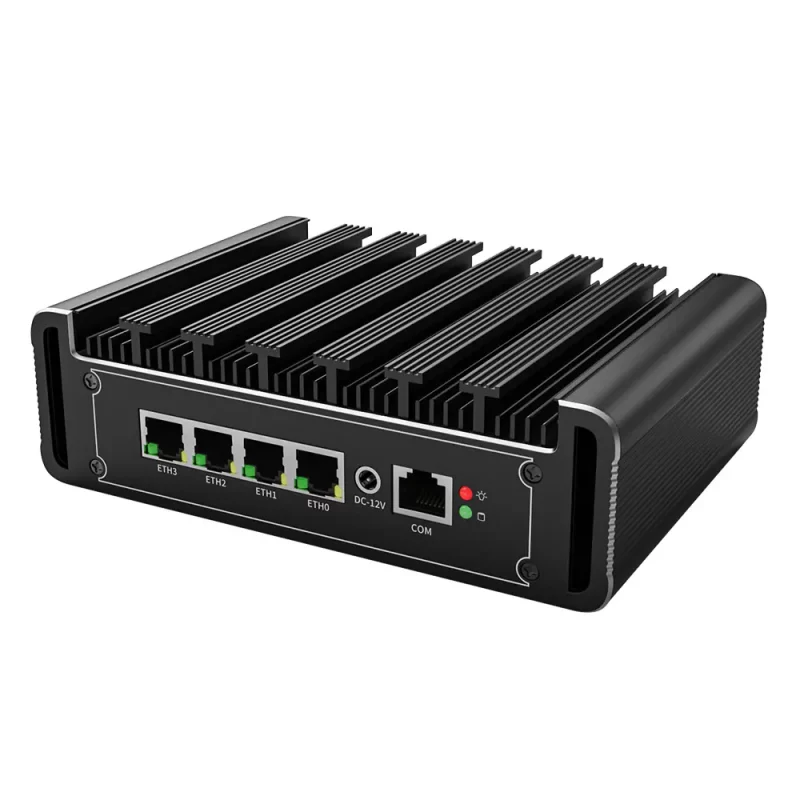

Rear Panel 4 x Intel LAN
1 x DC-12V
1 x Console
1 x Power indicator
1 x Hard disk indicator



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc



General

Cooling Mode Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours
Power Supply DC12V-4A 5.5*2.5

DC12V-7A 5.5*2.5

Packing List H7 mini pc, power supply, power cord, vesa bracket, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H7 N5105 Intel UHD Graphics 2.0~2.9 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 32G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i225/226 8 12V/4A
H7 N5100 Intel UHD Graphics 1.1~2.8 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 32G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 8 12V/4A
H7 Pentium Gold 7505 Intel UHD Graphics 2.0~3.5 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 8 12V/7A
H7 I3 1115G4 Intel UHD Graphics 1.7~4.1 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 8 12V/7A
H7 I5 1135G7 Intel Iris Xe Graphics 2.4~4.2 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 8 12V/7A
H7 I7 1165G7 Intel Iris Xe Graphics 2.8~4.7 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 8 12V/7A
