LGA1151 Ultra Thin Itx Mainboard

LGA1151 Ultra Thin Itx Mainboard

Model: ITX-B310C_2L

  • Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
  • Using Intel® H310C Express Chipset
  • 2 x DDR4 SODIMM memory slot, support 2400/2133MHz memory, max to 64GB
  • 1 x VGA interface, supports a maximum resolution of 1920X1200@60Hz
  • 2 x HDMI1.4 interface, support the highest resolution of 4096X2304@24H
  • 1 x Support dual channel 24bit LVDS interface
  • 2 x RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Share to:

Overview

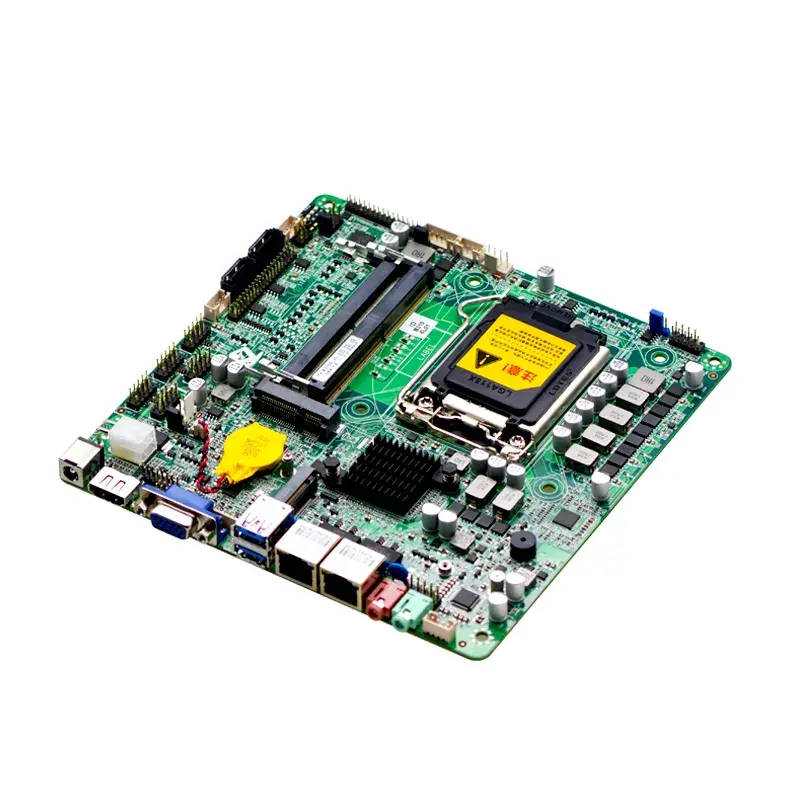

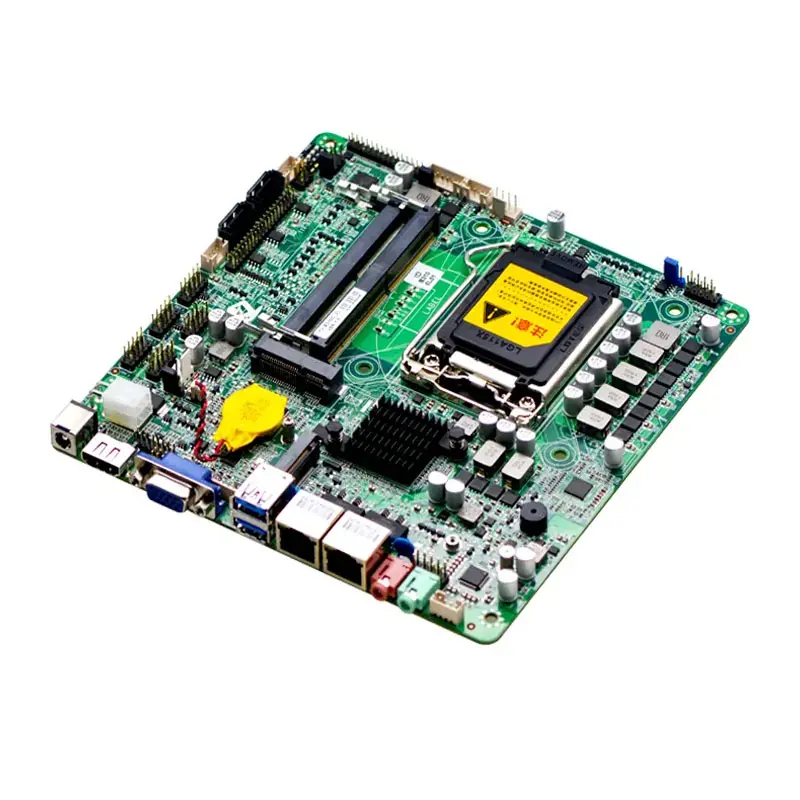

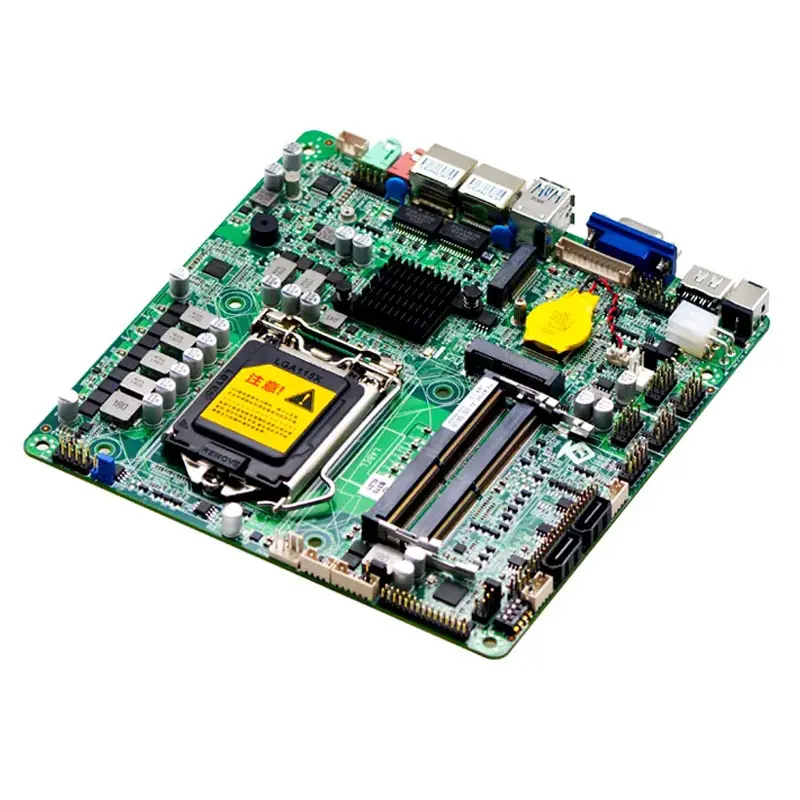

ITX-B310C_2L LGA1151 mainboard, H310C chipset, DDR4, Max 64GB, 2* RTL8111H LAN is a mainboard that features LGA1151 socket for Intel 6th/7th/8th/9th generation processors, H310C chipset, DDR4 memory up to 64GB, 2* RTL8111H Gigabit Ethernet ports. It supports dual display output via HDMI and VGA, and has one M.2 slot for SSD or WiFi module. It is ideal for small form factor and low-power applications such as mini PCs, thin clients, and digital signage.



Product number ITX-B310C_2L VER:1.1
processor Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
chipset Using Intel® H310C Express Chipset,
RAM 2* DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB
Show Integrated Intel® HD Graphics core graphics, support DirectX12, OpenGL4.4, support 4K display

1* VGA interface, supports a maximum resolution of 1920X1200@60Hz

2* HDMI1.4 interface, support the highest resolution of 4096X2304@24H

1* Support dual channel 24bit LVDS interface

The internet

2* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Store



2* SATA3.0 hard disk interface, transmission speed can reach 6Gbps
1* M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD transmission speed up to 32Gbps
Audio Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier

Power amplifier supports 2Ω/5W dual channel

Expansion slot 1* MiniPCIE slot, support WIFI module

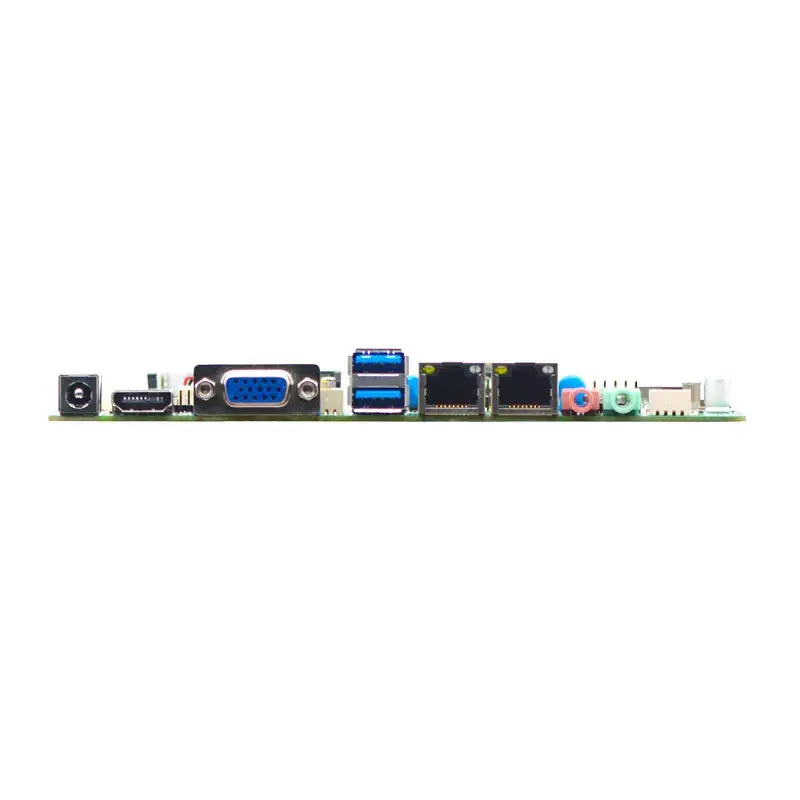

Backplane I/O interface











2* USB3.0 interface
1* HDMI port
1* VGA port
2* RJ45 Gigabit network interface
1* Line-out (green), 1*MIC (red)
1* DC12~19V power input interface
Built-in I/O interface























1* JVGA interface 1*12pin, same signal as VGA interface
1* JHDMI interface 2*8pin,
1* LVDS interface 2*15pin, support dual channel 24bit
1* Backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
6* RS232 serial interface, COM2 supports RS485
6* USB2.0 interface 2*5pin
1* Front audio interface 2*5pin
1* power amplifier interface 1*4pin
2* Hard disk power supply voltage interface 1*4pin
1* Front panel function button and indicator port 2*5pin
1*4pin ATX power interface. Support 12V~19V power input and output
Fan interface 1*4pin CPU smart fan interface; 1*3pin system fan interface
GPIO Support 4 input and output GPIO function
BIOS 64Mb Flash ROM
support system Windows 10/Linux
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
Power type Support DC19V power supply
Operating temperature -10℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, non-condensing
Size 170mm x 170mm
Model Processor Southbridge Memory VGA LVDS HDMI LAN EDP USB RS485/422 COM Power
ITX-B310C_2L VER:1.0 LGA1151 H310C 2*SODDR4

1

2ch*24BIT

2

2*8111H / 8 COM2 6 DC19V
