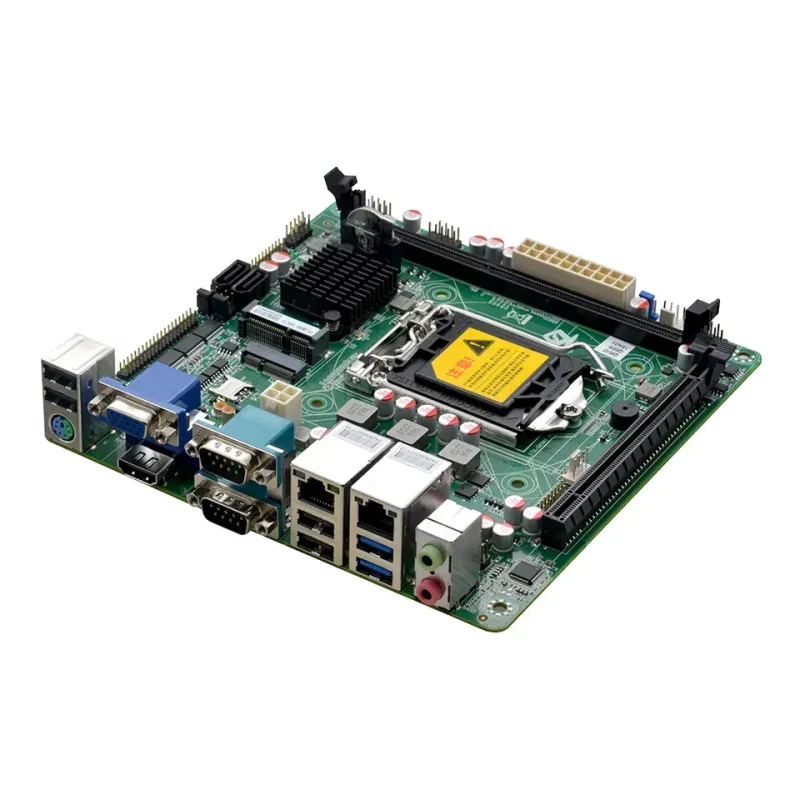

LGA1150 Industrial Mainboard

Model: ITX-H81R1

Intel LGA1150 4th Gen Core/Pentium/Celeron processors.
Built on Intel® Q85 Express chipset for industrial reliability.
Single DDR3 DIMM slot supports up to 8GB 1600MHz memory.
Dual Gigabit LAN (Intel I210AT) with WoL and PXE support.
Triple display outputs: VGA, dual HDMI with async/sync support.
Flexible storage: 2x SATA3.0 and 1x mSATA (for SSD or 4G module).
Rich I/O: 6x COM, 6x USB, PCIe x16, and GPIO.
Onboard 7.1+2CH HD audio with MIC/Line-out support.
Wide operating temperature: -10°C to 60°C.
Compact 170mm x 170mm form factor for embedded applications.

Share to:

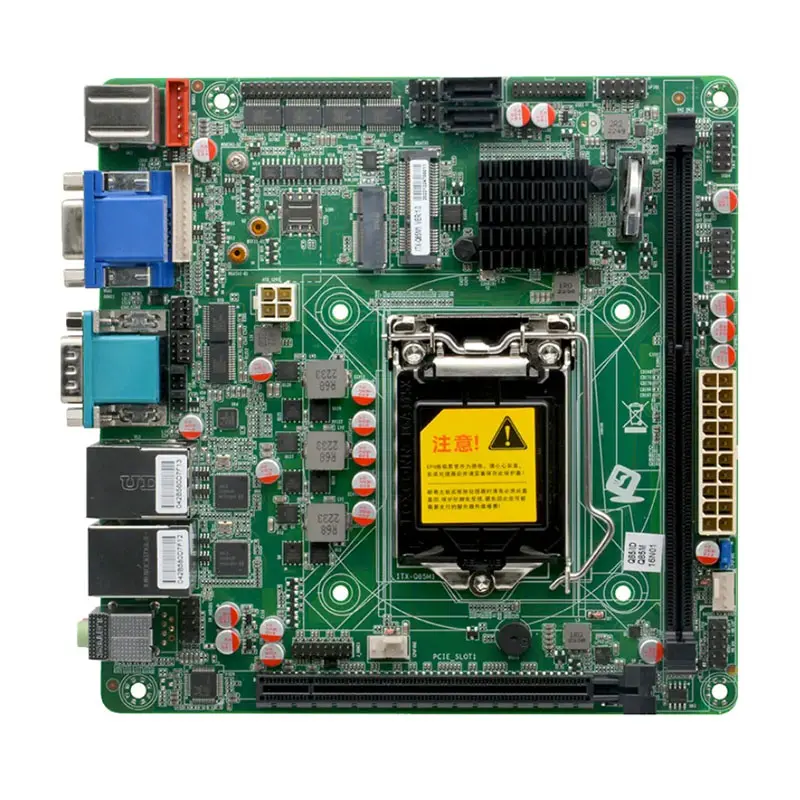

Overview

This is a motherboard based on the Intel H81/Q85 chipset, supporting processors with LGA1150 socket, providing one DDR3 memory slot and two gigabit LAN ports, using ATX power supply mode, suitable for various application scenarios.

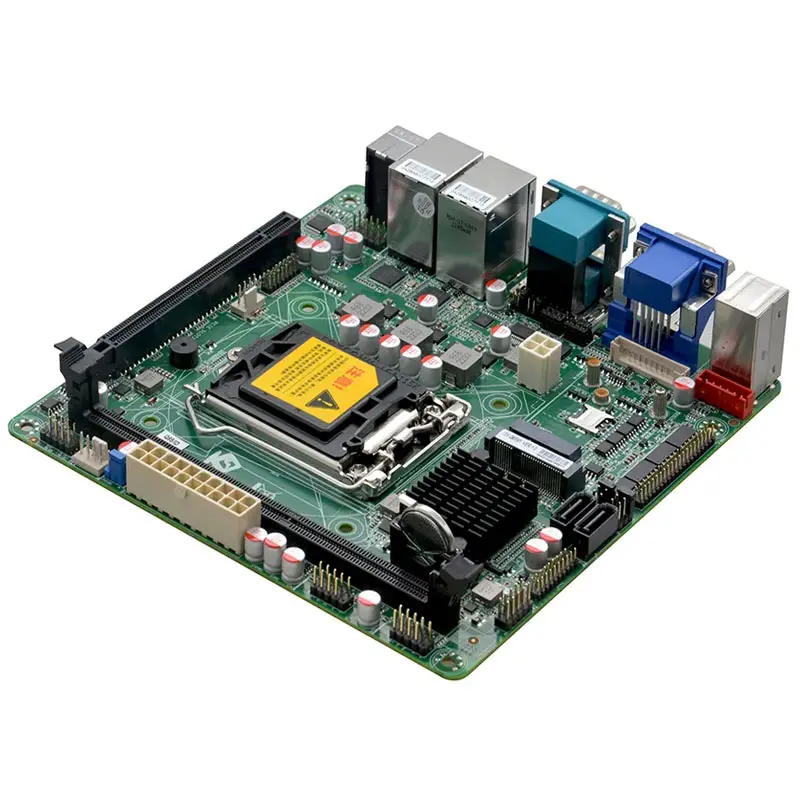

Mechanical

Product model	ITX-H81R1/P85M1/Q85M1 VER:1.0
processor	Supports LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processors
chipset	Intel® H81/Q85 high-speed chipset
Internal memory	1* DDRIII DIMM memory slot, supporting a single channel of 1600/1333MHz memory, up to 8GB
display	Integrated Intel® HD graphics controller, supporting DirectX11.2,OpenGL4.3
display	1VGA,2HD OUTPUT display output, support VGA/HD OUTPUT synchronous/asynchronous display
network	2* 8111H/WGI210AT Gigabit network adapter chip, support network wake up /PXE function
deposit	2* SATA hard disk interface (where SATA1 supports SATA3.0, transmission speed up to 6Gbps)
deposit	1* MSATA slot, support SSD, support 4G module or Intel protocol SSD, transmission speed up to 6Gbps
	Note:MSATA supports TPM-4COM to expand four serial ports, requiring material changes and BIOS changes
Tone frequency	Onboard ALC888S 7.1+ 2-channel hi-Fi audio controller with MIC/Line-out support
Expansion slot	1 x PCIE X16 slot
Expansion slot	1* M.2 slot, supporting the M.2 Key E 2230 WIFI module

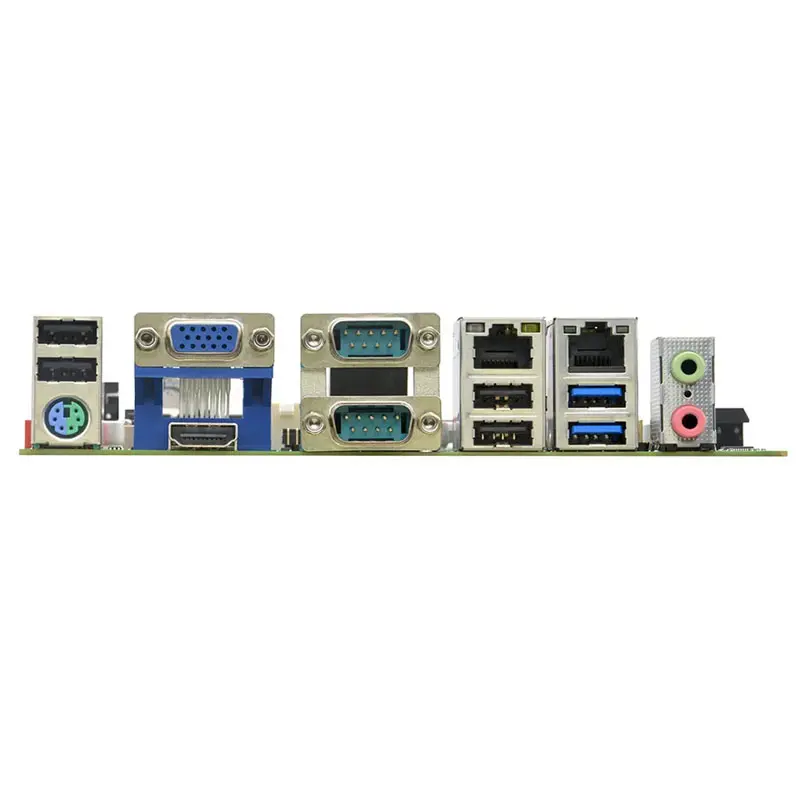

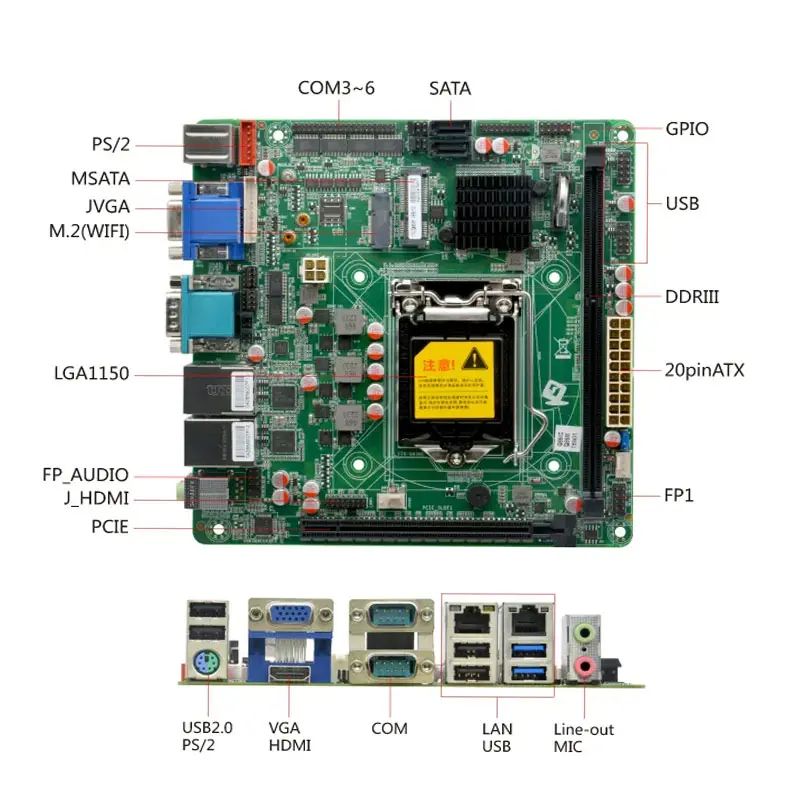

I/O ports on the backplane	1* PS/2 interface (expandable keyboard and mouse)
	1 x VGA display port
	1* HD OUTPUT display interface
	2* DB9 COM serial port, support 9pin live function, support RS485/422
	4* USB 2.0 port
	2* USB 3.0 interface
	2* RJ-45 Gigabit network interface
	1* Dual-layer audio interface (sound output and MIC input)
Built-in I/O interface	1* 20pinATX power outlet,
	1*4pin ATX power interface
	1* PS/2 keyboard and mouse interface 1*6Pin
	4 x RS232 serial port 2 x 20pin
	1* front audio interface 2*5pin
	1* HD OUTPUT port 2*8Pin
	1JVGA port 112pin, same signal as DB15
	4* USB 2.0 interface 2*5Pin
	2* USB3.0 interface 2*10pin
	1* SIM card slot
	1* Front panel function button and indicator port 2*5pin
Fan interface	1* 4pinCPU fan interface; 1* 4pin system fan port
BIOS	64Mb Flash ROM
GPIO	Supports four input and output interfaces
Guard dog	Support hardware reset function (256 level, 0~255 seconds)
Operating system	Windows 7/Windows 10/Linux
Power supply type	Powered by ATX 24Pin and 4pin power supplies
Operating temperature	-10℃ to 60℃
Storage temperature	-20℃ to 70℃
Working humidity	5%-95% relative humidity, no condensation

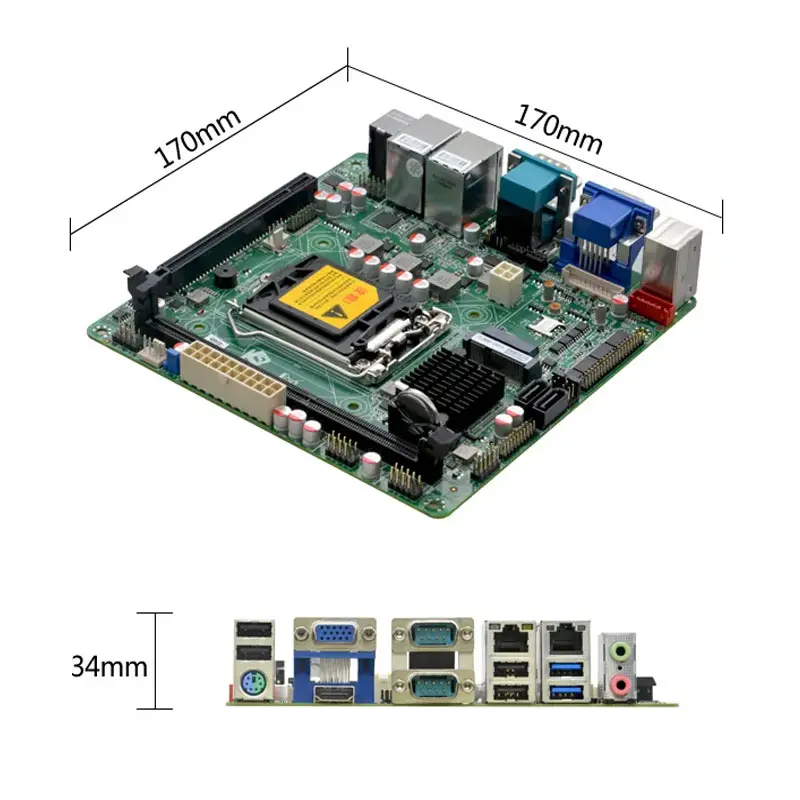

dimension	170mm * 170mm*32mm

Model	Processor	Southbridge	Memory	VGA	HD OUTPUT	LAN	USB	RS485/RS422	COM	Power
ITX-H81R1 VER:1.0	LGA1150	H81	1*DDR3	1	1	2*8111H	10	2	6	ATX
ITX-P85M1 VER:1.0	LGA1150	Q85	1*DDR3	1	1	2*210AT	12	2	6	ATX
ITX-Q85M1 VER:1.0	LGA1150	Q85	1*DDR3	1	1	2*210AT	12	2	6	ATX
