LGA 1151 Motherboard

LGA 1151 Motherboard

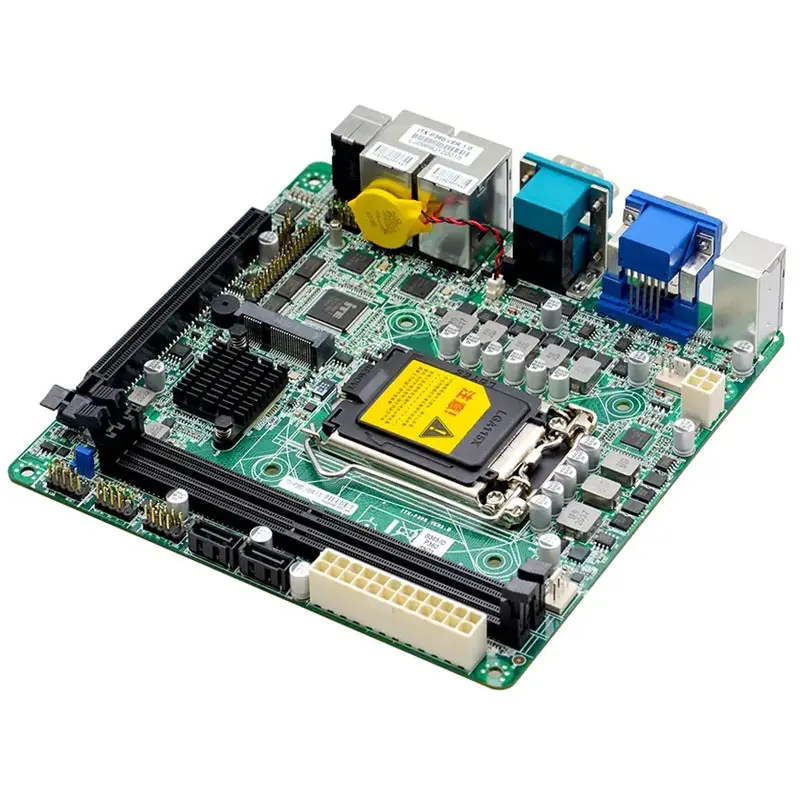

Model: ITX-B250R1

  • 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 processors supporting LGA1151 architecture
  • 2 x DDR4 DIMM memory slots, support dual-channel 2133/2400/2666MHz memory, maximum support 64GB
  • 2 x Intel I211AT Gigabit network card, support wake-up on LAN, PXE function
  • 2 x SATA3.0 hard disk interface, SATA transmission speed up to 6Gbps
  • 1 x MSATA interface, support Intel protocol SSD, transfer rate up to 6Gbps (default), support WIFI (optional)

Share to:

Overview



This is a motherboard with Q250/B250 chipset and LGA1151 socket, compatible with 6th to 9th generation i3 i5 i7 processors. It has 2 DDR4 memory slots, up to 64GB capacity, 2 LAN ports, and ATX power input. It is suitable for industrial control, office, gaming, and multimedia applications.



Product number ITX-B250R1 VER:1.0/ITX-Q250M1 VER:1.0
processor Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

Note: Support 6/7 generation 95W, 8/9 generation only support: 6-core 65W and below CPU, 8-core 35W CPU

chipset Using Intel Q250/B250 Express Chipset
RAM 2*DDR4 DIMM memory slots, support dual-channel 2133/2400/2666MHz memory, maximum support 64GB
Graphic Integrated Intel HD Graphics graphics controller, 1*VGA interface and 1*HDMI1.4 interface
Support single display, dual display mode, extended mode
The internet 2* Intel I211AT Gigabit network card, support wake-up on LAN, PXE function

2* Intel 8111H Gigabit network card, support wake-up on LAN, PXE function

Storage 2*SATA 3.0 hard disk interface, SATA transmission speed up to 6Gbps
1* MSATA interface, support Intel protocol SSD, transfer rate up to 6Gbps (default), support WIFI (optional)
Audio Integrated ALC888S high-fidelity audio controller, support Mic, Line ou

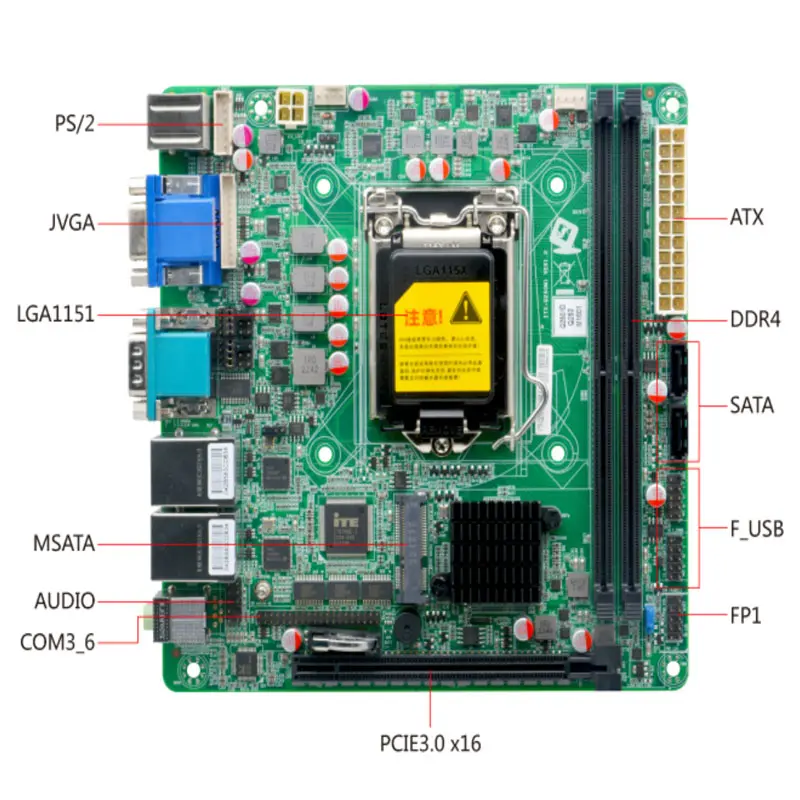

Expansion slot 1* PCIE3.0 x16 slot
Backplane I/O interface 1*PS/2 keyboard and mouse interface
1*VGA display interface
1*HDMI display interface
2*RS232 serial port (COM1/2 support RS485/422 function)
2*RJ45 Gigabit network interface
2*USB2.0 interface
4*USB3.0 interface
1*Line out interface (green), 1*MIC interface (red)
Built-in I/O interface 1*PS/2 keyboard and mouse interface, 1*6Pin header, same signal as UK1
1*JVGA interface, 1*12Pin header, same signal as DB15
4*RS232 serial port, 2*20pin
1*front audio interface, 2*5Pin
4*USB2.0 interface, 2*5Pin
1*front panel function button and indicator light interface, 2*5pin
1*24pin ATX power input interface
1*4pin ATX power input interface
Fan interface 1*4pin CPU fan interface; 1*4pin system fan interface
BIOS ATXMb Flash ROM
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
operating system Windows 7/Windows 10/Linux
Power type Powered by ATX 24Pin and 4pin power supply
Operating temperature 0℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, non-condensing

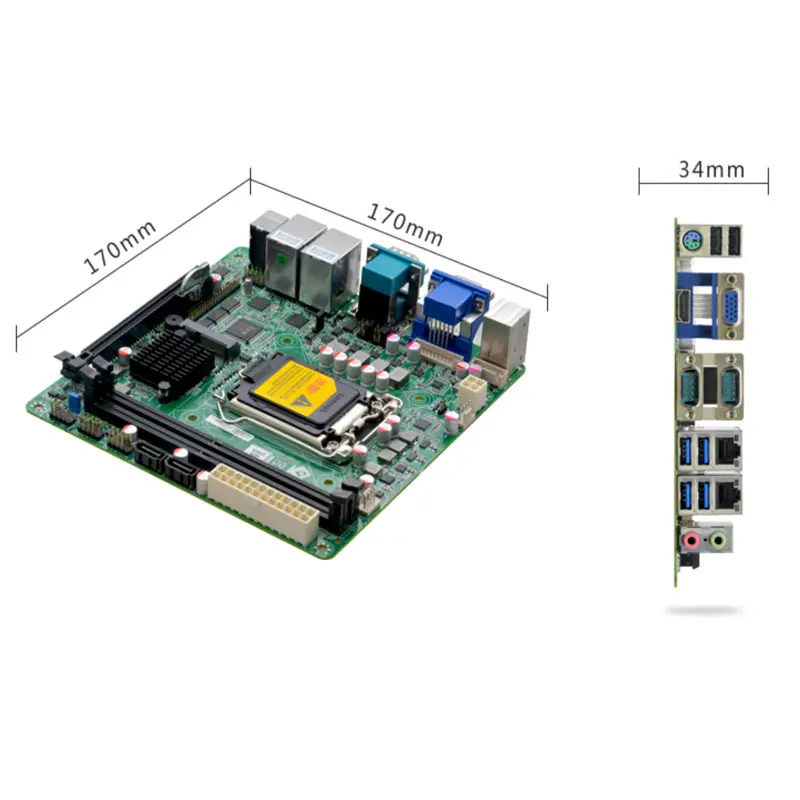

Size 170mm x 170mm
Model Processor Southbridge Memory VGA HD OUTPUT LAN USB RS485/RS422 COM Power
ITX-B250R1 VER:1.0 LGA1151 B250 2*DDR4

1

1

2*8111H 10 COM1/COM2 6 ATX

ITX-Q250M1 VER:1.0

LGA1151 Q250 2*DDR4

1

1

2*211AT 10 COM1/COM2 6 ATX
