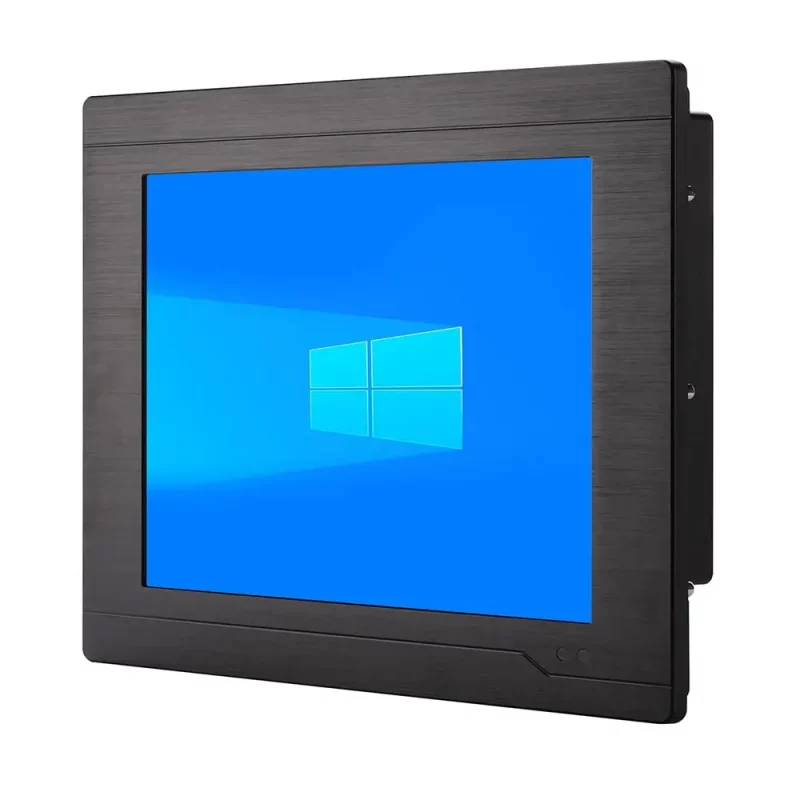

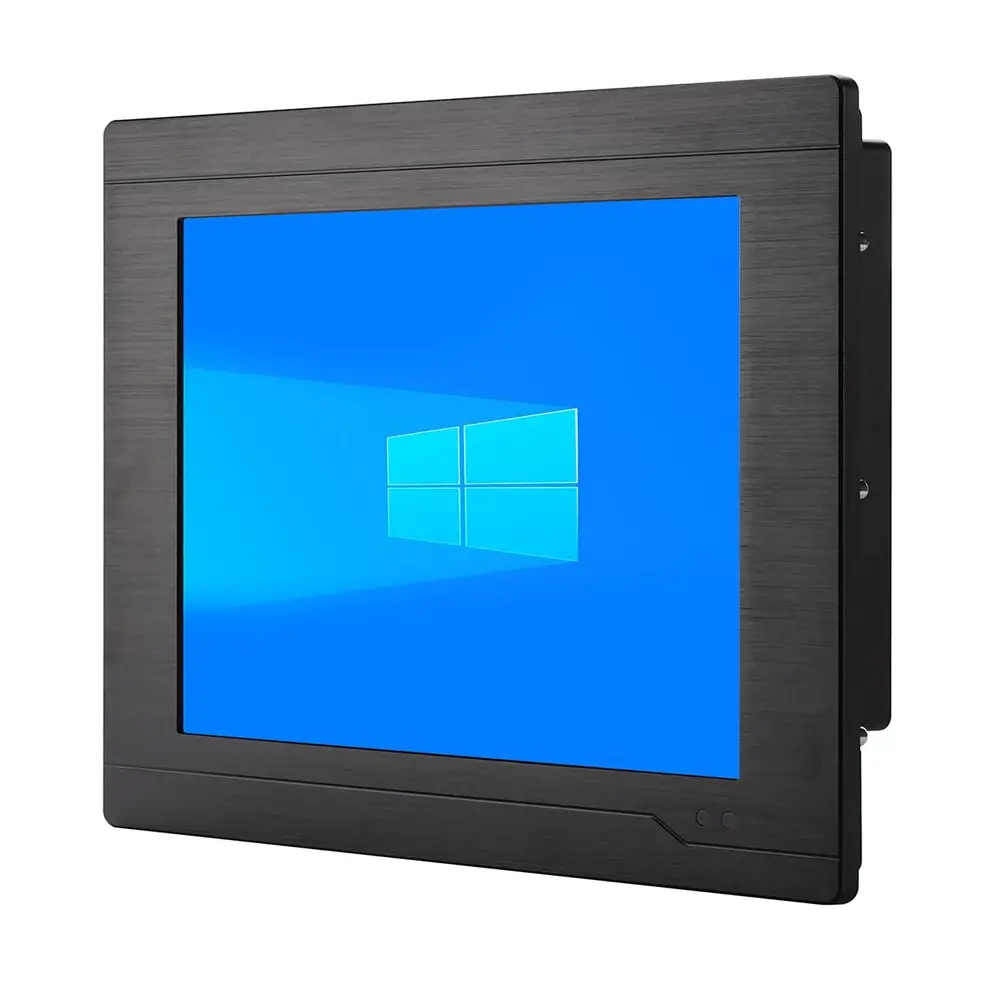

IP67 Full Waterproof 12.1 Inch Industrial Panel PC

IP67 Full Waterproof 12.1 Inch Industrial Panel PC

Model: Partaker Z20

  • Industrial grade 12.1 inch LED, fully IP67 protection
  • 2 x COM RS232, RS485, 2 x LAN, 3 x USB2.0
  • Imported resistive touch screen
  • Intel® Celeron® J1900 Processor
  • Supports up to 8 GB DDR3L SDRAM
  • All metal aluminum design
  • Support Windows Embedded and LINUX
  • Supports VESA 100 mounting holes
  • Support custom interface

Share to:

Overview

This is a cost-effective 12.1-inch waterproof industrial tablet computer, equipped with Intel® Celeron® J1900 processor as standard, and the compact embedded system can provide high-performance computing. High durability design, the protection level supports the whole machine IP67, imported resistive touch screen, supports 4 serial ports, 3 USB ports and 2 Gigabit Ethernet ports to meet various industrial applications (interfaces can be customized according to requirements).



Mechanical

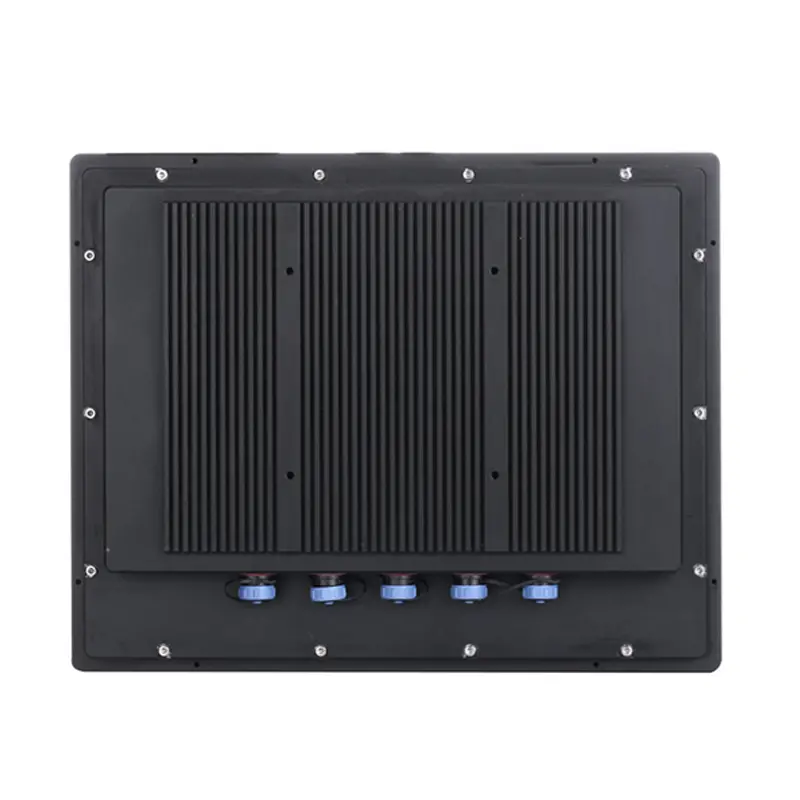

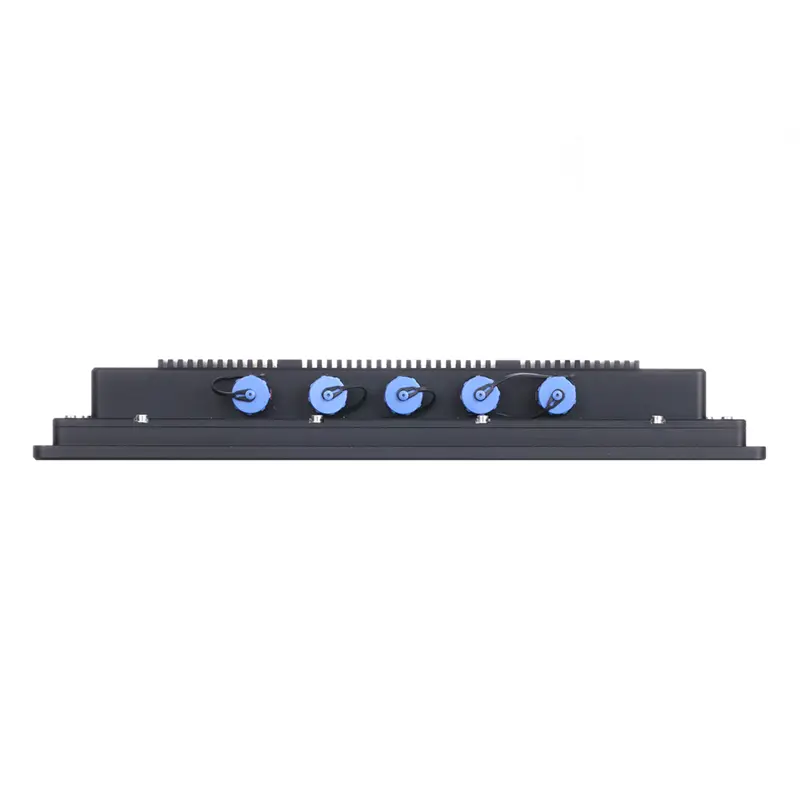

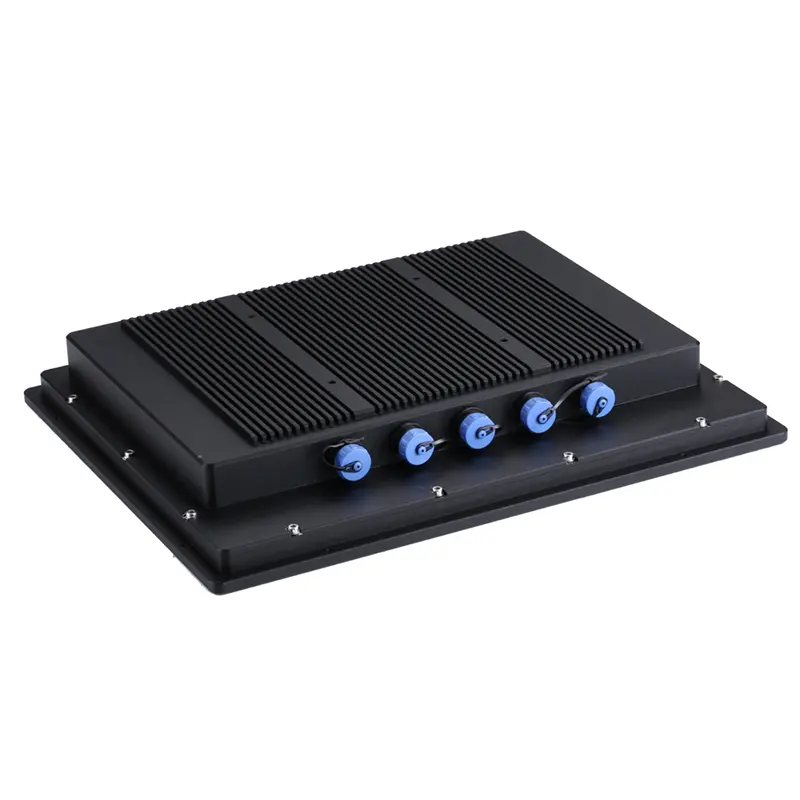

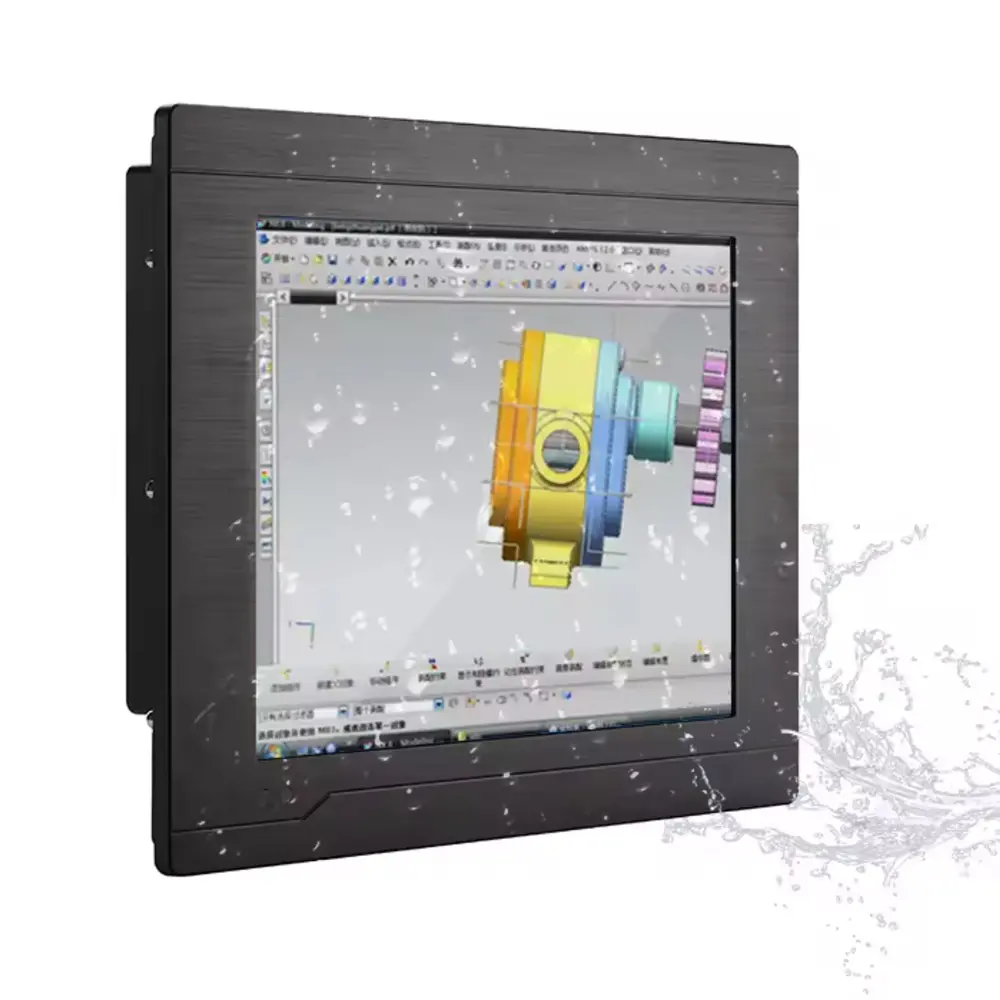

Waterproof Level Fully IP67, full interface waterproof aviation head connector
Material Aluminum alloy
Colour Black
Opening Hole Size 312 x 247mm (L x W)
Size 326 x 261 x 46.5mm
Weight 4.5Kgs
Installation Method Standard VESA screw hole (75 x 75 or 100 x 100mm) for flexible installation, vesa mount for optional
Embedded (recommended)/wall-mounted/desktop/cantilevered etc



LCD Display

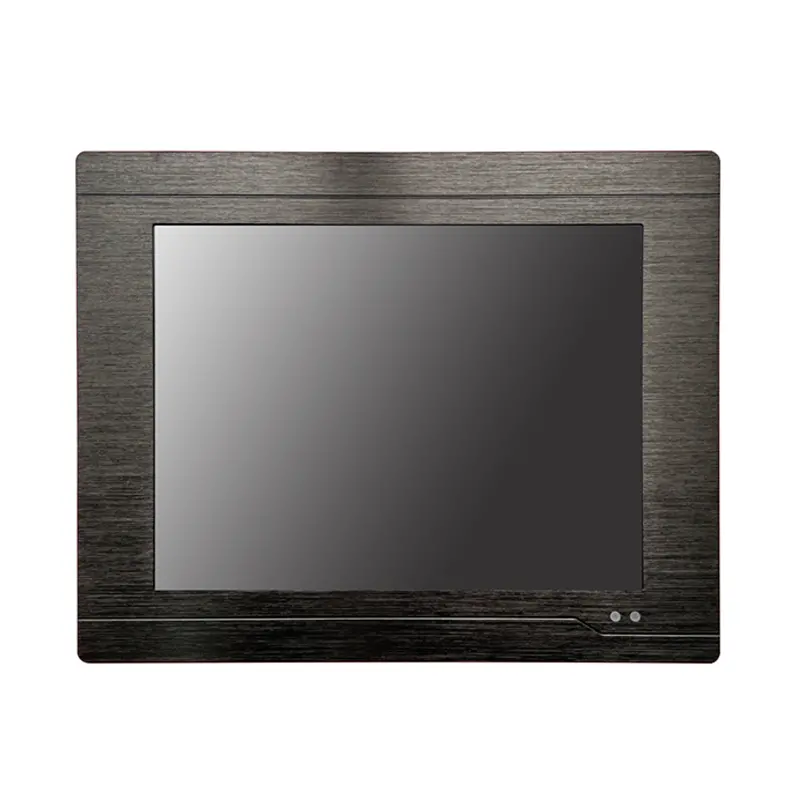

Display Type Industrial grade 12.1 inch LED
Resolution 1024 x 768
Lumens (cd/m2) 350
Contrast 800



Touch Screen

Touch Type Original imported resistive touch screen
Durability (Number of Touches) >35 million times



Motherboard

CPU Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 2 x Realtek 8111E gigabit lan
WiFi and Bluetooth N/A, optional to add
Memory 4GB/8GB RAM
Storage 128G SSD
Expand 1 x Mini PCIE for WiFi/4G, with sim slot



I/O Interfaces

Rear Panel 2 x COM RS232
1 x RS485
2 x Lan
3 x USB2.0



Software Support

Bios AMI bios

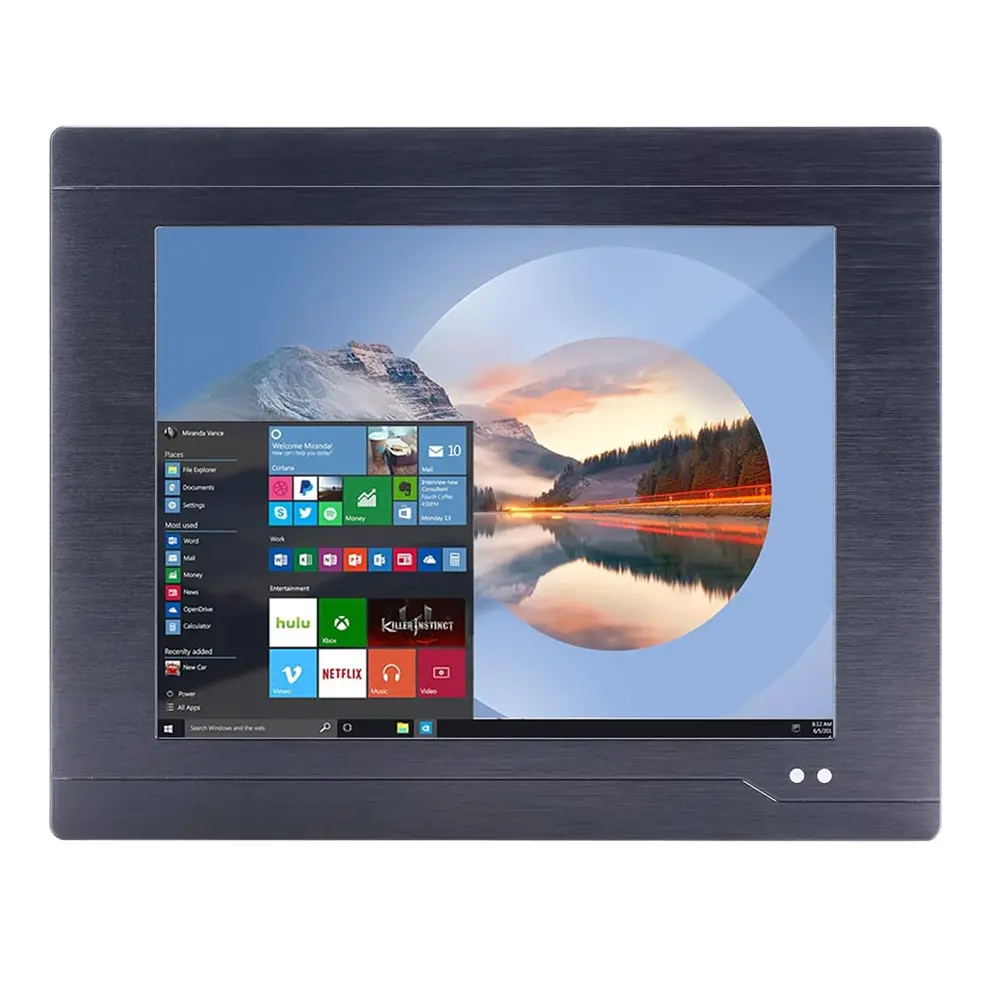

System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 4A for testing
Packing List PW18  industrial touch panel pc, testing power supply, testing power cord, touch pen, aviation heads, warranty card



Environment

Operating Temperature -20℃~60℃ surface air flow
Storage Temperature -30℃~70℃
Working Humidity No request
Certification CE  FCC ROHS



Model Processor Cooling System Graphics Frequency Memory Storage LAN USB COM RS485 Power
Z20 J1900 Fanless Intel® HD Graphics 2.0~2.42 GHz 4GB 128G SSD 2 3 2 1 12V/4A
Z20 J1900 Fanless Intel® HD Graphics 2.0~2.42 GHz 8GB 128G SSD 2 3 2 1 12V/4A
