Intel Celeron N5105 N5095 Firewall

Intel Celeron N5105 N5095 Firewall

Model: Partaker H10

  • Fanless design, Aluminum alloy structure
  • Intel Celeron N5105 quad-core processor (optional N5095)
  • Support 1 DDR4 memory
  • 1 mSATA slot (support 2.5 inch hard drive)
  • Support 2 MINIPCIE channels (WIFI/Bluetooth/4G available)
  • 5 x INTEL I225/I226 2.5 network card (optional 4 POE)

Share to:

Overview



Partaker H10 N5105 N5095 is faster than J4125, support online learning, home office, video and entertainment. Intel 2.5G network card, ddr4 memory, 4k hd display, intel 11th generation jasper lake quad core processor. Support 365 days of stable operation, 24 hours of operation.





Mechanical

Material Aluminum alloy
Colour Black
Size 187 x 120 x 55(mm)
Weight 2.5Kgs
Insallation Method Desktop type
Vesa mounted installtion



Motherboard

CPU
Intel Celeron Processor N5105, 4 core 4 threads, Up to 2.9GHz

Intel Celeron Processor N5100, 4 core 4 threads, Up to 2.8GHz
Network Card 5 x INTEL I225/I226 2.5 network card (optional 4 POE)
Memory 1 x DDR4 2933MHz SODIMM memory slot, up to 32GB
Storage 1 x mSATA, 1 x 2.5-inch hard drive
Graphic Intel UHD Graphiacs
Function Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
Display 1 x HDMI, 1 x VGA
Expand Support 2 x MINIPCIE channels (WIFI/Bluetooth/4G available)



I/O Interfaces

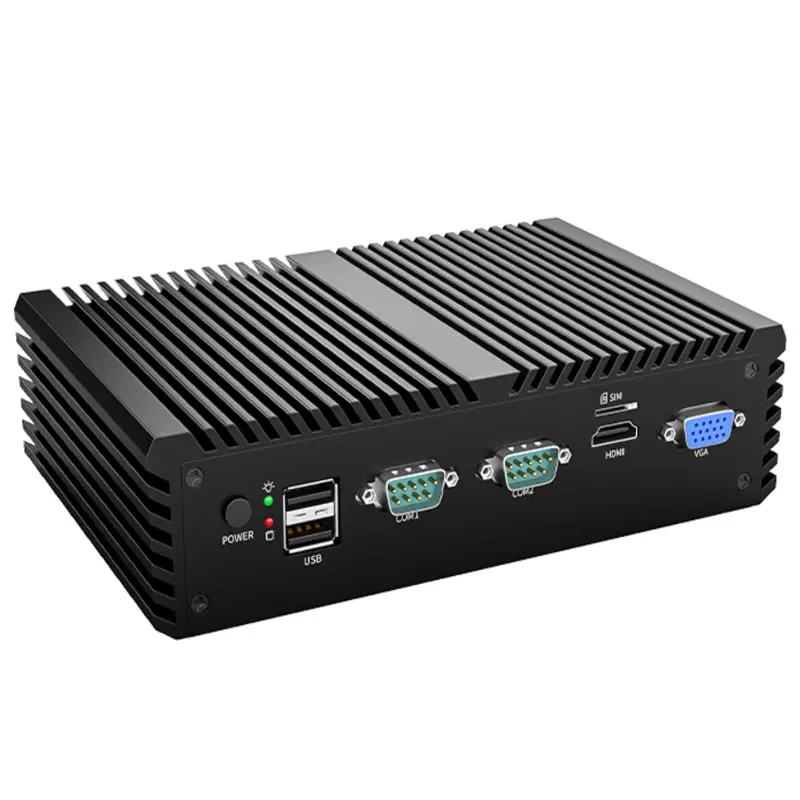

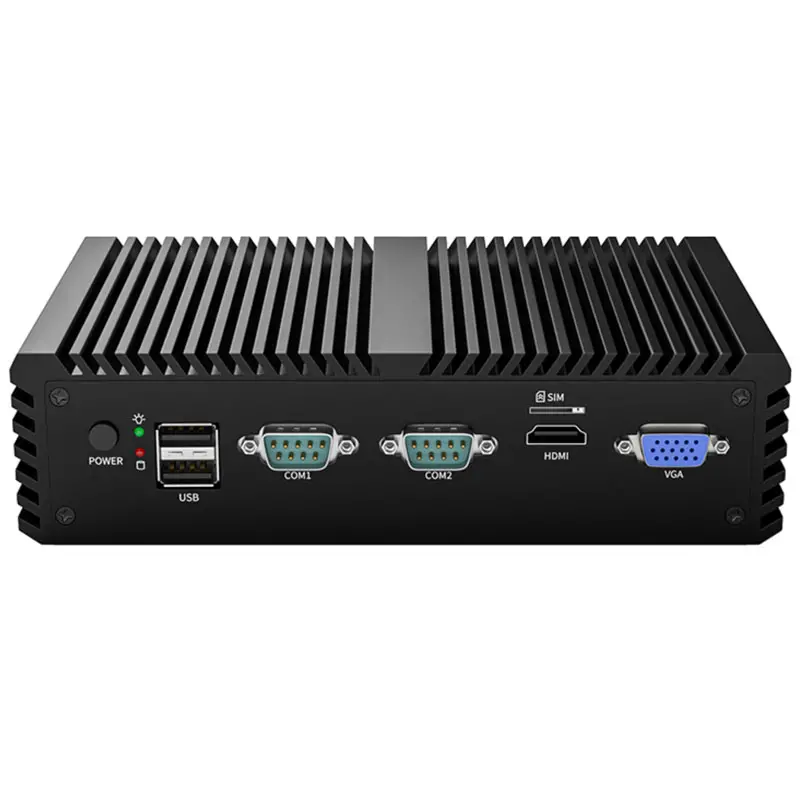

Front Panel 1 x Power Switch
2 x indicator light
2 x USB2.0
2 x COM
1 x SIM Card Slot
1 x HDMI
1 x VGA

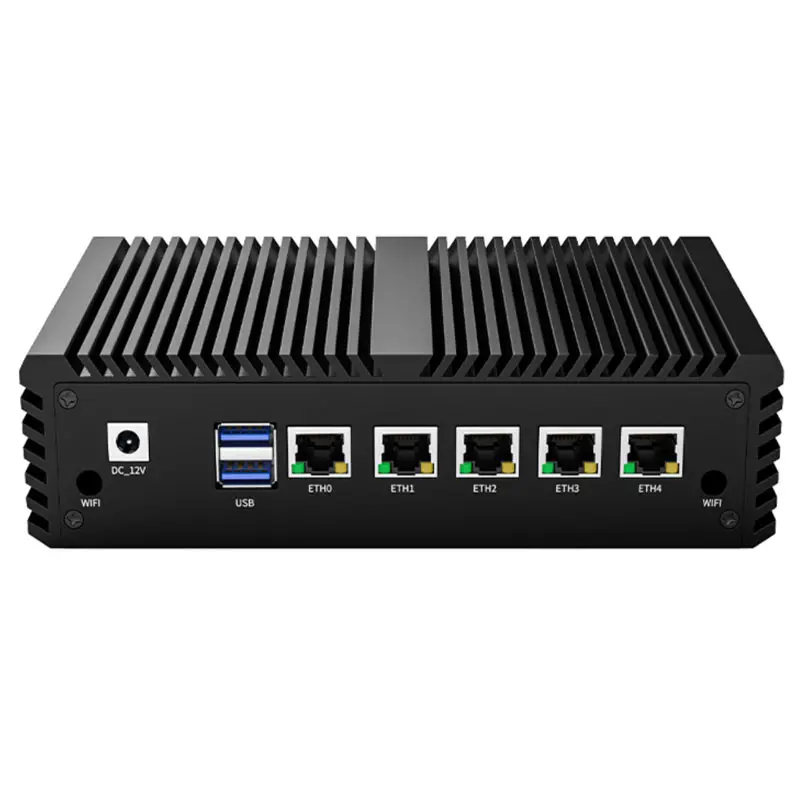

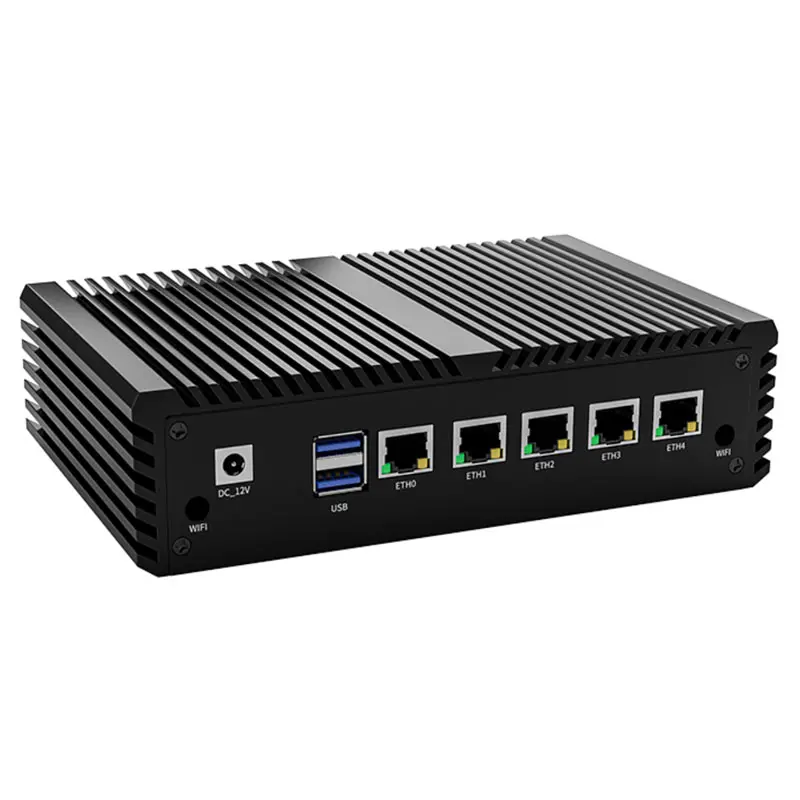

Rear Panel 5 x Intel LAN
1 x DC-12V
2 x USB3.0
2 x WiFi Holes



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc



General

Cooling Mode Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours
Power Supply DC24V-5A 5.5*2.5
Packing List H10 mini pc, power supply, power cord, vesa bracket, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H10 N5105 Intel UHD Graphics 2.0~2.9 GHz VGA/HDMI 1 x SO-DIMM DDR4, Max 32G 1 x mSATA/1 x2.5 inch SSD/HDD 5 x i226 4 12V/5A
H10 N5095 Intel UHD Graphics 2.0~2.9 GHz VGA/HDMI 1 x SO-DIMM DDR4, Max 32G 1 x M x mSATA/1 x2.5 inch SSD/HDD 5 x i225 4 12V/5A
