Intel 12th Gen I9 I7 I5 Mini PC

Intel 12th Gen I9 I7 I5 Mini PC

Model: Partaker B14

  • Aluminum alloy enclosure for durability and sleek design.
  • Supports Intel Core i5, i7, and i9 processors for powerful performance.
  • Dual-network card design for hosting or routing capabilities.
  • WiFi 6 and Bluetooth 5.2 for superior wireless connectivity.
  • Up to 64GB DDR4 RAM for multitasking and data processing.
  • Ultra-fast M.2 NVMe storage for quick boot and load times.
  • Extensive I/O interfaces including HDMI 2.0, DP 1.4, and USB 3.2.
  • Efficient heat dissipation with a copper turbo fan.
  • Includes a VESA bracket for mounting options.
  • Compatible with Windows 10/11 and Linux Ubuntu, with TPM 2.0 security.

Share to:

Overview

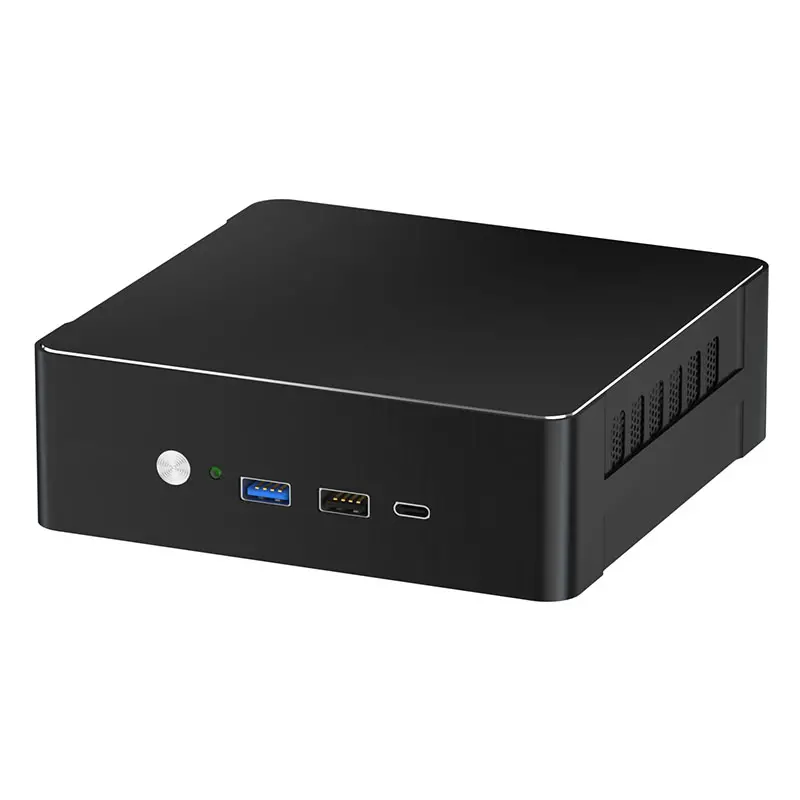

The B14 Mini PC is a sleek and powerful desktop computer that packs the latest Intel Core processors into a compact aluminum alloy enclosure. Its dual-network card design allows for hosting or routing capabilities, while the WiFi 6 and Bluetooth 5.2 provide superior wireless connectivity. With support for up to 64GB of DDR4 RAM and ultra-fast M.2 NVMe storage, the B14 delivers exceptional performance for demanding tasks. The extensive I/O interfaces, including HDMI 2.0, DisplayPort 1.4, and USB 3.2 ports, ensure flexibility and expandability. Ideal for home offices, small businesses, or as a media center, the B14 Mini PC offers a reliable and efficient computing solution.





Mechanical

Material Aluminum alloy
Colour Black
Size 145 x 145x 46mm
Weight 2Kgs
Insallation Method Desktop type
Vesa mounting



Motherboard

CPU Intel® Core™ i5-1235U Processor (12M Cache, up to 4.40 GHz)
Intel® Core™ i7-1260P Processor (18M Cache, up to 4.70 GHz)
Intel® Core™ i9-12900H Processor (24M Cache, up to 5.00 GHz)
Graphic

Intel Iris Xe Graphics eligible
Network Card 1 x Intel i225/i226 2500M, 1 x Realtek RTL8111 1000M, can be configured as a host server or router
WiFi and Bluetooth 802.11AX WiFi6 with Bluethooth5.2, external dual antennas for better signal
Memory 2 x SO-DIMM DDR4 slots,max 64GB
Storage 1 x M.2 2280 PCIE4.0(read speed: 5000-7000MB/S), 1 x M.2 2280 PCIE3.0, Support 2.5inch 7mm HDD/SSD
Features Support Auto power on, wake-on-lan, PXE, RTC etc



I/O Interfaces

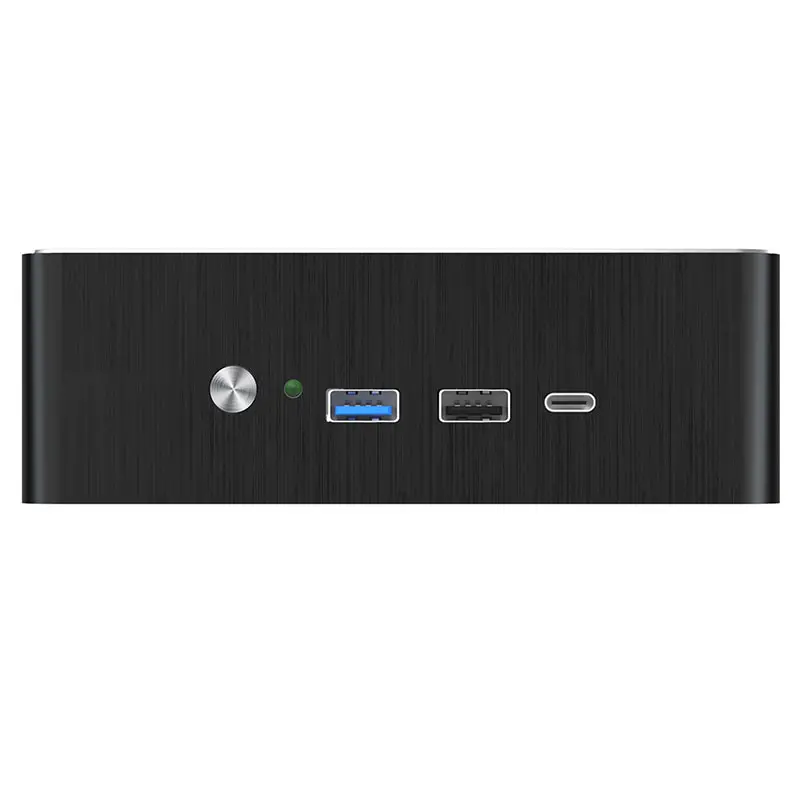

Front Panel 1 x Power button
1 x Type-C, 8K@60Hz
1 x USB2.0
1 x USB3.2

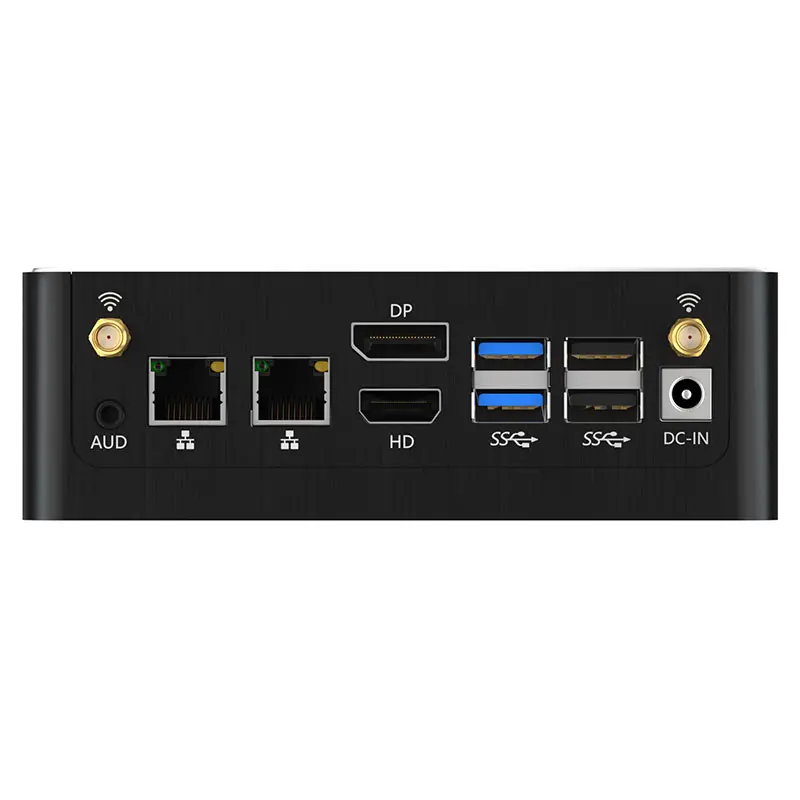

Rear Panel 1 x Audio
1 x 2.5G LAN
1 x 1G LAN
1 x HDMI2.0, 4K@60Hz
1 x DP1.4, 8K@60Hz
2 x USB3.2
2 x USB2.0
1 x DC IN
2 x WiFi Dual Antennas



Software Support

Bios AMI bios
System Support Windows 10/11, linux ubuntu etc, Have TPM2.0



General

Cooling Mode Efficient heat dissipation of cooper turbo fan
Power Supply 12V7A
Packing List B14 mini pc, power supply, power cord, vesa bracket, sata cable, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B14 I5-1235U Intel Iris Xe Graphics Max 1.20GHz 3.3~4.4 GHz DP/HDMI/TYPE-C 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 PCIE4.0, 1 x M.2 2280 PCIE 3.0, 1 x 2.5 inch SATA SSD/HDD 2 6 12V/7A
B14 I7-1260P Intel Iris Xe Graphics Max 1.40GHz 3.4~4.7 GHz DP/HDMI/TYPE-C 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 PCIE4.0, 1 x M.2 2280 PCIE 3.0, 1 x 2.5 inch SATA SSD/HDD 2 6 12V/7A
B14 I9-12900H Intel Iris Xe Graphics Max 1.45GHz 3.8~5.0 GHz DP/HDMI/TYPE-C 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 PCIE4.0, 1 x M.2 2280 PCIE 3.0, 1 x 2.5 inch SATA SSD/HDD 2 6 19V/6.3A
