Industrial Mini PC PC 4-5th Gen I3 I5 I7

Industrial Mini PC PC 4-5th Gen I3 I5 I7

Model: Partaker I4

  • Intel Celeron 2955U, Core i3 i5 i7 Processor
  • Support 1 x SO-DIMM DDR3L Ram, Max to 8GB
  • Support 1 x mSATA SSD, 1 x 2.5” SSD/HDD
  • Support Dual HDMI Display
  • Support 6 x RS232 COM Ports
  • Aluminum Fanless design offer you zero noise experience

Share to:

Overview



Partaker I4 is a mini computer with fanless design, which can effectively prevent noise and dust, and has an all-aluminum striped body. Gigabit network card + WIFI, complete COM port, to meet various needs. Wide range of application fields, industrial control places, artificial intelligence, entertainment and leisure, financial institutions, digital signage, medical industry,



Mechanical

Material Aluminum alloy
Colour Black
Size 175 x 210 x 45mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop



Motherboard

CPU Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i5-5287U Processor (3M Cache, up to 3.30 GHz)
Intel® Core™ i7-I7 4500U Processor (4M Cache, up to 3.30 GHz)
Chipset SOC
Network Card 2 x Intel 82574L 10/100/1000 gigabit ethernet nics
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x M.2 PCIE WiFi slot



I/O Interfaces

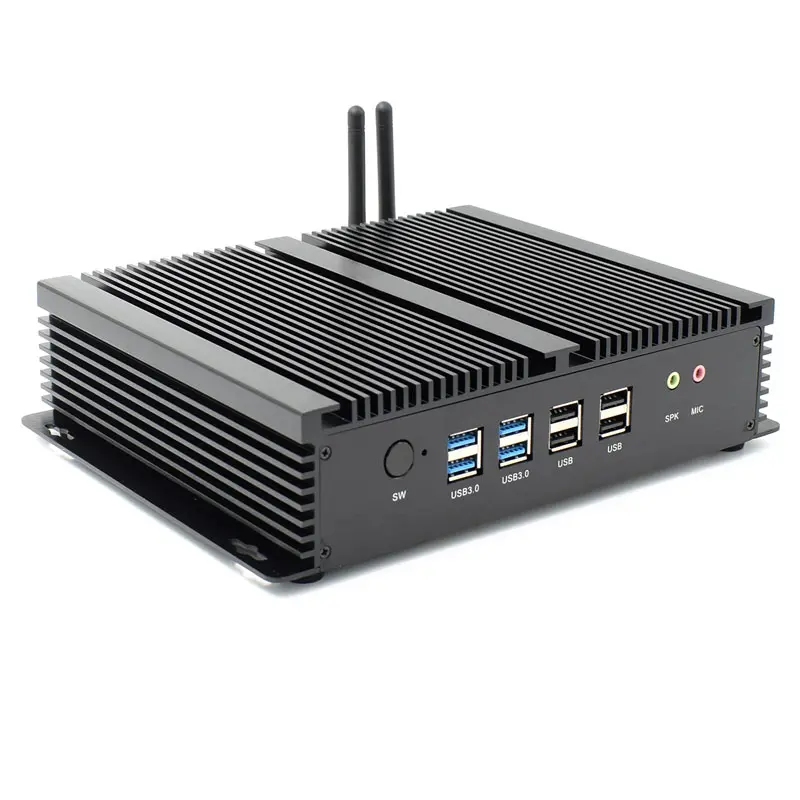

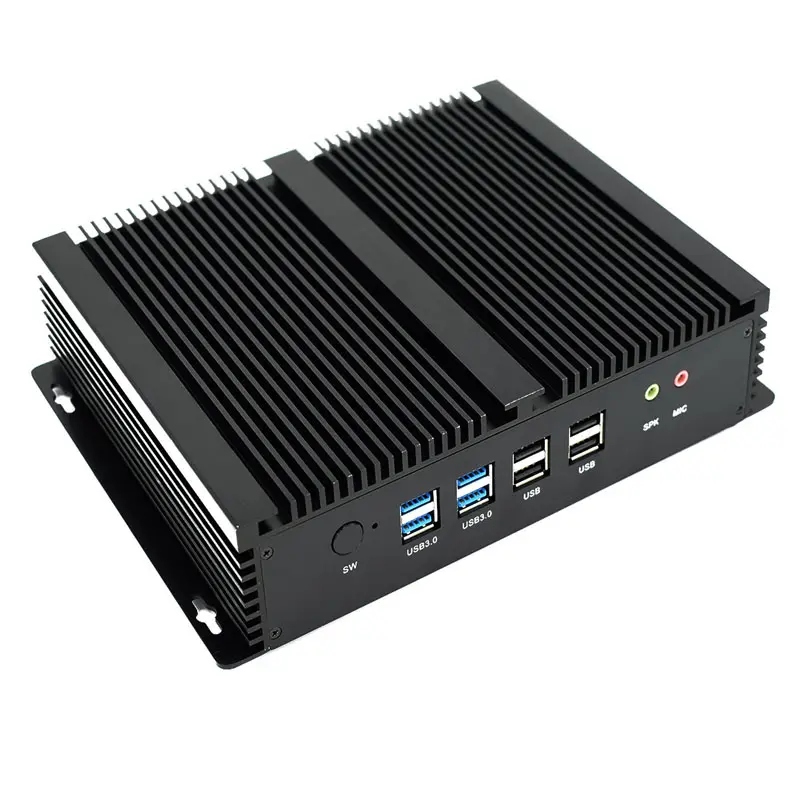

Front Panel 1 x Power button
4 x USB3.0
4 x USB2.0
1 x Audio

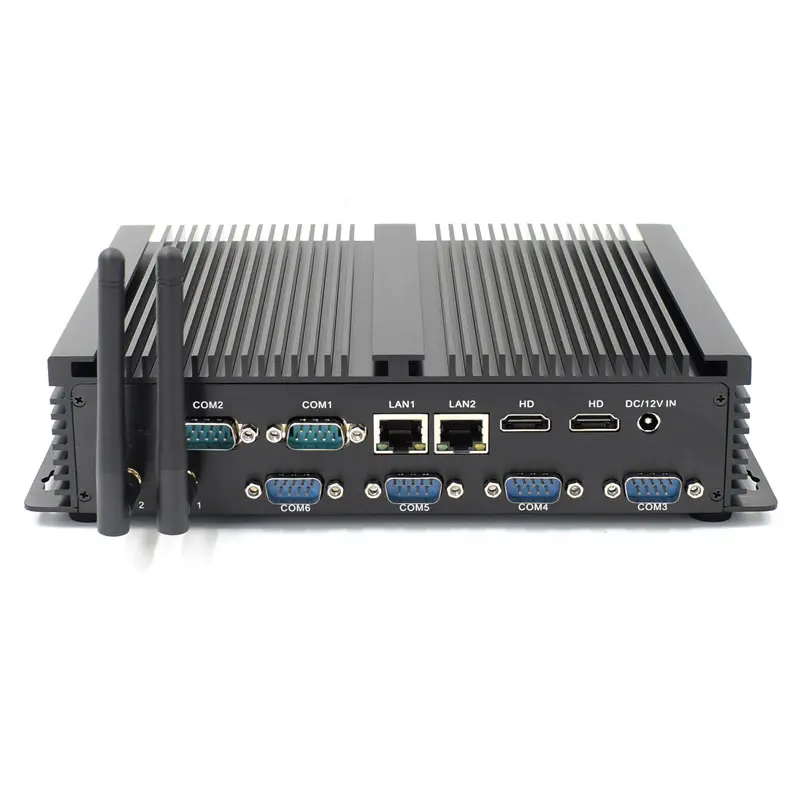

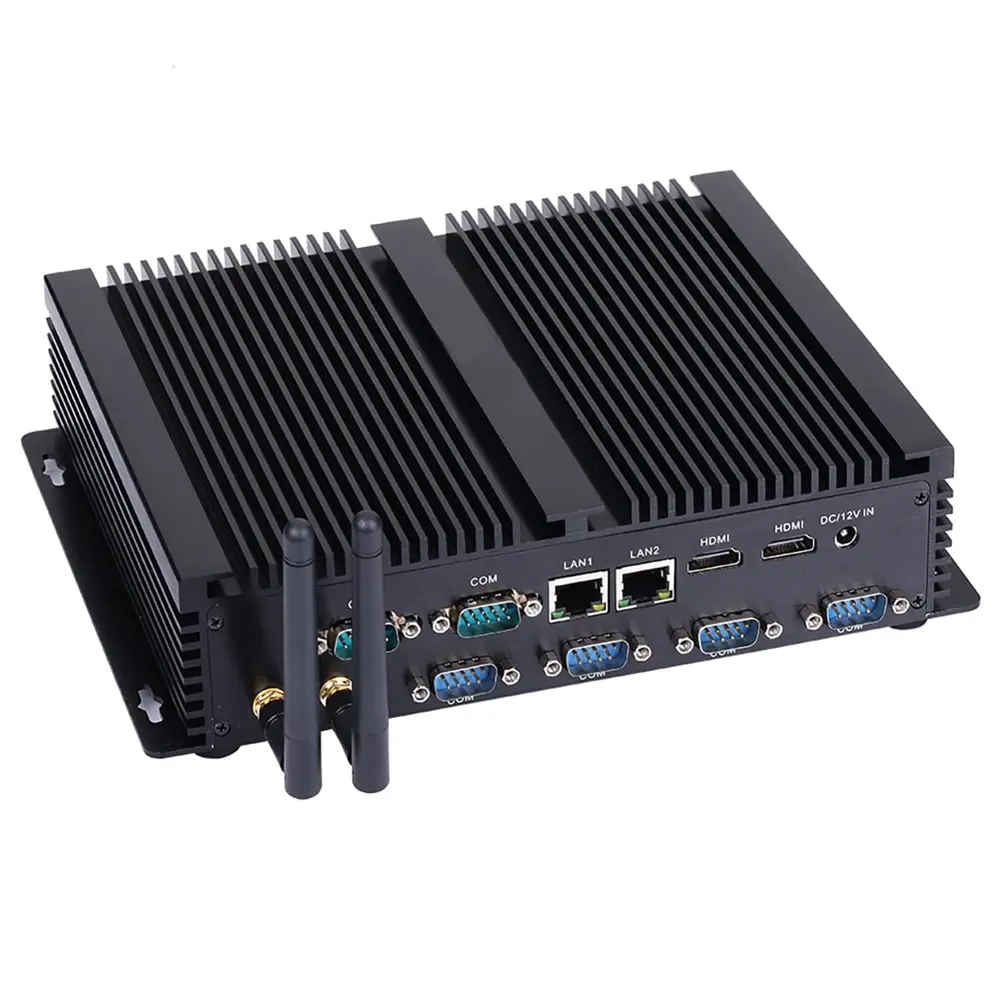

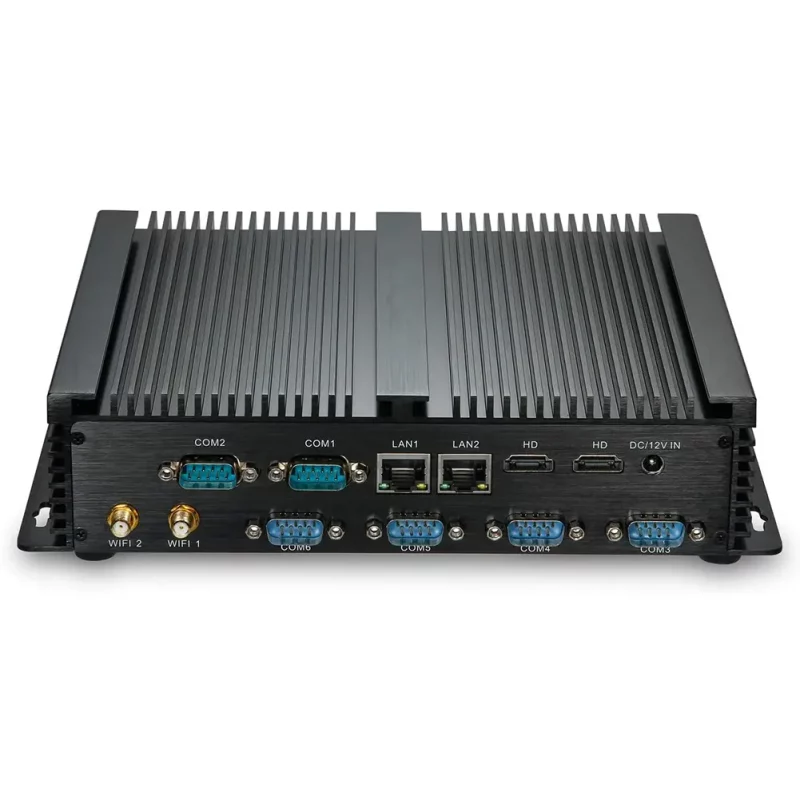

Rear Panel 1 x DC_in
2 x HDMI
2 x Lan
6 x COM RS232
2 x WiFi antennas
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A-5A
Packing List Partaker I4 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN COM USB Power
I4 2955U Intel® HD Graphics 1.4 GHz 2 x HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 8 12V/3A
I4 I3 4005U Intel® HD Graphics 4400 1.70 GHz 2 x HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 8 12V/3A
I4 I3 5005U Intel® HD Graphics 5500 2.00 GHz 2 x HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 8 12V/3A
I4 I5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz 2 x HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 8 12V/5A
I4 I7 4500U Intel® HD Graphics 5000 1.7~3.3 GHz 2 x HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 8 12V/5A
