Industrial Mini PC 6-10th Gen I3 I5 I7 Processor

Industrial Mini PC 6-10th Gen I3 I5 I7 Processor

Model: Partaker I27

  • Intel® Core™ Gen 6-10th I3 I5 I7 Processor
  • GPIO, 6COM, HDMI, VGA, USB, MIC, SPK
  • Support mSATA SSD, M.2 2280 SATA/NVME, 2.5 Inch SSD/HDD
  • Support 8-bit GPIO for industrial equipment needs
  • Embedded SIM card slot for 4G Module
  • Support watchdog for 256-level
  • Support VGA & HDMI dual display

Share to:

Overview



Partaker I27 is an industrial computer with no noise and icicle heat dissipation. It has PS2 interface, RS232/422/485COM serial port switchable, GPIO interface, 8 USB interfaces, 4G network/WIFI module, dual Intel Gigabit LAN, all-day Stable operation, low power consumption and power saving. It is suitable for various purposes, industrial automation equipment, self-service inquiry equipment, vending machines, monitoring centers, etc. Equipped with standard VGA and high-definition HDMI interface, it can be applied to multimedia classrooms, multi-functional meeting rooms, Command and control center, intelligent home and other scenarios.



Mechanical

Material Aluminum alloy
Colour Black
Size 230 x 175 x 50mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop



Motherboard

CPU Intel® Core™ i3-6006U/6157U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i3-7020U/7167U Processor (3M Cache, 2.30 GHz)
Intel® Core™ i5-7200U/7267U Processor (3M Cache, up to 3.10 GHz)
Intel® Core™ i5-8250U/8260U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i7-8550U/8565U Processor (8M Cache, up to 4.00 GHz)
Intel® Core™ i7-7510U Processor (4M Cache, up to 3.70 GHz)
Intel® Core™ i7-10510U Processor (8M Cache, up to 4.90 GHz)
Chipset SOC
Network Card 2 x Intel I211 10/100/1000 gigabit ethernet nics
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR4, up to 32GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard



I/O Interfaces

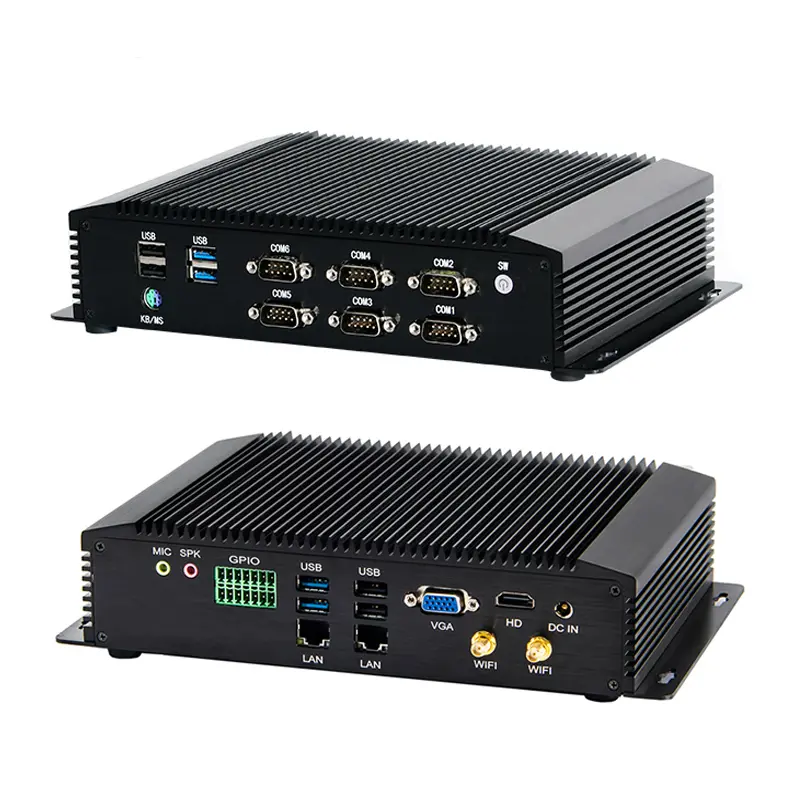

Front Panel 1 x Power button
6 x COM (COM1 COM2 for RS232 RS422 RS485)
2 x USB3.0
2 x USB2.0
1 x PS/2

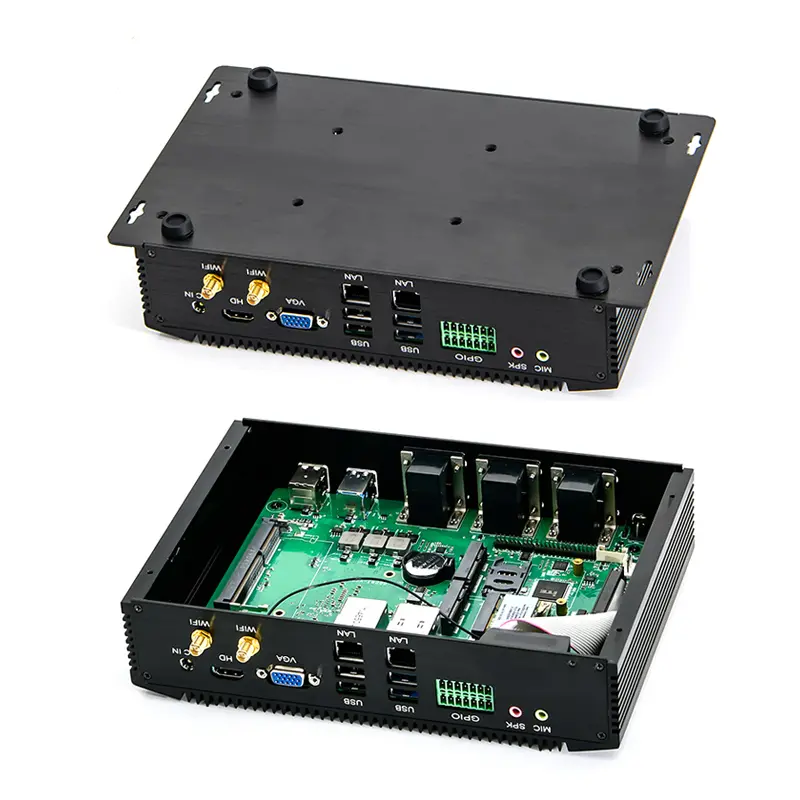

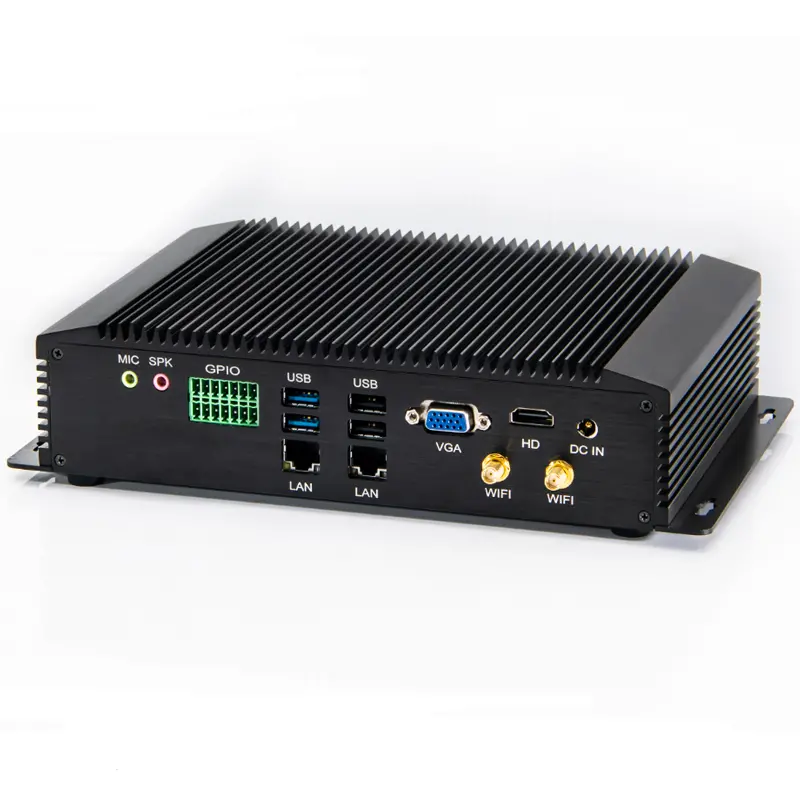

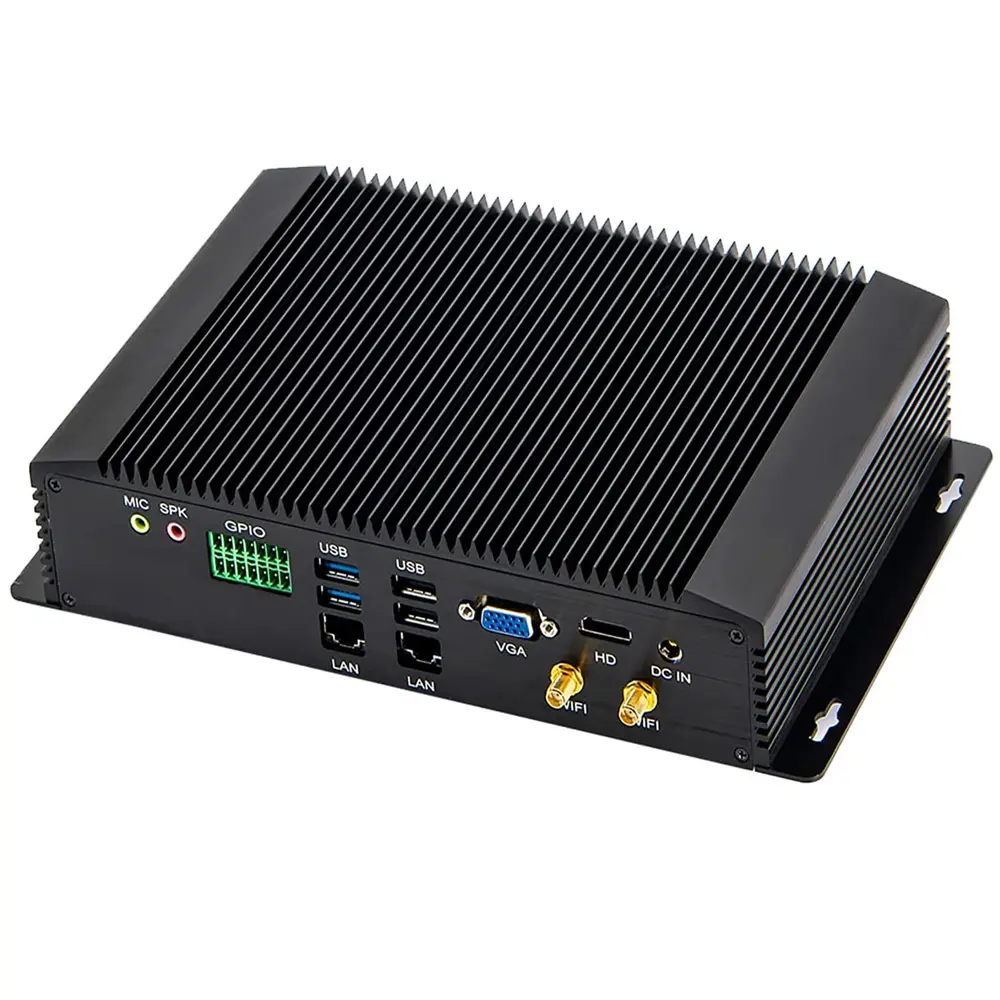

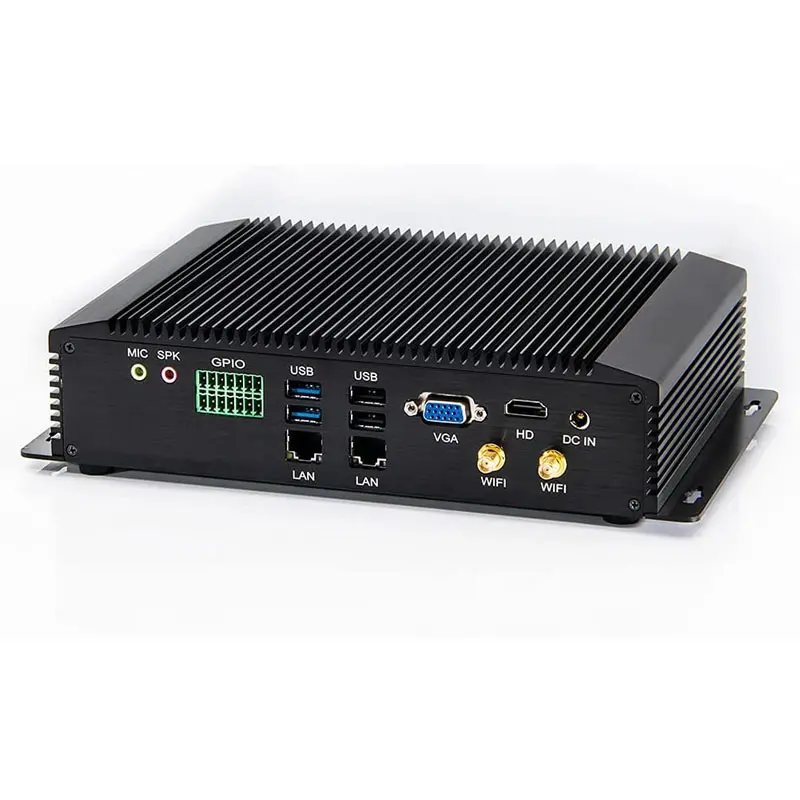

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
2 x USB3.0
2 x USB2.0
2 x Lan
1 x GPIO
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A-5A/ 19V/5A
Packing List Partaker I27 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN COM USB Power
I27 I3 6157U Intel® HD Graphics 520 2.00 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 6 8 12V/3A
I27 I3 7167U Intel® HD Graphics 620 2.30 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 6 8 12V/3A
I27 I5 7267U Intel® HD Graphics 620 2.50~3.10 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 6 8 12V/5A
I27 I5 8250U Intel® UHD Graphics 620 1.60~3.40 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 6 8 12V/5A
I27 I7 8550U Intel® UHD Graphics 620 1.80~4.00 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 6 8 12V/5A
I27 I7 10510U Intel® UHD Graphics 1.80~4.90 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 6 8 12V/5A
I27 I7 7510U Intel® HD Graphics 620 2.7~3.70 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 2 6 8 12V/5A
