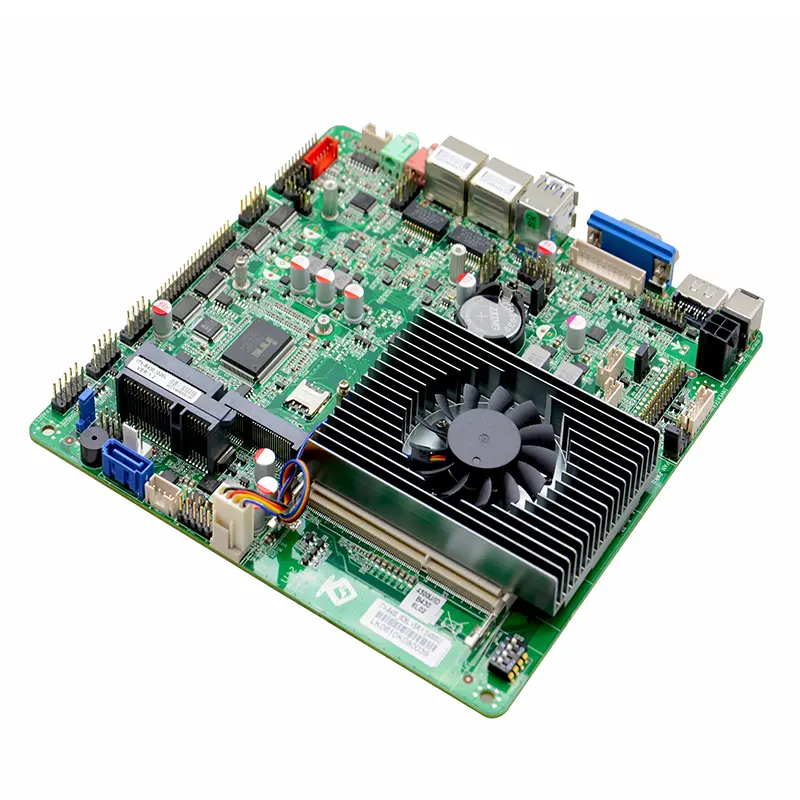

Model: ITX-B430_I526L

  • Thin ITX Motherboard Based on Intel Bay trail SOC platform
  • Integrated Intel I5-4300U/I3 4120U/I3 5005U Dual-core four-thread processor, TDP 15W
  • 1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory,up to 8GB
  • 1* RTL8111F Gigabit LAN controller, support Wake-on-LAN/PXE
  • 1* SATA3.0,1* SATA 2.5 inch HDD
  • 1*HD OUTPUT,1*VGA,4*USB, Support 4 input and output GPIO

Share to:

Overview



The Thin Mini-ITX motherboard is a compact and powerful motherboard that supports various Intel processors, such as i5 4300U, i3 5005U, and i5 4200U. It has a thin design that allows for easy installation and integration. It is ideal for applications that require high performance and low power consumption.



Product number ITX-B430_I526L VER:1.5(4300U)
processor



Integrated Haswell-U I5-4300U/1.9GHz Dual-core four-thread processor, TDP 15W
Compatible with Intel Celeoron, Pentium, Core®I3/I5/I7 Haswell/Broadwell-U processors
chipset Based on Haswell-U/Broadwell-U SOC platform
RAM 1* SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB
Show





Integrated HD Graphics 4400 core graphics
1* VGA, 1*HD OUTPUT, 1*LVDS interface (support dual channel 24BIT)
Support single display, dual display mode, extended mode
The internet 1* RTL8111H Gigabit Ethernet, support Wake on LAN/PXE function
Store 1* SATA3.0 2.5 inch notebook hard drive bay
  1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
Audio



Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
The power amplifier uses 2Ω5W speakers
Expand



1* Mini-PCIE slot supports WIFI/3G module
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
  Note: If MINIPE1 needs to support 3G module, you need to adjust the related hardware settings, and it will cause F_USB2 to only support 1 USB

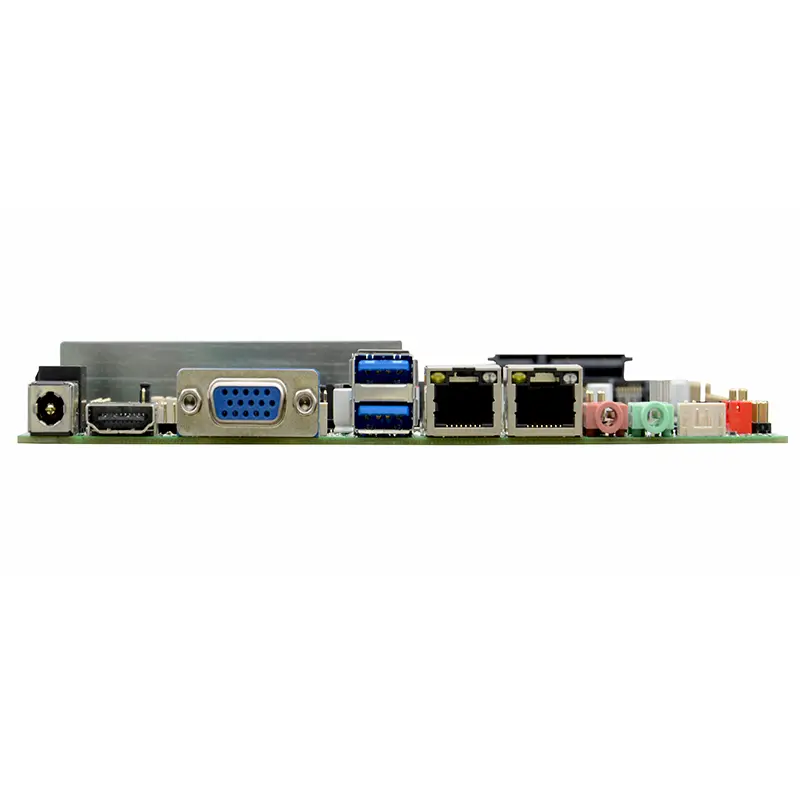

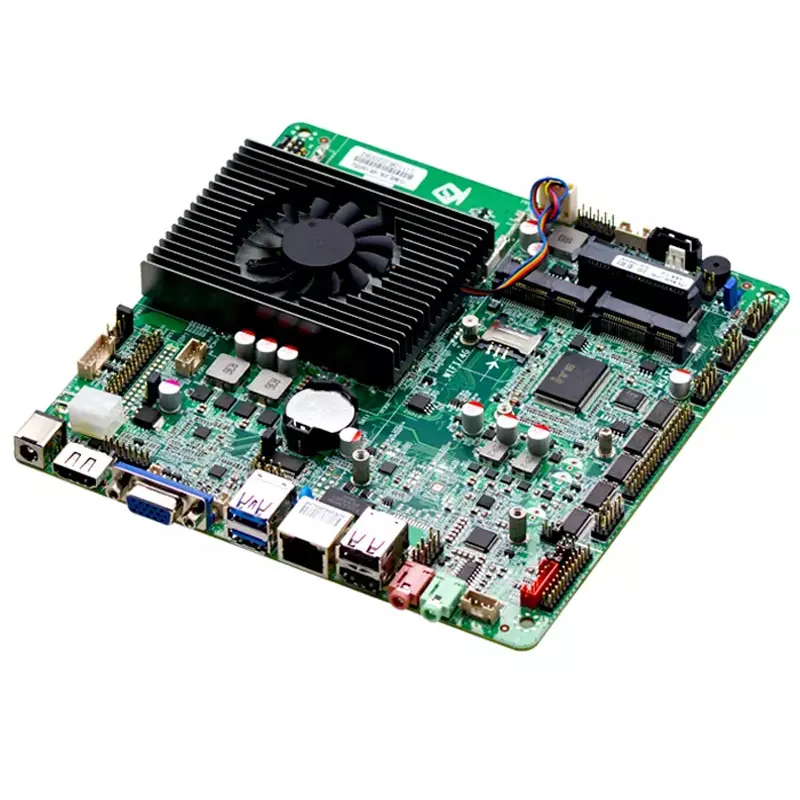

Backplane I/O interface















1* 12V DC JACK power input interface
1* HD OUTPUT display interface
1* VGA display interface
2* USB 3.0 interface
2* USB2.0 interface
1* RJ-45 Gigabit network interface
1* Line out interface (green)
1* MIC interface (red)

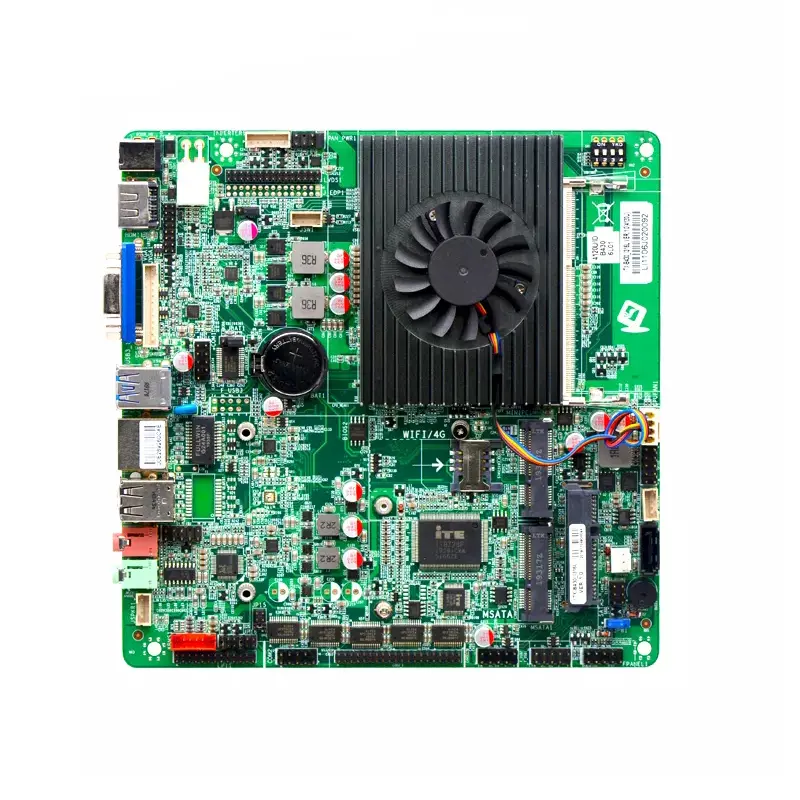

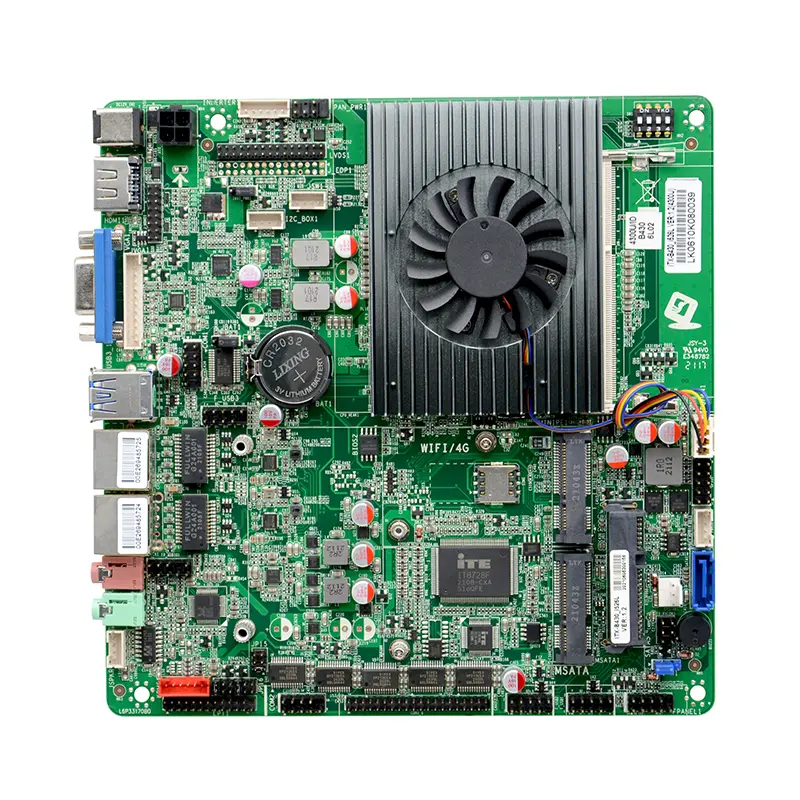

Built-in I/O interface





























1* JVGA1 interface 1*12Pin (same signal as DB15)
1* J_HD OUTPUT interface 2*8pin (same signal with backplane IO interface HD OUTPUT)
1* Support dual channel 24bit (double 8) LVDS interface 2*15pin
1* LVDS backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
1* Front audio interface 2*5pin
1* Front power amplifier interface 1*4Pin
4* USB 2.0 interface 2*5Pin
6* RS232 serial interface 2*5pin COM1/COM2 supports the 9th pin charged function, COM2 supports RS485
1* LPT printer interface 2*13pin
1* PS/2 keyboard and mouse interface 1*6Pin
1* Hard disk power supply interface 1*4pin
1* SIM card holder
1* Front panel function button and indicator port 2*5pin
1* 4pin ATX power connector
Fan interface 1* 4pin CPU smart fan interface, 1* 3pin system fan interface
GPIO Support 4 input and output GPIO
BIOS AMI 64Mb Flash ROM
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
operating system Windows 7/Windows 10/Linux
Power type DC_12V single power input
Operating temperature -10℃~60℃
Storage temperature -20℃~70℃
Working humidity 5%-95% relative humidity, non-condensing
Size 170mm x 170mm
