Gaming PC with 8-9th Gen Intel I5 I7 Xeon

Gaming PC with 8-9th Gen Intel I5 I7 Xeon

Model: Partaker B17

  • Intel 8-9th Gen Intel Core i5/i7/Xeon Processor
  • Dual SODIMMs for up to 64GB DDR4 Memory
  • Support M.2 2280 SATA/NVME SSD, 2.5 Inch SSD/HDD
  • Aluminum chassis, 280 x 200 x 65mm
  • Rich I/O: DVI, DP, HDMI, DC, LAN, 2 x USB 3.0, 5 x USB 2.0, Spk, Mic
  • Support Windows 10 and Linux, etc.
  • Support Restore AC Power Loss/diskless boot
  • Support 3-channel display out(DP, HDM and DVI) for simultaneous display or synchronous different display

Share to:

Overview



Partaker B17 is an octa-core 4G independent display, 9th generation CPU mini computer, high-performance desktop processor, can play online games, 3 high-definition interfaces, dual-channel DDR4 memory, M.2 high-speed solid state, intelligent fan cooling, quiet operation , worry-free heat dissipation. It can run smoothly in multiple scenes, edit processing, output production, game entertainment, audio-visual video, etc.



Mechanical

Material Aluminum alloy
Colour Silver
Size 280 x 200 x 65mm
Weight 3Kgs
Insallation Method Desktop type

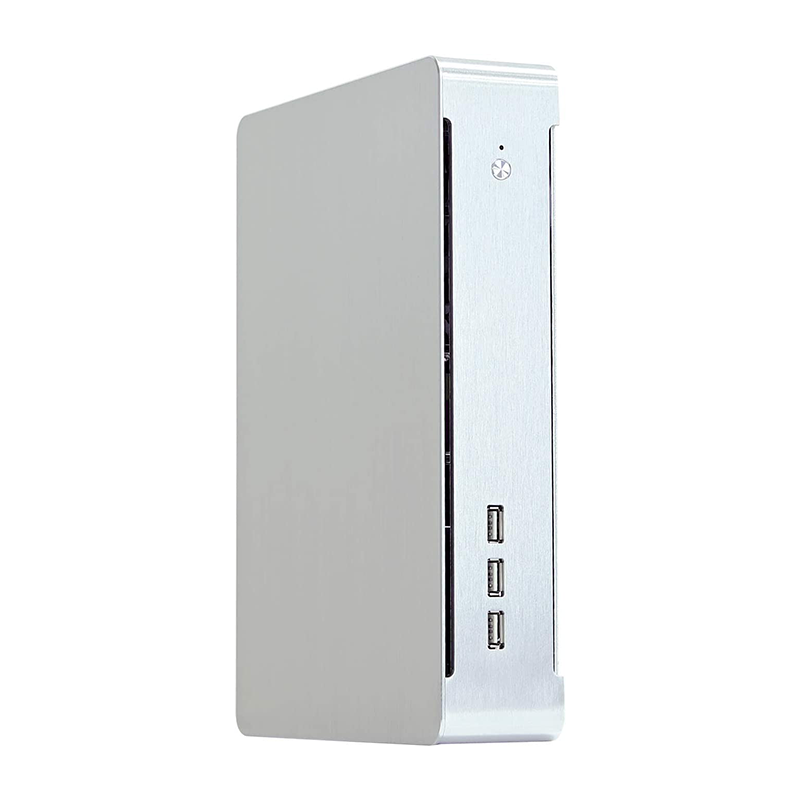

With holding vertical stand



Motherboard

CPU Intel® Core™ i5-9400F Processor (9M Cache, up to 4.10 GHz)
Intel® Core™ i7-9700F Processor (12M Cache, up to 4.70 GHz)
Intel® Core™ i7-9750H Processor (12M Cache, up to 4.50 GHz)
Intel® Xeon® Processor D-1581 24M Cache, 1.80 GHz (16 cores 32 threads)
Chipset H310/HM370
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x M.2 2280 (SATA/NVME)
Expand 1 x M.2 PCIE WiFi slot



I/O Interfaces

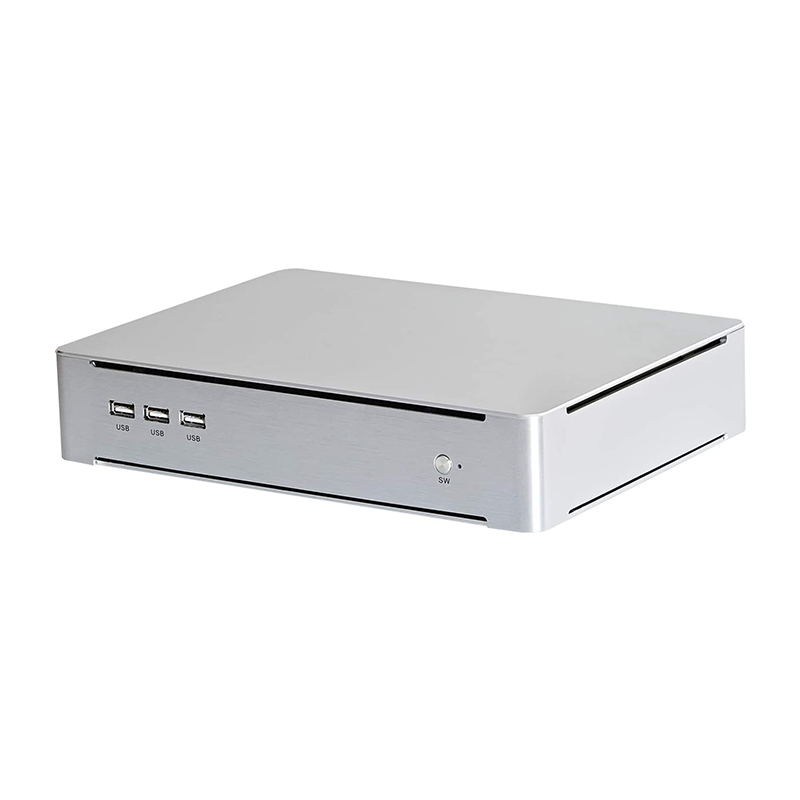

Front Panel 1 x Power button
3 x USB2.0

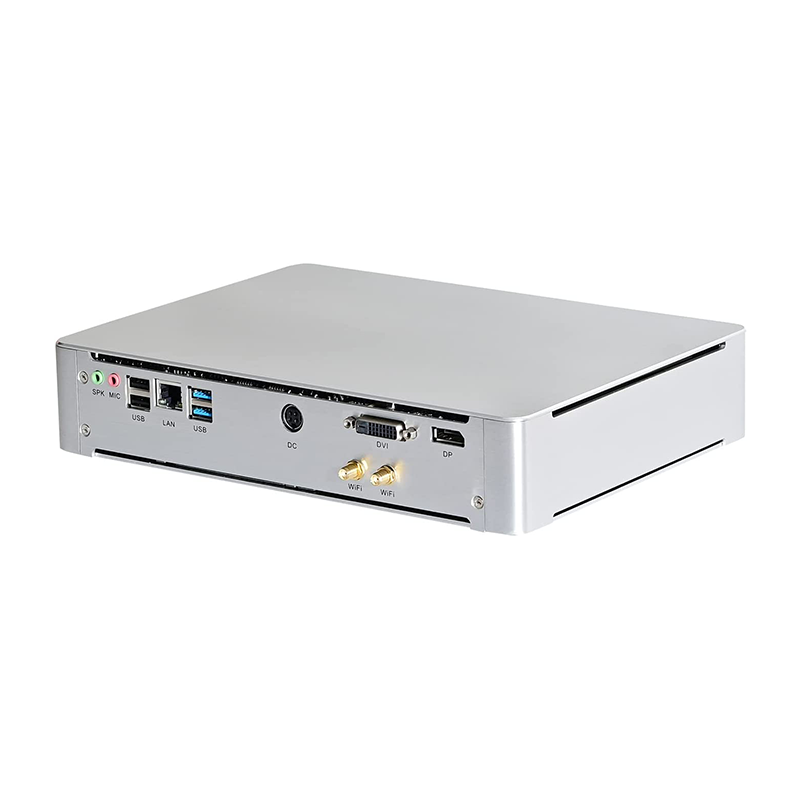

Rear Panel 1 x Audio
2 x USB2.0
1 x Lan
2 x USB3.0
1 x DC_in
1 x DP
1 x HDMI
1 x DVI
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

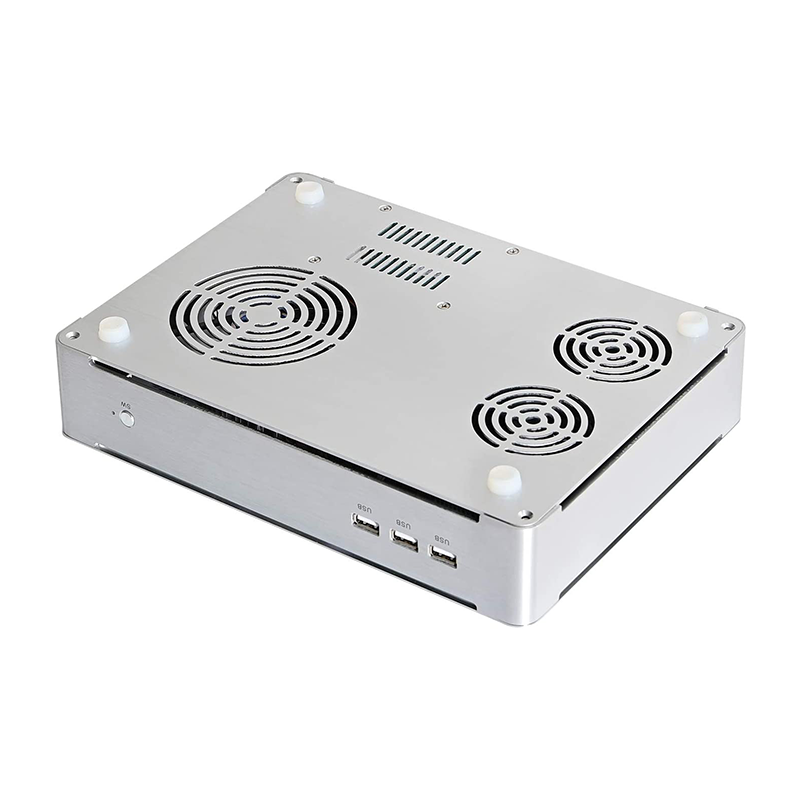

Cooling Mode Smart silent fan (place it vertically to reduce the fan speed & sound effectively)
Power Supply DC100-240V AC/50-60Hz, DC 19V/9.5A
Packing List B17 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B17 I5 9400F GeForce GTX 1650 4G 2.9~4.1 GHz DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 SATA / NVME SSD, 1 x 2.5 inch SATA SSD/HDD 1 7 19V/9.5A
B17 I7 9700F GeForce GTX 1650 4G 3.0~4.7 GHz DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 SATA / NVME SSD, 1 x 2.5 inch SATA SSD/HDD 1 7 19V/9.5A
B17 I7 9750H GeForce GTX 1650 4G 2.6~4.5 GHz DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 SATA / NVME SSD, 1 x 2.5 inch SATA SSD/HDD 1 7 19V/9.5A
B17 Xeon D-1581 GeForce GTX 1650 4G 1.8~2.4 GHz DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 SATA SSD, 1 x M.2 2280 NVME SSD, 1 x 2.5 inch SATA SSD/HDD 1 6 19V/9.5A
B17 Xeon D-1581 NVIDIA Quadro K620 2G 1.8~2.4 GHz DP/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 2280 SATA SSD, 1 x M.2 2280 NVME SSD, 1 x 2.5 inch SATA SSD/HDD 1 6 19V/9.5A
