Firewall Micro Computer 4 LAN J3160

Firewall Micro Computer 4 LAN J3160

Model: Partaker C3

  • Braswell Intel Celeron J3160
  • 1 x Power Switch,1 x Audio,2 x USB3.0,1 x RJ-45 COM(Support Console),2 x HDMI(no sound),4 x RJ45 Lan,1 x DC
  • Nuc Dimension:144 x 107.5 x 42mm
  • 4 x Intel i211AT 10/100/1000Mb Lans
  • 1 x MSATA Slot,1 x 2.5’’ SSD/HDD
  • Support 1 x MINI PCIE(WiFi/BT is optional),Support 1 x MINI PCIE(Support MSATA)

Share to:

Overview



Partaker C3 Intel Celeron J3160 Quad Core pfSense Firewall Router 4 LAN. Applied in Pfsense,Router, VPN, Firewall, Network server etc .





Mechanical

Material Aluminum alloy
Colour Black(color can be customized)
Size 144 x 107.5 x 42 mm (W*D*H)
Weight 1.5Kgs
Insallation Method Desktop type



Motherboard

CPU Intel celeron J3160 Quad Core 1.6Ghz
CPU Architecture Braswell
Network Card 4 x Intel i211AT 1000M lan, support wake on lan
Chipset Intel Integrated Chipset

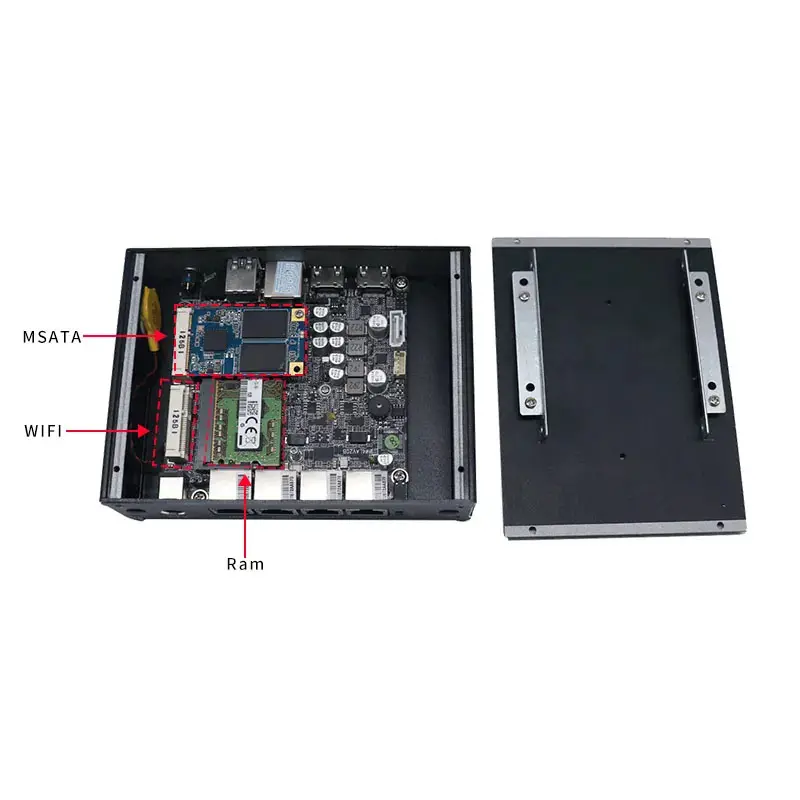

Memory 1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G
Storage 1 x mSATA,1 x 2.5 inch HDD/SSD
Expand

1 x Mini-PCIE(support MSATA),

1 x Mini-PCIE(support WiFi/BT optional)

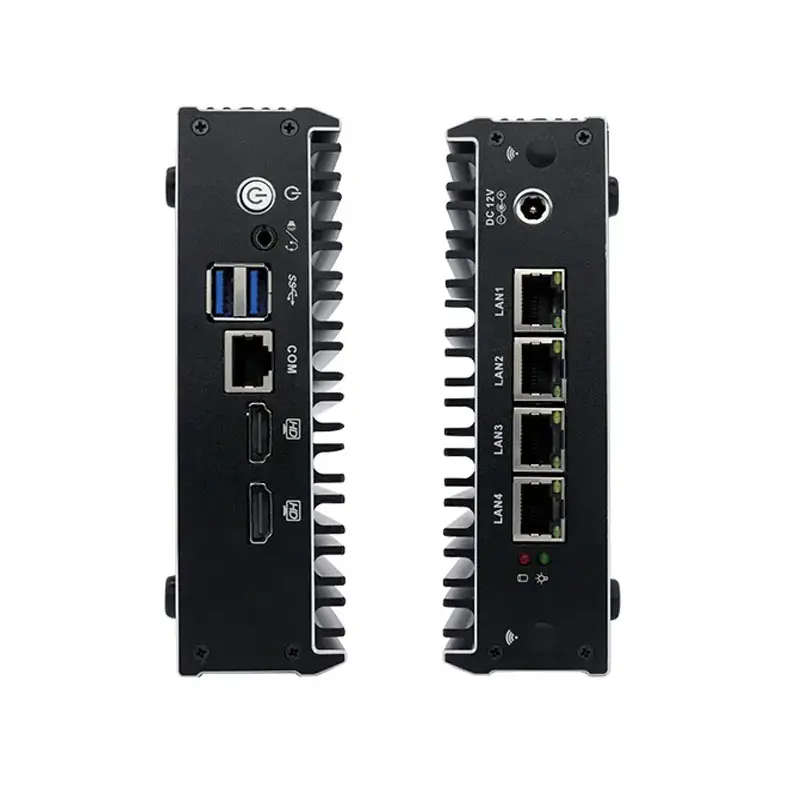

I/O Interfaces

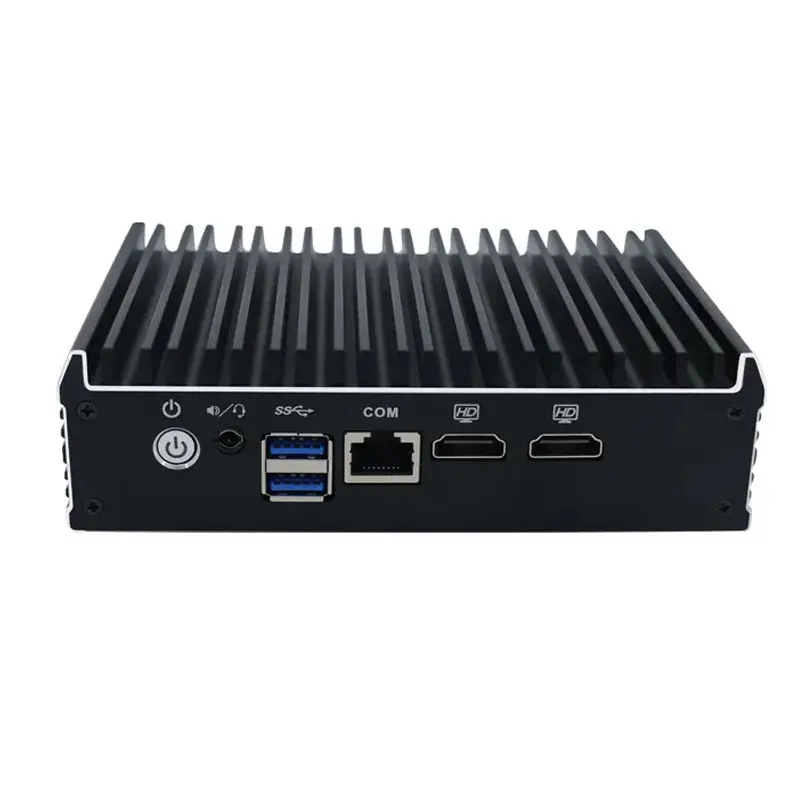

Front Panel 1 x Power Switch
1 x Audio/SPK
2 x USB3.0
1 x RJ45 COM(support Console)
2 x HDMI(no sound)

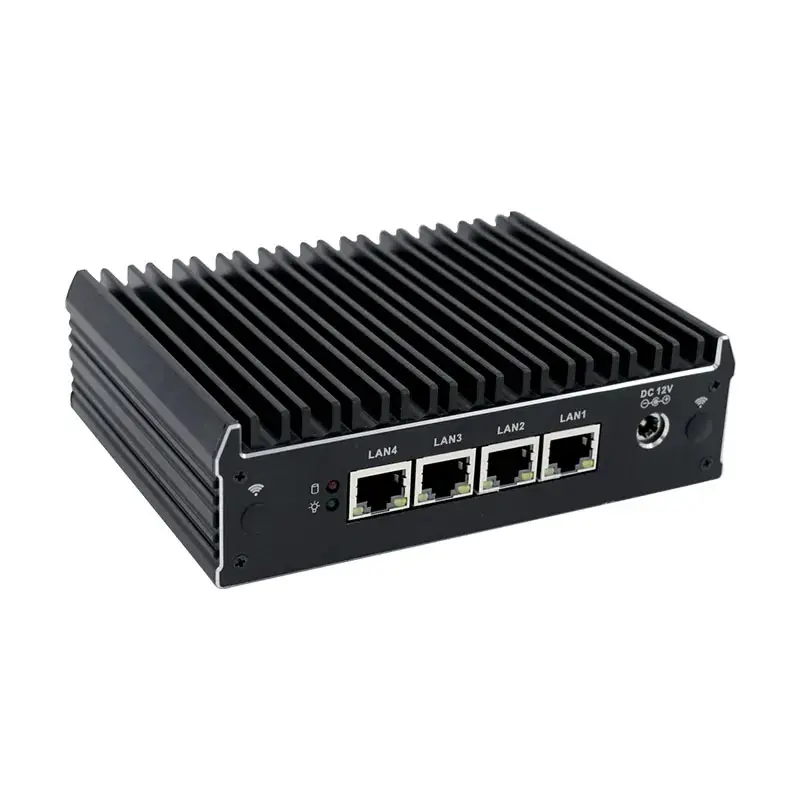

Rear Panel 4 x LAN
1 x DC-IN 12V



Software Support

Bios AMI 64Mbit Flash ROM
System Support Windows 7/8/10, Linux, Pfsense



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

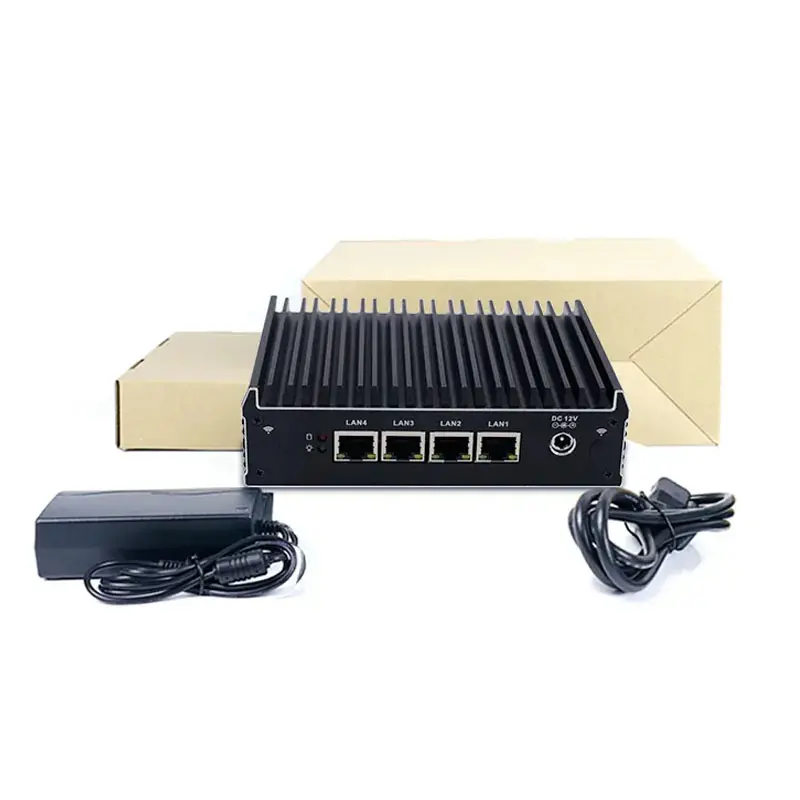

Packing List C3 mini pc, power supply, power cord, warranty card



Environment

Working Temperature 0°C ~ +50°C (commercial HDD), -20°C ~ +50°C (industrial SSD), surface air flow
Working Humidity 5% – 95% relative humidity, Non-condensing
Other Function Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog (level 0~255)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C3 J3160 Intel® HD Graphics 1.6~2.24GHz 2 x HDMI 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 4 2 12V/4A
