Fanless Soft Router Firewall Appliance

Fanless Soft Router Firewall Appliance

Model: Partaker H14

  • Intel N4000 J4125 N5000 Processor
  • Aluminum alloy structure, fanless design
  • Onboard Intel Celeron J4125 quad-core processor
  • Support 2 pieces of DDR4 memory, up to 16GB
  • 1 mSATA slot (support 2.5-inch hard disk)
  • Support HD display, HDMI+VGA
  • Fanless and silent, 0db silent, No noise

Share to:

Overview



Partaker H14 4 nic mini pc with powerful performance and heat dissipation effciency ratio, support 7×24 hours operation. Intel celeron superior design, using ntel celeron processor, mini pc well better performance. It can meet your various needs. It can be applied to teaching all in one computers, electronic whiteboards, conference tabletc etc.





Mechanical

Material Aluminum alloy
Colour Black/Red

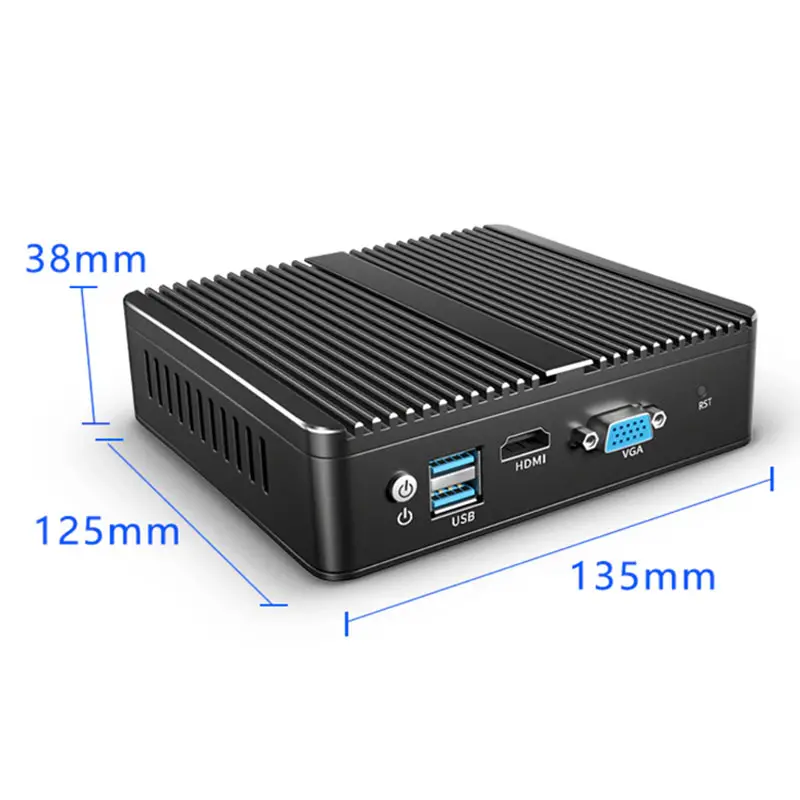

Size 135x125x38(mm)
Weight 1.5Kgs
Insallation Method Desktop type
Vesa mounted installtion



Motherboard

CPU

Intel Celeron Processor N4000, 4M Cache, up to 2.60 GHz
Intel Celeron Processor J4125, 4M Cache, up to 2.70 GHz
Intel Pentium Silver N5000 Processor, 4M Cache, up to 2.70 GHz
Network Card 4 x Intel i225/i226/i211 LAN
Memory 2 x DDR4 2133/2400 MHz SODIMM memory slots, up to 16GB
Storage 1 x mSATA SSD, 1 x 2.5-inch hard disk
Graphic Integrated Intel HD Graphiacs 600 core graphics card
Function Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
Display 1 x HDMI, 1 x VGA
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)



I/O Interfaces

Front Panel 1 x Switch
2 x USB3.0
1 x HDMI
1 x VGA
1 x Reset button
Rear Panel 4 x Intel LAN
1 x DC-12V
1 x Power indicator
1 x Hard disk indicator



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc



General

Cooling Mode Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours
Power Supply DC12V-4A 5.5*2.5
Packing List H14 mini pc, power supply, power cord, vesa bracket, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H14 N4000 Intel® UHD Graphics 600 1.1~2.6 GHz VGA/HDMI 2 x SO-DIMM DDR4, Max 16G 1 x mSATA/2.5 inch SATA3.0 4 x i225/226 2 12V/4A
H14 J4125 Intel® UHD Graphics 600 2.0~2.7 GHz VGA/HDMI 2 x SO-DIMM DDR4, Max 16G 1 x mSATA/2.5 inch SATA3.0 4 x i225/226 2 12V/4A
H14 N5000 Intel® UHD Graphics 605 1.1~2.7 GHz VGA/HDMI 2 x SO-DIMM DDR4, Max 16G 1 x mSATA/2.5 inch SATA3.0 4 x i226 2 12V/4A
H14 J4125 Intel® UHD Graphics 600 2.0~2.7 GHz VGA/HDMI 2 x SO-DIMM DDR4, Max 16G 1 x mSATA/2.5 inch SATA3.0 4 x i211 2 12V/4A

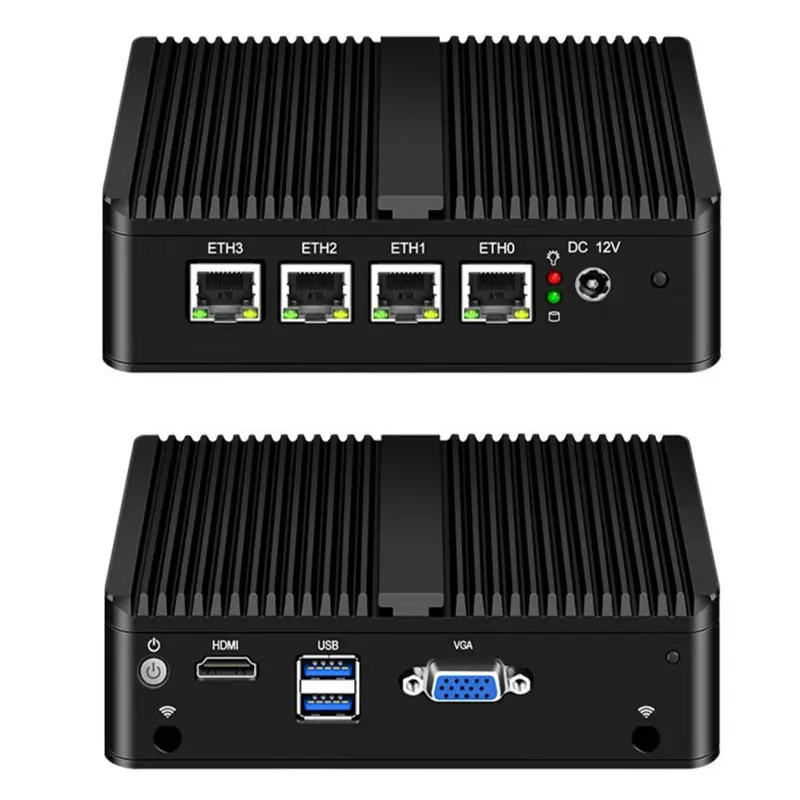

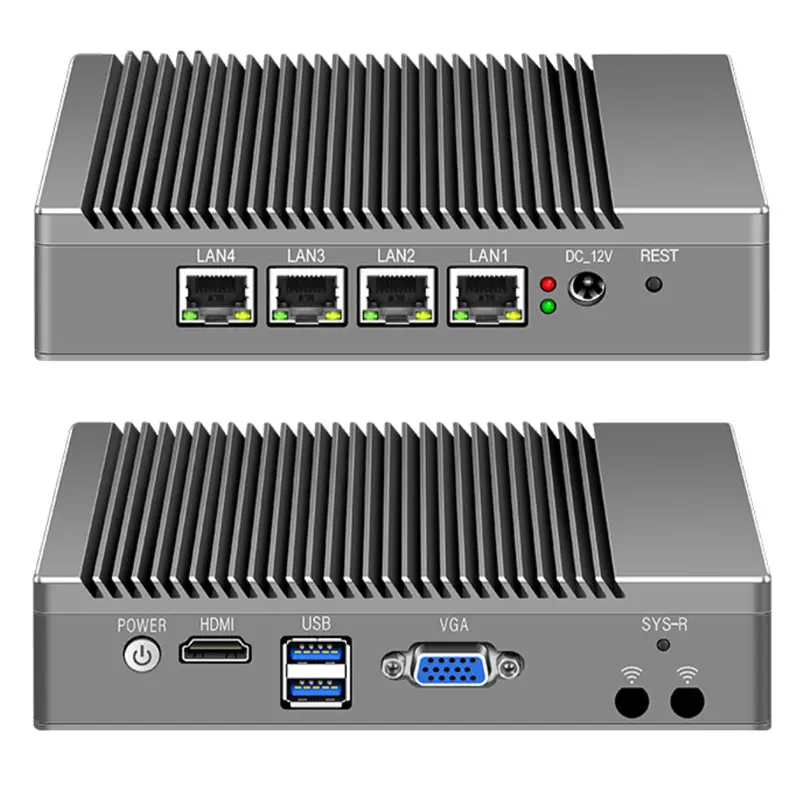

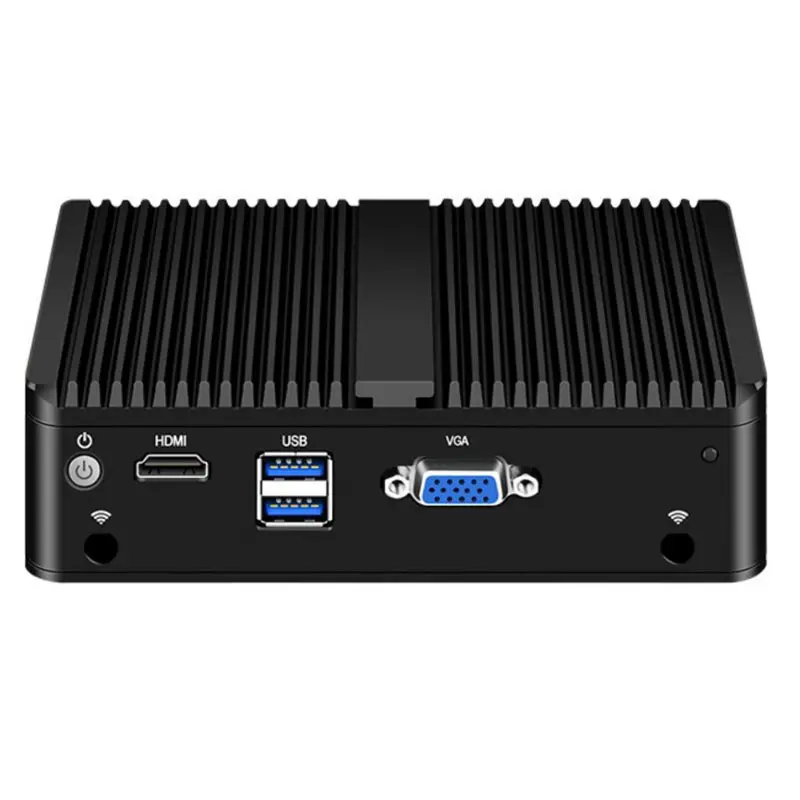

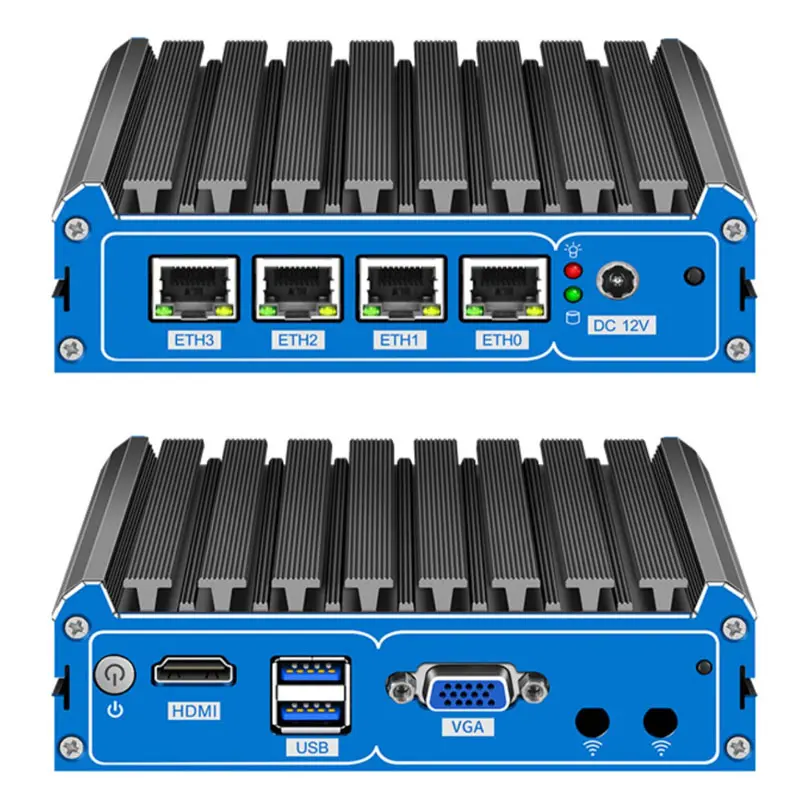

3 chassis with different appearances, which one do you like, let us know before placing an order.
