Fanless N100 Mini PC

Fanless N100 Mini PC

Mode: Partaker C11

  • Alder Lake-N N100 quad-core processor for maximum performance.
  • Supports up to 2x Intel i226-V 2.5G LAN for high-speed networking.
  • DDR4 3200MHz RAM slot for up to 16GB of memory.
  • Supports SSD, WIFI, and 4G simultaneously for versatility.
  • Two HDMI ports for dual 4K display support.
  • Includes 3 USB 3.1 ports for faster data transfer.
  • M.2 2280 and 2.5″ HDD slots for ample storage options.
  • Quiet and efficient operation with fanless cooling.
  • Provides enhanced security with TPM 2.0 encryption.
  • Ideal for industrial automation, robotics, IoT, and more.

Share to:

Overview



The N100 Mini PC Fanless is a powerful yet compact solution for various industrial and commercial applications. Equipped with the Intel Alder Lake-N N100 quad-core processor, it delivers blazing-fast performance while staying cool and quiet with its fanless design. Featuring dual 2.5G LAN ports, up to 16GB of DDR4 RAM, and triple expansion slots for SSD, WIFI, and 4G, this mini PC offers unparalleled versatility. With dual HDMI ports supporting 4K displays and 6 USB ports, including 3 USB 3.1, it provides ample connectivity options. Certified with CE, CCC, FCC Class A, and ROHS, the N100 Mini PC Fanless is a reliable and secure choice for industrial control, automation, robotics, IoT, and more.



Mechanical

Model Partaker C11
Processor Intel Alder Lake-N N100 (Quad Core quad threads,Max turbo 3.4 GHz)
Chipset Intel UHD Graphics
Memory Support 1*DDR4 3200 SODIMM RAM Slot,Max 16GB
BIOS AMI UEFI BIOS
Display Port 2xHD-mi 4K display port
Storage 1xM.2 2280 slot,1×2.5″ HDD
Expansion 1*M.2 2280 M-key slot(support SATA& PCIE3.0X1 NVME)

1*M.2 2230 E-key slot(WIFI&BT)

1*MINI PCIE slot 【USB2.0 signal,optional:3G/4G】,External SIM card slot

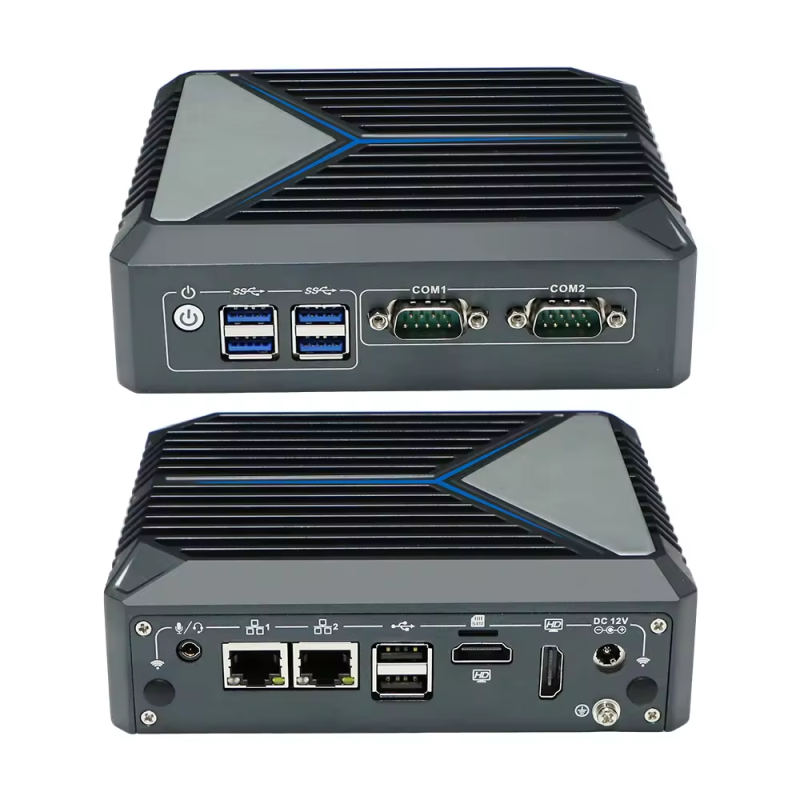

Front I/O 1*Power Button,3*USB3.1,1*USB 2.0, 2*COM (support RS232)
Rear I/O 1*DC,2*HDMI,2*USB2.0,2*RJ45 Lan,1*Mic&Audio,1*SIM card slot
Network 2*Intel i226-V 2.5G Internet
Input Voltage  DC 12V
Certificates CE,CCC,FCC Class A,ROHS
Other Function Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption
Application Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR,
Structure Parameter
Color Metal gray 【Any color can be customized】
Material High-quality all aluminum,surface anodic oxidation

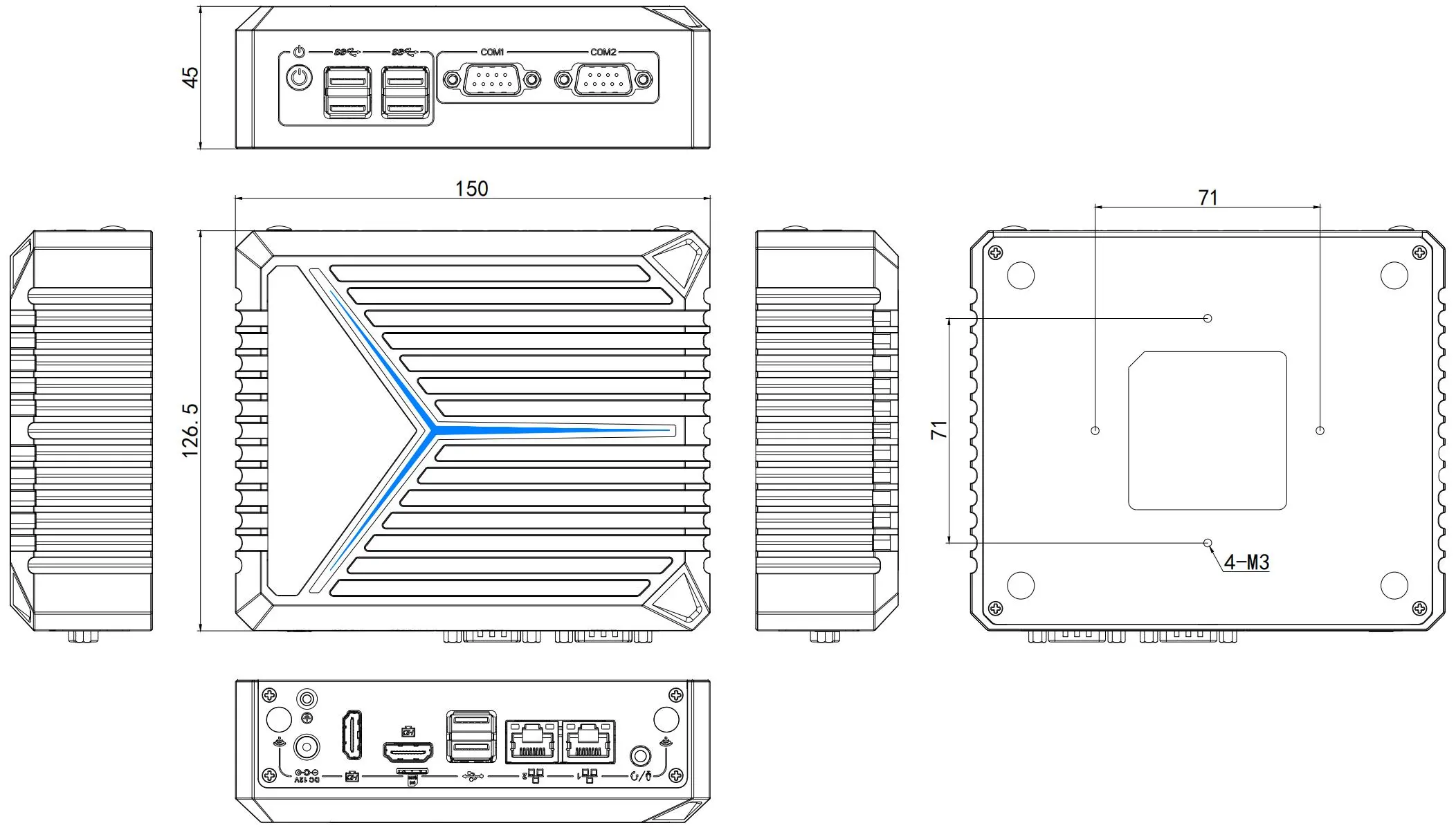

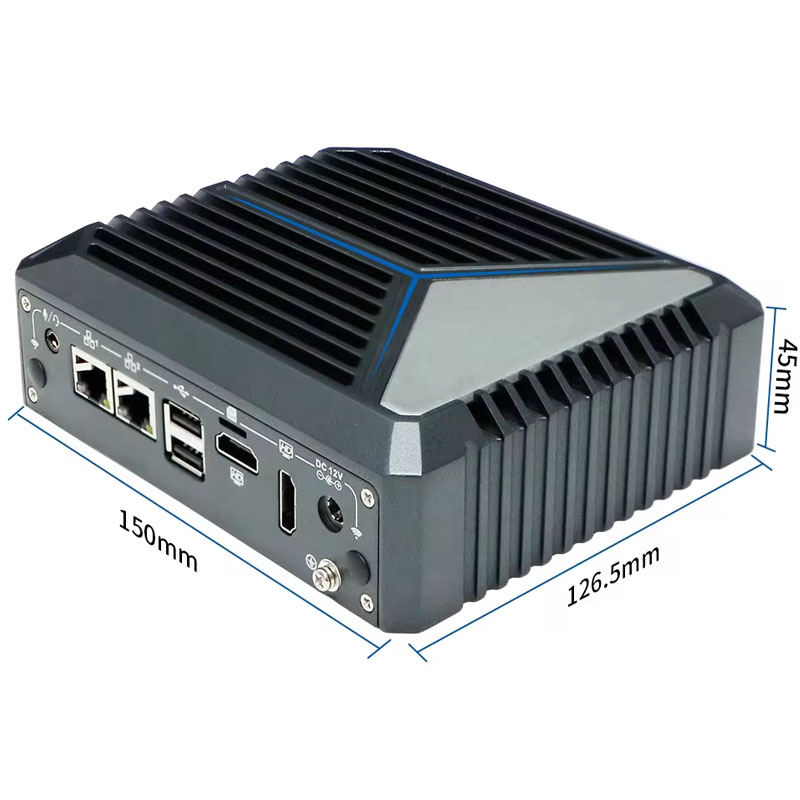

Dimension 150 * 126.5 * 45 mm
Weight 0.84 kg
Environmental Parameter
Work Temp 0℃ ~ +40℃(Commercial HDD),0℃ ~ +60℃(Industrial SSD),Surface air flow
Work Humidity 0% ~ 95% non-condensing







Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C11 N100 Intel® UHD Graphics 3.40 GHz 2 x HDMI 1 x DDR4 3200 SODIMM RAM Slot,Max 16GB 1 x M.2 2280 Slot,1 x 2.5’’ HDD 2 6 DC 12V
