Fanless Mini PC 8-12th Gen Intel I3 I5

Fanless Mini PC 8-12th Gen Intel I3 I5

Model: Partaker B16

  • Intel® 8-12th Gen Intel® Core™ i3 i5 Processor
  • 1 x VGA, 1 x HDMI, 4 x USB 3.0, 4 x USB2.0, 1 x LAN, SPK, MIC
  • 2 x SODIMMs DDR4 Memory, Max 64GB
  • Support 1 x mSATA SSD, 1x M.2 2280 SATA/NVME SSD, 1x 2.5 Inch SSD/HDD
  • Embedded Expansion: Mini PCIe for WiFi
  • Support HDMI 1.4 4K: 4096×2304@24Hz
  • Support DP and HDMI Dual Display

Share to:

Overview



Partaker B16 is a fanless mini PC with 8th Gen i3 8140U i5 8250U processor. Redefine the new form of computer, compact body, easy to carry, stable performance, make up for the lack of traditional hosts. One machine with multiple functions, used for multiple purposes, home entertainment, home theater, educational institutions, corporate offices, etc.



Mechanical

Material Aluminum alloy
Colour Silver
Size 200 x 175 x 45mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting

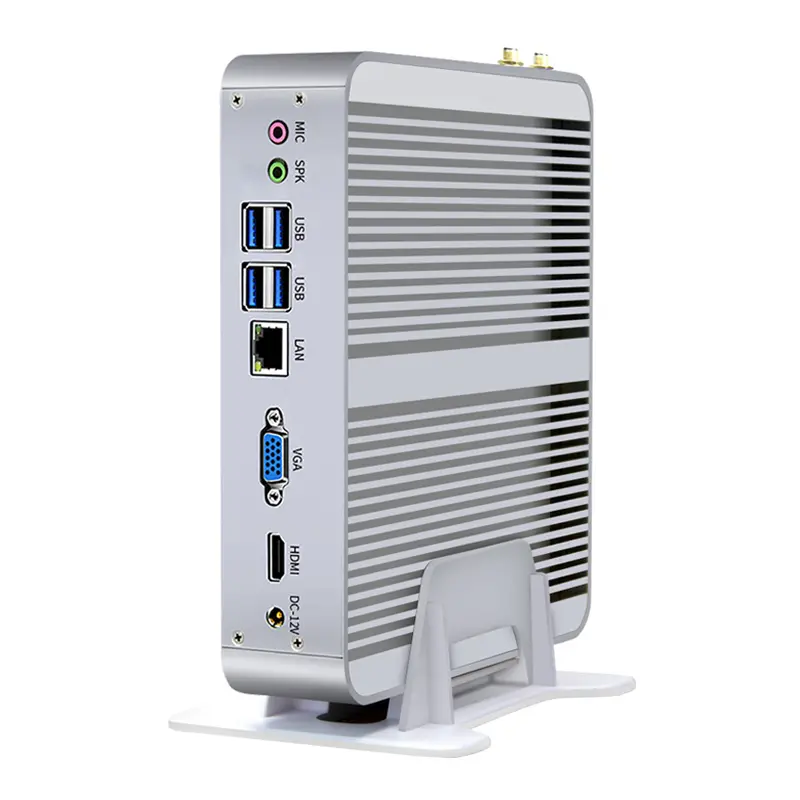

With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz)
Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i5-10310U Processor (6M Cache, up to 4.40 GHz)
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
Intel® Core™ i5-1235U Processor (12M Cache, up to 4.40 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 1 x M.2 PCIE WiFi slot

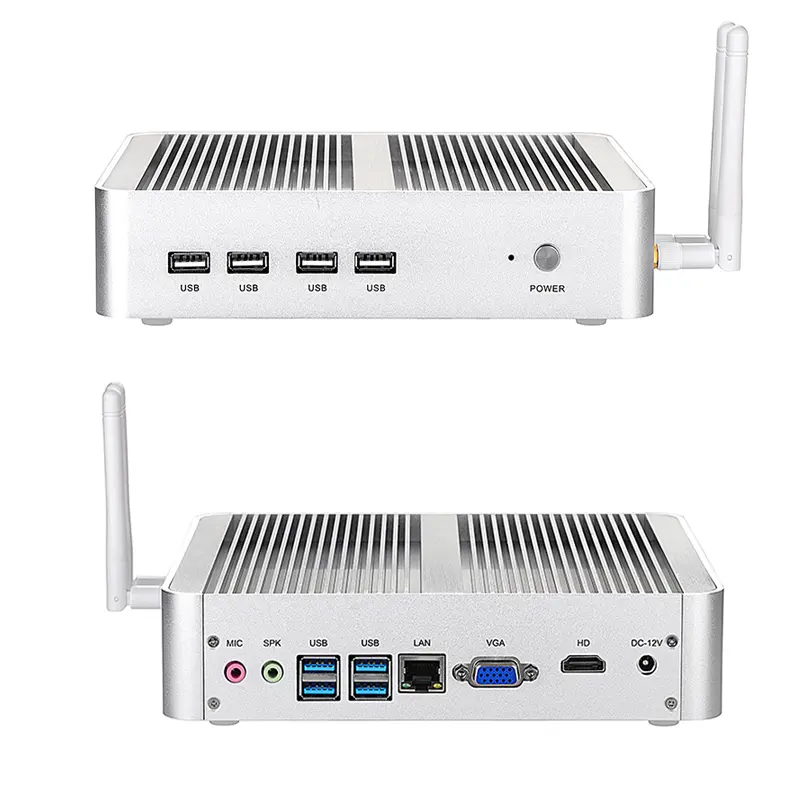

I/O Interfaces

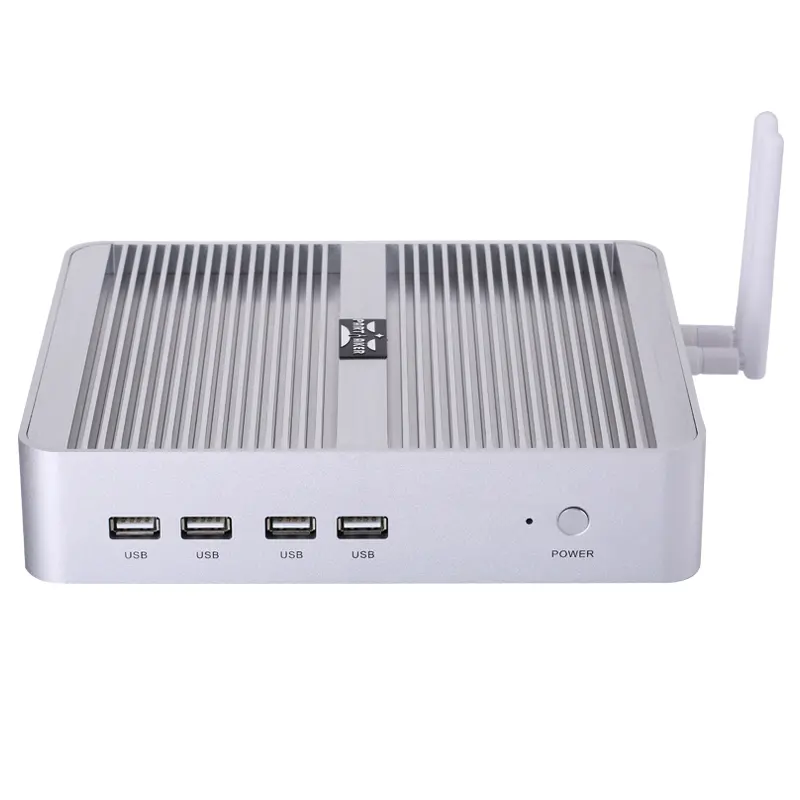

Front Panel 1 x Power button
4 x USB2.0

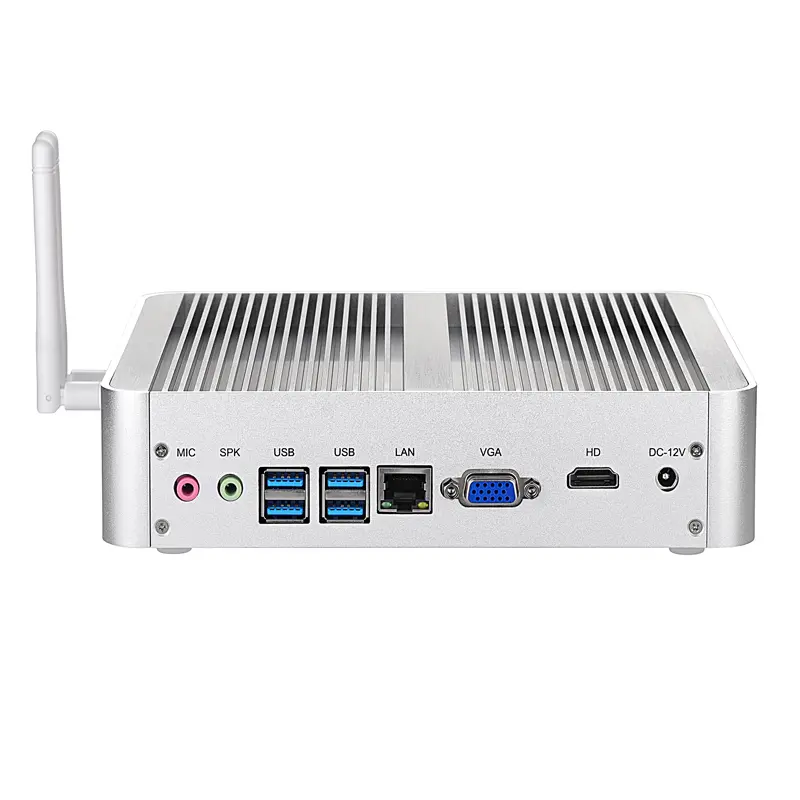

Rear Panel 1 x DC_in
1 x HDMI
1 x VGA
1 x Lan
4 x USB3.0
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/5A

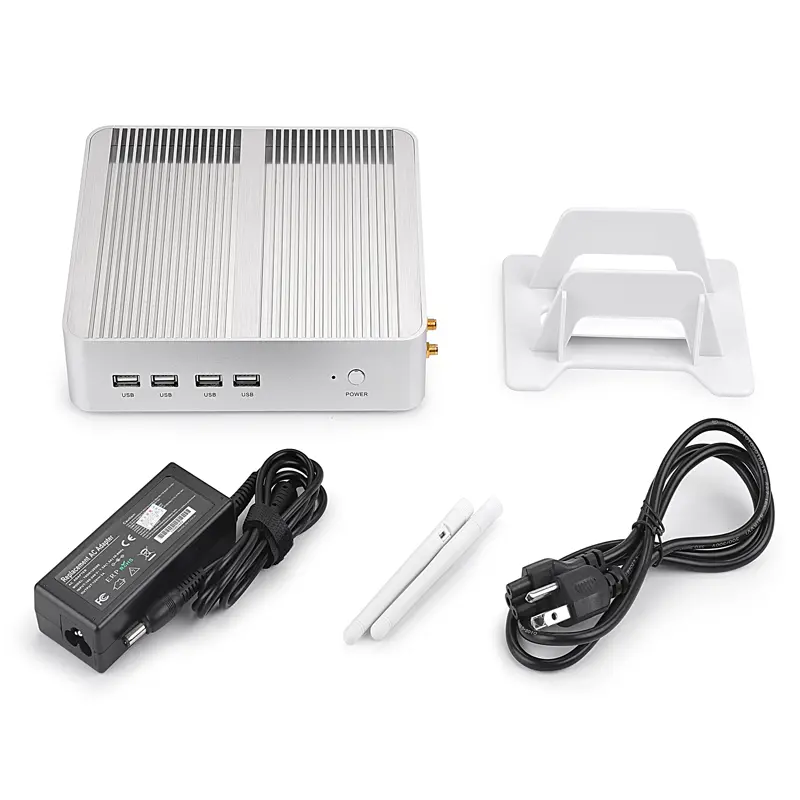

Packing List B16 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B16 I3 8145U Intel® UHD Graphics 2.1~3.9 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
B16 I5 8250U Intel® UHD Graphics 620 1.6~3.4 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
B16 I5 1235U Intel® Iris® Xe Graphics eligible 3.3~4.4 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
B16 I5 10310U Intel® UHD Graphics for 1.7~4.4 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
B16 I5 1135G7 Intel® Iris® Xe Graphics 2.4~4.2 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
