Fanless Mini PC N150

Model: Partaker C13

Fanless & Compact: Metal chassis for silent, space-saving operation.
Intel N150 CPU: 4-core processor for efficient industrial computing.
16GB DDR5 RAM: High-speed memory for smooth multitasking.
Dual LAN & 8x USB: Extensive connectivity for numerous peripherals.
Wide-Temp Operation: Reliable performance from -20°C to 50°C.
Rich Expansion: 3x M.2 & Mini PCIe for storage and 4G/WiFi.
Industrial Tough: Watchdog and TPM 2.0 for enhanced reliability.
Dual 4K Display: Two HDMI ports support ultra-high definition.
Flexible Power: 12V DC input with network boot (PXE) support.
Versatile Applications: Perfect for IoT, automation, and edge computing.

Share to:

Overview

The N150 Industrial Fanless Mini PC is a compact and robust computing solution engineered for demanding industrial environments. Powered by the efficient Intel N150 processor, it delivers reliable performance for a wide range of applications. With support for high-speed DDR5 memory and flexible expansion via multiple M.2 and Mini PCIe slots, it adapts to your specific needs. Extensive connectivity options, including dual LAN and multiple USB ports, ensure easy integration. Housed in a fanless metal chassis, this mini PC guarantees silent and maintenance-free operation with key industrial features like Watchdog and TPM 2.0 for enhanced reliability and security.

Mechanical

Model	Partaker C13
Color	Metal ash (color can be customized)
Processor	Intel Twin Lake N150 (4 cores 4 threads, Max 3.6 GHz)
CPU Architecture	Twin Lake
Memory	1*DDR5 4800MHz SODIMM memory slot, up to 16 GB
BIOS	AMI UEFI BIOS
Chipset	Intel Graphics
Display Port	2*HD display (Resolution up to 4096×2160 @ 60Hz)
Front I/O	1Power Switch, 4USB3.2, 2 COM (RS232/RS485 )
Rear I/O	1DC , 2HD, 4USB2.0, 2RJ45 network ports, 1*audio two-in-one port
Expansion Slot	1*M.2 2280 M-key 1 (PCIE3.0 X1 & SATA )
	1*M.2 2280 M-key 2 (PCIE3.0 X1 protocol)
	1*M.2 2230 E-key (supports CNVio2 protocol WIFI, BT)
	1*MINI PCIE ( PCIE & USB2.0 signals, optional WIFI/4G), built-in SIM card slot

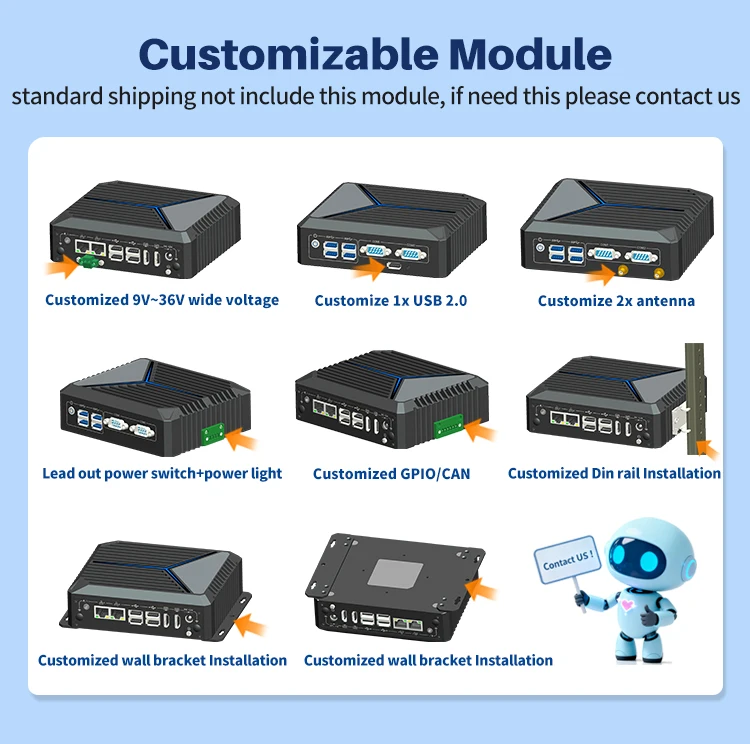

	Expandable port (not included in standard shipment): 4 GPIO, 1 USB2.0
Network	2*RTL8111H 10/100/1000M Gigabit Ethernet
Storage	*2 M.2 2280 slots, 12.5 inch HDD/SSD*
Power Supply	DC 12V-input
Other Function	Power on, timed power on, network wake up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Work Temp	0℃ to +40℃ (commercial HDD), -20℃ to +50℃ (industrial SSD), surface air flow
Work Humidity	0% ~ 95% non-condensable state

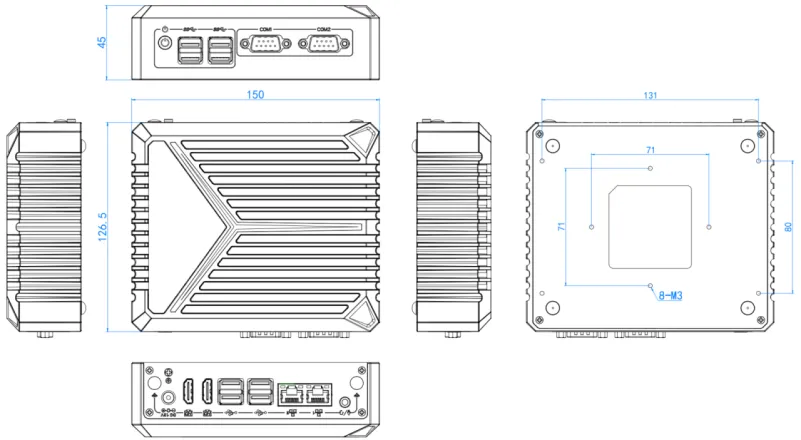

Dimension	150 * 126.5 * 45 mm
Weight	0.84 kg
Application	Industrial control, industrial automation, robotics, Internet of Things, edge computing, machine vision, AGV/AMR, etc.

Accessories List
Name	Quantity	Specification
Power Adapter	1	12V5A Optional
Power Cord	1	Any Plug Optional (China, US, EU, UK etc.)
VESA Bracket	1	Standard

Order Information
Configuration 1	C13	Intel N150	Standard Port
Note: When WIFI and 4G modules are used at the same time, antenna fixing holes need to be added. If in doubt, please consult the pre-sales technician.
