Firewall Mini PC Intel Pentium I3 I5 I7

Firewall Mini PC Intel Pentium I3 I5 I7

Model: Partaker H7-A

  • Aluminum alloy structure, temperature control fan design
  • Intel Core I3-1215U processor (optional I5-1245U, I7-1265U, 8505)
  • Intel Core I3-1115G4 processor(optional I5-1145G7, I7-1165G7,7505)
  • Support 2 x DDR4 memory, up to 64GB
  • 1 x m.2 2280 NVME slot, 1 x 2.5 inch SSD/HDD
  • Intel I225/I226 2.5G adaptive network card interface
  • Built-in silent fan for cooling, work as long as 7×24 hours, works more stable and durable than fanless design, fit for industrial grade field

Share to:

Overview



Partaker H7-A with Intel core and pentium processor, small boby and big expansion. It can be applied to teaching all-in-one computers, electronic whiteboards, conference tablets etc. Pre-install windows, pfsense or linux with faster running speed. This mini pc can be used in many scenarios such as TV, office, meeting, smart education, also there are more ways to play.





Mechanical

Material Aluminum alloy
Colour Dark Gray

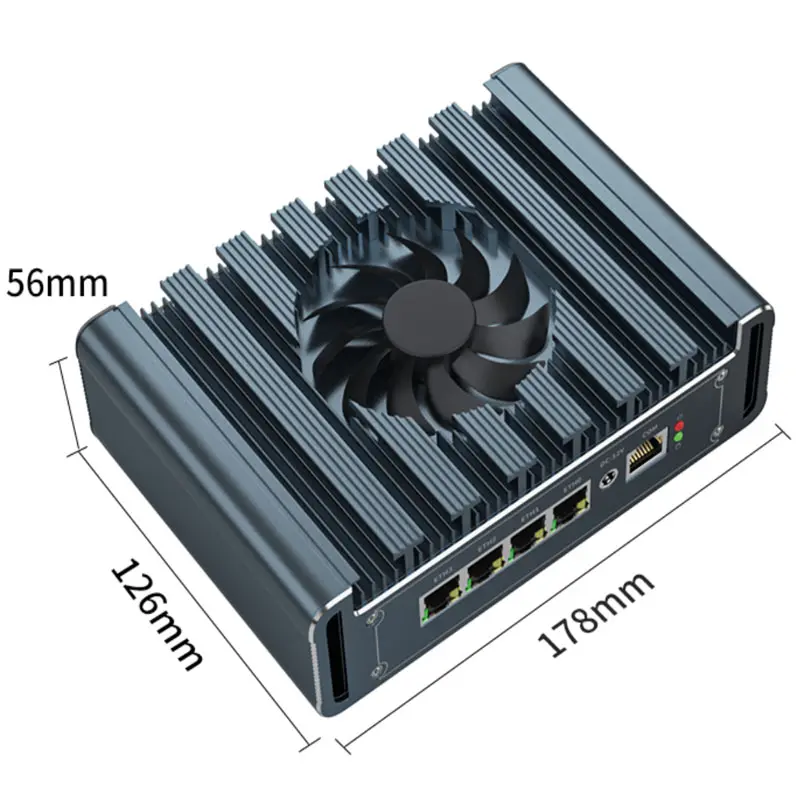

Size 178x122x55(mm)
Weight 2.5Kgs
Insallation Method Desktop type
Vesa mounted installtion



Motherboard

CPU

12th Pentium Gold 8505, 5 core 6 threads, Up to 4.4GHz
12th Intel Core i3-1215U, 6 core 8 threads, Up to 4.4GHz
12th Intel Core i5-1235U, 10 core 12 threads, Up to 4.4GHz
12th Intel Core i7-1265U, 10 core 12 threads, Up to 4.8GHz
11th Intel Core i3-1115G4, 2 core 4 threads, Up to 4.1GHz
11th Intel Core i5-1145G7, 4 core 8 threads, Up to 4.4GHz
11th Intel Core i7-1165G7,4 core 8 threads, Up to 4.7GHz
Intel Pentium Gold 7505, 2 core 4 threads, Up to 3.5GHz
Intel Celeron Processor J4125, 4 core 4 threads, Up to 2.70GHz
Intel Pentium Silver J5040 Processor, 4 cores 4 threads, Up to 3.20GHz
Intel Celeron Processor J6412, 4 cores 4 threads, Up to 2.60GHz
Intel Processor N100, 4 cores 4 threads, Up to 3.40GHz
Intel Celeron Processor N5105, 4 core 4 threads, Up to 2.9GHz

Intel Celeron Processor N5100, 4 core 4 threads, Up to 2.8GHz
Network Card 4 x Intel I225/I226 2.5G adaptive network card interface
Memory 2 x DDR4 3200 MHz SODIMM memory slots, up to 64GB
Storage 1 x M.2 2280 nvme, 1 x 2.5-inch hard drive
Graphic Intel HD Graphiacs
Function Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
Display 1 x HDMI, 1 x DP
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)

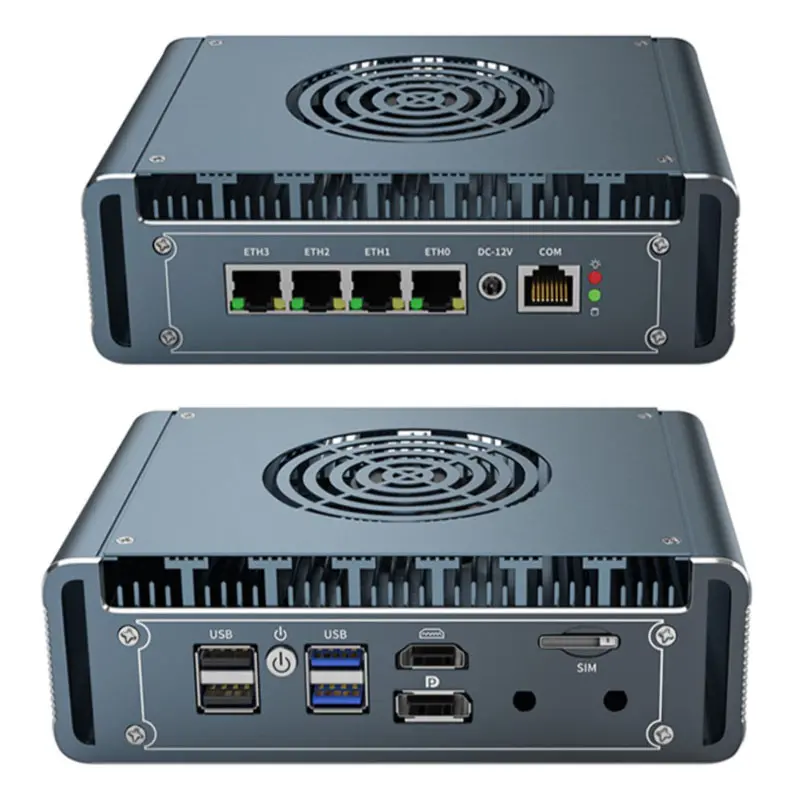

I/O Interfaces

Front Panel 1 x Power Switch
4 x USB3.0
1 x HDMI
1 x DP
1 x SIM Card Slot
2 x WiFi Holes

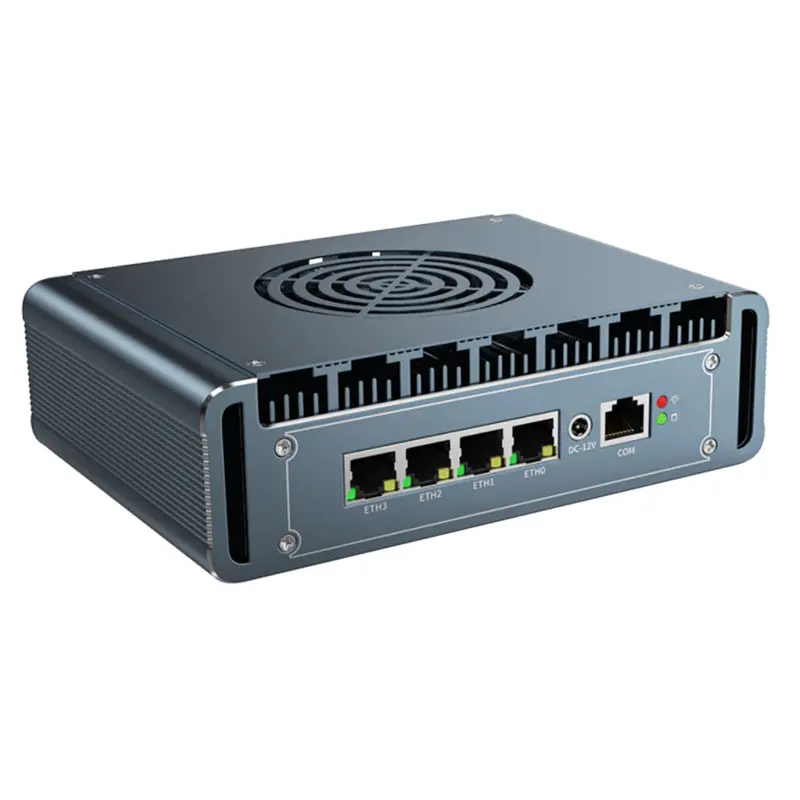

Rear Panel 4 x Intel LAN
1 x DC-12V
1 x COM
1 x Power indicator
1 x Hard disk indicator



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc



General

Cooling Mode Smart Fan
Power Supply DC12V-10A 5.5*2.5
Packing List H7-A mini pc, power supply, power cord, vesa bracket, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H7-A N5105 Intel UHD Graphics 2.0~2.9 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 32G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/4A
H7-A N5100 Intel UHD Graphics 1.1~2.8 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 32G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226/225 4 12V/4A
H7-A Pentium Gold 7505 Intel UHD Graphics 2.0~3.5 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/7A
H7-A I3 1115G4 Intel UHD Graphics 1.7~4.1 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/7A
H7-A I5 1135G7 Intel Iris Xe Graphics 2.4~4.2 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/7A
H7-A I7 1165G7 Intel Iris Xe Graphics 2.8~4.7 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/7A
H7-A Pentium Gold 8505 Intel UHD Graphics 3.3~4.4GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/10A
H7-A I3 1215U Intel UHD Graphics 3.3~4.4GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/10A
H7-A I5 1245U Intel Iris Xe Graphics 3.3~4.4GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/10A
H7-A I7 1265U Intel Iris Xe Graphics 3.6~4.8GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/2.5 inch SATA3.0 4 x i226 4 12V/10A



Intel i226-V is a new network card, pfSense-CE etc system suppliers maybe have not released compatible driver to match yet, suggest to install newest version of following systems: pfSense Plus, OPNsense 22.x,OpenWrt, ESXi, Proxmox, PVE, CentOS etc
