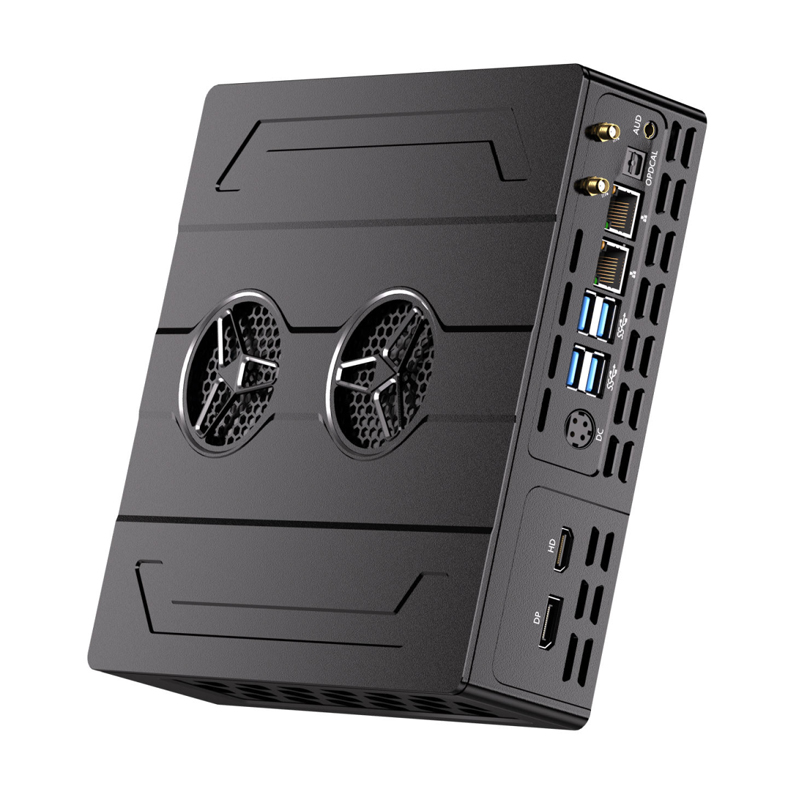

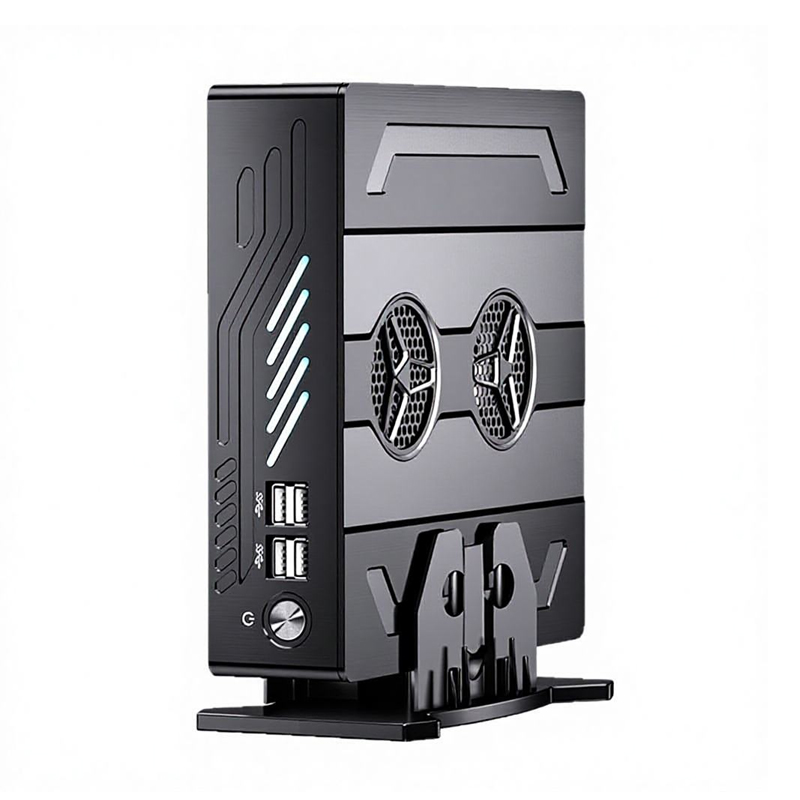

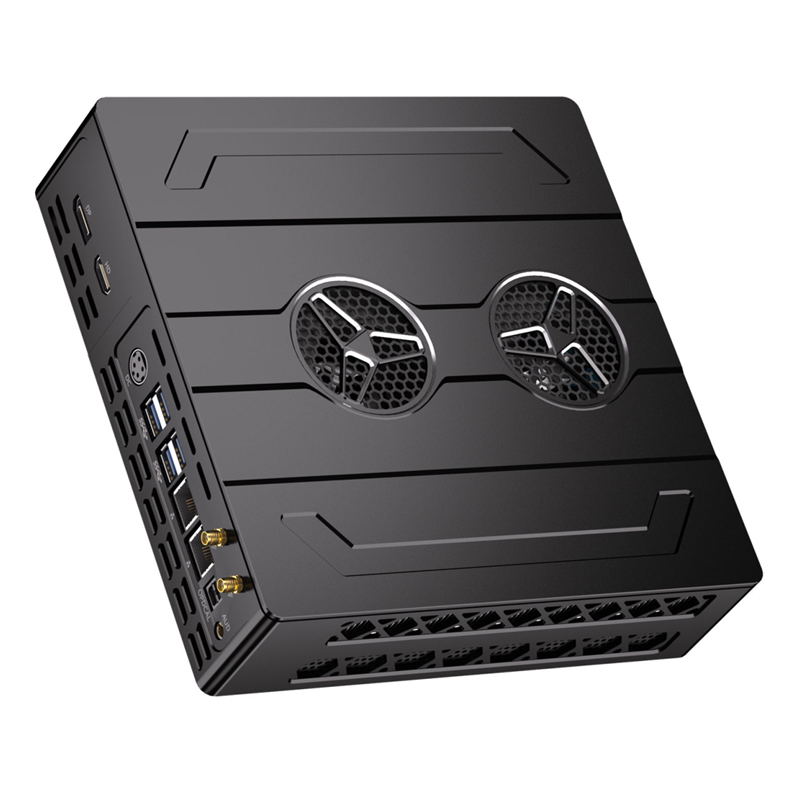

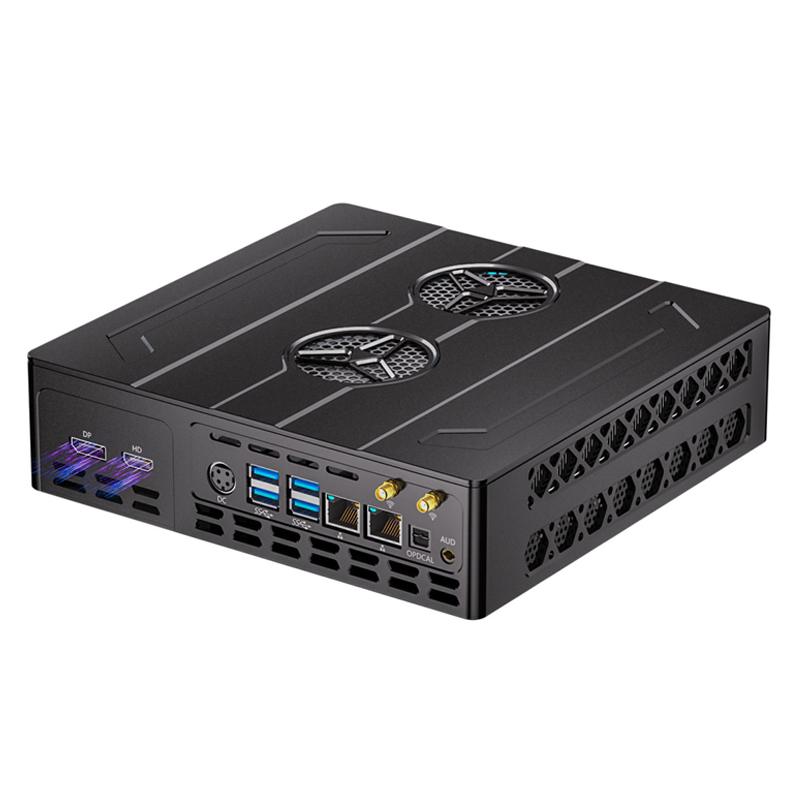

12th Gen Core i5/i7/i9 Mini Gaming PC

Model: Partaker B20

12th–14th Gen Intel Core i5/i7/i9 desktop processors
B760 chipset with Raptor Lake architecture
Dual DDR5 SO‑DIMM slots, supports up to 96GB
GPU options: GTX 1050Ti / GTX 1650 / RTX 3050
Triple storage: NVMe PCIe 4.0 ×1 + SATA 2.5″ ×2
WiFi 6E (AX210) + Bluetooth 5.3 included
HDMI + DP 1.4a outputs, supports 8K@60Hz
Dual Gigabit Ethernet (RTL8111) with Wake‑on‑LAN
All‑copper turbo fan cooling, aluminum case
Compact 210×210×55mm, supports 24/7 operation

Share to:

Overview

Engineered for gamers and power users, this compact mini gaming PC packs desktop‑grade performance into a space‑saving 8.26‑inch chassis. Powered by 12th Gen Intel Core processors (i5‑12400F / i7‑12700F / i9‑12900F) and paired with dedicated GeForce RTX3050 or GTX1650 graphics, it delivers smooth 4K gaming, content creation, and multitasking experiences. The system supports up to 96GB of dual‑channel DDR5 memory and features an M.2 PCIe 4.0 slot for ultra‑fast NVMe SSDs, plus two 2.5‑inch drive bays for additional storage expansion. Connectivity is robust with dual Gigabit Ethernet ports, Intel AX210 WiFi 6E, Bluetooth 5.3, and versatile video outputs including HDMI and DP (supporting up to 7680×4320@60Hz). Its efficient 100‑240V power supply and comprehensive OS compatibility (Windows 10/11, Linux, CentOS, Ubuntu) make it a versatile choice for gaming, productivity, and edge computing applications.

Mechanical

Model	Partaker B20 Mini Gaming PC
Processor	Intel Core i5-12400F (6 cores, 12 threads, 2.5GHz, Max turbo 4.4GHz) Intel Core i7-12700F (12 cores, 20 threads, 2.1GHz, Max turbo 4.9GHz) Intel Core i9-12900F (16 cores, 24 threads, 2.4GHz, Max turbo 5.1GHz) Support 12th/13th/14th Gen Intel Core i5/i7/i9 (Desktop-level LGA1700 CPU)
Chipset	B760 all‑solid‑state motherboard + Intel Raptor Lake chipset
Memory	2 × DDR5 SO‑DIMM slots, up to 96GB (4800/5200/5600 MHz)
BIOS	AMI UEFI BIOS
Graphics Card	GeForce RTX3050 6GB GDDR6 GeForce GTX1650 4GB GDDR5 GeForce GTX1050Ti 4GB GDDR5
Display Port	1 × HDMI 1 × DP 1.4a RTX 30/40 series supports up to 7680×4320 @60Hz
Storage	1 × M.2 2280 PCIe 4.0 x4 NVMe SSD slot 2 × 2.5‑inch SATA 3.0 SSD/HDD bays
Expansion	1 × M.2 2230 E‑Key slot for WiFi/BT module (AX210)
Wireless	Intel AX210 WiFi 6E (2400Mbps) + Bluetooth 5.3
Audio	1 × 3.5mm audio combo jack 1 × Digital optical audio output Realtek ALC892 7.1‑channel HD audio
I/O Ports	1 × Power button 4 × USB 2.0 4 × USB 3.2 2 × RJ45 Gigabit Ethernet (1000M) 1 × HDMI 1 × DP 1.4a 1 × DC input
Network	2 × Realtek RTL8111 10/100/1000M Ethernet (supports Wake‑on‑LAN, PXE)
Power Supply	Input: AC 100‑240V, 50/60Hz Output: DC 19.5V 11A (215W) / 19.5V 15.79A (308W)
Cooling	All‑copper turbo fan cooling system
Other Functions	Auto power‑on, Timing boot, Wake‑on‑LAN, PXE boot, Watchdog (0‑255 level), RTC, 24/7 continuous operation
System Support	Windows 10 / Windows 11 / Windows Server 2012/2016 / Linux / CentOS / Ubuntu
Certifications	CE, FCC Class A, RoHS
Color	Black / Silver (any color can be customized)
Material	High‑quality aluminum alloy case
Dimension	210 × 210 × 55 mm
Weight	4KGs
Work Temperature	0°C ~ +50°C (commercial HDD) / -20°C ~ +50°C (industrial SSD), surface air flow
Work Humidity	5% ~ 95% non‑condensing
Application	Gaming, Industrial automation, Edge computing, Digital signage, Office productivity, Multimedia workstation

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
B20	i5-12400F	GTX 1650 4G	2.5~4.4 GHz	HDMI+DP	2x DDR5, up to 96GB	M.2 + 2x SATA	2x GbE	4x USB3.2 + 4x USB2.0	19.5V
B20	i7-12700F	RTX3050 6G	2.1~4.9 GHz	HDMI+DP	2x DDR5, up to 96GB	M.2 + 2x SATA	2x GbE	4x USB3.2 + 4x USB2.0	19.5V
B20	i9-12900F	RTX3050 6G	2.4~5.1 GHz	HDMI+DP	2x DDR5, up to 96GB	M.2 + 2x SATA	2x GbE	4x USB3.2 + 4x USB2.0	19.5V
