Fanless Mini PC 8-12th Gen Intel Core I7

Fanless Mini PC 8-12th Gen Intel Core I7

Model: Partaker B7

  • Aluminum Fanless mini pc with Intel Core i7.
  • Desktop or VESA mount for flexible setup.
  • Dual gigabit LAN & WiFi for seamless connectivity.
  • Up to 64GB DDR4 RAM for top performance.
  • Storage options: HDD, mSATA, M.2 NVME.
  • HDMI & DP ports for high-res displays.
  • USB 2.0 & 3.0 for quick connections.
  • Quiet fanless operation.
  • Supports Windows 10 & Linux.
  • Complete package with power supply & accessories.

Share to:

Overview



Partaker B7 is a powerful fanless mini computer with fast calculation, large capacity, zero noise, more energy-saving, small body, strong after-sales service. Compatible with a variety of industries, widely used in game entertainment, business offices, educational institutions, financial institutions, industrial sites, medical institutions, etc.



Mechanical

Material Aluminum alloy
Colour Black
Size 225 x 185 x 45mm
Weight 2.5Kgs

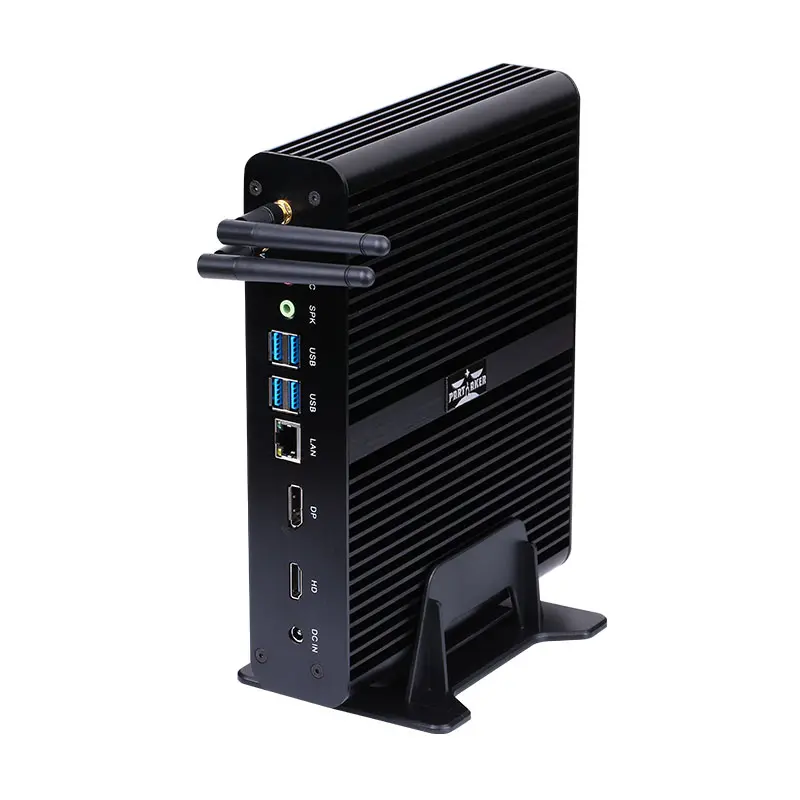

Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel® Core™ i7-8550U/8559U/8569U/8650U Processor (8M Cache, up to 4.00 GHz)
Intel® Core™ i7-10510U Processor (8M Cache, up to 4.90 GHz)
Intel® Core™ i7-10710U Processor (12M Cache, up to 4.70 GHz)
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
Intel® Core™ i7-1255U Processor (12M Cache, up to 4.70 GHz)
Chipset SOC
Network Card 2 x Intel I219 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR4, up to 64GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 1 x Mini PCIE WiFi slot



I/O Interfaces

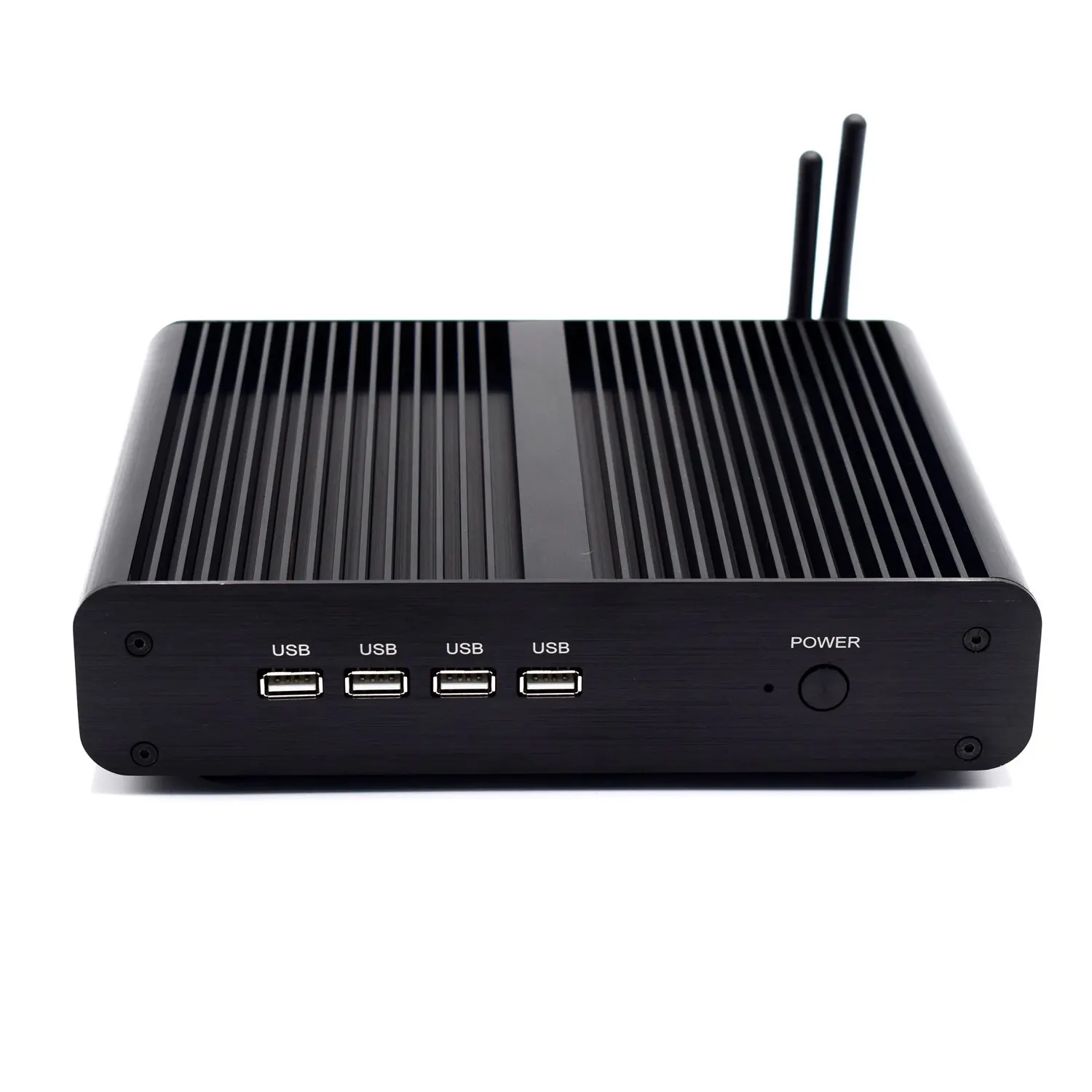

Front Panel 1 x Power button
4 x USB2.0

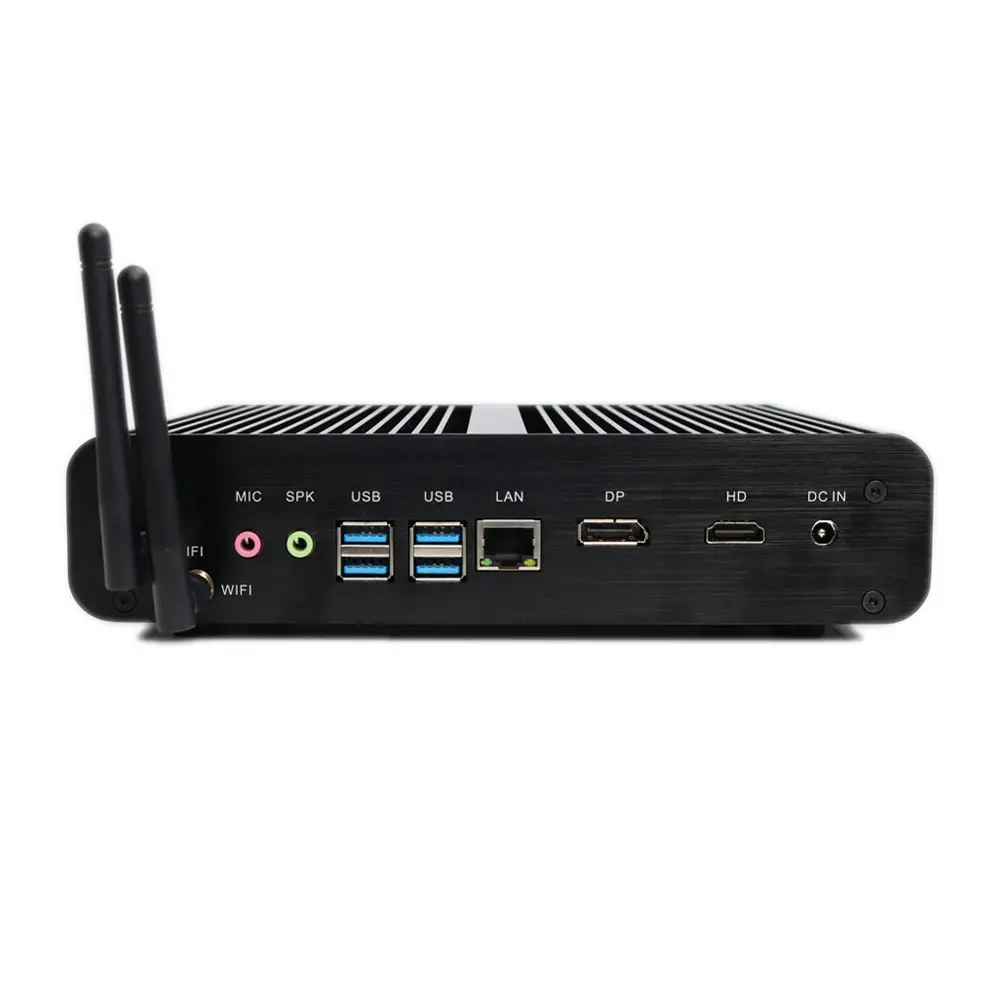

Rear Panel 1 x DC_in
1 x HDMI
1 x DP
1 x Lan
4 x USB3.0
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 19V/5A
Packing List B7 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B7 I7 8550U Intel® UHD Graphics 620 1.8~4.0 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/5A
B7 I7 10510U Intel® UHD Graphics 1.8~4.9 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 19V/5A
B7 I7 10710U Intel® UHD Graphics 1.1~4.7 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 19V/5A
B7 I7 1165G7 Intel® Iris® Xe Graphics 1.2~4.7 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 12V/7A
B7 I7 1255U Intel® Iris® Xe Graphics eligible 3.5~4.7 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 8 19V/5A
