Fanless Mini PC 4th Gen Intel Core I7 4500U

Fanless Mini PC 4th Gen Intel Core I7 4500U

Model: Partaker B2

  • 4th/7th Generation Intel® Core™ i5/i7 Processors
  • Dual SODIMMs for up to 16GB DDR3L Memory
  • Aluminum chassis, 220 x 170 x 45mm
  • Rich I/O: 2*LAN, 2*HDMI, 4*USB 3.0, 4*USB2.0, Optical, SPK, MIC
  • Support Windows 10, Windows 8, Windows 7, Server 2008, Linux, etc.
  • Fanless passive cooling, noiseless experience
  • Support Restore AC Power Loss/diskless boot/Raid 0, 1, 10, 5

Share to:

Overview



Mini PC B2 is a fanless PC with full aluminium durable housing design. Due to the basic configuration and super stable performance, it has been widely used in wide range industries, such as digital signage, POS system, small server, automation, office computer, education, home theater/video, Internet cafe, game entertainment, etc.



Mechanical

Material Aluminum alloy
Colour Black
Size 220 x 170 x 45mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel® Core™ i7-I7 4500U 4650U Processor (4M Cache, up to 3.30 GHz)
Chipset QS77
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SODIMM DDR3L 1333/1600, up to 16GB RAM
Storage 1 x mSata SSD, 1 x 2.5 inch SSD/HDD
Expand 1 x PCIE WiFi slot
1 x Full size PCIE (SIM slot optional for customization)



I/O Interfaces

Front Panel 1 x Power button
4 x USB3.0
1 x Optical
1 x Audio

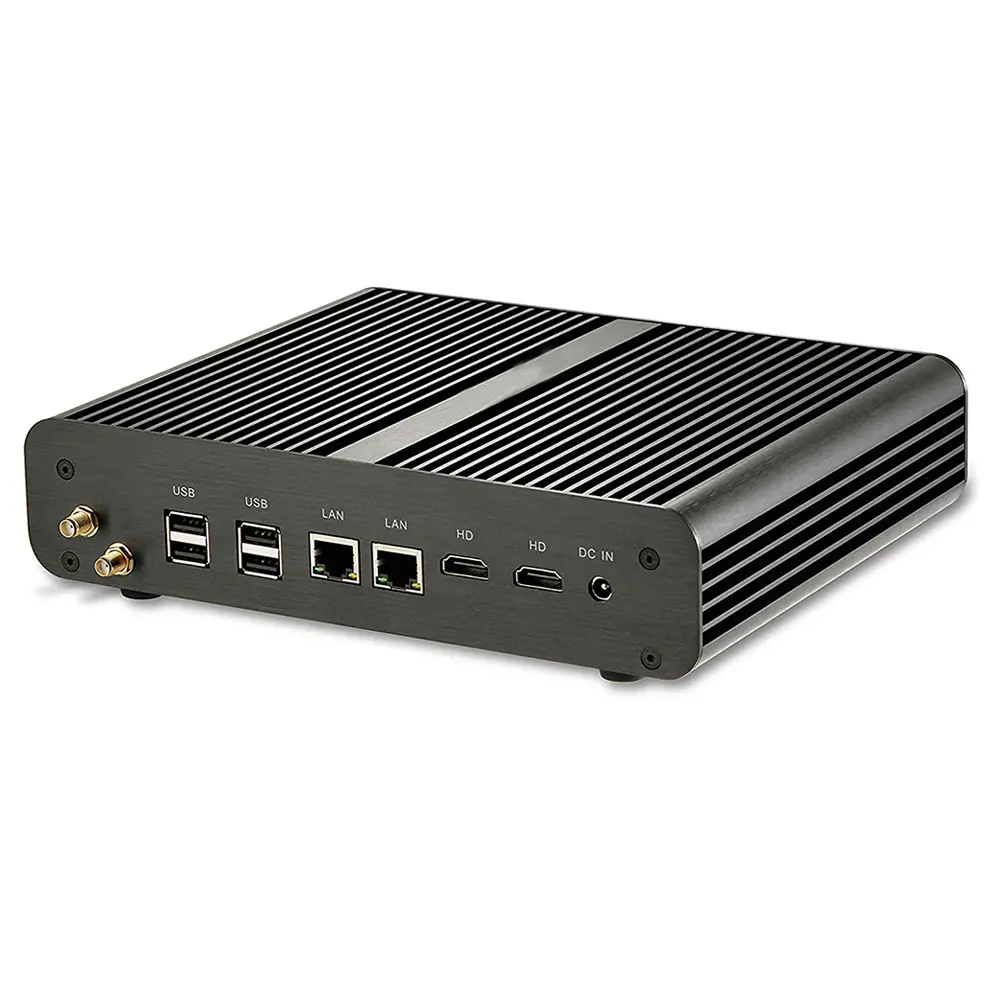

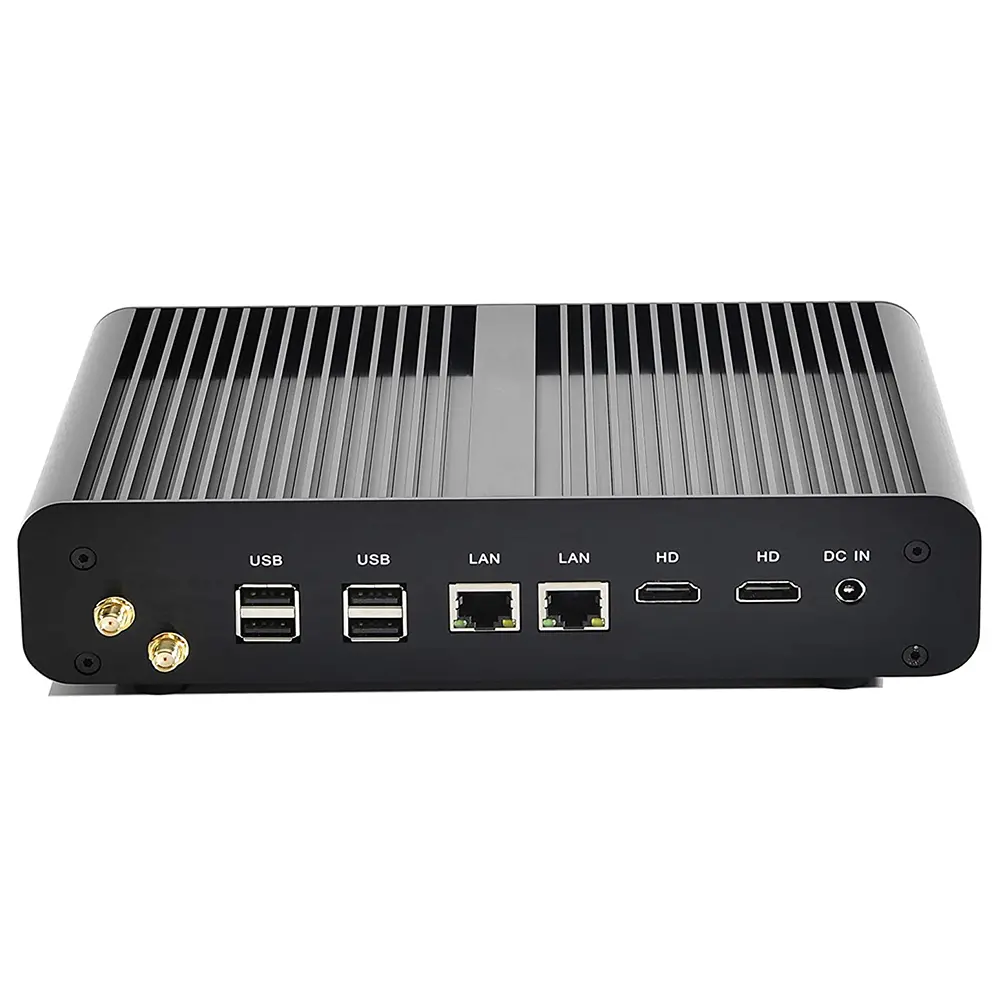

Rear Panel 1 x DC_in
1 x VGA
2 x HDMI
2 x Lan
4 x USB3.0
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V 3A/5A
Packing List B2 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B2 i7 4500U Intel® HD Graphics 4400 1.80~3.00Ghz 2 x HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 12V/5A
