Fanless Mini PC 12th Gen Intel Celeron J6412 J6413

Fanless Mini PC 12th Gen Intel Celeron J6412 J6413

Model: Partaker H13

  • Support for 4 x Intel 2.5G network cards: The product is equipped with four Intel 2.5G network card slots, allowing for high-speed network connections for fast data transfer and streaming capabilities.
  • Support for HDMI+DP synchronization/display: The product supports both HDMI and DP interfaces, enabling the simultaneous connection of multiple displays or synchronized display functionality, offering a richer visual experience and multitasking capabilities.
  • Support for 1 full-length M.2 for storage and 1 SATAIII interface: The product provides flexible storage options with one full-length M.2 slot and one SATAIII interface, allowing users to choose storage devices that suit their needs.
  • Intel J6412 CPU, quad-core, and four threads: The product features an Intel J6412 quad-core processor with four threads, delivering powerful computing performance and multitasking capabilities for handling complex tasks and multithreaded applications.

Share to:

Overview



Partaker H13 Fanless Mini PC features the latest Intel Alder Lake-N processor, along with options like the Celeron J6412/J6413/N100 processors. It offers four I226 network card slots for reliable high-speed connections, and supports a 4G/5G SIM card slot. With DP and HDMI display interfaces, it provides versatile display options. The product also offers flexible storage with a full-length M.2 slot and a SATAIII interface. Overall, it delivers exceptional performance, connectivity, and visual experiences.





Mechanical

Material Aluminum alloy
Colour Black

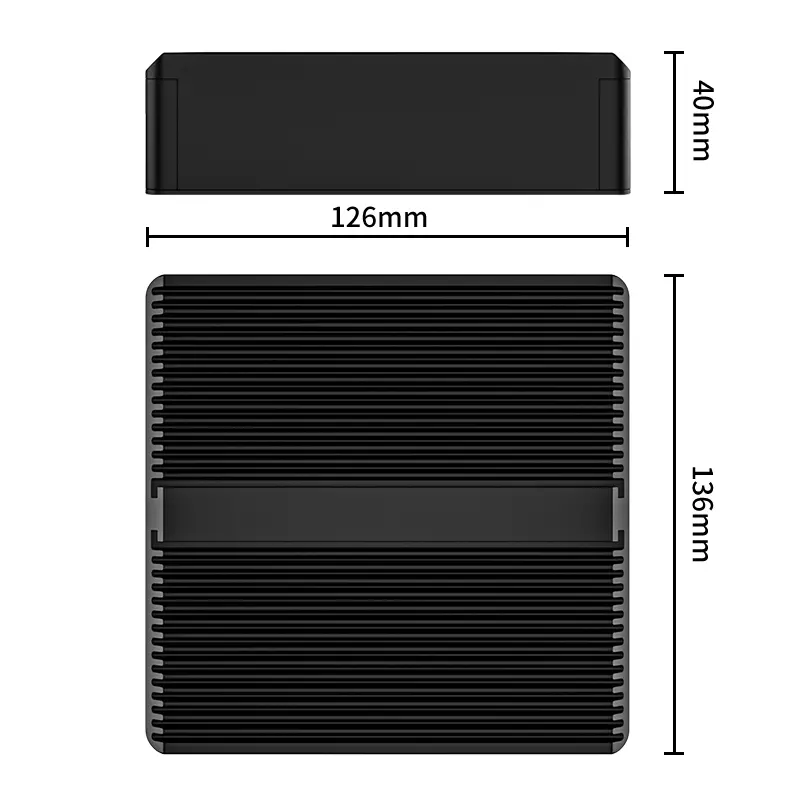

Size 136x 126 x 40mm
Weight 1.5Kgs
Insallation Method Desktop type/Vesa



Motherboard

CPU Intel® Processor N100, 4 Cores 4 threads, up to 3.40GHz, 6MB Cache
Intel® Celeron® Processor J6412, 4 Cores 4 threads, up to 2.60Ghz, 1.5MB Cache
Intel® Celeron® Processor J6413, 4 Cores 4 threads, up to 3.00Ghz, 1.5MB Cache
Display Ports 1 x HDMI, 1 x DP,  support synchronous or asynchronous display
Color Black
Graphic Intel UHD Graphics
Network Card 4 x Intel i226 Gigabit LAN, support diskless boot, wake on LAN
Expand 1 x full-length MINI-PCI-e (support USB signal 3G/4G communication module) 1 x M.2 2242 (support 5G communication)
Memory 1 x DDR5 4800MHz notebook memory slot, up to 16GB, SODIMM (N100)

2x DDR4 3200MHz notebook memory slots, up to 32GB, SODIMM (J6412/J6413)

Storage 1 x M.2(NVME protocol), 1xSATA3.0
Other Function Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog

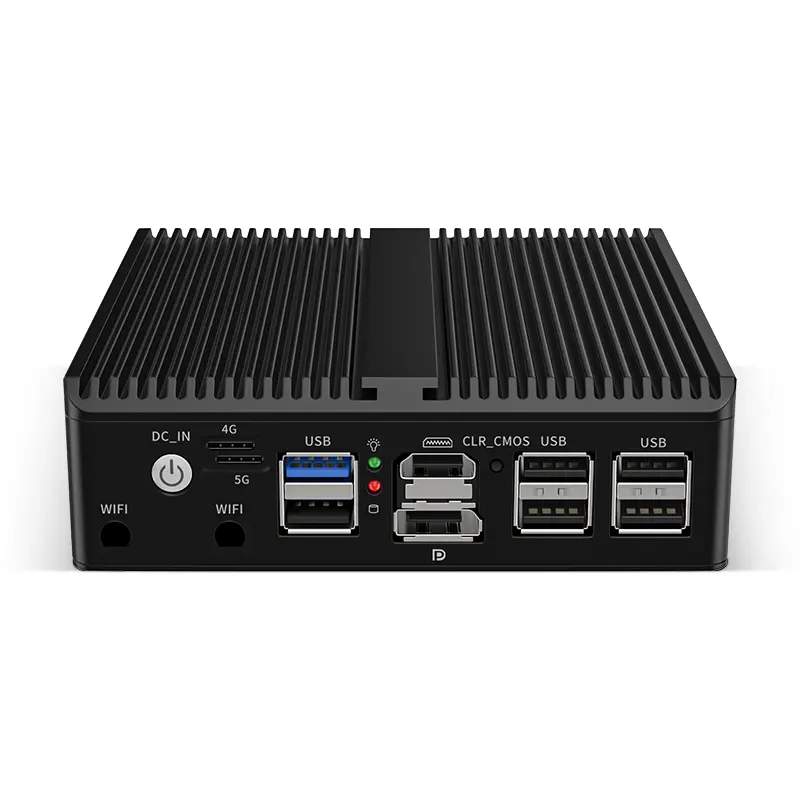

I/O Interfaces

Front Panel 1 x USB3.0
5 x USB2.0
1 x Power SW
2 x WiFi Holes
2 x indicator light
1 x 4G SIM Slot
1 x 5G SIM Slot
1 x CLR_CMOS
1 x DP
1 x HDMI

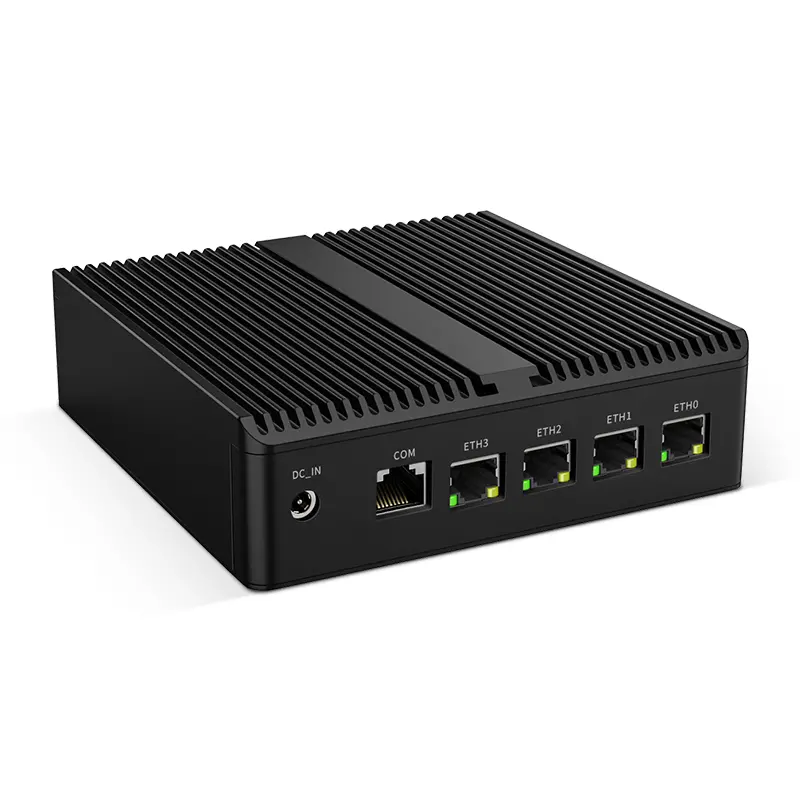

Rear Panel 4 x LAN
1 x COM
1 x DC-IN



Software Support

Bios AMI EFI BIOS
System Support Windows, Linux Ubuntu, pfSense, OPNsense etc



General

Cooling Mode Fanless
Power Supply DC12V-4A 5.5*2.5
Packing List H13 mini pc, power supply, power cord, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H13 N100 Intel UHD Graphics 3.40 GHz 1 x DP/1 x HDMI 1 x SO-DIMM DDR5 1 x M.2 NVMe SSD/1 x 2.5 inch SATA 4 6 12V4A
H13 J6413 Intel UHD Graphics 1.80~3.00 GHz 1 x DP/1 x HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe SSD/1 x 2.5 inch SATA 4 6 12V4A
H13 J6412 Intel UHD Graphics 2.0~2.60 GHz 1 x DP/1 x HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe SSD/1 x 2.5 inch SATA 4 6 12V4A
