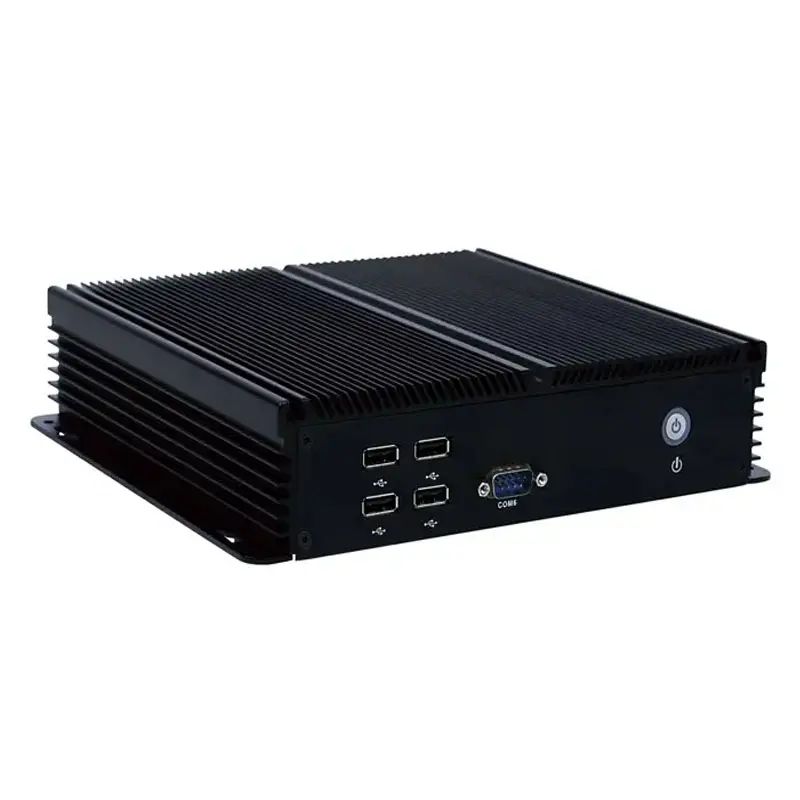

Fanless Mini Industrial PC i5

Fanless Mini Industrial PC i5

Model: Partaker I14

  • It has an Intel Core i5 4210U processor that delivers stable performance and low power consumption for industrial applications.
  • With HDMI and VGA ports, it can display 1080P full HD on two screens, synchronously or asynchronously.
  • It uses an aluminum case and a fanless design to achieve efficient heat dissipation and dustproof, shockproof, and noiseless operation.
  • It is compatible with Windows 7/8/10 and Linux operating systems.
  • It is a small PC with a high-end configuration that can handle various applications in industrial automation, medical, digital signage, logistics and transportation, warehousing, education, and more.

Share to:

Overview



The Fanless Embedded PC is a mini PC that can provide you with a reliable and silent industrial computer solution. It features:



•  A high-quality pure aluminum case, which offers excellent heat dissipation and durability

•  An Intel Core I5 4300u dual core 1.9Ghz processor, which delivers high performance and low power consumption for various industrial applications

•  A support for 1 x VGA, 1 x HD, 4 x USB2.0, 2 x USB3.0, 2 x LAN ports, which offer multiple connectivity options

•  A support for 1 x MSATA slot and 1 x 2.5 Inch HDD, which provide ample storage space

•  A support for WIFI/3G/4G (Choose one from three), which enable wireless communication

•  A support for 6 x COM ports, which support RS232/422/485 communication protocols for serial devices

•  A support for desktop, embedded, wall mount installation methods, which suit different scenarios



The Fanless Embedded PC is a great solution for applications such as industrial control, IoT gateway, digital signage, and more.





Overview



The Fanless Embedded PC is a mini PC that can provide you with a reliable and silent industrial computer solution. It features:



•  A high-quality pure aluminum case, which offers excellent heat dissipation and durability

•  An Intel Core I5 4300u dual core 1.9Ghz processor, which delivers high performance and low power consumption for various industrial applications

•  A support for 1 x VGA, 1 x HD, 4 x USB2.0, 2 x USB3.0, 2 x LAN ports, which offer multiple connectivity options

•  A support for 1 x MSATA slot and 1 x 2.5 Inch HDD, which provide ample storage space

•  A support for WIFI/3G/4G (Choose one from three), which enable wireless communication

•  A support for 6 x COM ports, which support RS232/422/485 communication protocols for serial devices

•  A support for desktop, embedded, wall mount installation methods, which suit different scenarios



The Fanless Embedded PC is a great solution for applications such as industrial control, IoT gateway, digital signage, and more.





Mechanical

Material High-quality pure aluminum mini itx case
Colour Black (color can be customized)
Size 214 x 200 x 54mm
Weight 2.5Kgs
Insallation Method With mounting ears, Wall-mounted, embedded, desktop



Motherboard

CPU Adopt Intel Core I5 42100/4300u Dual Core 1.9Ghz
Display Ports 1 x VGA, 1 x HDMI
Mainboard 17*17CM mini itx motherboard
Network Card 2 x Intel i211-AT 10/100/1000M Lan
Memory 1 x DDR3L 1333/1600MHz, support Max 8G
Storage Support 1 x MSATA, 1 x 2.5”SSD/HDD (2*2.5” HDD optional)
Expansion
1 x Mini-PCIE (support wifi/3G/4G optional), embedded SIM Slot
1 x Mini-PCIE(support MSATA)
Optional Port: GPIO, LPT port (Standard version without this port)



I/O Interfaces

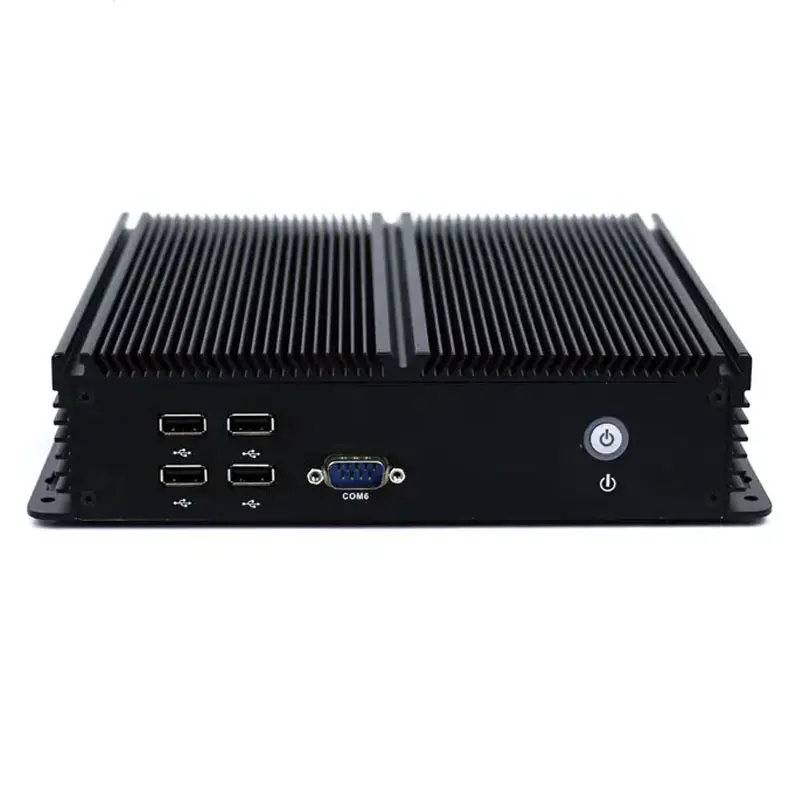

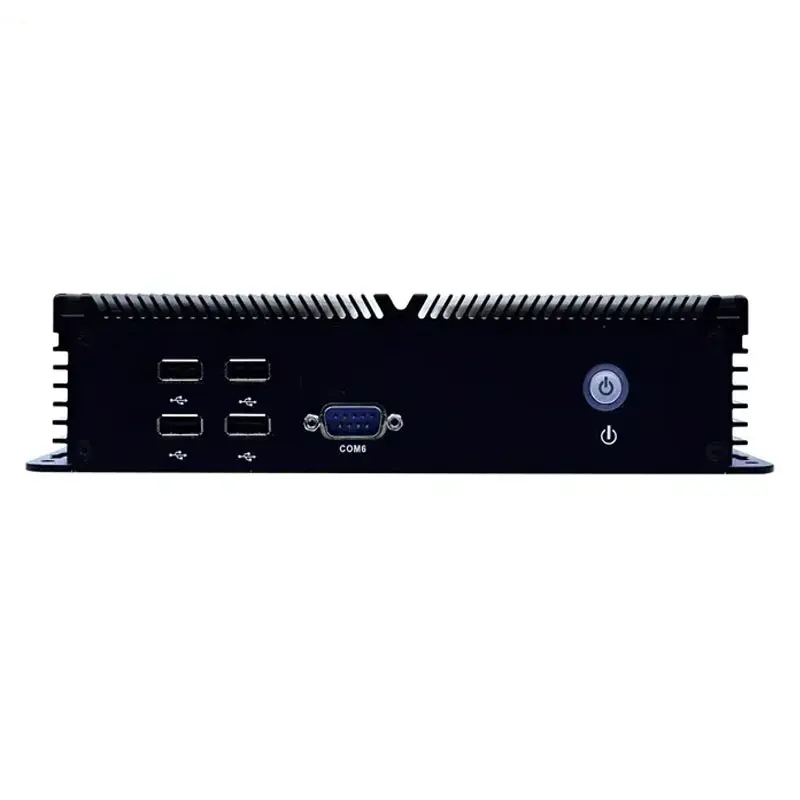

Front Panel

4 x USB2.0
1 x COM
1 x Power Switch

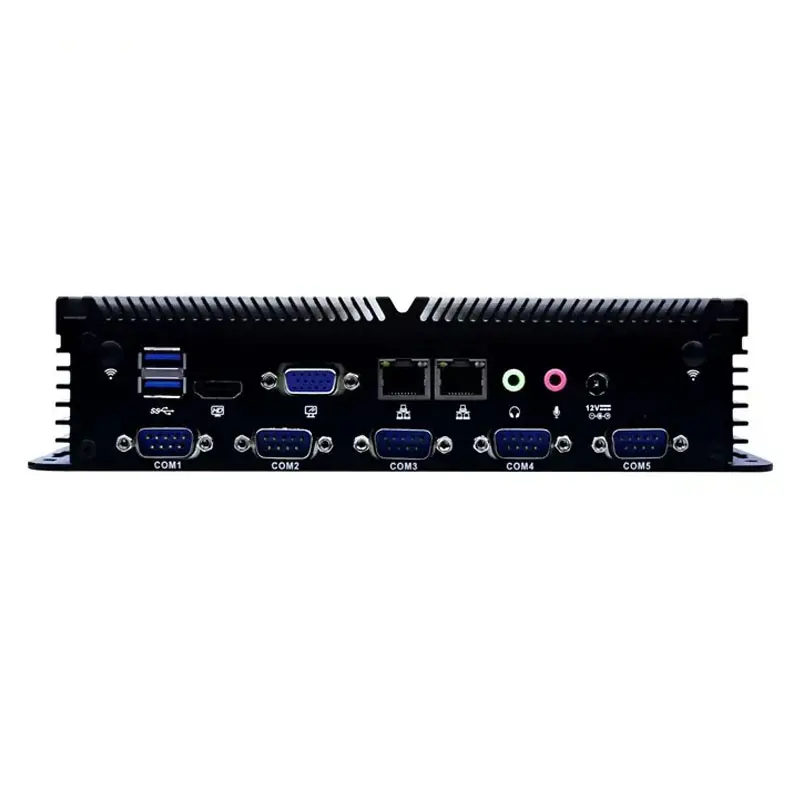

Rear Panel

2 x USB3.0
1 x DC 12V
2 x RJ45
1 x VGA
1 x HDMI
6 x COM(COM3 support RS232/422/485 optional)
1 x Mic
1 x Line out



Software Support

Bios AMI 64Mbit SMT Flash ROM
System Support Windows 7/8/10, Linux



General

Cooling Mode Fanless
Power Supply DC-IN 12V

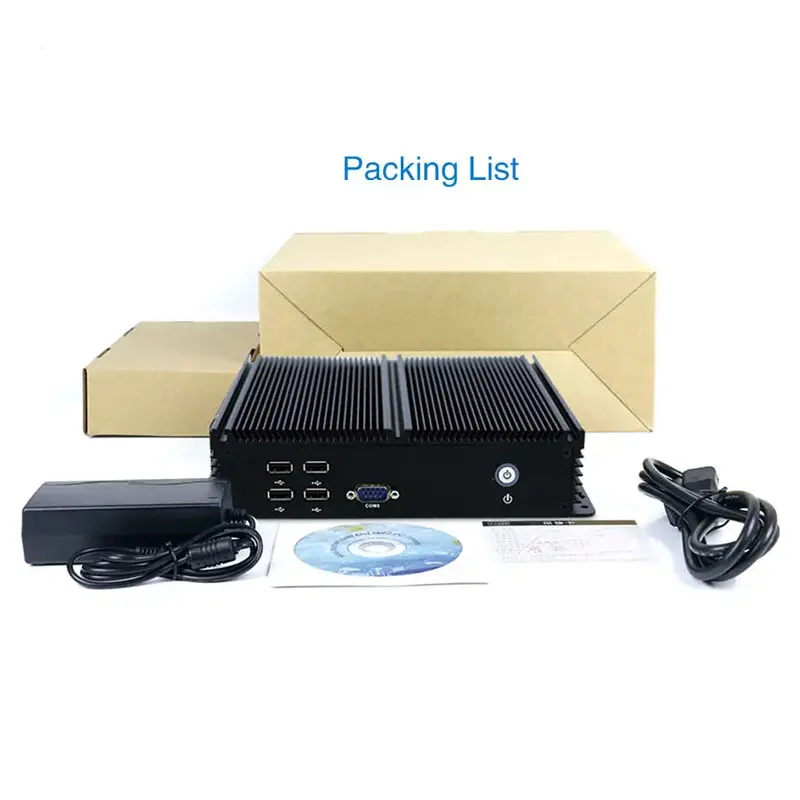

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable



Environment

Work Temperature -10 ~ 60 °C
Relative Humidity 5 % ~ 95% non-condensing
Certification CE FCC ROHS
Application Automat, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking,   Gaming, Transportation etc.



Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I14 i5 4210U Intel® HD Graphics 4400 1.7~2.70GHz 1 x HDMI/1 x VGA 1 x DDR3L, Max 8G 1 x mSATA/1 x 2.5 Inch HDD Or 2 x 2.5 Inch(Optional) 6 2 6 DC 12V
