Fanless Intel 6th Gen Wide Temperature

Fanless Intel 6th Gen Wide Temperature

Model: Partaker I16B

  • LGA1151 socket for 6th Intel® Core™ i7/i5/i3 Desktop Processor
  • 2 x DDR4 1866/2133MHz SODIMM RAM Slot, Max support 64GB
  • 1 x mSata SSD, 2 x 2.5 inch SATA SSD/HDD support RAID0/1
  • Triple independent display supported by VGA/HDMI/DP
  • 2 x Intel i211-AT, 1 x Intel i219-LM 1000M LAN
  • PCIE X16 slot, PCI slot, max length of expansion card: 210mm
  • DC 9-36V wide voltage input, reversible polarity protection

Share to:

Overview



The industrial-grade computer system offers a range of Intel Core processors, up to 64GB DDR4 RAM, and integrated Intel HD Graphics 530. It boasts multiple display ports, I/O options, expansion slots, and dual Intel 1000M LAN ports for network connectivity. Robust all-aluminum construction with wide voltage input and multiple certifications ensure reliability and compliance in various industrial applications.

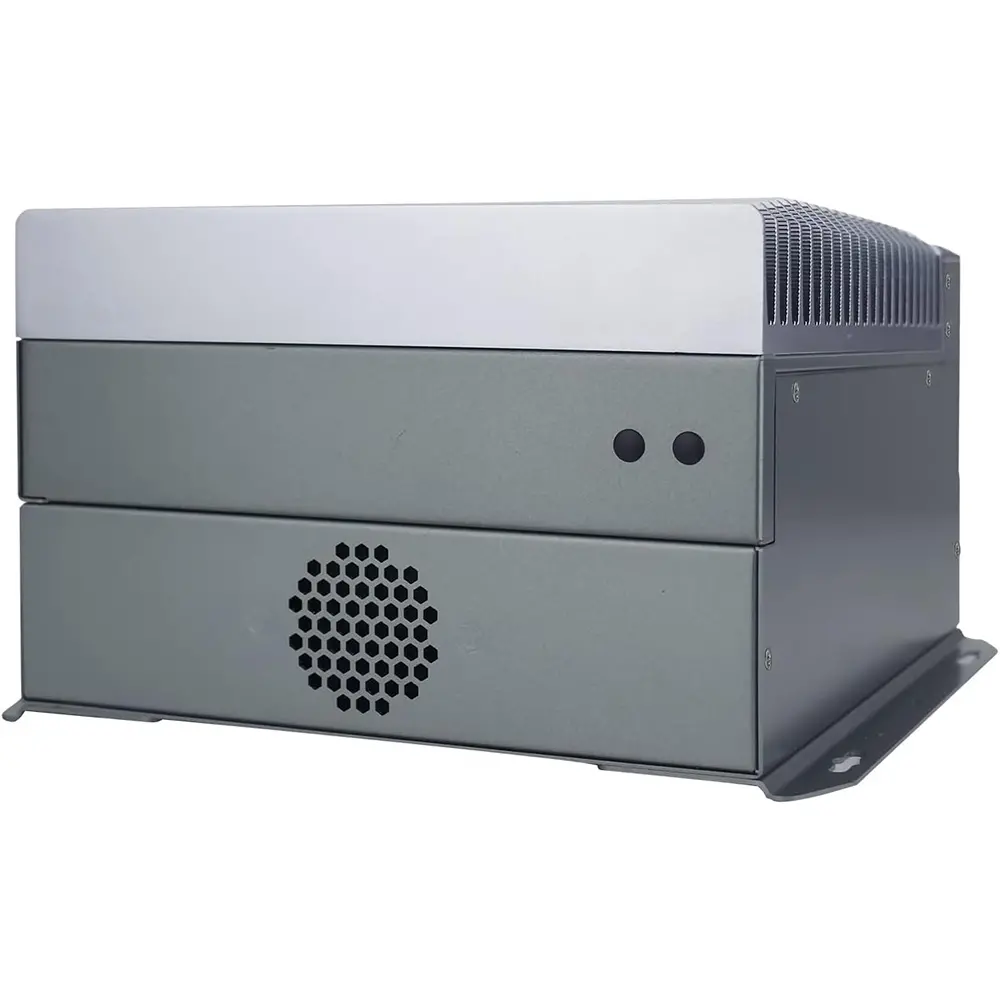

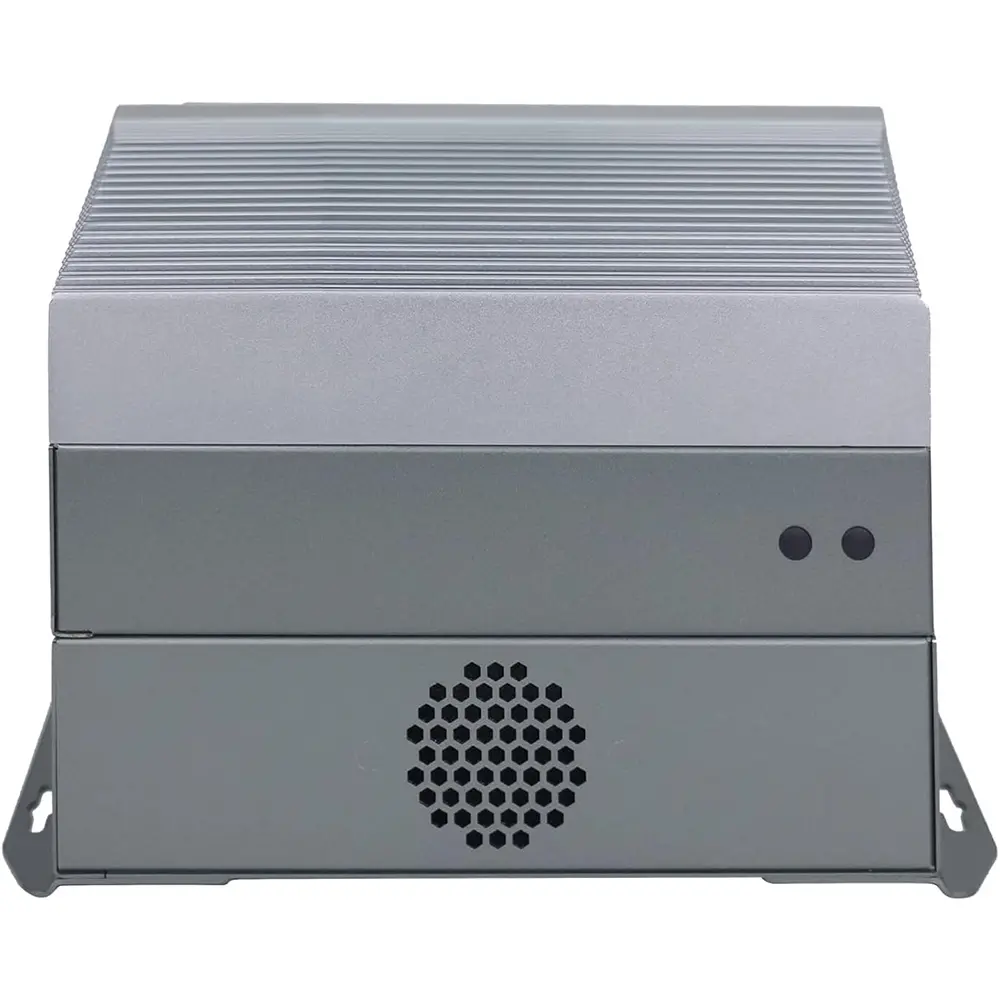

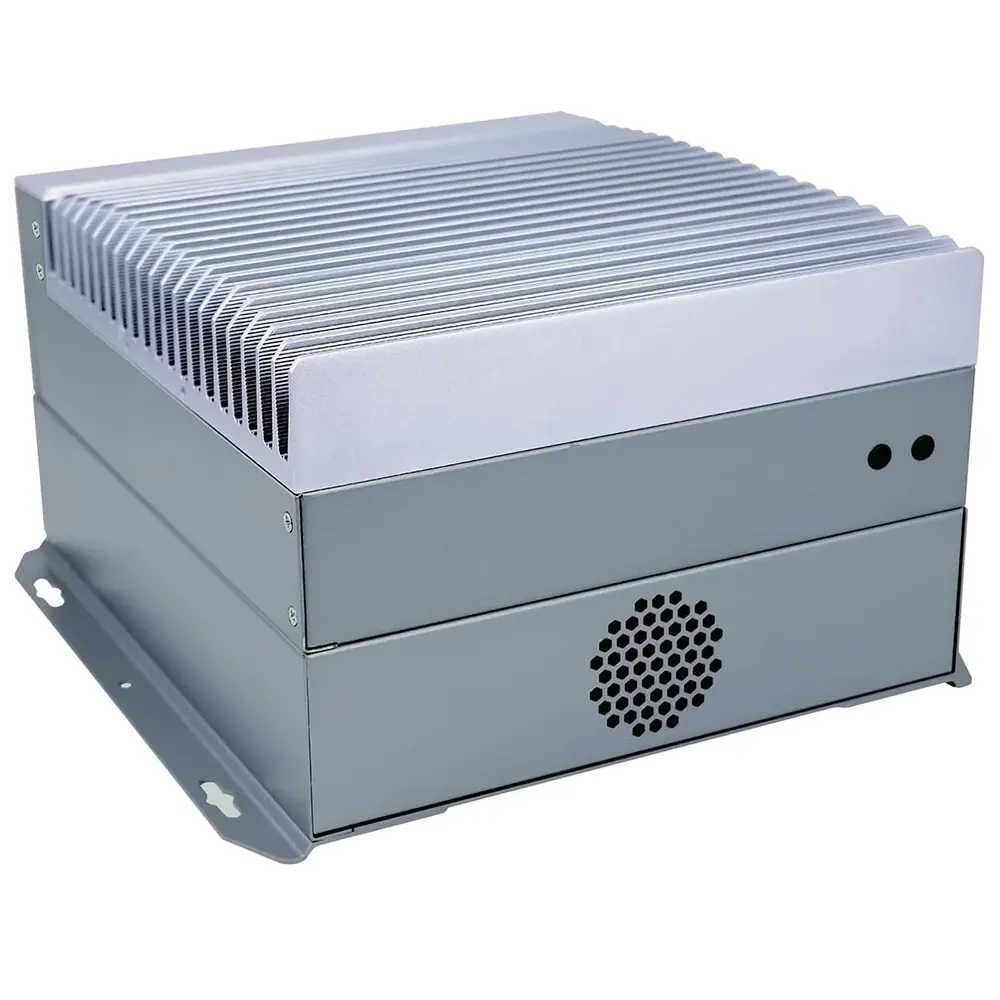

Mechanical

Material High-quality all aluminum,surface anodic oxidation
Colour Titanium gray (Color can be customized)

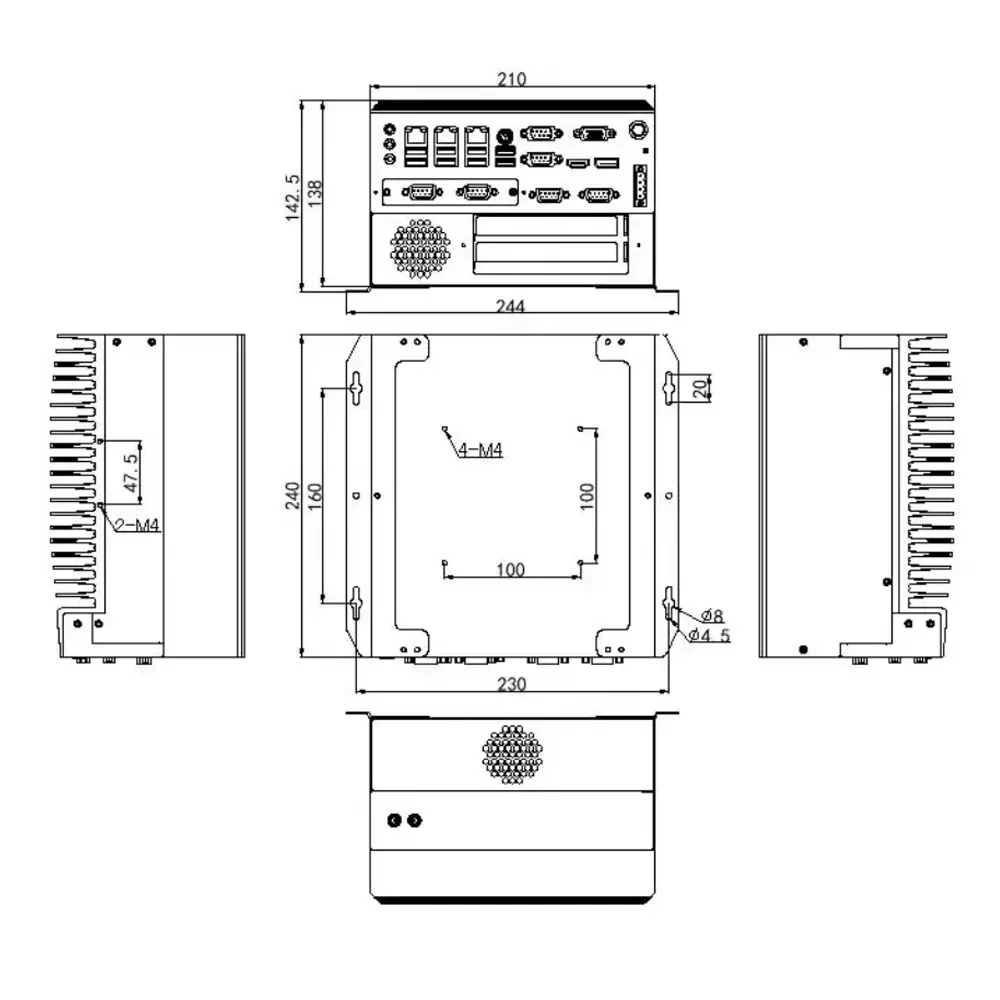

Size 210 * 240 * 173 mm【not include wall bracket】
Weight 4.7 kgs【not include wall bracket】



Motherboard

CPU Intel Core i3 6100T (Dual core four threads,3.2GHz)

Intel Core i5 6500T (Quad core four threads,2.5GHz,Max turbo 3.1GHz)

Intel Core i7 6700T (Quad core eighr threads,2.8GHz,Max turbo 3.6GHz)

CPU Structure Skylake-U / KabyLake-U
Display Ports 1 x VGA,1 x HDMI, 1 x DP
Network Card 2 x Intel i211-AT, 1 x Intel i219-LM 1000M LAN(Support Vpro Technology)
Memory Support 2 x DDR4 1866/2133 SODIMM RAM Slot, Max. Support 32G
Storage Support 1 x MSATA slot,2 x 2.5 Inch SATA HDD(Support RAID0/1)
Other Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Expansion 1 x PCIE X16 slot + 1 x PCIE X4 slot + 2 x PCI slot,Max length of expansion card: 210 mm

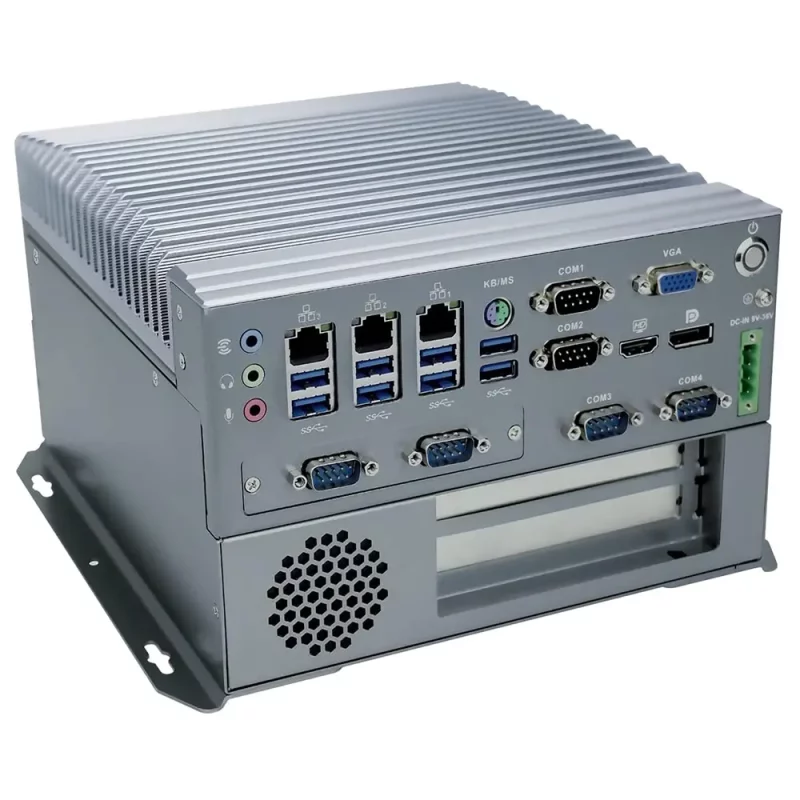

I/O Interfaces

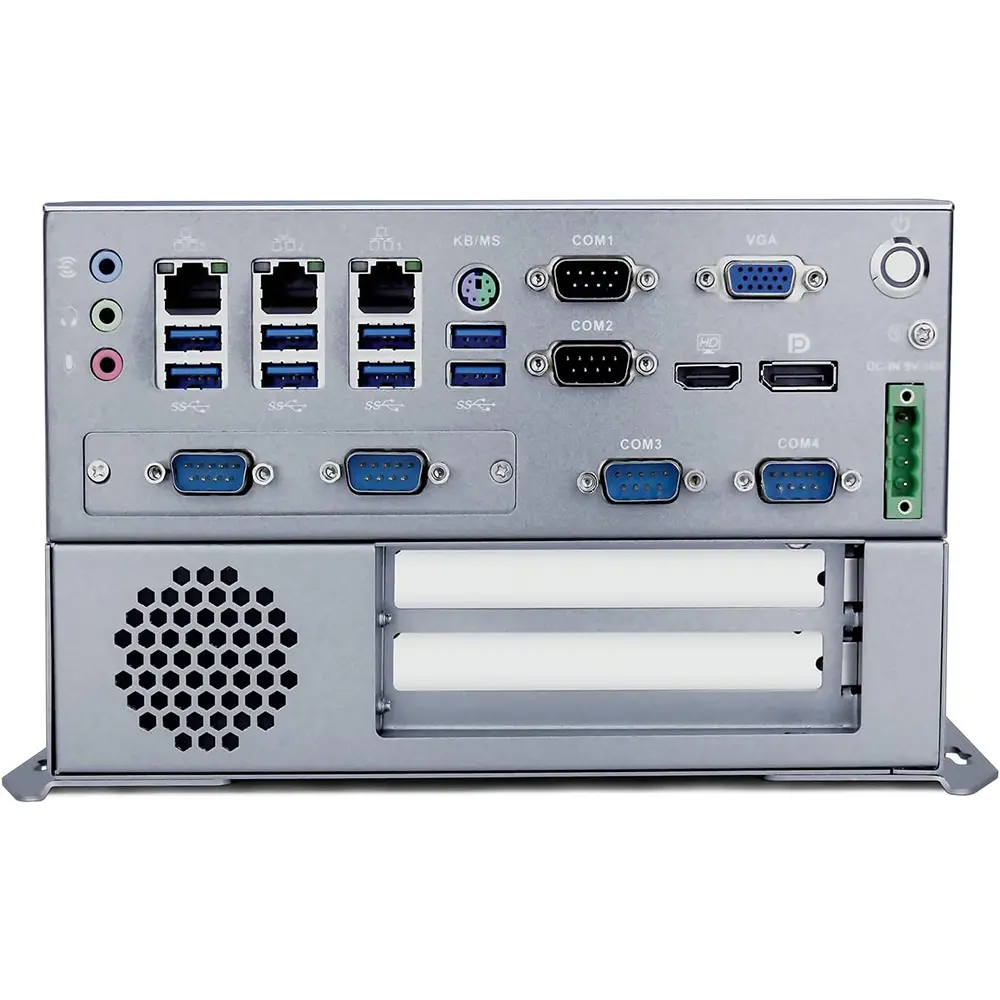

I/O Ports 8 x USB3.0

3 x Intel 1000M LAN

1 x Power Switch

1 x MIC

2 x Speaker

1 x VGA

1 x HDMI

1 x DP

1 x Keyboard or Mouse port

6 x COM(COM1, COM2 RS232/422/485 Optional)

1 x DC power supply phoenix connector



Software Support

Bios AMI EFI BIOS
System Support Windows 7/8/10 & Linux & pfSense



General

Cooling Mode Fanless
Power Supply DC 9~36V wide voltage Input, Support positive pole and negative electrode connect reversely protection
Packing List Industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card
Application Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc.



Environment

Work Temperature 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow
Work Humidity 5% ~ 95% non-condensing state
Certification CE FCC ROHS
Fanless Industrial PC PCIE X16 and PCI slot
Model Processor Graphic Frequency Display Memory Storage Expansion Slot COM LAN USB Power
I16B i3 6100T Intel® HD Graphics 530 3.20GHz HDMI/VGA/DP 2 x DDR4, Max 32G 1 x mSATA/2 x 2.5 SATA SSD/HDD 1*PCIE X16 slot + 1*PCI slot 6 3 8 DC 9~36V
I16B i5 6500T Intel® HD Graphics 530 2.50~3.10GHz HDMI/VGA/DP 2 x DDR4, Max 32G 1 x mSATA/2 x 2.5 SATA SSD/HDD 1*PCIE X16 slot + 1*PCI slot 6 3 8 DC 9~36V
I16B i7 6700T Intel® HD Graphics 530 2.80~3.60GHz HDMI/VGA/DP 2 x DDR4, Max 32G 1 x mSATA/2 x 2.5 SATA SSD/HDD 1*PCIE X16 slot + 1*PCI slot 6 3 8 DC 9~36V
