Fanless Intel 12th Gen PC

Fanless Intel 12th Gen PC

Model: Partaker B11

  • Intel Core i7 1355U powers seamless multitasking.
  • Dual display support for immersive visuals.
  • Expandable memory & storage for data-intensive tasks.
  • Versatile connectivity with USB 3.0 & Thunderbolt 4.
  • Sleek aluminum chassis with flexible mounting options.
  • Supports multiple operating systems for compatibility.
  • Intel Iris Xe Graphics for smooth visuals.
  • Energy-efficient TDP up to 55W.
  • Rich audio with Realtek ALC662 Audio Control Chip.
  • Wide operating temperature range for various applications.

Share to:

Overview



The latest high-end fanless mini desktop PC, powered by Intel Core i7 1255U i5 1235U i3 1215U processor, boasts strong performance with low power consumption. Featuring Iris Xe Graphics for 4K ultra-clear image quality, it offers large-capacity expansion storage up to 64GB RAM and multiple SSD options. With WiFi6, BT5.2, and 2.5Gbe LAN, it ensures high transmission frequencies. Multi-monitor support and abundant ports enhance productivity. Enjoy 7×24 professional service for a seamless shopping experience.



Processor Main Frequency
Core i3 1215U (2+4 Cores, 8 threads, 10M Cache, Up to 4.40 GHz, TDP: up to 55W)
Core i5 1235U (2+8 Cores, 12 threads, 12M Cache, Up to 4.40 GHz, TDP: up to 55W)
Core i7 1255U (2+8 Cores, 12 threads, 12M Cache, Up to 4.70 GHz, TDP: up to 55W)
Core i7 1355U (2+8 Cores, 12 threads, 12M Cache, Up to 5.00 GHz, TDP: up to 55W)
Graphics Card
Core i3 1215U: Intel UHD Graphics
Core i5 1235U/ i7 1255U/ i7 1355U : Intel Iris Xe Graphics
Dual Display

1x DP 1.4 maximum resolution: 4096 x 2304@30Hz~60Hz or 7680 x 4320 @ 60Hz

2x H-DMI 2.0 maximum resolution: 4096 x 2304@30Hz~60Hz

1x Type- C Thunderbolt 4 maximum resolution: 4096 x 2304@30Hz~60Hz

Support Four -line Synchronous or Independent display
Memory(RAM)
Support Dual Memory, 2* 260-pin SO-DIMM  Max to 64GB(2*32GB or 1*64GB)
4GB/8GB/16G/32G/64G DDR4 2400/2666/3200MHz
Only one RAM installed by default
Hard Disk(SSD)
1* M.2 NVME 2280/ NGFF 2280 +1* M.2 NVME 2280+ 1* 2.5″ SSD/ HDD
128GB 256GB 512GB 1TB 2TB  M.2 SSD
Support System
Window 10/11 Linux Ubuntu CENTOS Openelec, etc.

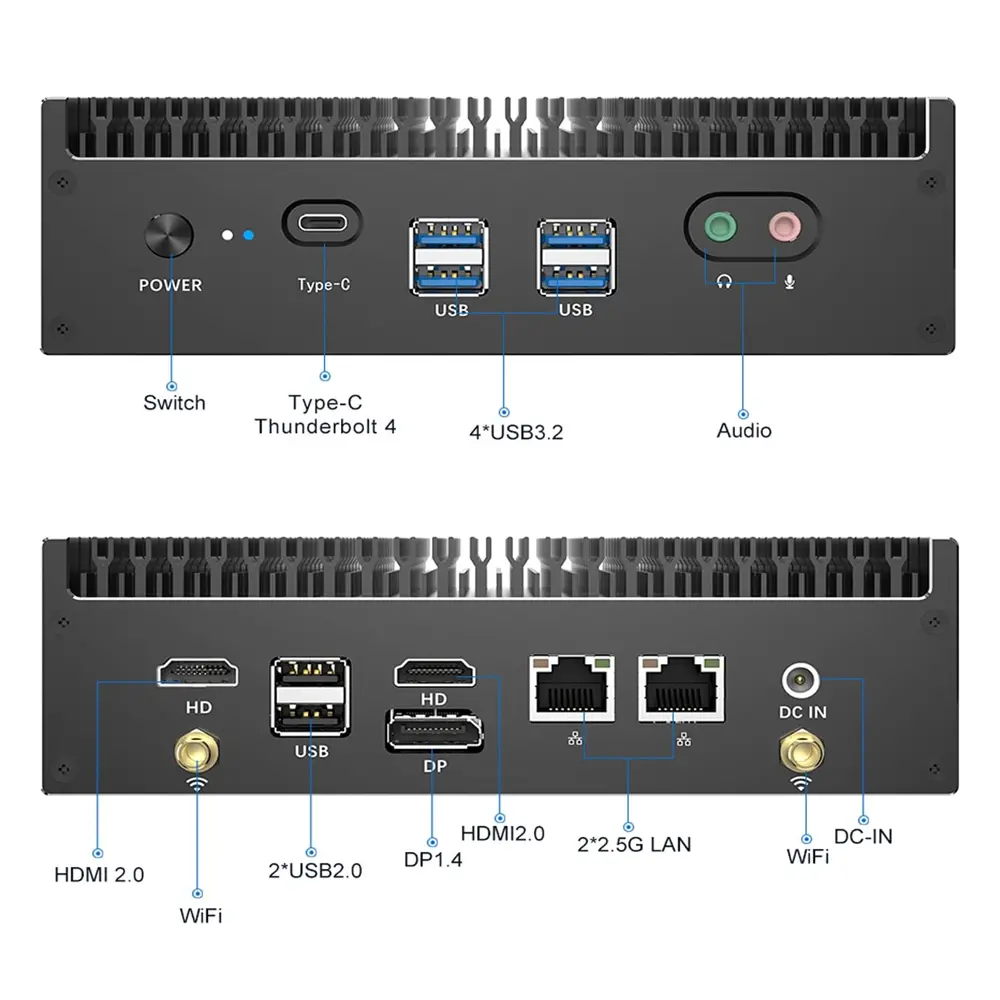

Front-Panel Connectors
Power on/off, 4x USB 3.0, 1x Type-C Thunderbolt 4, 1x SPK+ 1x MIC
Rear-Panel Connectors
1x DP 1.4+2x H-DMI 2.0
2x USB 2.0,
2x 2.5GbE RJ45 LAN
1x DC IN 12V

Ethernet port
2x 2.5GbE Intel i225V/ i226V
WIFI & BT Supported
2 in 1 Module: WiF6 Dual Band ;  BT—–BT 5.0
USB Port
2x USB 2.0, 4 x USB 3.0
Audio port
Realtek ALC662 Audio Control Chip2 Channels, Stereo, Line out
Features
Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Auto Power on.
Extension Options
2* USB 2.0 can be extended on motherboard
Power
Power Type: DC-IN 5.5*2.5mm
Power Supply: DC 19V 3.42A/64.98W(AC to DC,100~240V)
Mounted
Desktop or VESA Mounting
Chassis Material
Aluminum Alloy
Operating Temperature
-20-60℃
Storage Temperature
-30-70°C(15- 35℃ recommended)
Relative Humidity
10%~90% no condensation
Dimension
170*126*51.5 mm
Model Processor Graphic Frequency Display Memory Storage Type-C LAN USB Power
B11 i3 1215U Intel® UHD Graphics 3.30~4.40 GHz 1x DP 1.4+2x HDMI 2.0 2 x DDR4, Max 64G 1 x M.2 NVME 2280/ NGFF 2280 +1 x M.2 NVME 2280+ 1 x  2.5″ SSD/ HDD 1 2 6 DC 19V
B11 i5 1235U Intel® Iris® Xe Graphics 3.30~4.40 GHz 1x DP 1.4+2x HDMI 2.0 2 x DDR4, Max 64G 1 x M.2 NVME 2280/ NGFF 2280 +1 x M.2 NVME 2280+ 1 x  2.5″ SSD/ HDD 1 2 6 DC 19V
B11 i7 1255U Intel® Iris® Xe Graphics 3.50~4.70GHz 1x DP 1.4+2x HDMI 2.0 2 x DDR4, Max 64G 1 x M.2 NVME 2280/ NGFF 2280 +1 x M.2 NVME 2280+ 1 x  2.5″ SSD/ HDD 1 2 6 DC 19V
