Fanless Industrial PC Intel 1037U I5 3317U
Model: Partaker I2
- Intel® Celeron® 1007U/1037U Core™ I5 3317U Processor
- With Dual Lan, 4 x COM, 1 x VGA, 1 x HDMI
- Support 1 x SODIMM DDR3L Memory
- Support 1 x mSATA SSD, 1 x 2.5 Inch SSD/HDD
- Embedded Expansion: Mini PCIe for WiFi
- Support windows XP
- Support VGA and HDMI Dual Display
Share to:
Overview
Partaker I2 Industrial Mini PC with fanless system without cooling fan, no any noise, work as long as 24 hours. Dual RJ45 Gigabit LAN and 4 RS232 COM ports fifit for industrial field.
Mechanical
| Material | Aluminum alloy |
| Colour | Black |

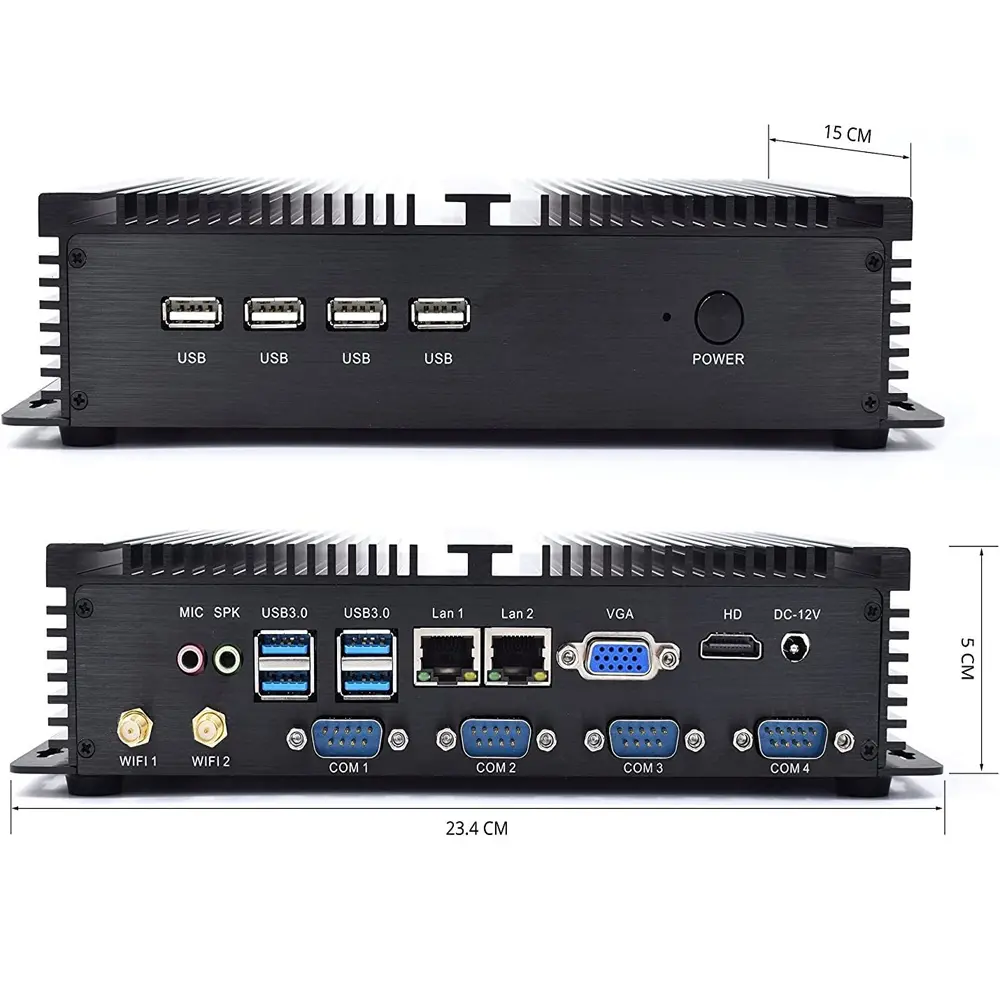

| Size | 210 x 150 x 45mm |
| Weight | 2.5Kgs |
| Insallation Method | With mounting ears |
| Wall-mounted, embedded, desktop |
Motherboard
| CPU | Intel® Celeron® Processor 1037U (2M Cache, 1.80 GHz) |
| Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz) | |
| Chipset | SOC |
| Network Card | 2 x Intel 82574L 10/100/1000 gigabit ethernet nics |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 1 x SODIMM DDR3/L 1333/1600, up to 8GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Expand | 1 x M.2 PCIE WiFi slot |

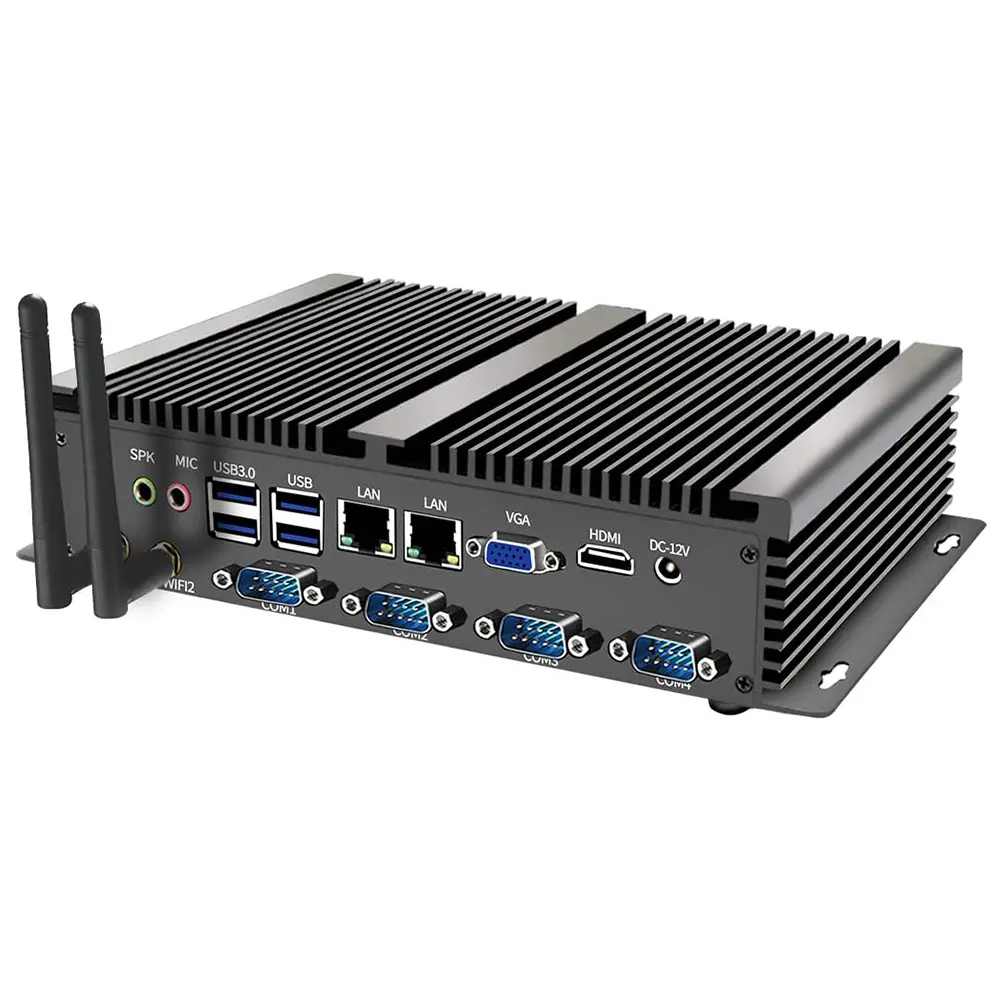

I/O Interfaces

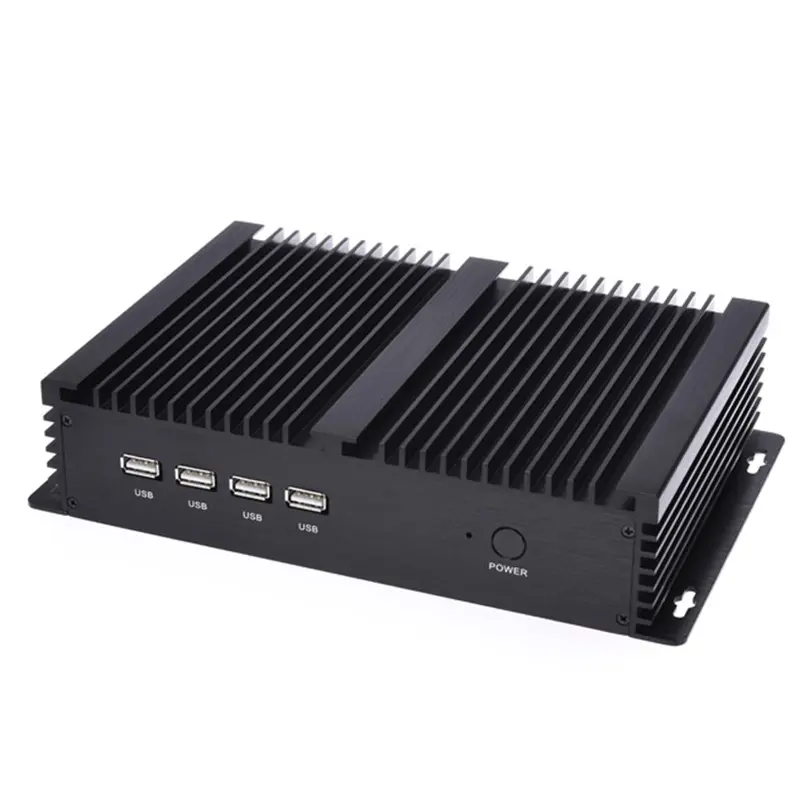

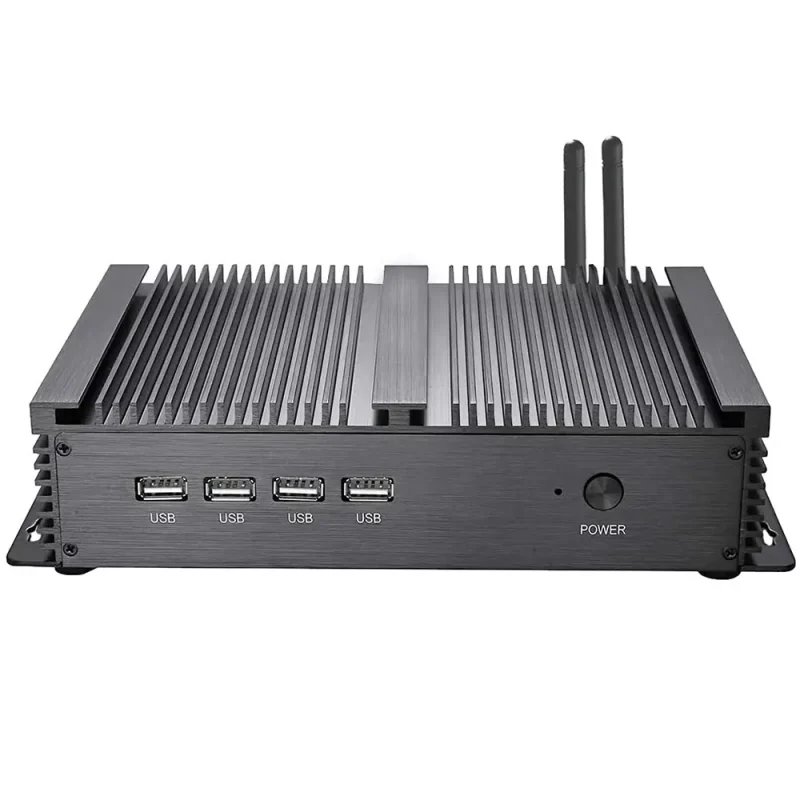

| Front Panel | 1 x Power button |
| 4 x USB2.0 | |

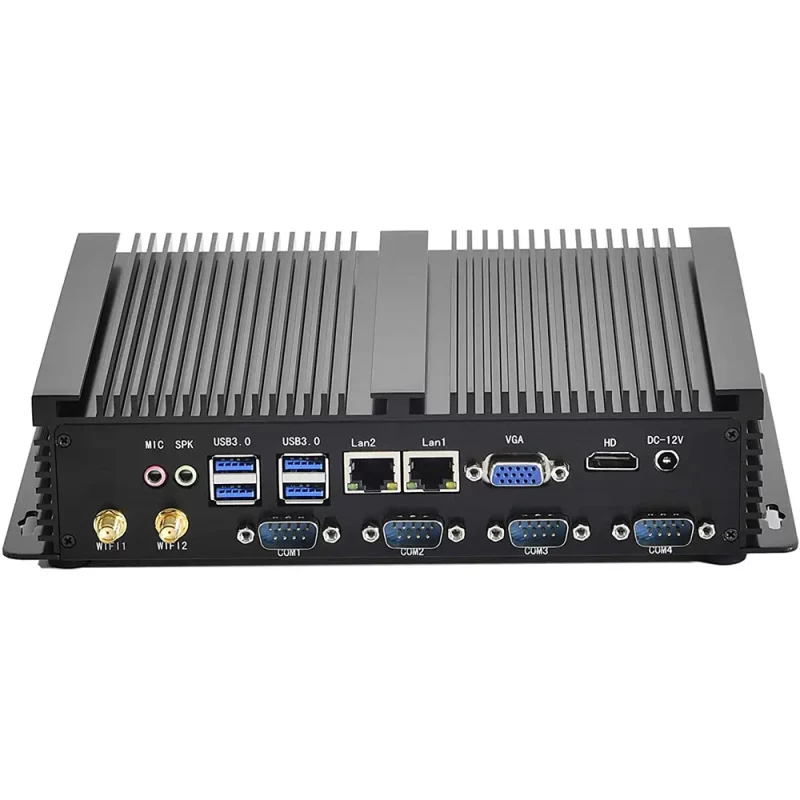

| Rear Panel | 1 x DC_in |
| 1 x HDMI | |
| 1 x VGA | |
| 2 x Lan | |
| 4 x USB3.0 | |
| 1 x Audio | |
| 4 x COM RS232 | |
| 2 x WiFi antennas |
Software Support
| Bios | AMI bios |
| System Support | Windows 10, linux ubuntu etc |
| General | |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V/3A-5A |
| Packing List | Partaker I2 industrial pc, power supply, power cord, wifi antennas, warranty card |
Environment
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE FCC ROHS |
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | COM | USB | Power |
| I2 | 1037U | Intel® HD Graphics | 1.8 GHz | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 2 | 4 | 8 | 12V/3A |
| I2 | I5 3317U | Intel® HD Graphics 4000 | 1.7~2.6 GHz | VGA/HDMI | 1 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 2 | 4 | 8 | 12V/5A |
