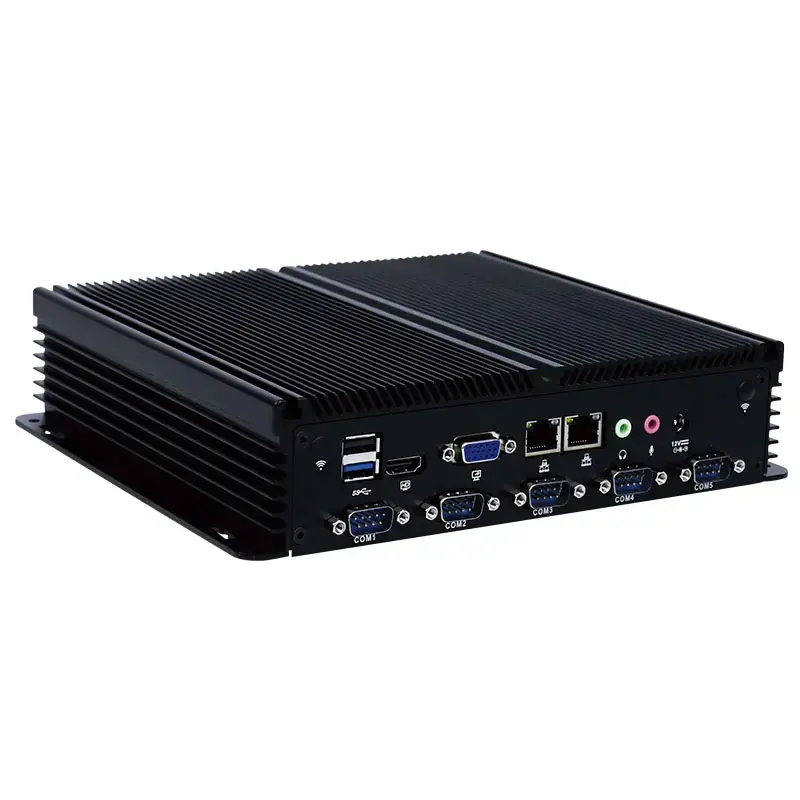

Fanless Industrial PC Rugged Computer

Fanless Industrial PC Rugged Computer

Model: Partaker I13

  • This embedded industrial PC features a 2.0 GHz Intel Celeron J1900 quad-core processor.
  • It supports up to 8 GB of DDR3L memory at 1333/1600 MHz, and has slots for MSATA, 2.5” SSD/HDD, Mini-PCIE (with WiFi/3G/4G support), and embedded SIM.
  • With 1 VGA, 1 HD, 5 USB 2.0, 1 USB 3.0, 2 LAN, and 6 COM ports, it also offers optional RS232/485/422 support for COM3.
  • It comes with a pure aluminum mini ITX case and 2 RTL8111F 10/100/1000M network cards.
  • Suitable for various applications such as automation, ATM, POS, CNC, digital signage, kiosk, energy, telecom, networking, gaming, transportation, etc.

Share to:

Overview



The Cheap Industrial Pc is a mini PC that can provide you with a reliable and cost-effective industrial computer solution. It features:



•  A high-quality pure aluminum case, which offers excellent heat dissipation and durability

•  An Intel Celeron J1900 quad core processor, which delivers high performance and low power consumption for various industrial applications

•  A support for 1 x VGA, 1 x HD Port, 5 x USB2.0, 1 x USB3.0 ports, which offer multiple connectivity options

•  A support for 1 x MSATA and 1 x 2.5 Inch HDD, which provide ample storage space

•  A support for WIFI/3G/4G (Three choose one), which enable wireless communication

•  A support for 6 x COM ports, which support RS232/422/485 communication protocols for serial devices

•  A support for desktop, embedded, wall mount installation methods, which suit different scenarios



The Cheap Industrial Pc is a great solution for applications such as industrial control, IoT gateway, digital signage, and more.





Mechanical

Material High-quality pure aluminum mini itx case
Colour Black (color can be customized)
Size 214 x 200 x 54mm
Weight 2.5Kgs
Insallation Method With mounting ears, Wall-mounted, embedded, desktop



Motherboard

CPU Adopt Intel Celeron J1900 Quad Core 2.0Ghz
Display Ports 1 x VGA, 1 x HDMI
Mainboard 17*17CM mini itx motherboard
Network Card 2 x RTL8111F 10/100/1000M Lan
Memory 1 x DDR3L 1333/1600MHz, support Max 8G
Storage Support 1 x MSATA, 1 x 2.5”SSD/HDD
Expansion
1 x Mini-PCIE (support wifi/3G/4G optional), embedded SIM Slot
1 x Mini-PCIE(support MSATA)
Optional Port: GPIO, LPT port (Standard version without this port)

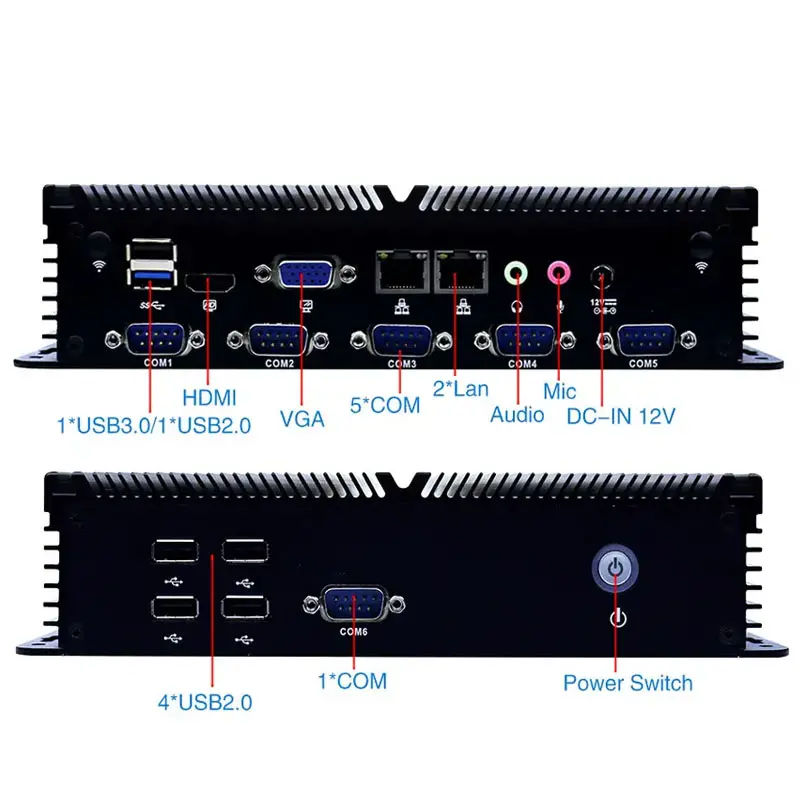

I/O Interfaces

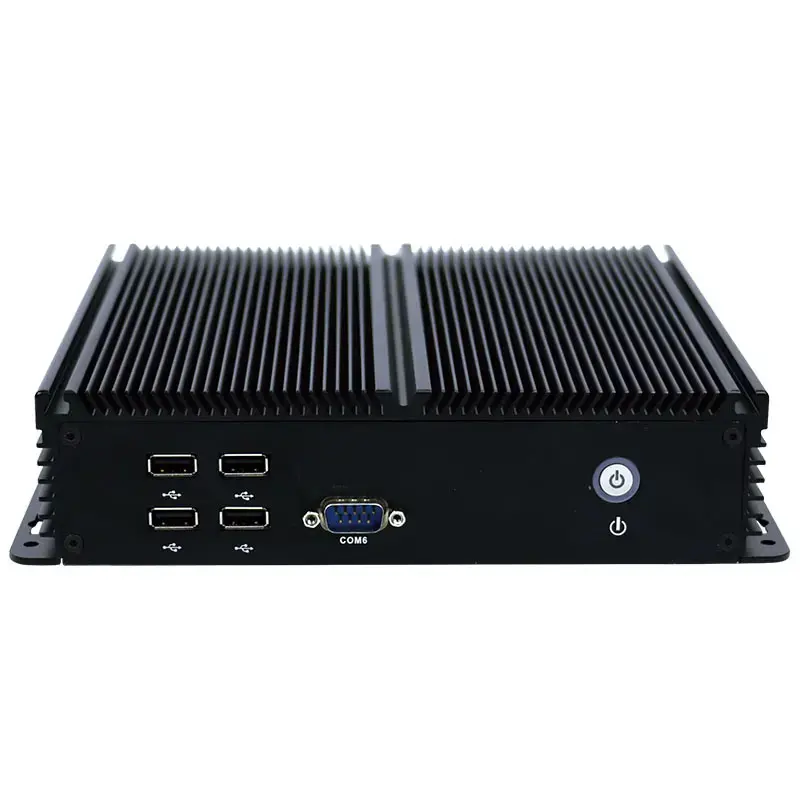

Front Panel

4 x USB2.0
1 x COM
1 x Power Switch










Rear Panel

1 x USB2.0
1 x USB3.0
1 x DC 12V
2 x RJ45
1 x VGA
1 x HDMI
6 x COM(COM3 support RS232/422/485 optional)
1 x Mic
1 x Line out



Software Support

Bios AMI 64Mbit SMT Flash ROM
System Support Windows 7/8/10, Linux



General

Cooling Mode Fanless
Power Supply DC-IN 12V
Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable



Environment

Work Temperature -10 ~ 60 °C
Relative Humidity 5 % ~ 95% non-condensing
Certification CE FCC ROHS
Application Automat, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking,   Gaming, Transportation etc.



Fanless Embedded PC

Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I13 J1900 Intel® HD Graphics 2.0~2.42GHz 1 x HDMI/1 x VGA 1 x DDR3L, Max 8G 1 x mSATA/1 x 2.5 Inch HDD or SSD 6 2 6 DC 12V
