Fanless Industrial Mini PC J4125

Fanless Industrial Mini PC J4125

Model: Partaker PA-1026

  • All aluminum structure, fanless design
  • Onboard Intel Celeron J4125 Quad Core processor
  • Support 2*Intel i211-AT 1000M LAN
  • Support 1*M.2 Slot, 1*Mini PCIE Slot
  • Support WIFI/3G/4G (Three choose one)
  • Support 6*COM,COM1 Support RS485

Share to:



Mechanical

Material Aluminum alloy
Colour Black(Color can be customized)

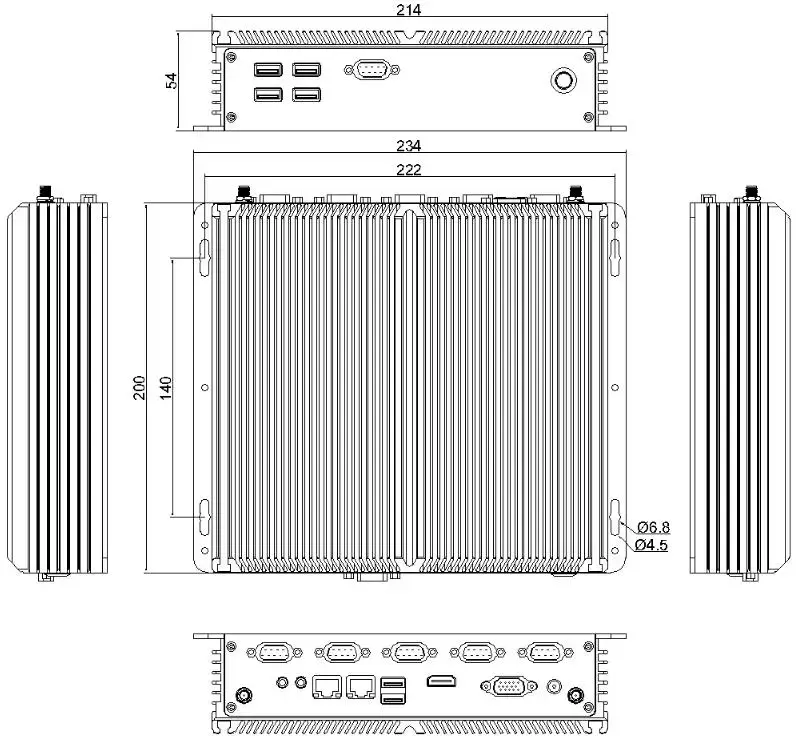

Size 234 * 200 * 54 mm
Weight 3Kgs
Insallation Method Desktop type



Motherboard

CPU Intel Celeron J4125 (Quad core quad threading, 4MB Cache, 2.0GHz, Turbo frequency 2.7GHz)
CPU Architecture Gemini Lake Refresh
Network Card 4 x Intel i211-AT 10/100/1000M lan
Graphic Intel UHD Graphics 600
Memory 1 x DDR4  Memory Slot, Max. Support 8GB
Storage 1 x M.2 2280 slot,1 x 2.5 inch HDD/SSD
Expand
1 x M.2 2280 M-key Slot(Support SATA Protocol)
1 x Mini PCIE Slot(4G/WIFI/BT Optional,Embedded SIM slot)
Optional Ports: GPIO, 4*USB2.0, PS/2 , LPT

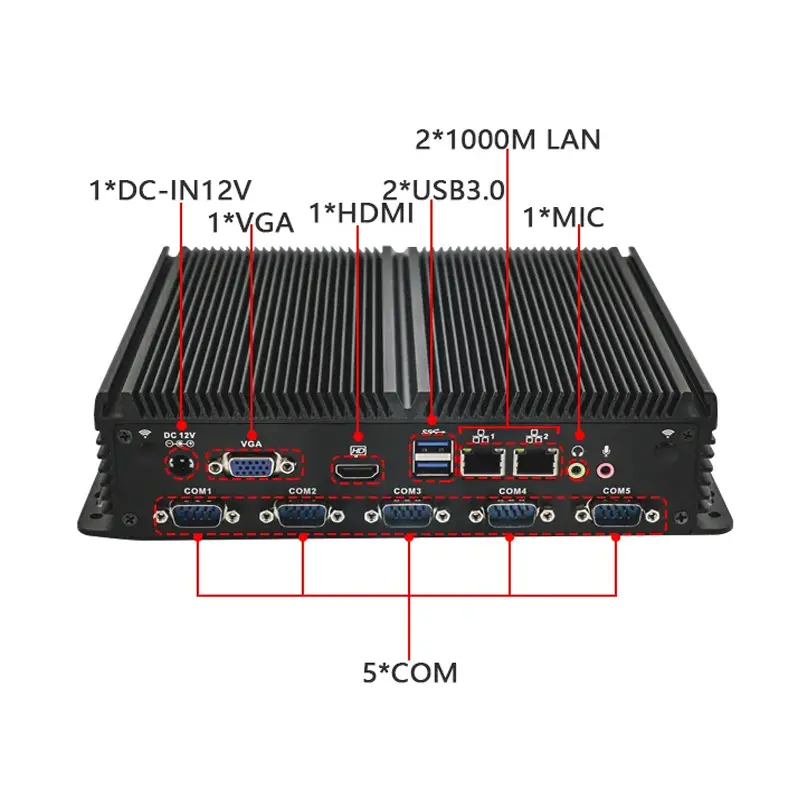

I/O Interfaces

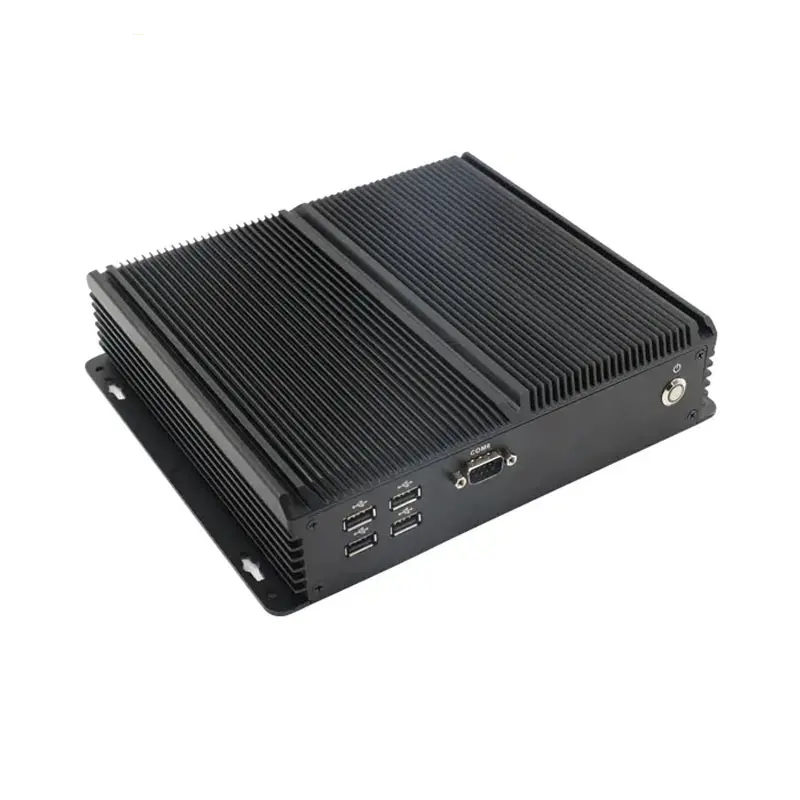

Front Panel 4 x USB2.0
1 x Power Switch
1 x COM
Rear Panel 4 x COM
1 x VGA
1 x HDMI
2 x USB2.0
2 x 1000M LAN
1 x MIC
1 x SPK
1 x DC-IN 12V



Software Support

Bios AMI EFI BIOS
System Support Windows & Linux



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter
Packing List PA-1026 mini pc, power supply, power cord, vesa, warranty card



Environment

Working Temperature 0C – +50C (Commercial HDD),-20C – +60C (Industrial SSD) ,Surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Other Function Auto power on when there is electricity, Wake on LAN, PXE boot
Certification CE FCC ROHS



J4125 Industrial Mini Computer

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
PA-1026 J4125 Intel® UHD Graphics 600 2.0~2.7 GHz VGA/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 2 6 12V/4A5A
