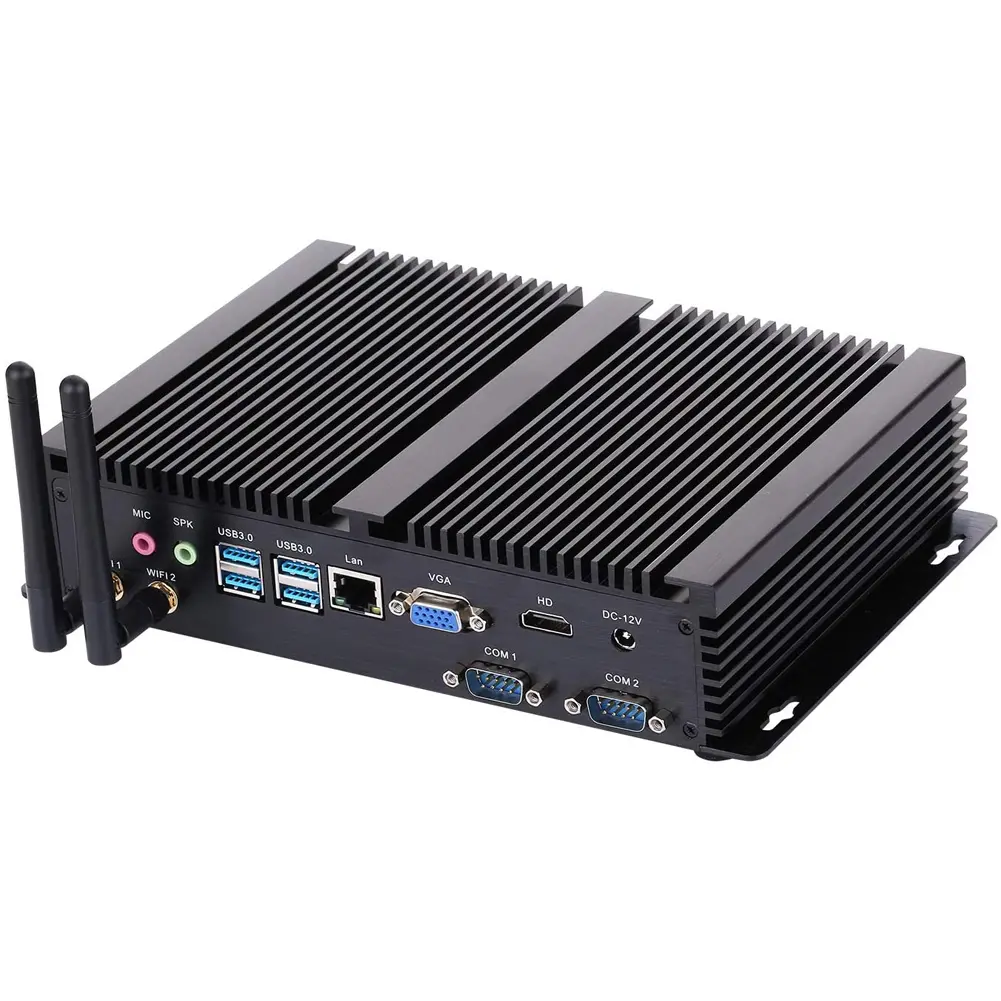

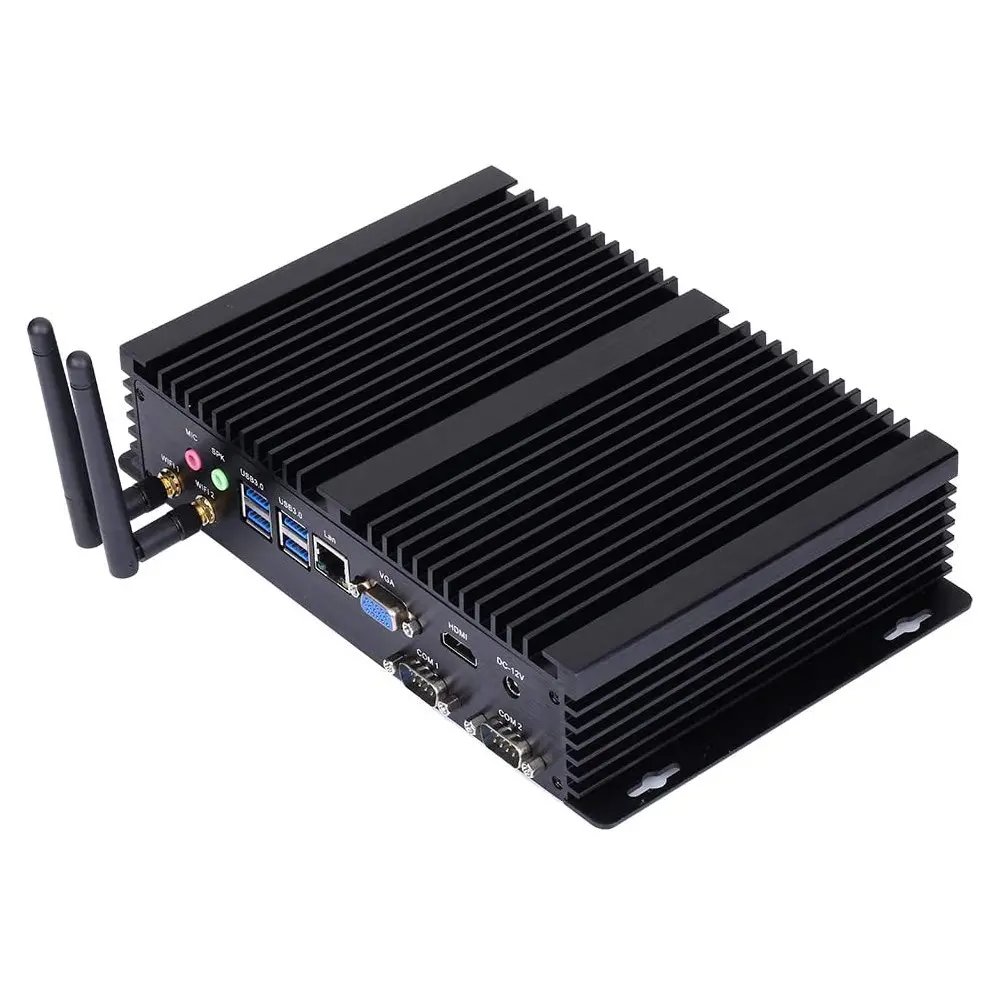

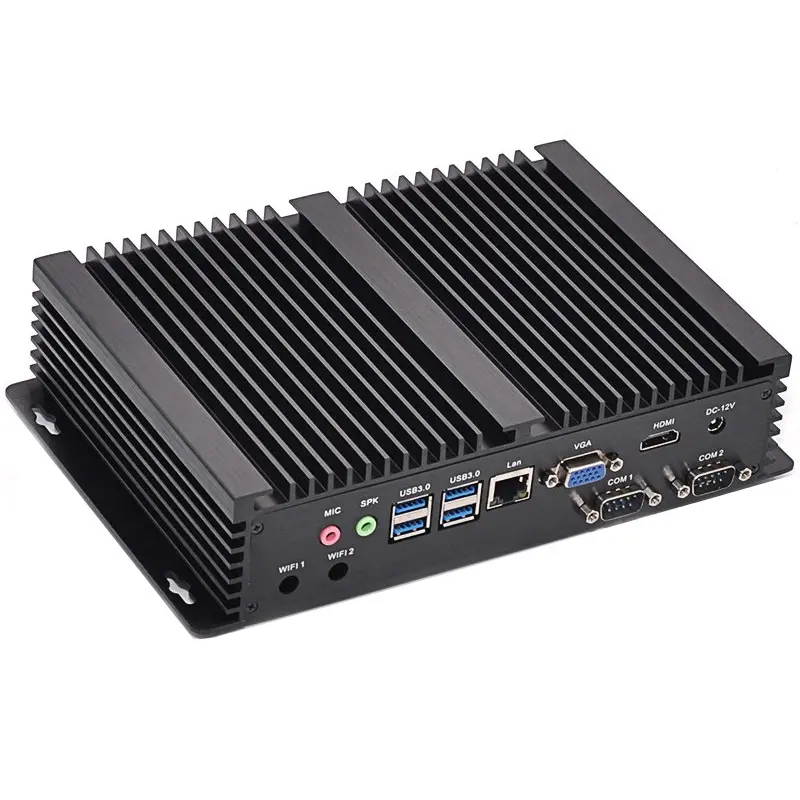

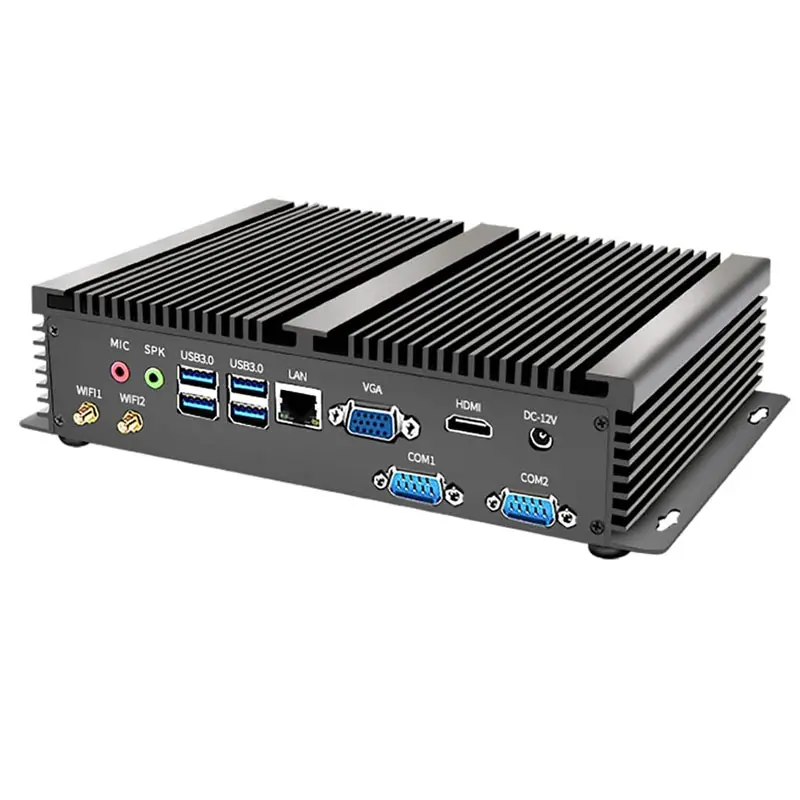

Fanless Industrial Mini PC Intel 2955U I3 I5 I7

Fanless Industrial Mini PC Intel 2955U I3 I5 I7

Model: Partaker I3

  • Fanless System, CPU without fan, no noise
  • Support 3D games and HDMI 1080P
  • Support calls on function automatically
  • WiFi with Dual Antenna
  • Can install 1pc HDD and 1pc SSD together
  • 1 x RJ45 Lan, 2 x RJ232 COM port

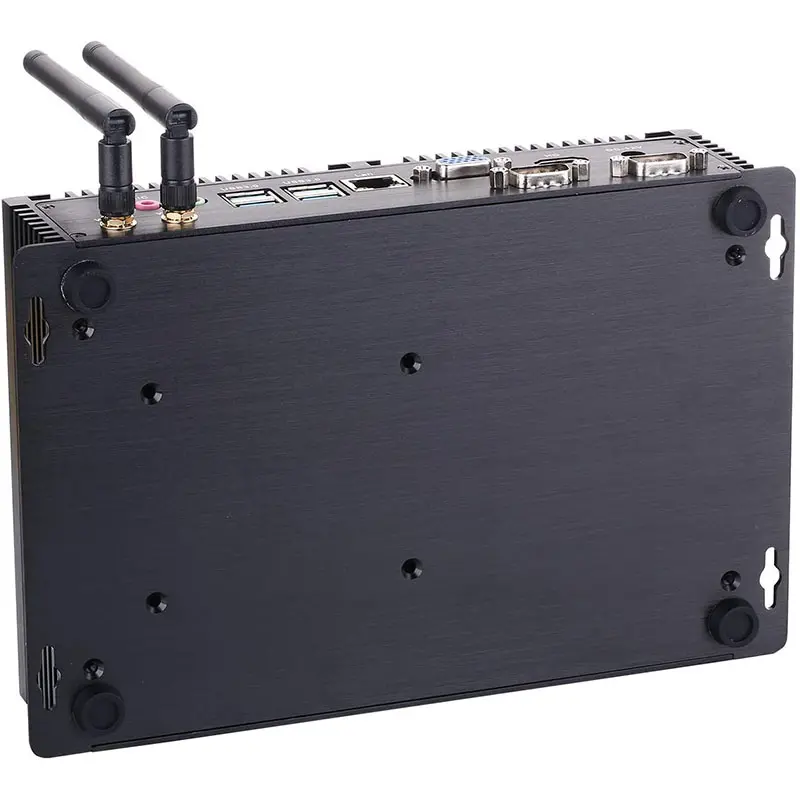

  • Can be mounted back of wall

Share to:

Overview



Partaker I3 is a small size, low power consumption, zero-noise industrial mini computer, Gigabit network card, COM dual serial ports, high-definition dual display, 24*7 stable operation. Can be used in industrial applications, CNC machine tools, commercial institutions, medical equipment, assembly line equipment, process equipment, etc.





Mechanical

Material Aluminum alloy
Colour Black
Size 234 x 150 x 43mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop



Motherboard

CPU Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-5005U Processor (3M Cache, 2.00 GHz)
Intel® Core™ i3-6157U Processor (3M Cache, 2.40 GHz)
Intel® Core™ i3-7167U Processor (3M Cache, 2.80 GHz)
Intel® Core™ i3-8140U Processor (4M Cache, up to 3.90 GHz)
Intel® Core™ i5-4278U Processor (3M Cache, up to 3.10 GHz)
Intel® Core™ i5-5287U Processor (3M Cache, up to 3.30 GHz)
Intel® Core™ i5-8250U Processor (6M Cache, up to 3.40 GHz)
Intel® Core™ i7-8550U Processor (8M Cache, up to 4.00 GHz)
Intel® Core™ i7-10510U Processor (8M Cache, up to 4.90 GHz)
Intel® Core™ i5-10310U Processor (6M Cache, up to 4.40 GHz)
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
Intel® Core™ i5-1235U Processor (12M Cache, up to 4.40 GHz)
Intel® Core™ i7-1255U Processor (12M Cache, up to 4.70 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 2 x SO-DIMM DDR3L 1333/1600, up to 16GB RAM

2 x SO-DIMM DDR4, up to 64GB RAM(I3 8140U/I5 8250U/I7 8550U/I5 10310U/I7 10510U/I5 1135G7/I7 1165G7/I5 1235U/I7 1255U)

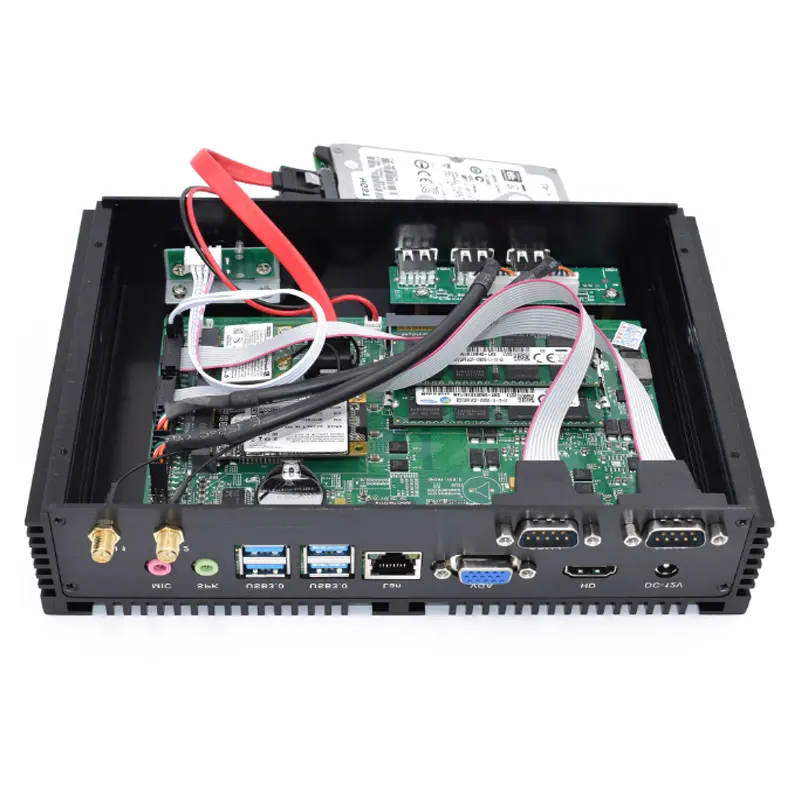

Storage 1 x 2.5 inch hard disk bay/1 x mSATA
1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME)
Expand 1 x M.2 PCIE WiFi slot

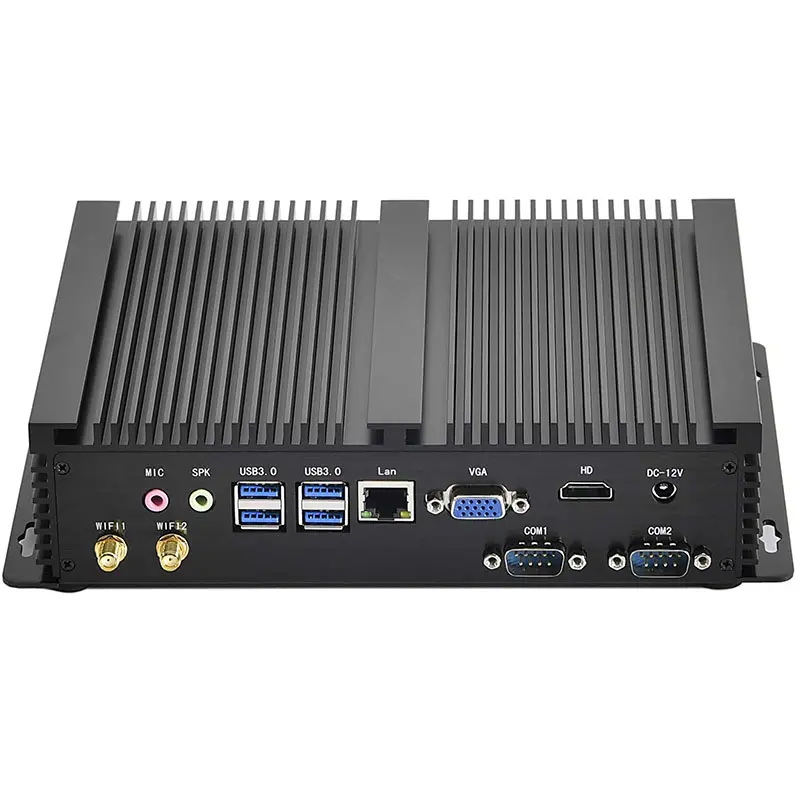

I/O Interfaces

Front Panel 1 x Power button
4 x USB2.0/ 3 x USB2.0
Rear Panel 1 x DC_in
1 x HDMI
1 x VGA
1 x Lan
4 x USB3.0
1 x Audio
2 x COM RS232
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A-5A/ 19V/5A
Packing List Partaker I3 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN COM USB Power
I3 2955U Intel® HD Graphics 1.4 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 2 7 12V/3A
I3 I3 4005U Intel® HD Graphics 4400 1.70 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 2 8 12V/3A
I3 I3 5005U Intel® HD Graphics 5500 2.00 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 2 8 12V/3A
I3 I3 6157U Intel® Iris® Graphics 550 2.40 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 2 8 12V/3A
I3 I3 7167U Intel® Iris® Plus Graphics 650 2.80 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 2 8 12V/3A
I3 I5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 2 8 12V/5A
I3 I5 5200U Intel® HD Graphics 5500 2.20~2.70 GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 2 8 12V/5A
I3 I3 8145U Intel® UHD Graphics 2.10~3.90 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 12V/5A
I3 I5 8250U Intel® UHD Graphics 620 1.60~3.40 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 12V/5A
I3 I7 8550U Intel® UHD Graphics 620 1.80~4.00 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 12V/5A
I3 I7 10510U Intel® UHD Graphics 1.80~4.90 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 19V/5A
I3 I5 10310U Intel® UHD Graphics 1.70~4.40 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 12V/5A
I3 I5 1135G7 Intel® Iris® Xe Graphics 2.40~4.20 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 12V/5A
I3 I7 1165G7 Intel® Iris® Xe Graphics 2.80~4.70 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 12V/5A
I3 I5 1235U Intel® Iris® Xe Graphics eligible 3.30~4.40 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 12V/5A
I3 I7 1255U Intel® Iris® Xe Graphics 3.50~4.70 GHz VGA/HDMI 2 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) 1 2 8 19V/5A
