Fanless Industrial Mini Computer N3520 N2920

Fanless Industrial Mini Computer N3520 N2920

Model: Partaker I25

  • Fanless Zero Noise
  • 2 x LAN Gigabit Ethernet
  • 2 x RS232 Serial Port
  • Dustproof Design
  • Passive Cooling
  • 24/7 Working
  • 4G Module Expanded

Share to:

Overview



Partaker I25 fanless industrial mini pc with embedded sim card slot for 4G, dual intel LANs, onboard 8 bit GPIO, support 256-level watchdog, auto power on. With aluminum alloy, heat dissipation.



Mechanical

Material Aluminum alloy
Colour Black
Size 175 x 130 x 36mm
Weight 1.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop



Motherboard

CPU Intel® Pentium® Processor N3520 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor N2920 (2M Cache, up to 2.00 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot

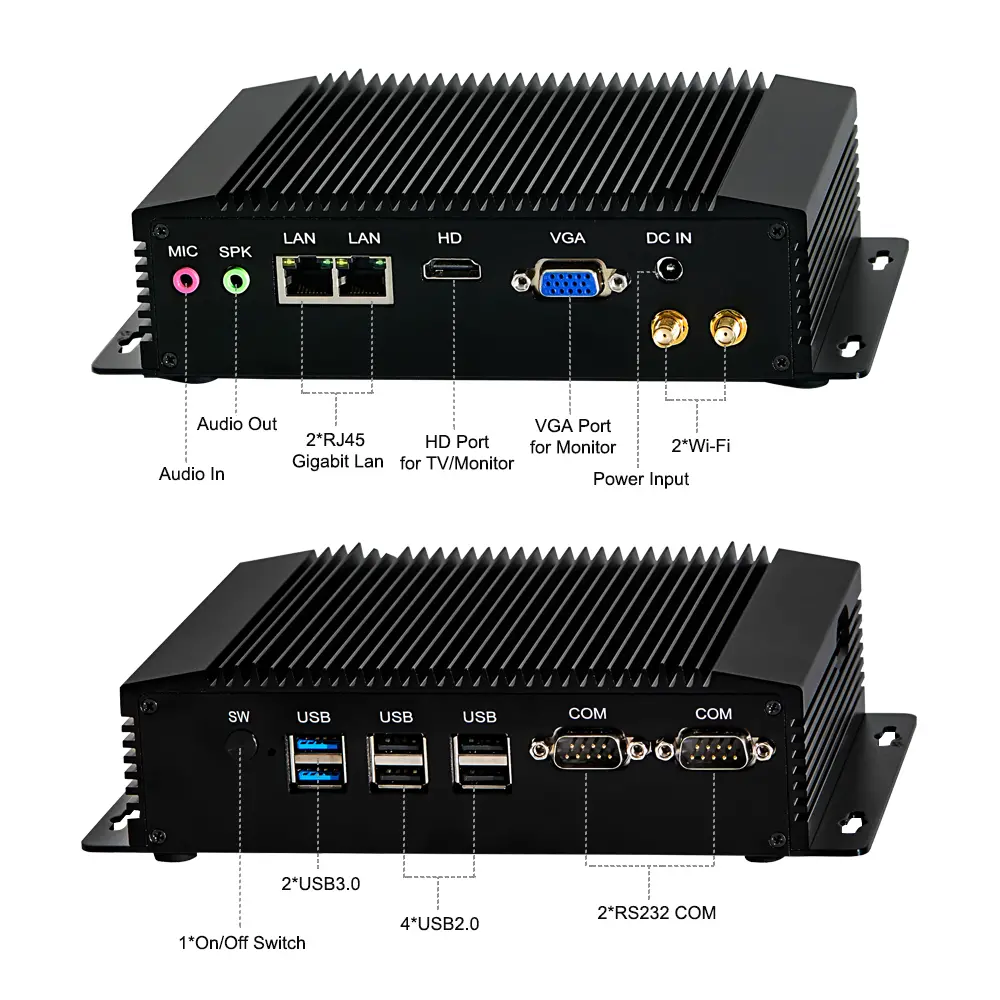

I/O Interfaces

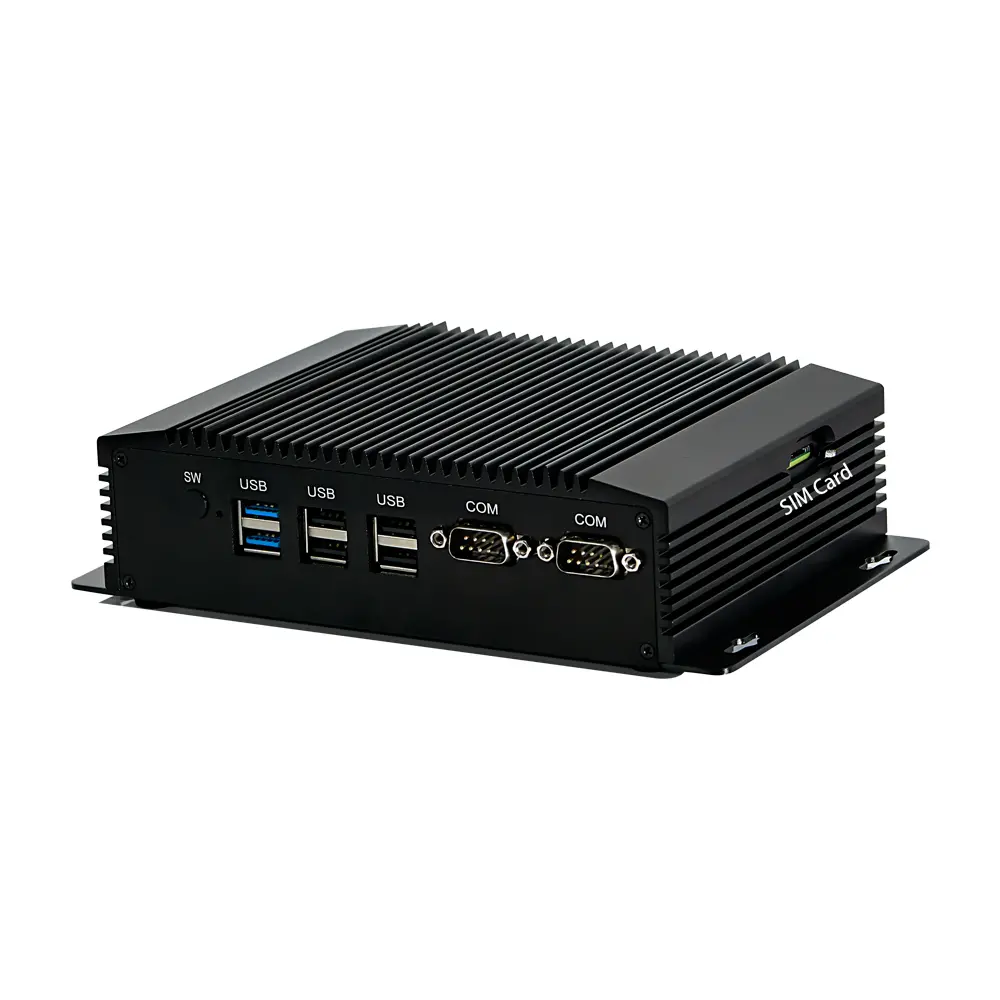

Front Panel 1 x Power button
2 x USB3.0
4 x USB2.0
2 x COM

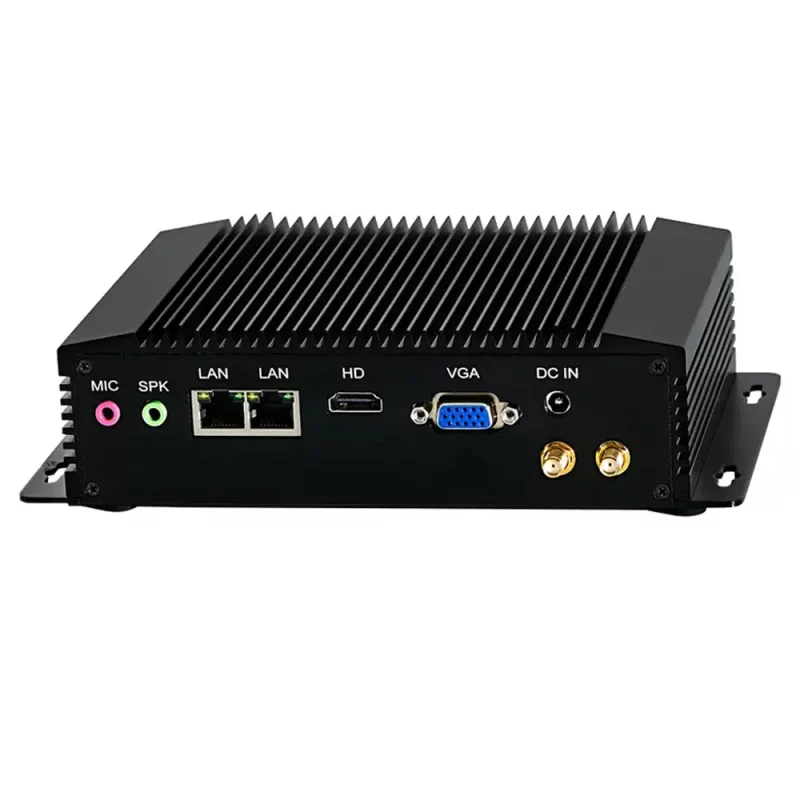

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
2 x Lan
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc
General
Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List Partaker I25 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN COM USB Power
I25 Celeron N2920 Intel® HD Graphics 1.86~2.0 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 2 6 12V/3A
I25 Pentium N3520 Intel® HD Graphics 2.17~2.42 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 2 6 12V/3A
