Fanless Industrial Computer I3 I5 2955U

Fanless Industrial Computer I3 I5 2955U

Model: Partaker I22

  • Intel® Celeron® 2955U Core I3 4005U I3 4020Y I5 4200Y Processor
  • Support 2 x LAN, 2 x COM (RS232), 1 x VGA, 1 x HDMI
  • Support 1 x SODIMM DDR3L RAM
  • Support 1 x mSATA SSD, 1 x 2.5 Inch SSD/HDD
  • Support 12V green and environmentally friendly
  • Support restore AC power loss/LAN PXE boot
  • Support WOL on Windows 7
  • Support VGA & HDMI Dual Display

Share to:

Overview



Partaker I22 is the cost-effective industrial mini PC. Multiple application fields, smooth operation, stable structure, flexible installation, simple operation, can be applied to industrial field control, food processing assembly line equipment control, CNC machine tools, instrument panels, robot controllers, cinemas, KTV, commercial banks, ATM machines , self-service inquiry machines, insurance companies, digital signage, medical industry, etc.



Mechanical

Material Aluminum alloy
Colour Black
Size 170 x 125 x 50mm
Weight 1.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop



Motherboard

CPU Intel® Celeron® Processor 2955U (2M Cache, 1.40 GHz)
Intel® Core™ i3-4005U Processor (3M Cache, 1.70 GHz)
Intel® Core™ i3-4010Y/4020Y Processor (3M Cache, 1.30 GHz)
Intel® Core™ i5-4200Y Processor (3M Cache, 1.90 GHz)
Chipset SOC
Network Card 2 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR4, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot



I/O Interfaces

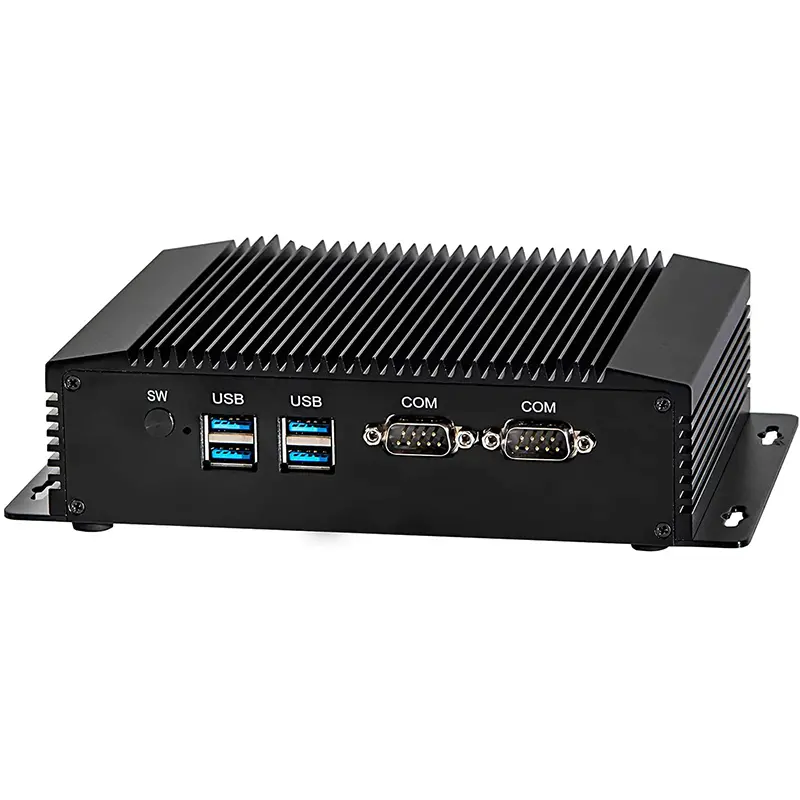

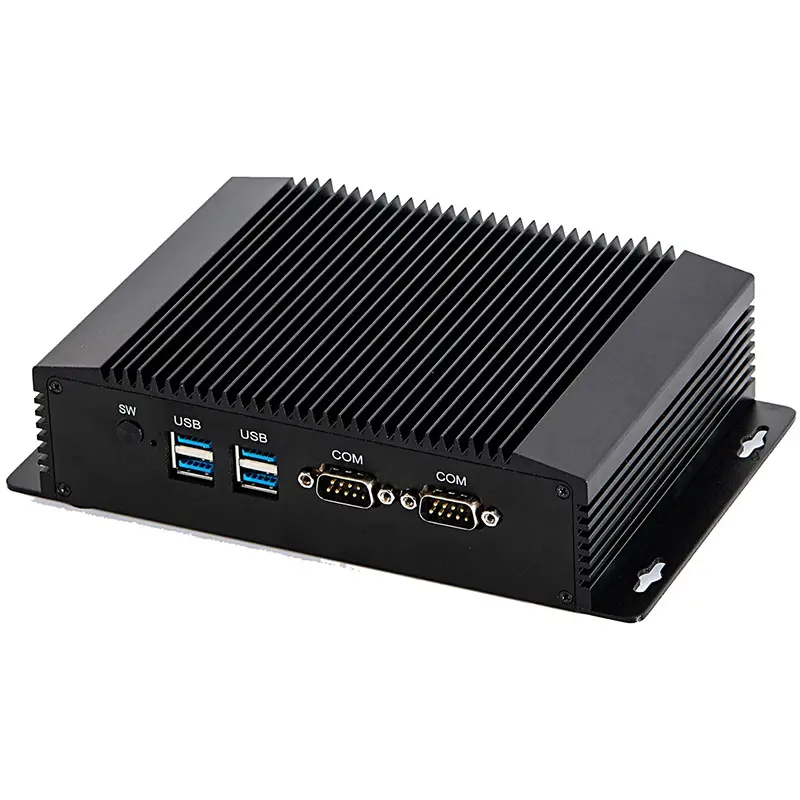

Front Panel 1 x Power button
4 x USB3.0
2 x COM

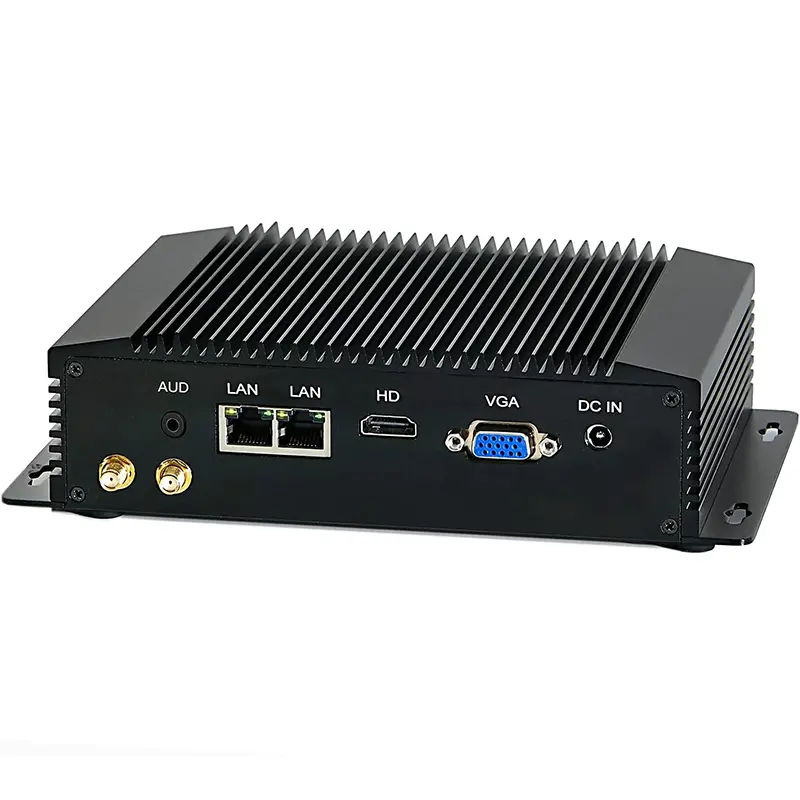

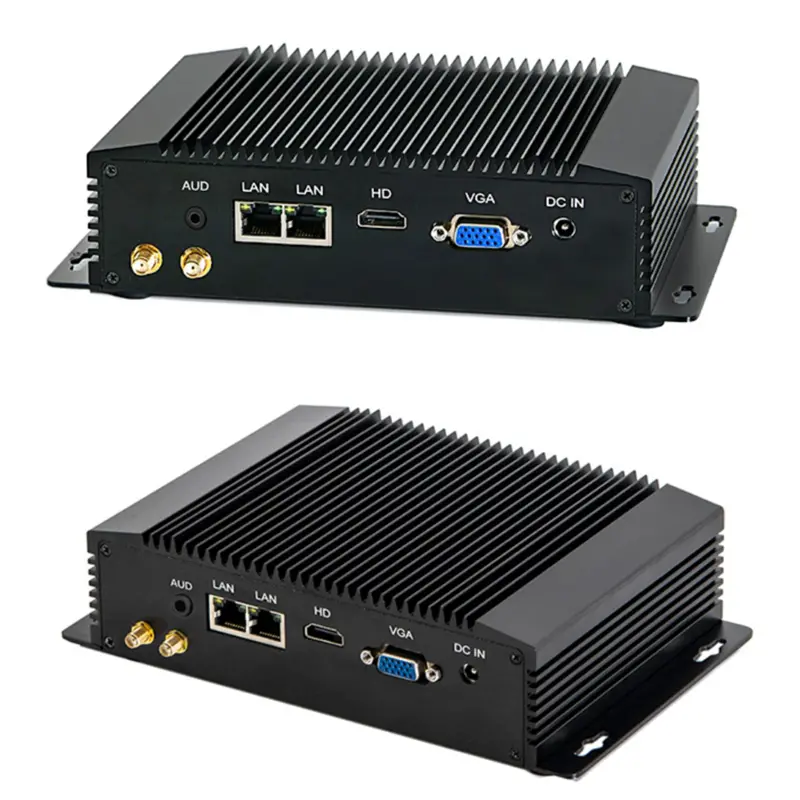

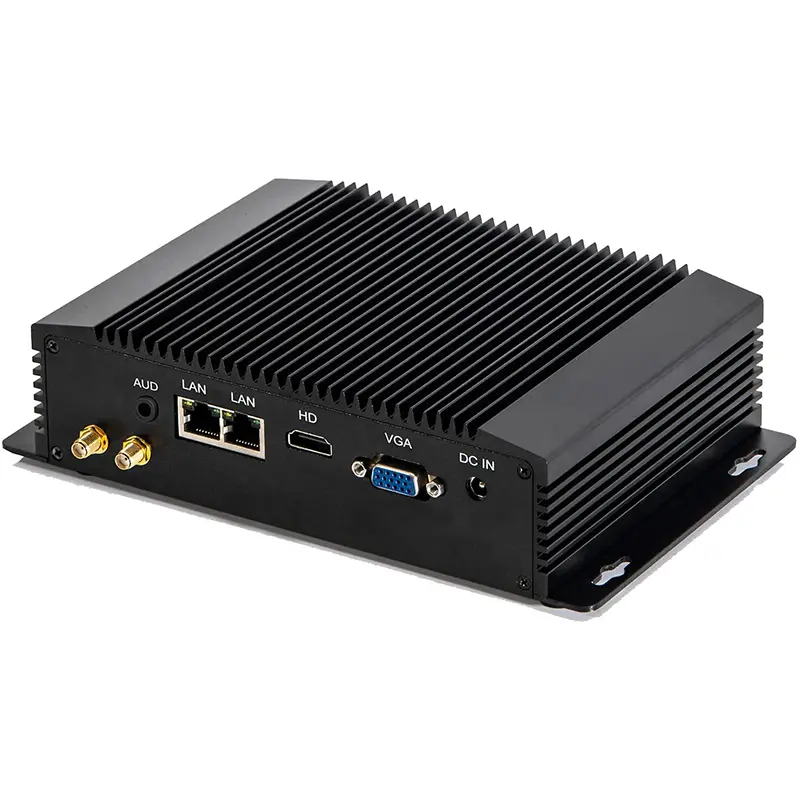

Rear Panel 1 x DC_in
1 x VGA
1 x HDMI
2 x Lan
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List Partaker I22 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
I22 2955U Intel® HD Graphics 1.4 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
I22 I3 4010Y Intel® HD Graphics 4200 1.3 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
I22 I3 4005U Intel® HD Graphics 4400 1.7 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
I22 I5 4200Y Intel® HD Graphics 4200 1.4 GHz~1.9 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 4 12V/3A
