Fanless Embedded Industrial PC J1900

Fanless Embedded Industrial PC J1900

Model: Partaker PA-1126

  • A fanless industrial PC powered by a 2.0GHz Intel Celeron J1900 quad-core processor
  • Industrial PC with 1 slot for DDR3L 1333/1600MHz SODIMM RAM (up to 8GB), 1 slot for MSATA, and 1 slot for 2.5” SSD/HDD
  • The PC has 1 VGA and 1 HD port, supporting both synchronous and asynchronous dual display
  • The PC has 2 Intel i211-AT 10/100/1000M LAN ports, 1 MINI PCIE slot for WIFI/3G/4G (only one can be chosen), and a SIM card slot
  • Ideal for industrial automation, medical, logistics and transportation, warehousing, and electronic education fields

Share to:

Overview



The J1900 Fanless Industrial Computer is a mini PC that can provide you with a reliable and silent industrial computing solution. It features:



•  A fanless design industrial pc rs485 with pcie slot, which offers excellent heat dissipation and durability

•  An Intel Celeron J1900 quad core processor, which delivers high performance and low power consumption for various industrial applications

•  A support for 8 x USB, 6 x Com, 2 x Intel 1000M Lan ports, which offer multiple connectivity options

•  A support for 1 x MSATA slot and 1 x 2.5 Inch HDD, which provide ample storage space

•  A support for 1 x Mini PCIE slot, which can accommodate other expansion cards

•  A support for Win 7/Win 8/Win 10/Linux operating systems, which offer a smooth and user-friendly operating system



The J1900 Fanless Industrial Computer is a great solution for applications such as industrial control, IoT gateway, digital signage, and more.





Mechanical

Material High-quality pure aluminum
Colour Titanium gray(Any color can be)

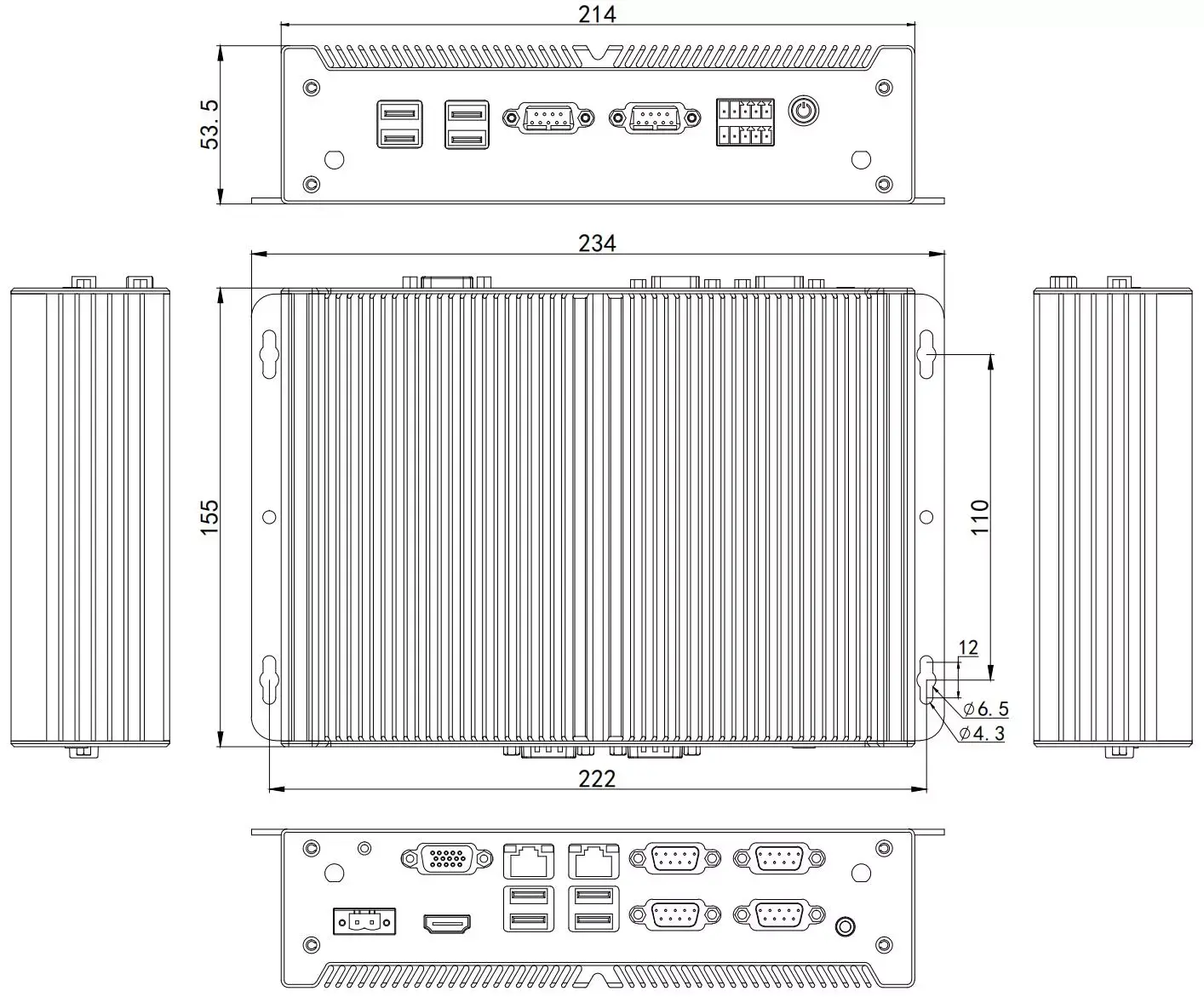

Size 234 x 155 x 53.5mm
Weight 2.5Kgs
Insallation Method With mounting ears, Wall-mounted, embedded, desktop



Motherboard

CPU Intel Celeron J1900(Quad core,1.99Ghz)
Display Ports 1 x VGA, 1 x HDMI, (Support synchronous and asynchronous dual display)
Graphic Intel HD Graphics
Network Card 2 x Intel i211-AT 10/100/1000M lan
Memory Support 1 x DDR3 1333/1600MHz SODIMM ram slot, support max 8 G
Storage 1 x mSATA,1 x 2.5 Inch HDD or SSD
Expansion
1 x MINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot
Other Function
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)



I/O Interfaces

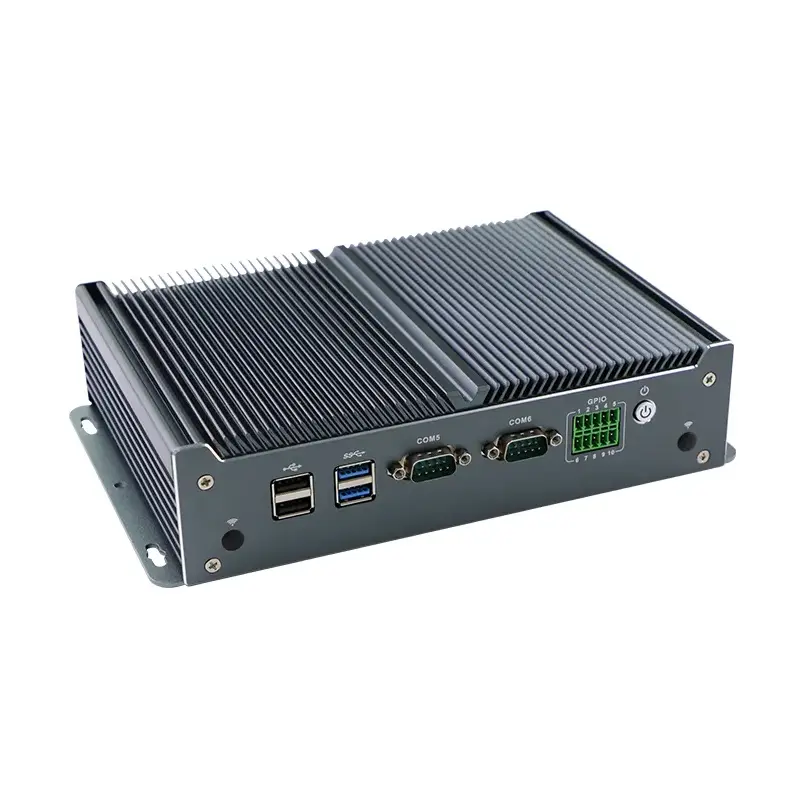

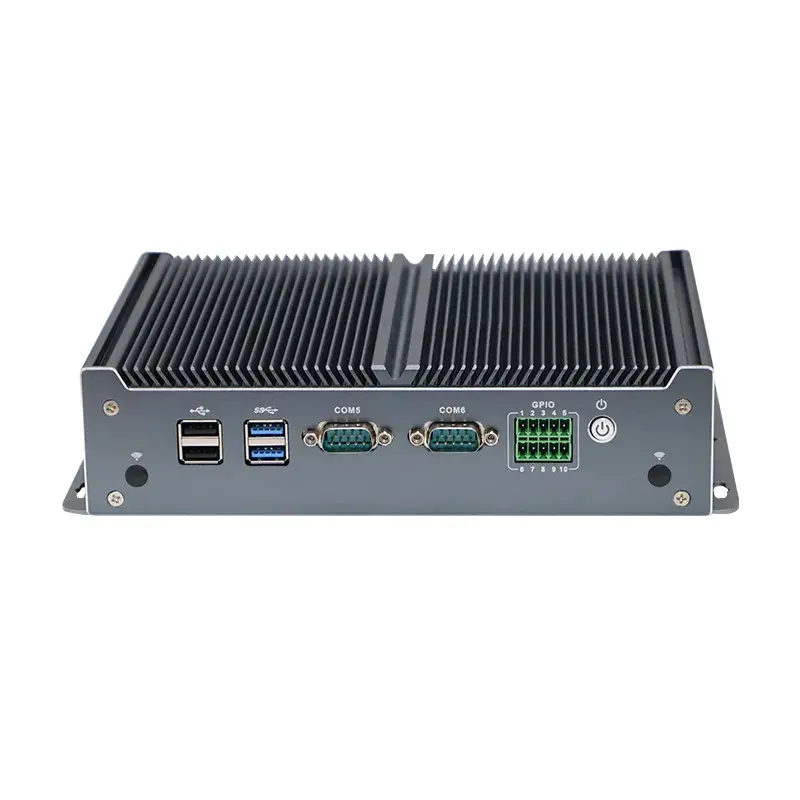

Front Panel

1 x Power Switch
2 x USB3.0
2 x USB2.0
1 x GPIO
2 x RS232 COM

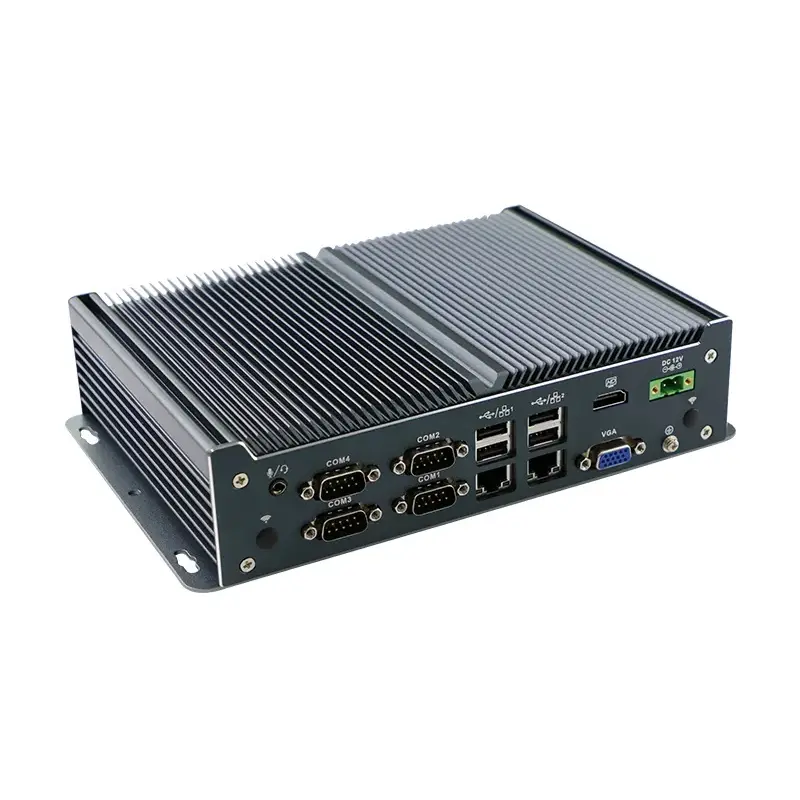

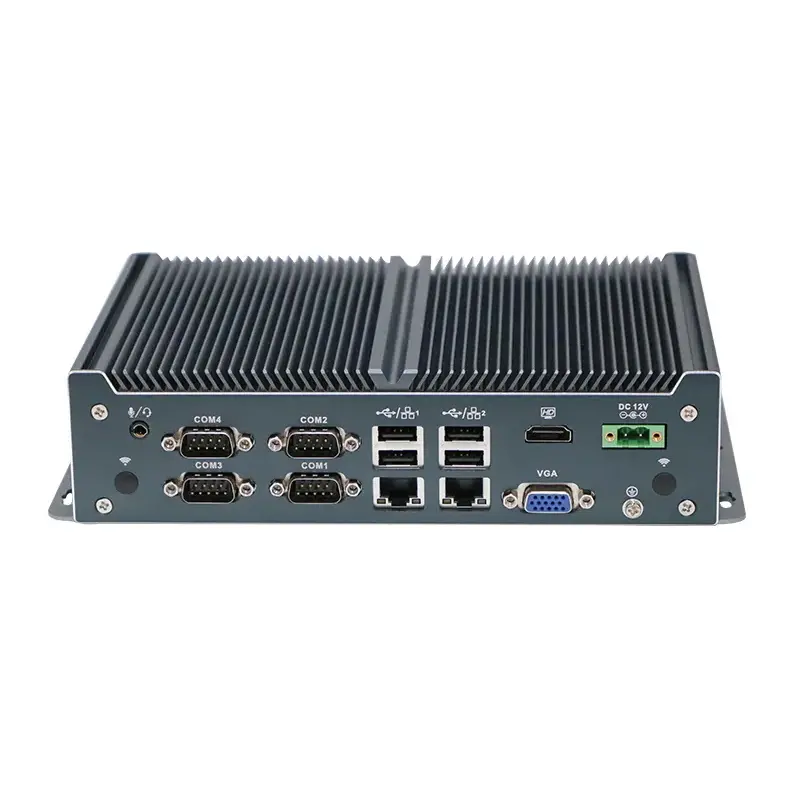

Rear Panel

1 x 2PINS phoenix power connector
2 x LAN
1 x HDMI
1 x VGA
4 x USB2.0
1 x MIC/SPK
4 x COM(COM1,2 RS232/485 Optional)



Software Support

Bios AMI EFI BIOS
System Support Windows 7/8/10, Linux



General

Cooling Mode Fanless
Power Supply Support DC 12v Input

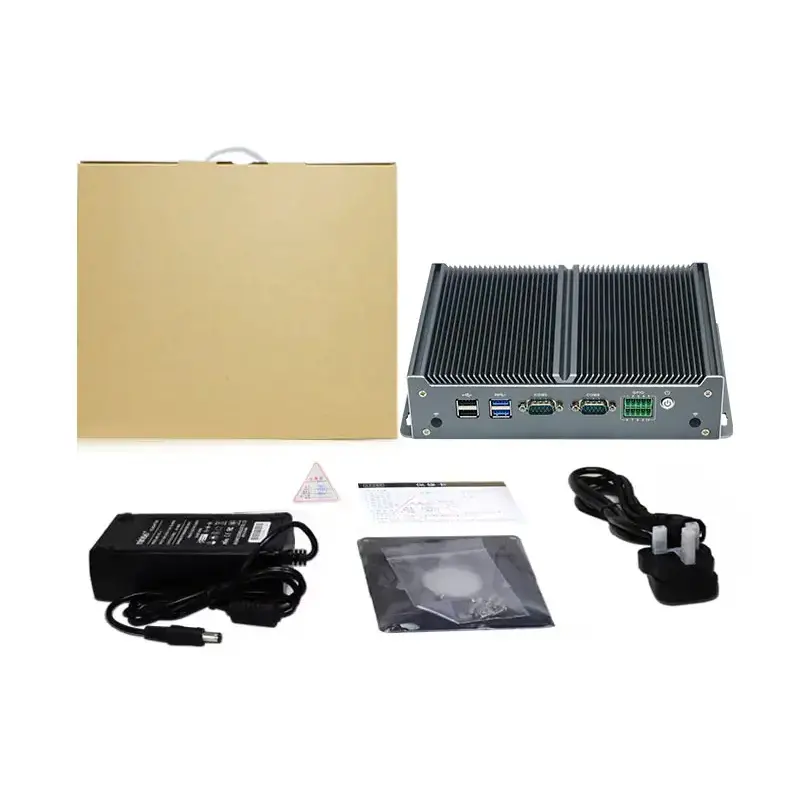

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable, 1 x VESA & Screws



Environment

Work Temperature 0℃ ~ +50℃ ( HDD),-20℃ ~ +60℃ ( SSD),Surface air flow
Relative Humidity 5% ~ 95% non-condensing
Certification CE FCC ROHS
Application Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields



industrial computers

Model Processor Graphic Frequency Display Memory Storage LAN USB Power
PA-1126 J1900 Intel® HD Graphics 2.0~2.42GHz 1 x HDMI/1 x VGA 1 x SO-DIMM DDR3, Max 8G 1 x mSATA/1 x 2.5 Inch HDD or SSD 2 8 DC 12V
