Enterprise Grade 1u Rackmout 8 Lan Firewall

Enterprise Grade 1u Rackmout 8 Lan Firewall

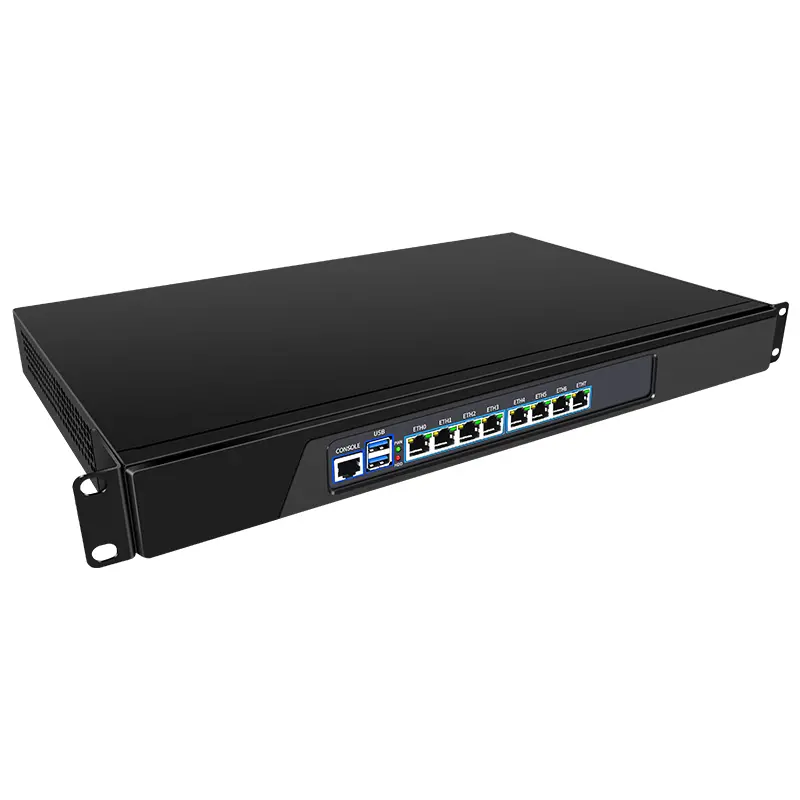

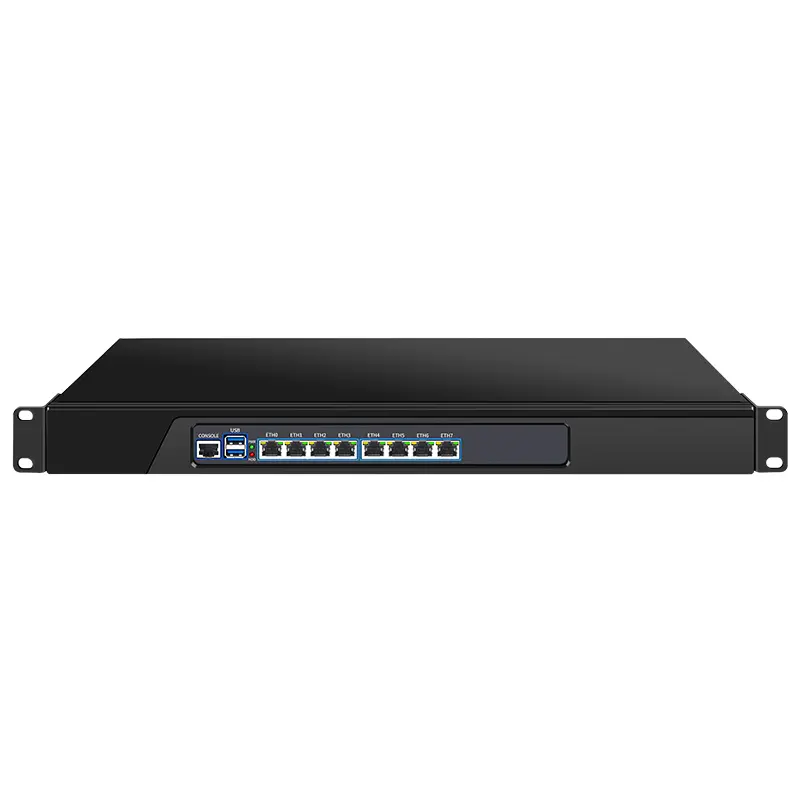

Model: Partaker S08

  • Supports 2nd and 3rd generation Core i3/i5/i7 processors, providing flexibility and compatibility with a range of CPU options.
  • Features one DDR3L 1600 slot with a maximum capacity of 8GB, allowing for sufficient memory to support various applications and multitasking.
  • Equipped with one mSATA slot and one 2.5-inch hard drive bay, offering options for both high-speed solid-state drives and traditional hard disk drives.
  • Supports eight Intel Gigabit Ethernet ports, enabling robust network connectivity for data-intensive applications or network infrastructure requirements.
  • Built with a sturdy sheet metal structure and designed with an efficient cooling fan system, ensuring reliable performance and thermal management.
  • Compact dimensions of 440x287x45 (mm) (excluding mounting ears) make it suitable for space-constrained environments or installations.

Share to:

Overview



Partaker S08 1U 8-port 2nd-3rd Generation Soft Router is a compact network router device that features 8 network interfaces and supports 2nd and 3rd generation Intel Core i3/i5/i7 processors.



The 1U 8-port 2nd-3rd Generation Soft Router is a powerful and flexible network router device suitable for small and medium-sized enterprises, branch offices, data centers, and other environments that require multiple interfaces and high-performance routing capabilities. It provides reliable network connectivity, high-speed data transmission, and versatile routing capabilities, offering users a flexible and efficient solution for network management and security protection.



Mechanical

Material Iron, Aluminum panel
Colour Gray
Size 440 x285 x 45(mm)(without mounting ear)
Weight 7.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting

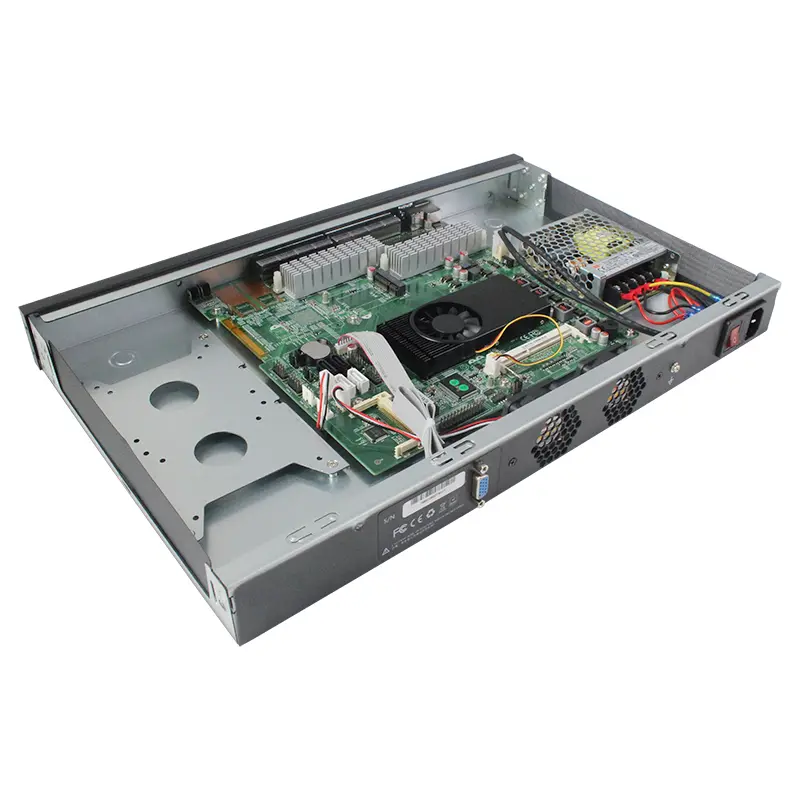

Motherboard

CPU Supports 2th/3th Intel®celeron/Core™ i3/i5/i7 processors

(1005M/I3-2350M/3110M/I5-2520M/3320M/I7-3520M/3630QM) I5-3317U/I7-3517U

Network Card 8 Intel 82583V network interfaces (optional 82574L)
Graphic Depend on CPUs
Memory Support 1 x DDR3L 1600 MHz SODIMM memory slot, maximum support 8GB
Storage 1 x mSATA SSD
1 2.5-inch hard drive
Display 1 x VGA, 1 x HDMI (Optional)
Expand 1 x Mini-PCIE slot (WIFI/Bluetooth with optional USB protocol), 1× Mini-PCIE slot (4G module)
Support 1 PCI-E X8 PCI-E expansion slot



I/O Interfaces

Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

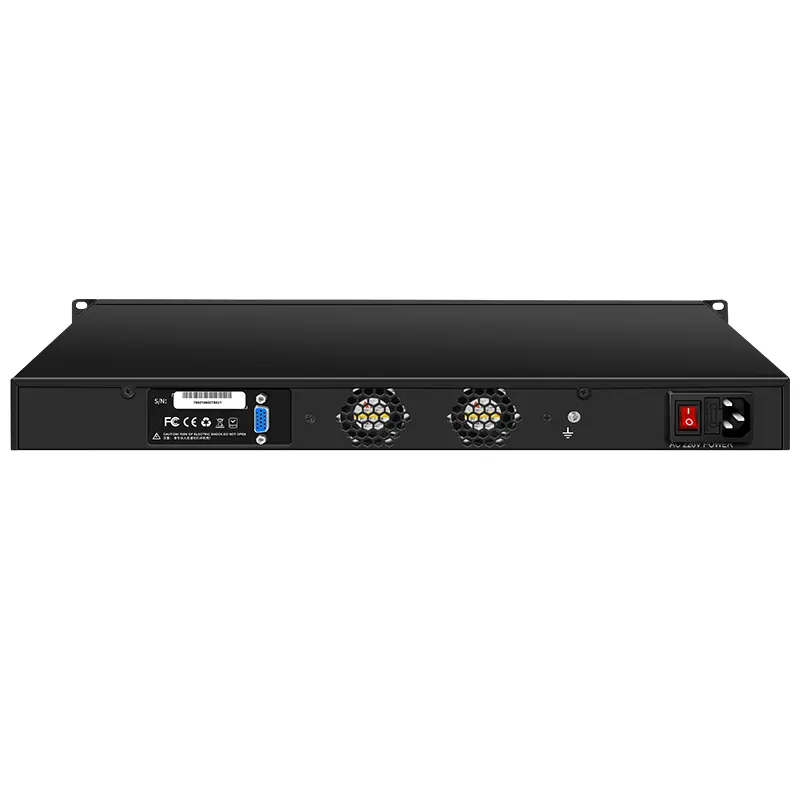

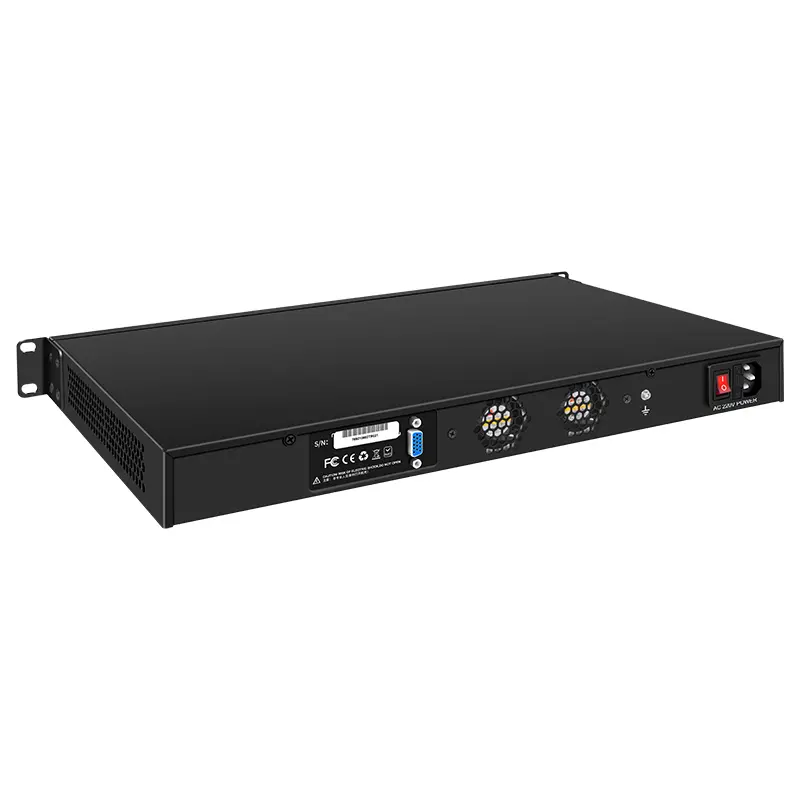

Rear Panel 1 x Console
2 x 3.0
8 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S08 firewall, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S08 I3 2350M Intel® HD Graphics 3000 2.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 12V4.2A
S08 I5 2520M Intel® HD Graphics 3000 2.5~3.20GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 12V4.2A
S08 I3 3110M Intel® HD Graphics 4000 2.400GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 12V4.2A
S08 I5 3320M Intel® HD Graphics 4000 2.6~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 12V4.2A
S08 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 12V4.2A
