Efficient 6-Port 1U Aluminum Panel Soft Router

Efficient 6-Port 1U Aluminum Panel Soft Router

Model: Partaker S03

  • Robust Sheet Metal Construction: The firewall appliance’s strong sheet metal build ensures durability and reliability in challenging environments.
  • Advanced Oil Spray Technology: With cutting-edge oil spray technology, the device gains enhanced corrosion resistance and a longer lifespan.
  • Efficient Fan Design: The appliance incorporates an optimized fan design, improving airflow and ensuring effective cooling for system stability.
  • Onboard Intel Processor Support: It supports a range of Intel processors (Atom, Core, Celeron, Pentium), offering flexibility and scalability for diverse performance needs.
  • DDR Memory Module Compatibility: The appliance accommodates DDR3, DDR3L, and DDR4 memory modules, allowing for adaptable memory configurations.
  • Flexible Storage Options: Featuring a dedicated mSATA slot and a 2.5-inch hard drive bay, the appliance enables customizable storage capacity to suit specific requirements.
  • Compact Dimensions: With a size of 430x255x45mm (excluding mounting ears), the appliance optimizes space utilization, making it ideal for constrained deployments.

Share to:

Overview



Partaker S03 Soft Router with Powerful Multi-CPU supported with Intel Atom Celeron Core series processor, 1U Rack-Mountable Design, 2.5Gbps 6-Port Network Card, Broadband Aggregation, Enhanced with IKuai WeiMeng Panabit/PF/CentOS Galaxy Kylin for optimized performance.



The 1U6-port soft router is a network device with a 1U rack height and six Ethernet ports. It offers high-performance and reliable network connectivity and routing capabilities, suitable for enterprise networks, data centers, and other environments. This soft router supports multiple network protocols such as IPv4 and IPv6, providing flexible routing configuration and management features. It also ensures reliable physical connections and high-speed transmission capabilities through its Ethernet interfaces. Additionally, it supports network security features like firewalls and VPNs. By using the 1U6-port soft router, users can control and manage network traffic, enhancing network stability and reliability.



Mechanical

Material Iron, Aluminum panel/PVC panel
Colour Gray/Red/White(any color can be customized)
Size 430 x255 x 45(mm)
Weight 6.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting



Motherboard

CPU Intel Atom D525, dual-core four-thread, main frequency: 1.8GHz

Intel Core i3-3110M, (Optional 1005M/I3-2350M/I5-2520M/3320M/I7-3520M/3610M/3630QM)

Intel Celeron J4125, quad-core and four-thread, main frequency: 2.0GHz(optional N4000)

Intel Celeron N5105, quad-core and four-thread, main frequency: 2.0GHz(optional N5100)

Intel Pentium 4405U (optional 3865U/I3-7100U/8130U/I5-7200U/8250U/I7-7500U/8550U)

Intel Core I3-1115G4 (optional I5-1135G7/I7-1165G7)

Network Card Intel 82583V/82574L/I211 1G adaptive network card interface, (optional I225/226 2.5G network card)(Depend on CPUs)
Graphic Depend on CPUs
Memory 1 x DDR3 1066/1333 SODIMM Ram Slot, Up to 4GB
1 x DDR3L 1600MHz SODIMM Ram Slot, Up to 8GB
2 x DDR4 2400 MHz SODIMM memory slots, up to 8GB
2 x DDR4 2933 MHz SODIMM memory slots, up to 32GB
2 x DDR4 2133 MHz SODIMM memory slots, up to 64GB
2 x DDR4 3200 MHz SODIMM memory slots, up to 64GB
Storage 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD
Display 1 x VGA
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog



I/O Interfaces

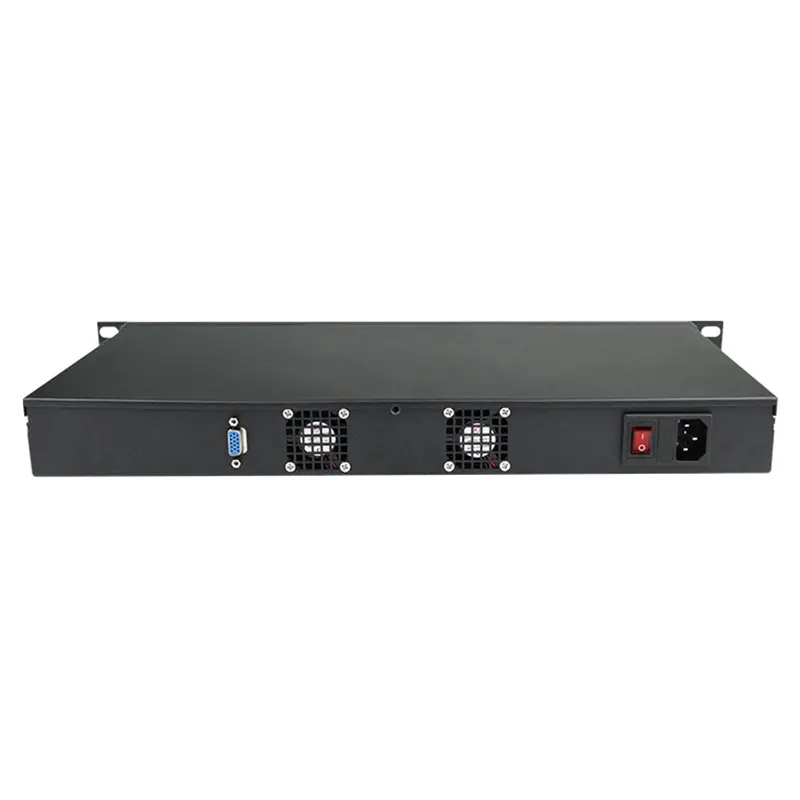

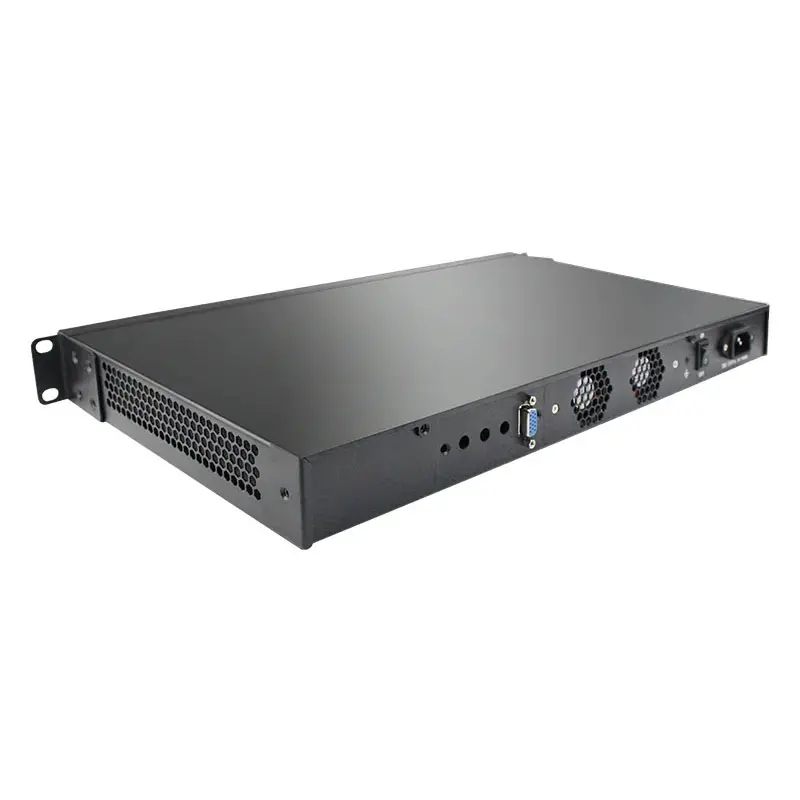

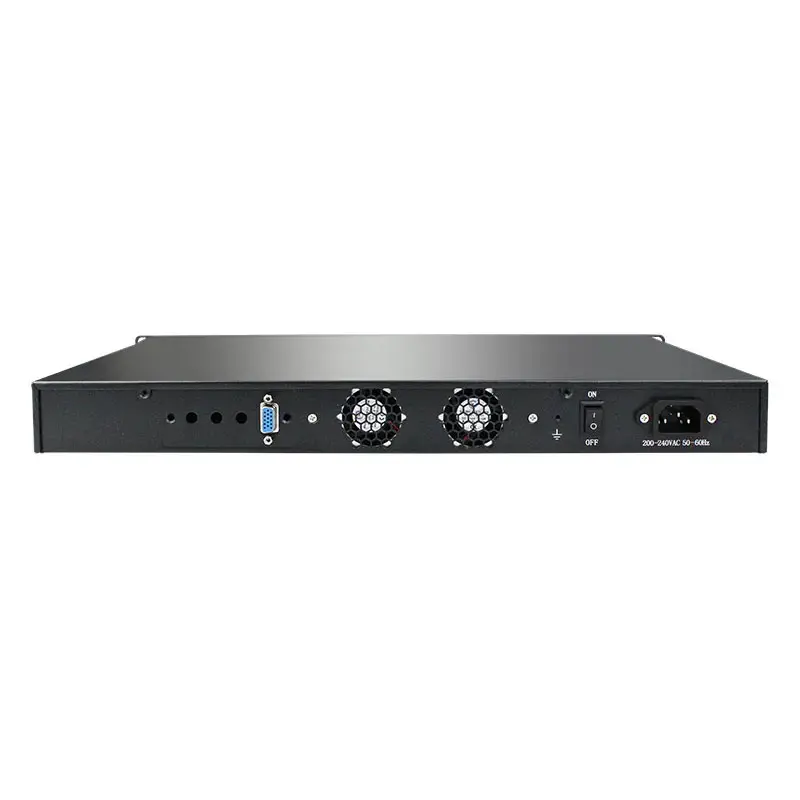

Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

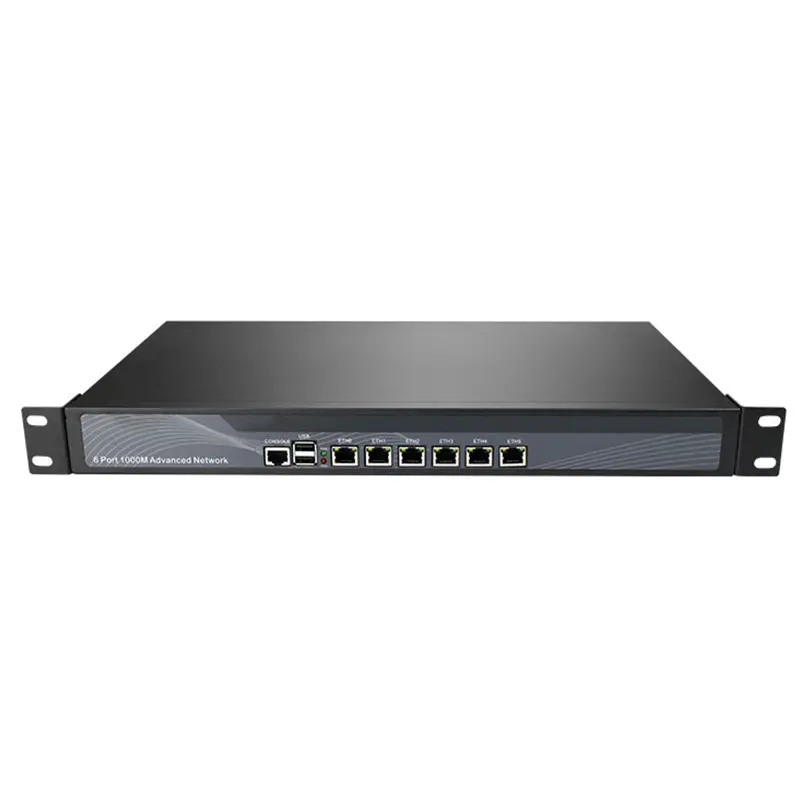

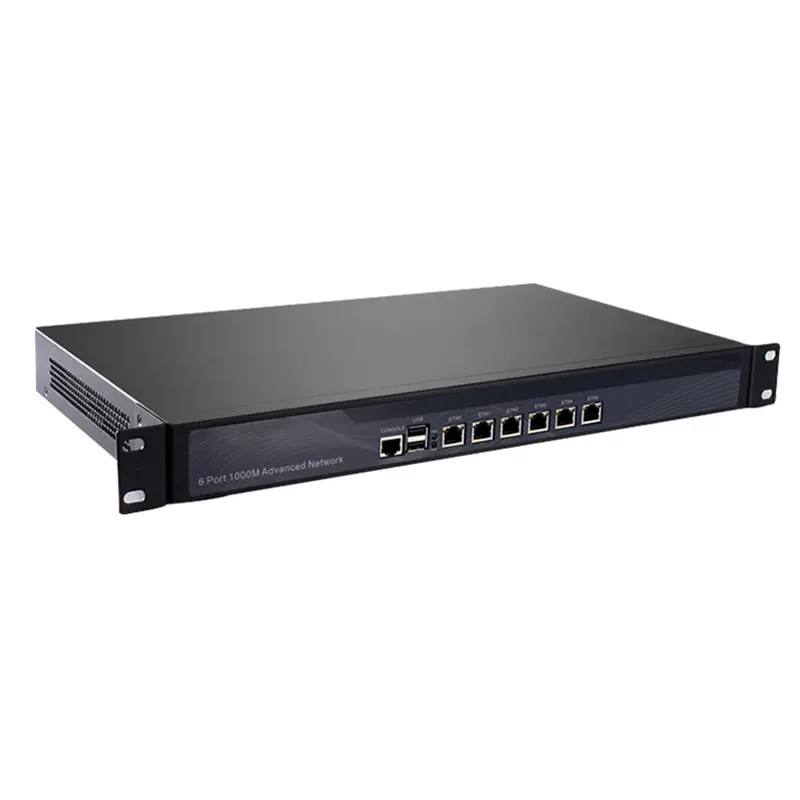

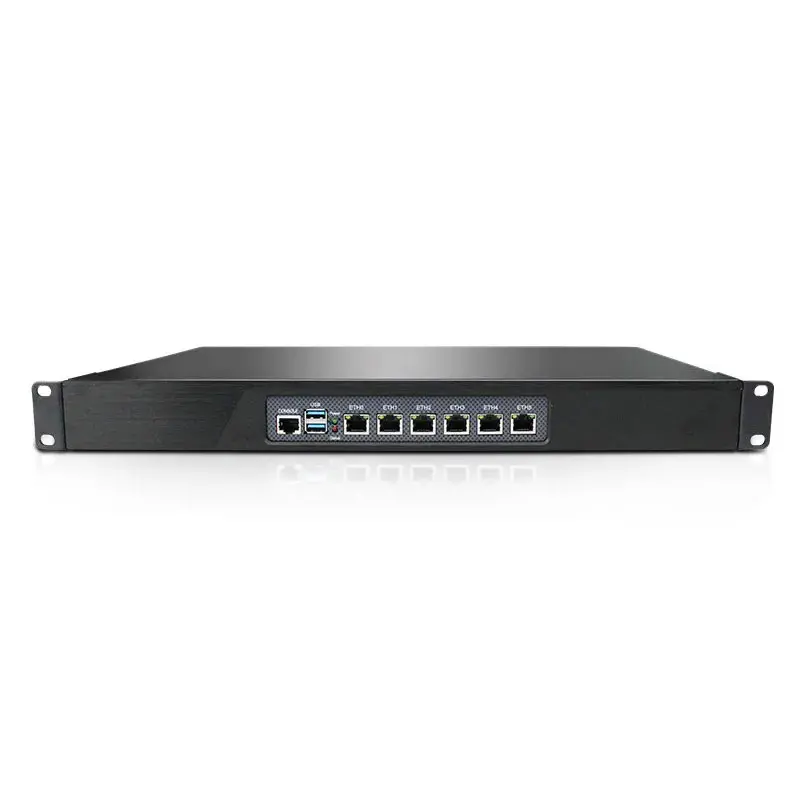

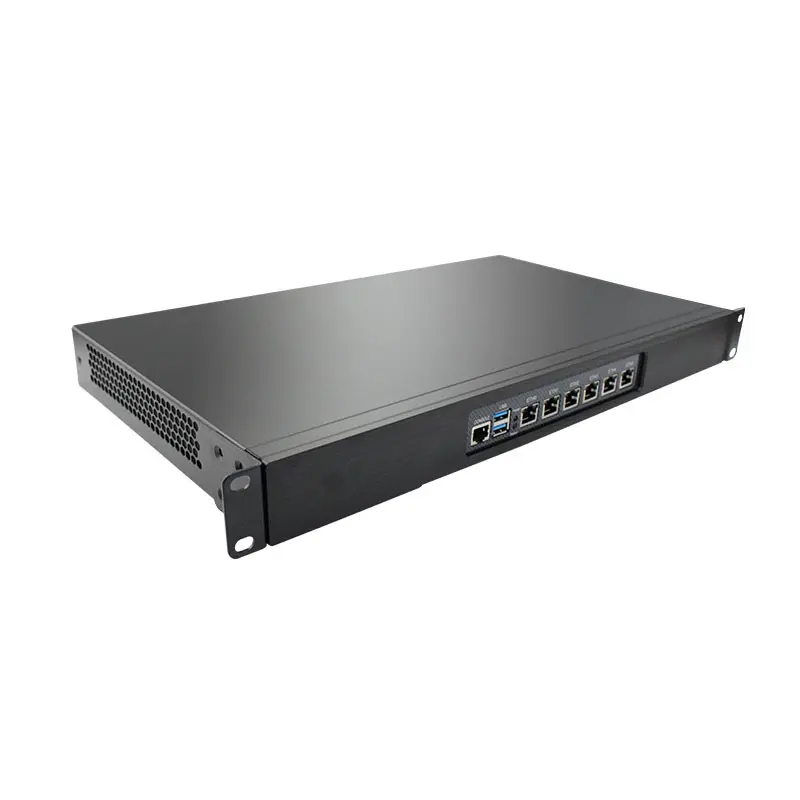

Rear Panel 1 x Console
2 x 3.0
6 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S03 firewall, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S03 D525 Intel® HD Graphics 1.80GHz 1 x VGA 1 x SO-DIMM DDR3, Max 4GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I3 3110M Intel® HD Graphics 4000 2.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 1005M Intel® HD Graphics 1.90GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I3 2350M Intel® HD Graphics 3000 2.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I5 2520M Intel® HD Graphics 3000 2.5~3.20GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I5 3320M Intel® HD Graphics 4000 2.6~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I5 3610ME Intel® HD Graphics 4000 2.7~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I7 3630QM Intel® HD Graphics 4000 2.4~3.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 J4125 Intel® UHD Graphics 600 2.0~2.70GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 N4000 Intel® UHD Graphics 600 1.1~2.60GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 N4000 Intel® UHD Graphics 600 1.1~2.60GHz 1 x VGA 2 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 N5105 Intel® UHD Graphics 2.0~2.90GHz 1 x VGA 2 x SO-DIMM DDR4, Max 32GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 N5100 Intel® UHD Graphics 1.1~2.80GHz 1 x VGA 2 x SO-DIMM DDR4, Max 32GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 4405U Intel® HD Graphics 510 2.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/4A
S03 I3 7100U Intel® HD Graphics 620 2.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S03 I3 8130U Intel® UHD Graphics 620 2.2~3.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S03 I5 8250U Intel® UHD Graphics 620 1.6~3.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S03 I7 8550U Intel® UHD Graphics 620 1.8~4.00GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S03 I3 1115G4 Intel® UHD Graphics 1.7~4.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S03 I5 1135G7 Intel® Iris Xe Graphics 2.4~4.20GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
S03 I7 1165G7 Intel® Iris Xe Graphics 1.2~4.70GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V/5A
